SAB80C517-N-T40/85 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SAB80C517-N-T40/85

SAB80C517-N-T40/85: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，61 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

SAB80C517-N-T40/85 Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQCC84, PLASTIC, LCC-84

SAB80C517-N-T40/85 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	LCC
package instruction	PLASTIC, LCC-84
Contacts	84
Reach Compliance Code	not_compliant
Has ADC	YES
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
length	29.4 mm
Number of I/O lines	68
Number of terminals	84
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	4.58 mm
speed	12 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	29.4 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

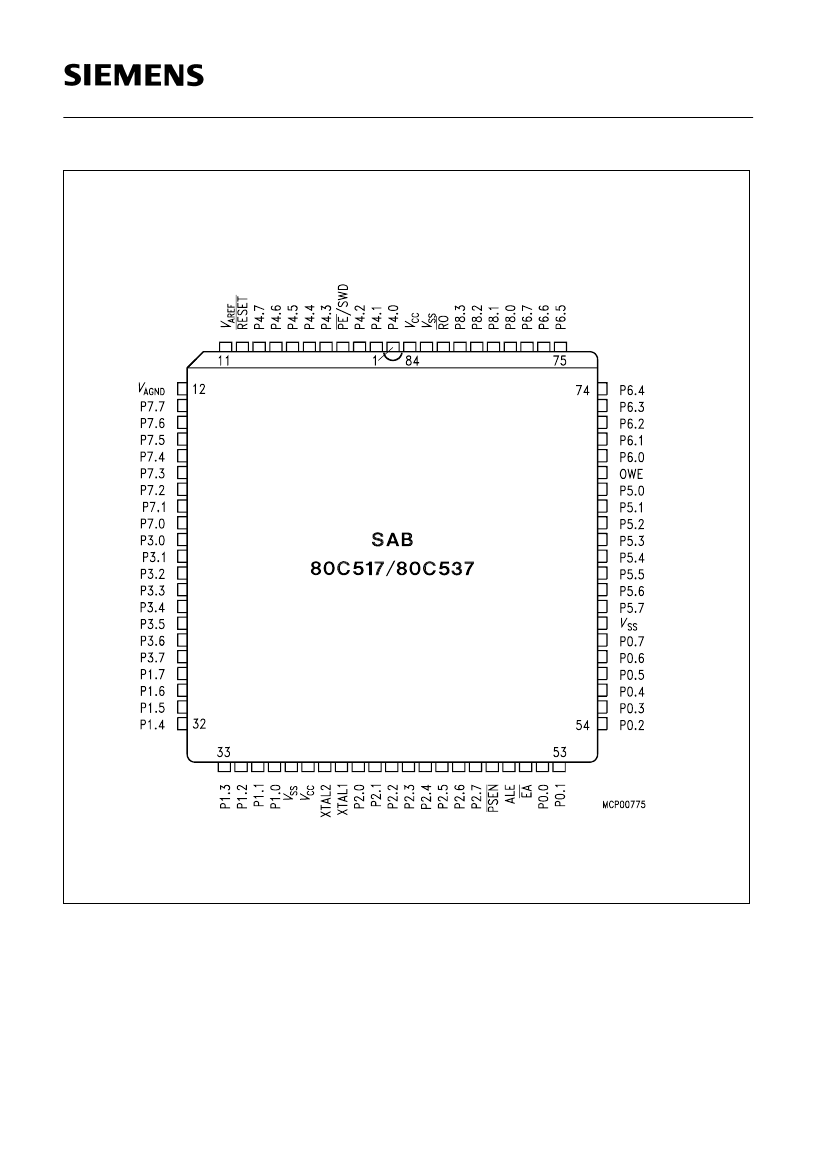

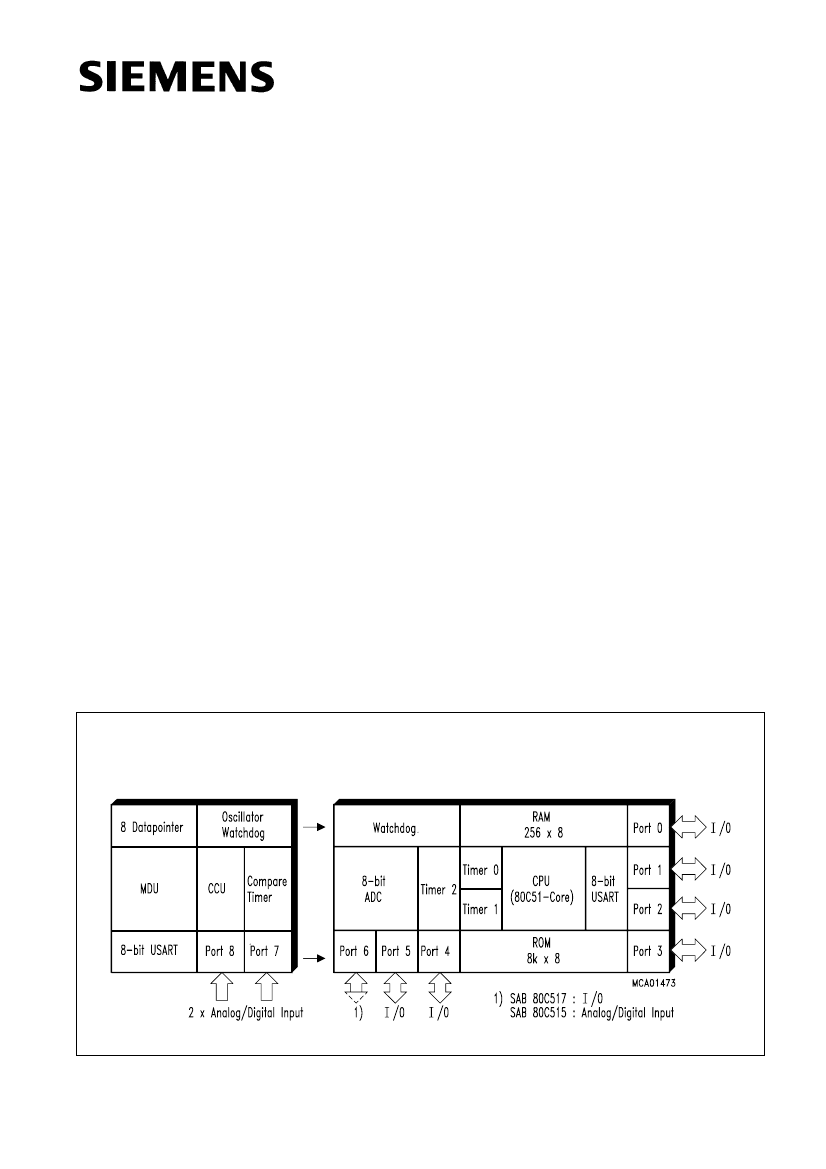

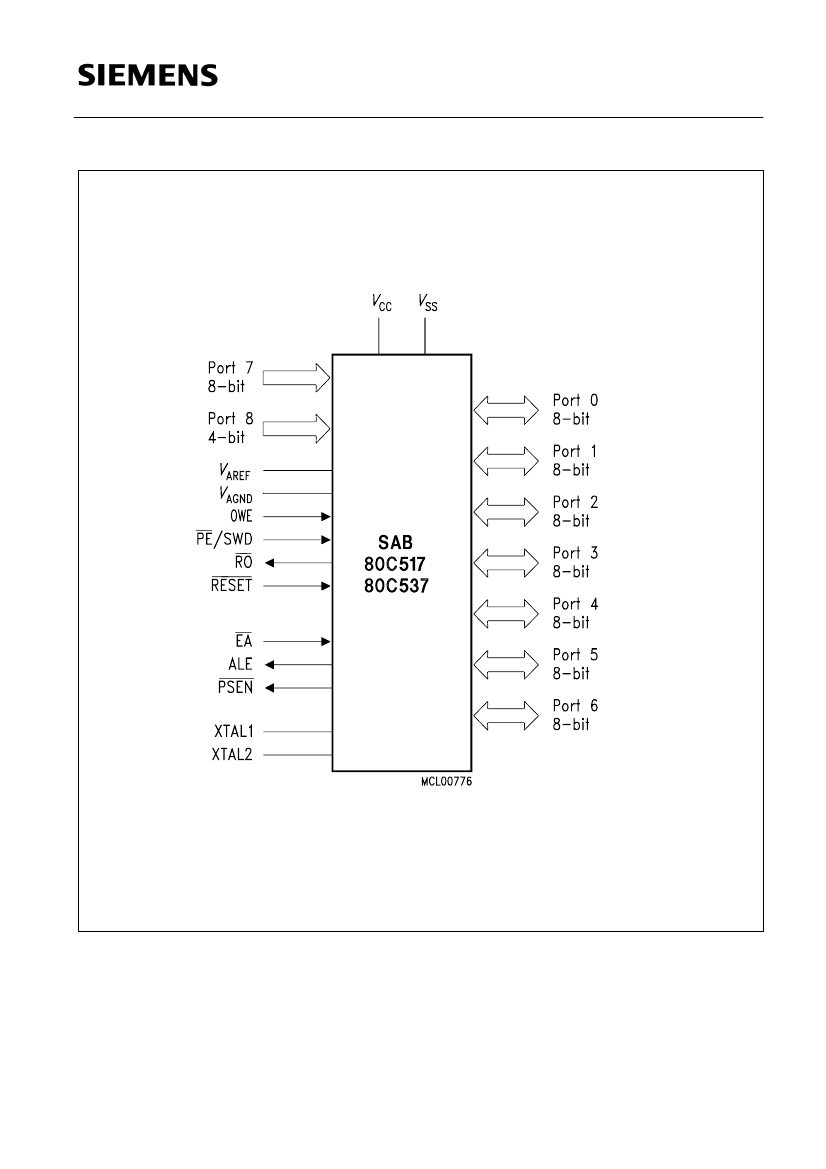

Microcomputer Components

8-Bit CMOS Single-Chip Microcontroller

SAB 80C517/80C537

Data Sheet 04.95

SAB80C517-N-T40/85 Related Products

	SAB80C517-N-T40/85	SAB80C517-N16	SAB80C517-M16	SAB80C517-N16-T40/85	SAB80C517-M-T40/85	SAB80C537-N-T40/85	SAB80C517-16-N-T40/85	SAB80C537-M-T40/85	SAB80C537-M16	SAB80C517-N
Description	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQFP100, METRIC, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQFP100, METRIC, PLASTIC, QFP-100	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, PQFP100, METRIC, PLASTIC, QFP-100	Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PQFP100, METRIC, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQCC84, PLASTIC, LCC-84
Parts packaging code	LCC	LCC	QFP	LCC	QFP	LCC	LCC	QFP	QFP	LCC
package instruction	PLASTIC, LCC-84	PLASTIC, LCC-84	METRIC, PLASTIC, QFP-100	PLASTIC, LCC-84	METRIC, PLASTIC, QFP-100	PLASTIC, LCC-84	PLASTIC, LCC-84	METRIC, PLASTIC, QFP-100	METRIC, PLASTIC, QFP-100	PLASTIC, LCC-84
Contacts	84	84	100	84	100	84	84	100	100	84
Reach Compliance Code	not_compliant	unknown	unknown	unknown	unknown	unknown	not_compliant	not_compliant	not_compliant	compliant
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051	8051	8051
maximum clock frequency	12 MHz	16 MHz	16 MHz	16 MHz	12 MHz	12 MHz	16 MHz	12 MHz	16 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8	8	8
JESD-30 code	S-PQCC-J84	S-PQCC-J84	R-PQFP-G100	S-PQCC-J84	R-PQFP-G100	S-PQCC-J84	S-PQCC-J84	R-PQFP-G100	R-PQFP-G100	S-PQCC-J84
length	29.4 mm	29.4 mm	20 mm	29.4 mm	20 mm	29.4 mm	29.4 mm	20 mm	20 mm	29.4 mm
Number of I/O lines	68	68	68	68	68	68	68	68	68	68
Number of terminals	84	84	100	84	100	84	84	100	100	84
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QFP	QCCJ	QFP	QCCJ	QCCJ	QFP	QFP	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ	LDCC84,1.2SQ	QFP100,.7X.9	LDCC84,1.2SQ	QFP100,.7X.9	LDCC84,1.2SQ	LDCC84,1.2SQ	QFP100,.7X.9	QFP100,.7X.9	LDCC84,1.2SQ
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256	256	256	256	256	256	256
rom(word)	8192	8192	8192	8192	8192	-	8192	-	-	8192
Maximum seat height	4.58 mm	4.58 mm	3.4 mm	4.58 mm	3.4 mm	4.58 mm	4.58 mm	3.4 mm	3.4 mm	4.58 mm
speed	12 MHz	8 MHz	8 MHz	8 MHz	12 MHz	12 MHz	8 MHz	12 MHz	8 MHz	12 MHz
Maximum slew rate	40 mA	52.3 mA	52.3 mA	52.3 mA	40 mA	40 mA	40 mA	40 mA	52.3 mA	40 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING	J BEND	GULL WING	J BEND	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	29.4 mm	29.4 mm	14 mm	29.4 mm	14 mm	29.4 mm	29.4 mm	14 mm	14 mm	29.4 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Infineon	-	-	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
ROM programmability	MROM	MROM	MROM	MROM	MROM	-	MROM	-	-	MROM
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Other features	-	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER	16 X 16-BIT MULTIPLIER; 32 X 16-BIT DIVIDER
