BCL-2038 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> BCL-2038

BCL-2038: DescriptionCompression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 3/8; CategoryThe connector terminals; File Size237KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

BCL-2038 Overview

Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 3/8

BCL-2038 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	0 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0192210379

Active

Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 3/8", Un-Plated

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19221

Heavy Duty

Yes

N/A

Battery Cable Lug

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

None

Tin

Bag

3/8" (M9)

Crimp or Compression

N/A

2/0

60.50 - 76.20

Material Info

Old Part Number

BCL-2038

Search Parts in this Series

19221Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Putt Pump Dieless 0192860065

Head System

Manual tool for

0192940008

Crimping non-

insulated 8AWG thru

4/0 Terminals

Manual Putt Pump 0192860117

Hydraulic System,

Die set required

Hand Crimp Tool

0192840034

Die Set (large) for

0192900012

the HHLS Hydralic

Crimper

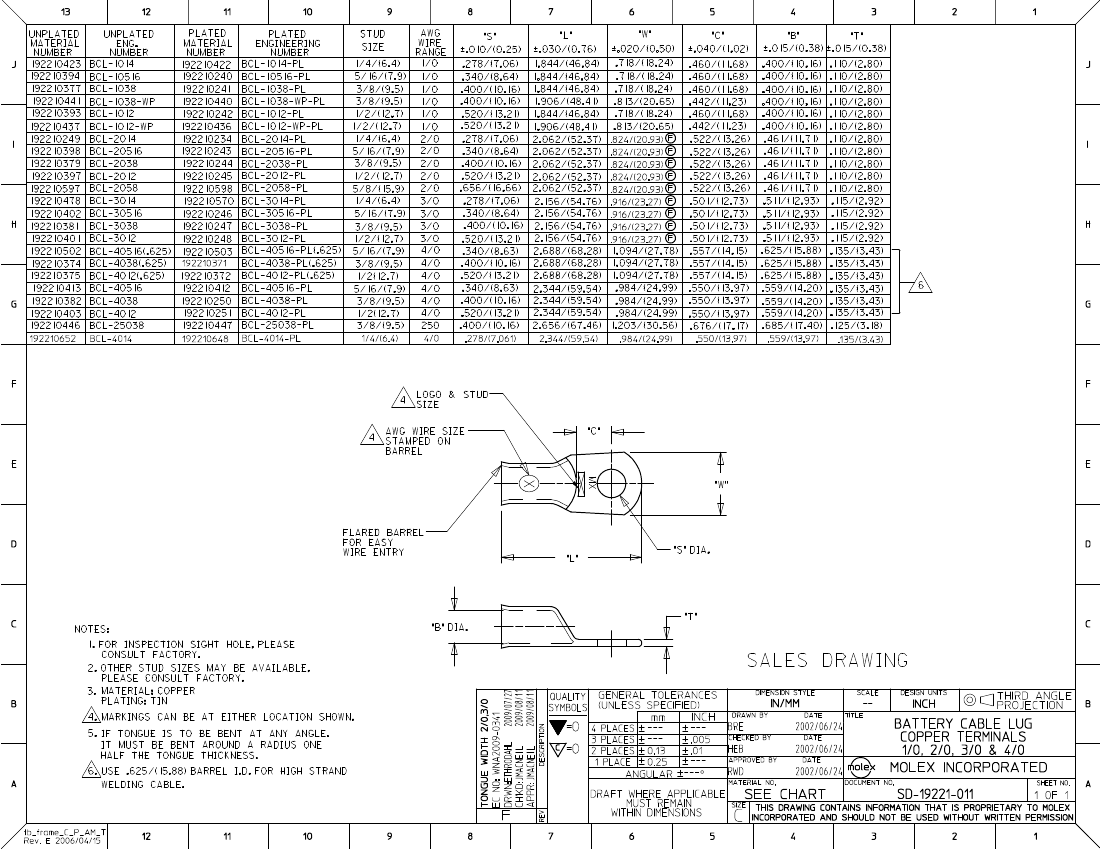

Reference - Drawing Numbers

Sales Drawing

SD-19221-011

BCL-2038 Related Products

	BCL-2038	WSH202
Description	Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 3/8	Linear Hall Effect Sensor IC
