256-30695-1014: DescriptionRing Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size35KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

256-30695-1014 Overview

Ring Terminal, ROHS COMPLIANT

256-30695-1014 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

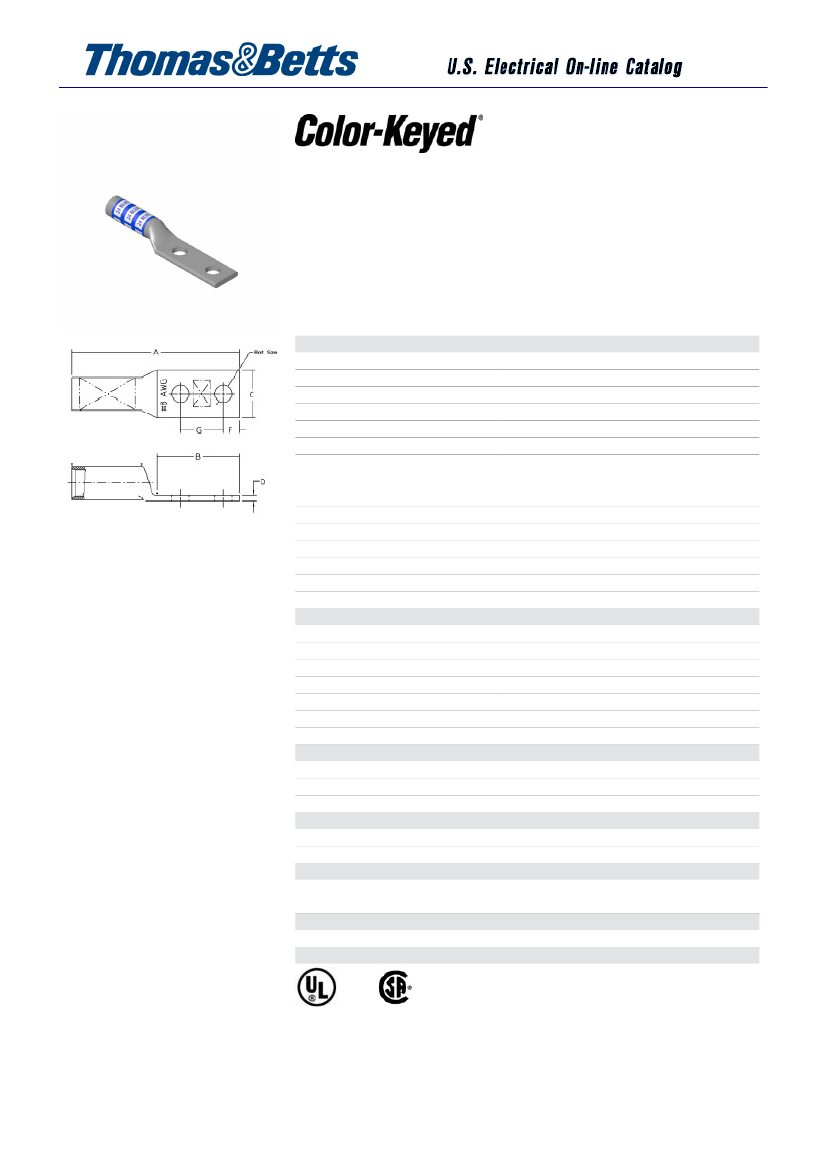

T&B Catalog Number:

UPC Number:

Description:

256-30695-1014

78621089680

Copper Two-Hole Lug - Straight Long Bar-

rel - max 35KV, #6 AWG Wire, 1/4" Bolt

Size, 1" Hole Spacing, Tin Plated Blind

End, Blue 24

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Bolt Hole Spacing

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

#6 AWG

2

1/4

1

Straight

Long

Standard

N

Standard

Round

Blue

24

2.813

1.875

0.578

0.078

0.297

0.25

1

500

Each

2.66 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Dimension Information

A (inches)

B (inches)

C (inches)

D (inches)

E (inches)

F (inches)

G (inches)

Packaging

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

256-30695-1014 Related Products

	256-30695-1014
Description	Ring Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	6 AWG
Base Number Matches	1
