B84143A0150R105 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B84143A0150R105

B84143A0150R105: DescriptionThree Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6; CategoryAnalog mixed-signal IC filter; File Size716KB，16 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84143A0150R105 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B84143A0150R105	-	-	View	Buy Now

B84143A0150R105 Overview

Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6

B84143A0150R105 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	METAL PACKAGE-6
Reach Compliance Code	not_compliant
Other features	TERMINAL BLOCK CONNECTIONS
Certification	UL; ENEC-10
filter type	THREE PHASE EMI FILTER
high	150 mm
high potential	2720 V
Maximum leakage current	18 mA
length	270 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L270.0XB90.0XH150.0 (mm)/L10.63XB3.543XH5.906 (inch)
Rated current	150 A
Rated voltage	520 V
width	90 mm

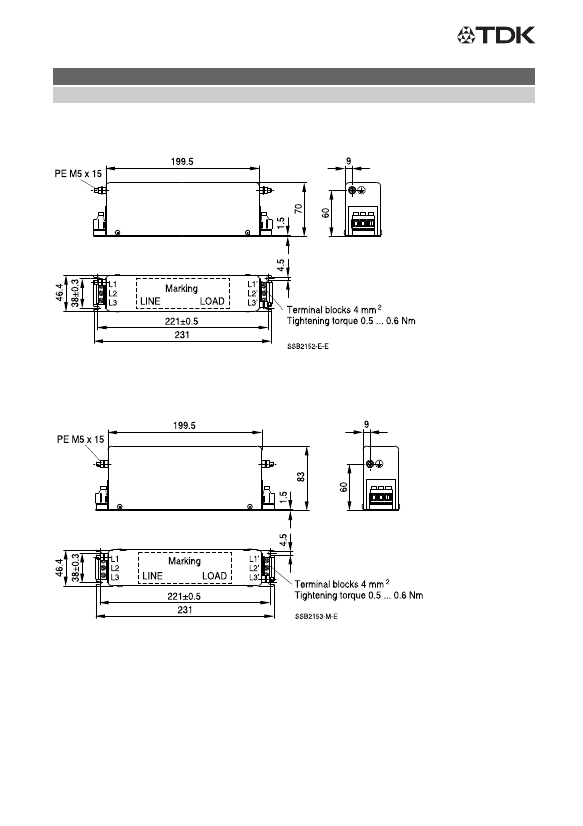

Preview

Download Datasheet

View All

EMC filters

3-line filters

for converters and power electronics

Series/Type:

Date:

B84143A*R105

May 2014

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

B84143A0150R105 Related Products

	B84143A0150R105	B84143A0025R105	B84143A0050R105	B84143A0120R105	B84143A0036R105	B84143A0016R105	B84143A0066R105	B84143A0008R105
Description	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6	Three Phase EMI Filter, 520V, 50/60HzHz, METAL PACKAGE-6
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6	METAL PACKAGE-6
Reach Compliance Code	not_compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS	TERMINAL BLOCK CONNECTIONS
Certification	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10	UL; ENEC-10
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	150 mm	83 mm	90 mm	150 mm	90 mm	70 mm	141.5 mm	63 mm
high potential	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V
Maximum leakage current	18 mA	15 mA	15 mA	18 mA	15 mA	15 mA	16 mA	13 mA
length	270 mm	231 mm	265 mm	290 mm	265 mm	231 mm	265 mm	133.7 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L270.0XB90.0XH150.0 (mm)/L10.63XB3.543XH5.906 (inch)	L231.0XB46.4XH83.0 (mm)/L9.094XB1.827XH3.268 (inch)	L265.0XB58.0XH90.0 (mm)/L10.433XB2.283XH3.543 (inch)	L290.0XB90.0XH150.0 (mm)/L11.417XB3.543XH5.906 (inch)	L265.0XB58.0XH90.0 (mm)/L10.433XB2.283XH3.543 (inch)	L231.0XB46.4XH70.0 (mm)/L9.094XB1.827XH2.756 (inch)	L265.0XB58.0XH141.5 (mm)/L10.433XB2.283XH5.571 (inch)	L133.7XB51.4XH63.0 (mm)/L5.264XB2.024XH2.48 (inch)
Rated current	150 A	25 A	50 A	120 A	36 A	16 A	66 A	8 A
Rated voltage	520 V	520 V	520 V	520 V	520 V	520 V	520 V	520 V
width	90 mm	46.4 mm	58 mm	90 mm	58 mm	46.4 mm	58 mm	51.4 mm
