HDAS
High density PCB interconnects system for
harsh environments applications
Amphenol
HDAS
u
v
HDAS
x
w
|
z
y
{
}
With its robust and simple design, its density, its high
performances to extreme constraints, HDAS is the right
connector to choose when installation costs and reliabil-
ity must be mastered.
u
- Black LCP male insulator
v
- Right angle PC contact termination. For tru hole soldering.
w
- Male contact, mating end size 23 per MIL DTL 55302F
x
- Male codable guide. Lockable and/or different style upon
request.
y
- Black LCP female insulator
z
- Female contact, mating end size 23 per MIL DTL 55302F
{
- Female codable guide. Lockable and/or different style upon
request
|
- Straight PC contact termination. For thru hole soldering
}
- Press fit / Compliant pin contact termination for solderless
assembly
p2
HDAS
<<<
Scope
- Amphenol reduces the pitch and increases the per connector. They are di-
density of contacts with the brand new HDAS rectly inspired from our well
The guiding devices al-
range. 1,905 x 1,905mm staggered grid, from known 127 series concept.
lows a disalignment before
3 to 6 rows.
- The usage of LCP material
mating of 0,9 max in both
- With the robust technology of the HDAS connec- authorizes all the types of
longitudinal and lateral di-
tors, bring more reliability and more efficiency to soldering , including high
rections.
your system, while minimizing the cost of instal- temperature process for
The lateral skirts on the
lation.
lead free requirement. All
male connectors ensure
- HDAS has passed and dramatically exceeded all the HDAS is available in a
an optimum protection
The starclip provides an excellent mechanical
the MIL DTL 55302F requirements, as well as the fully RoHS compliant ver-
and electrical reliability, with its 6 contact lips.
of the contacts. The me-
new demands of the military transportations.
sion.
chanical protection of the
- The press-fit technology, now available at Am- - Amphenol Socapex introduces the cylindrical female contacts is inherent to their own design.
phenol Socapex, allows to reduce significantly machined pins in its PCB connector, with the If necessary, Amphenol Socapex can offer miscel-
the costs of assemblying on backplane, while proven starclip technology of the socket. Size laneous termnations of contacts, such as solder
ensuring extreme reliability even for the thickest 23 permitts a high average current, while an cup for wires (tests), SMT soldering through flex-
motherboards. No more solder joints, pre-bak- improved strength in regards of the traditional ible sculptured circuits, and differents length of
ing, cleaning…
diameters.
solder dip, according to your specific thickness of
- The coding devices are codable 6 times within
board, as well as the suitable fittings.
their own cavities, i.e. 36 coding possibilities
<<<
tecHnicAl
DAtA - minimum performAnceS
electricAl cHArActeriSticS
environmentAl cHArActeriSticS
• Salt Spray:
96H
• Vibrations:
No discontinuity greater than 2ns during the following tests:
- Sinus Vibrations per MIL STD 1344A Meth 2005 condition III:
4 hours per axis in 3 axis – 10 to 65 Hz: 0,06 inch / 65 to 2000 Hz: 15g peak
- Vibrations according to AIRBUS A400M specifications
M00RP0400432 rev.B, § 2.2.8.1 and MIL-STD-810F Cat 13 localisation 2:
- 5-2000 Hz – 0,5g – 1 oct/min
- ½ hour: 10,5g eff
- 3 hours endurance
- ½ hour 10,5 geff
• Shocks per MIL STD 1344A meth 2004 condition G – Sawtooth in – directions / 100g / 6ms each
• Temperature cycling:
-65/+ 125°C
• 500 mating / unmating cycles
<<<
mAteriAl
• Contact resistance: 10 mohms maxi
• Dielectric withstanding voltage: 800 Veff mini
• Insulation resistance: 5 Gohm mini
• Current rating / contact: 4,5 A
DAtA
• Clip:
CuBe2, with gold over Nickel plating.
• Guiding devices:
Brass Alloy, with electroless nickel plating.
All the hereabove platings are in accordance with the MIL-DTL-55302F
specifications.
• Housings:
LCP Thermoplastic, 30% glass fiber filled.
• Male contact:
Brass alloy machined alloy, with gold over nickel plating.
• Female contacts housing:
Brass alloy machined alloy, with tin lead or
lead free plating. Press-fit terminations are tin lead plated, according to
ammendment N° C(2005)-4054 of the 2002/95/EC directive, relative to
lead presence in electronic equipments.
p3
HDAS
<
<<
DrAwingS
Section
Please note that the
dimensions on this
page highlight a
configuration with 77
contacts in 3 rows.

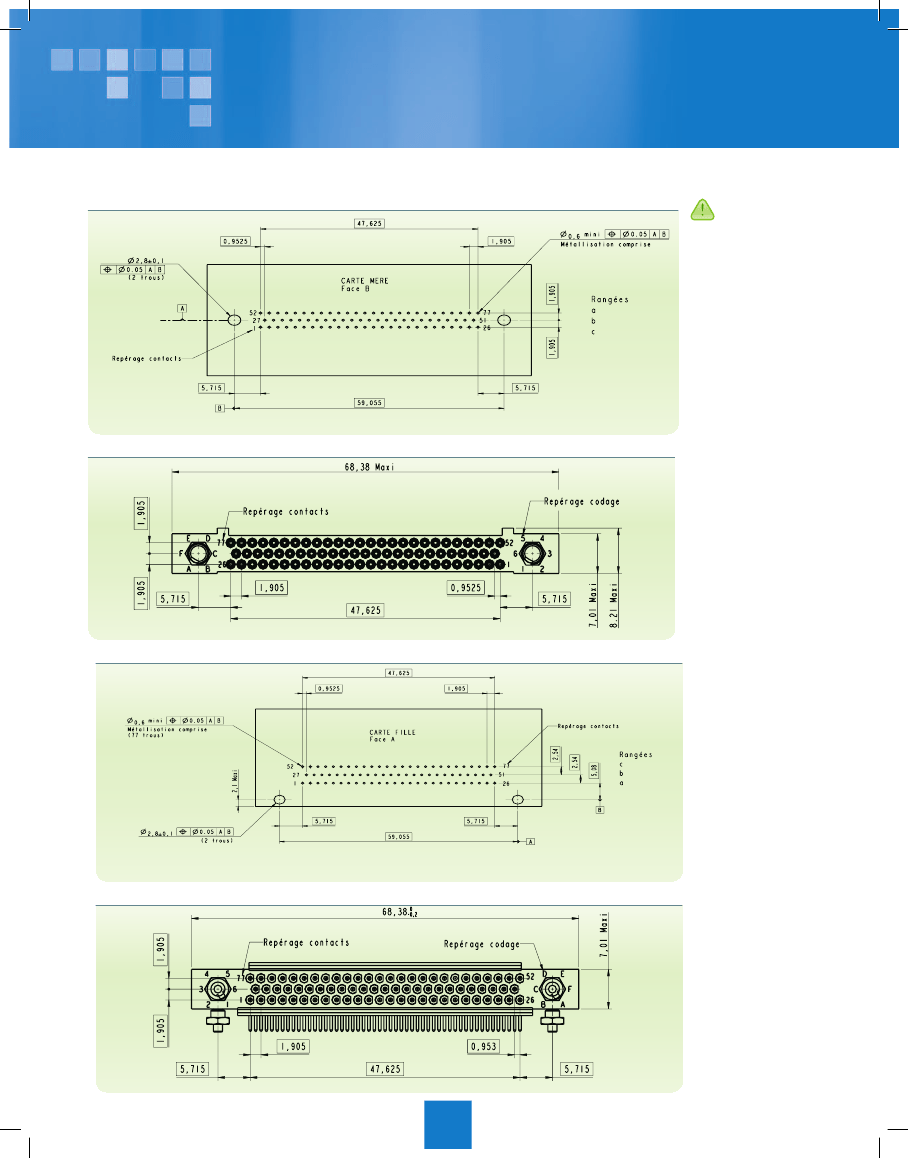

motHer boArD HDAS e 77 YD-000
77
Board thickness 1.5 to 4.5 mm

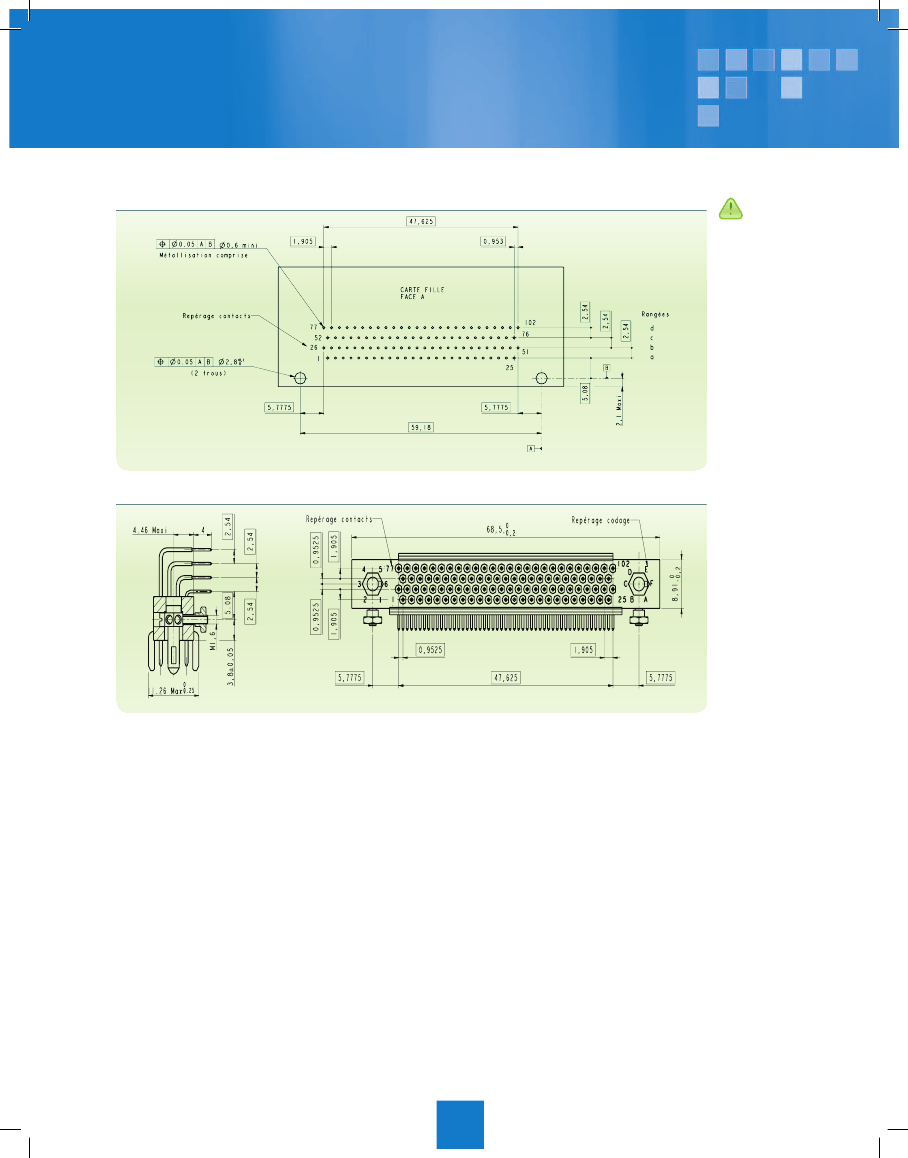

overAll DimenSionS HDAS e 77 YD-000
DAugHter boArD HDAS f 77 Yc-000
Board thickness 1.5 to 3 mm
overAll DimenSionS HDAS f 77 Yc-000
p
FIELD SErIES
HDAS
DAugHter boArD HDAS f 102 Yc-000
Please note that the
dimensions on this
page highlight a
configuration with 102
contacts in 4 rows.
102
Board thickness 1.5 to 3 mm
overAll DimenSionS HDAS f 102 Yc-000
p
