140 MHz SAW Filter
Applications
For Military applications
Product Features
Typical 3 dB bandwidth of 1.5 MHz
Low loss
High Attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 19.00 x 6.50 x 1.75mm
RoHS
compliant,
Pb-free

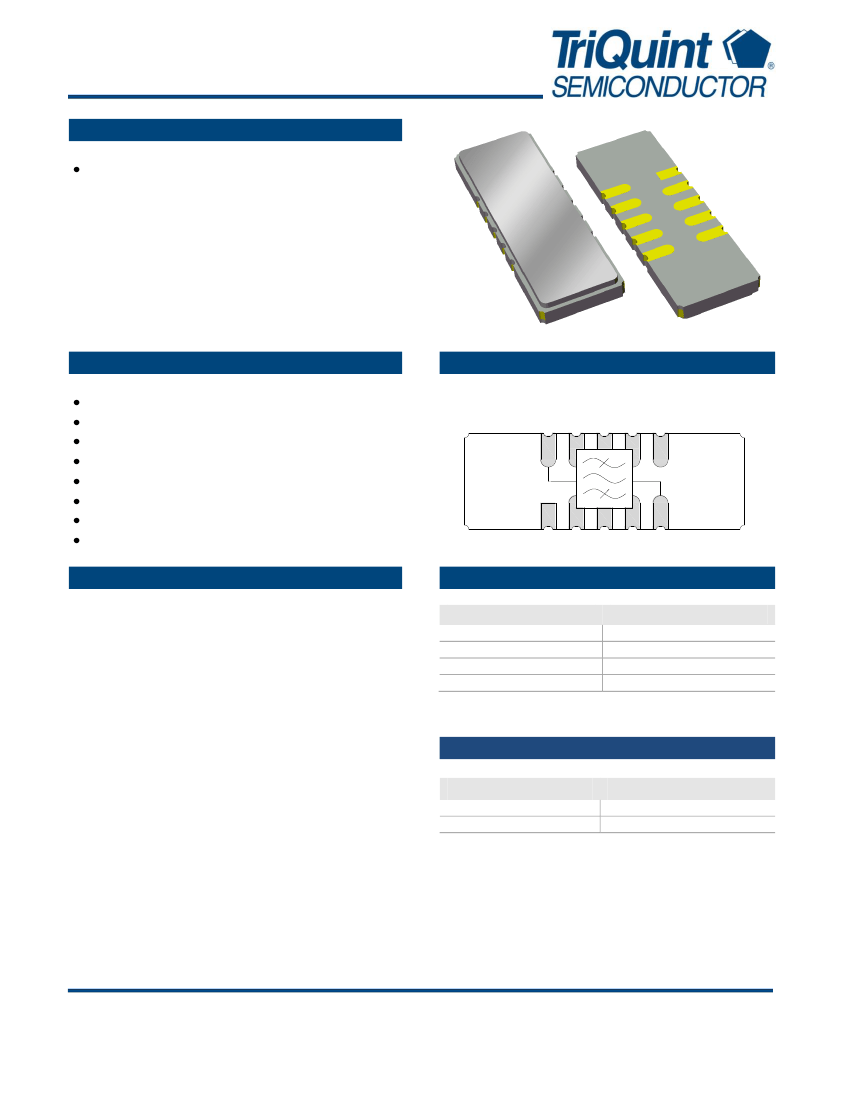

Functional Block Diagram
Top view
Input Gnd Gnd Gnd Gnd
10
9
8
7
6
1
2
3
4
5
Gnd Gnd Gnd Gnd Output
General Description
The 857177 is a high-performance IF SAW filter with a
center frequency of 140 MHz and a 3 dB bandwidth of 1.5
MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
This device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
10
5
1,6
2,3,4,7,8,9
Description
RF Input
RF Output
Ground
Case ground
Ordering Information
Part No.
857177
857177-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 9/19/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857177
140 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-55 to +105 ºC
Parameter
(3)
Center Frequency
Insertion Loss
Lower 1.0 dB Bandedge
Upper 1.0 dB Bandedge
(5)
Lower 3.0 dB Bandedge
Upper 3.0 dB Bandedge
(5)
Lower 40.0 dB Bandedge
Upper 40.0 dB Bandedge
(5)
Amplitude Variation
(6)
Phase Linearity
Group Delay Variation
Relative Attenuation
Conditions
at minimum
Min
-
-
-
140.45
-
140.6
138.6
-
-
-
-
50
45
43
50
30
50
20
50
-
-
Typical
(4)
140
23.5
-
-
-
-
-
-
0.35
3.0
80
-
-
-
-
-
-
-
-
50
50
Max
-
25
139.55
-
139.4
-
-
141.4
1.0
6.0
200
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB p-p
deg p-p
ns p-p
dB
dB
dB
dB
dB
dB
dB
dB
Source Impedance (single-ended)
(7)
Load Impedance (single-ended)
(7)
139.55 – 140.45 MHz
139.55 – 140.45 MHz
139.55 – 140.45 MHz
15 – 138.3 MHz
141.7 – 145 MHz
145 – 155 MHz
155 – 220 MHz
220 – 240 MHz
240 – 252 MHz
252 – 270 MHz
270 – 350 MHz
-
-
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. Is defined as the difference between the maximum and minimum loss within the specified frequency range
7. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Rating
-55 to +105
o
C
-55 to +105
o
C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Preliminary Data Sheet: Rev - 9/19/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857177
140 MHz SAW Filter

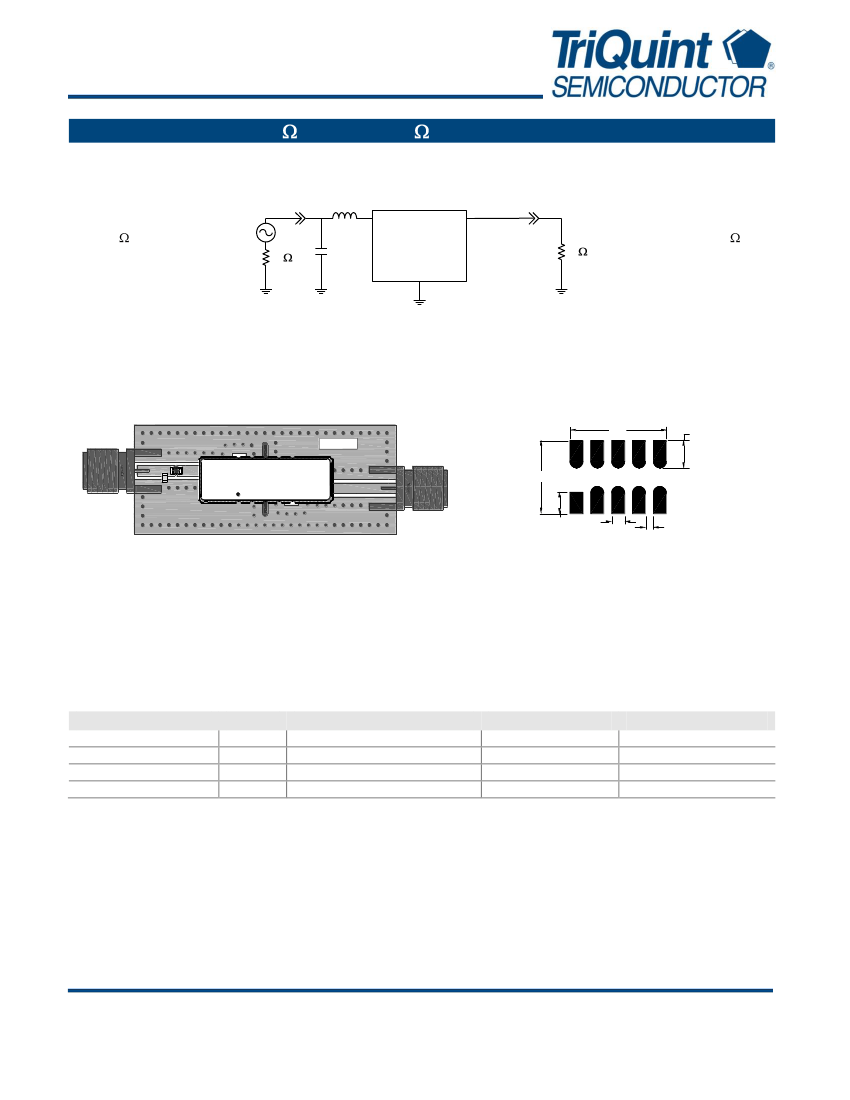

Reference Design – 50
Schematic
68nH
10
5
50
SE Input, 50
SE Output
50
Single-ended
Input
50
27pF
1,2,3,4
6,7,8,9
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitics
PC Board
960656
C1
L1
Mounting Configuration
8.86
2.51
TRIQUINT
857177
YYWW
6.70
2.00
1.22
.69
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
C1
SMA
PCB
Value
68nH
27pF
N/A
N/A
Description
Coil Wire-wound, 0805, 5%
Chip Capacitor, 0603, 5%
SMA connector
3-layer
Manufacturer
Coilcraft
MuRata
Radiall USA Inc.
multiple
Part Number
0805CS-680XJLC
GRM1885C1H270JA01
9602-1111-018
960656
Preliminary Data Sheet: Rev - 9/19/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857177
140 MHz SAW Filter

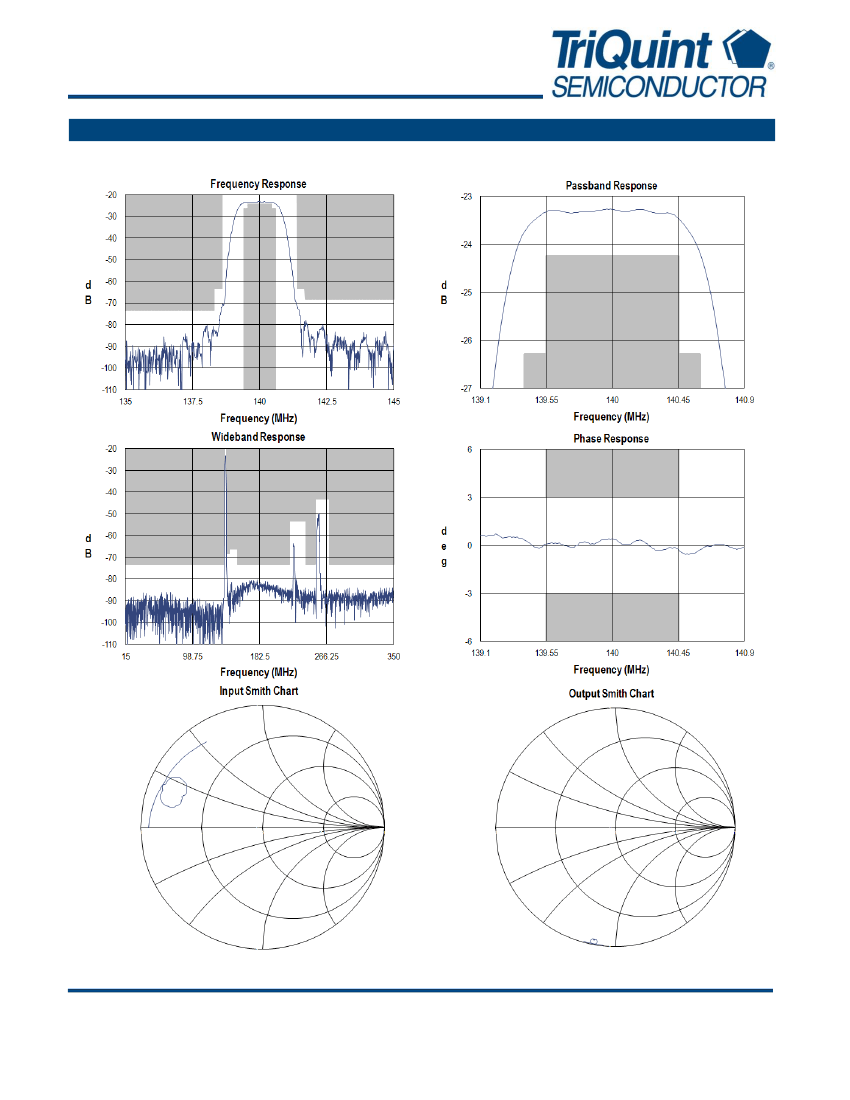

Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev - 9/19/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
857177
140 MHz SAW Filter

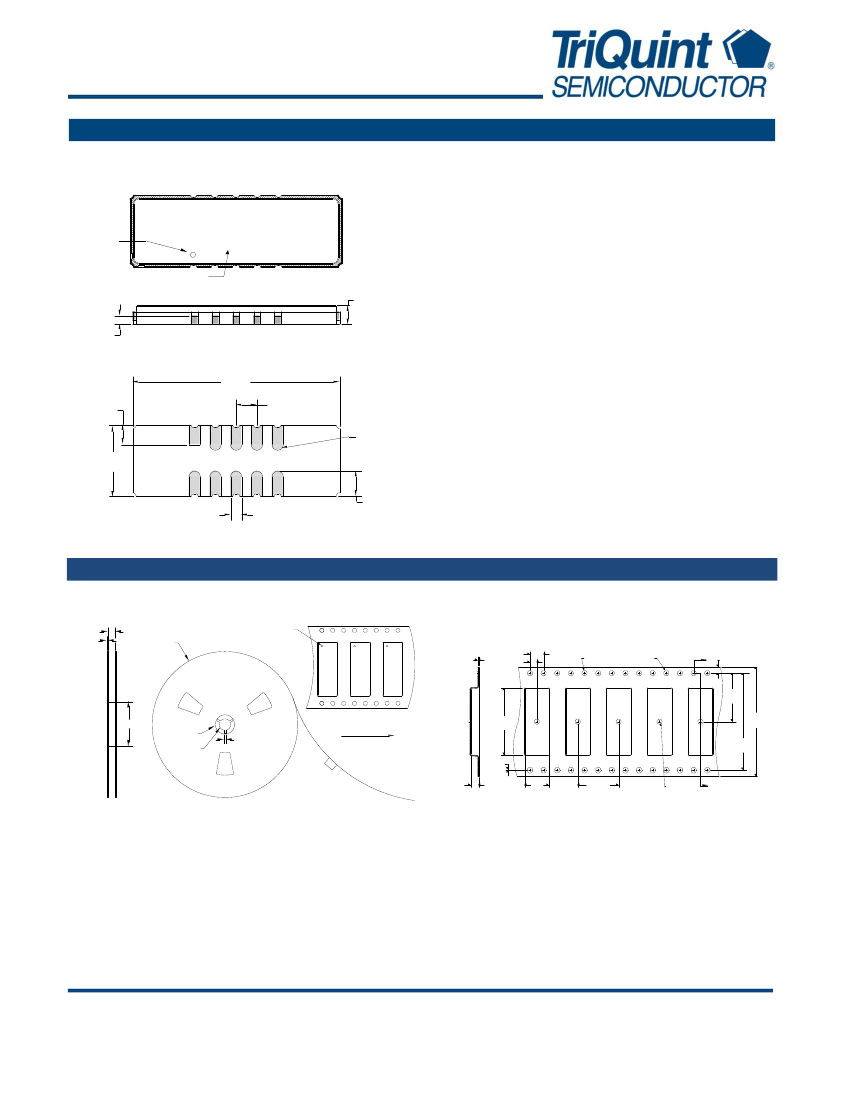

Mechanical Information
Package Information, Dimensions and Marking
TRIQUINT
857177
YYWW
Date Code
Package Style: SMP-75
Dimensions: 19.00 x 6.50 x 1.75mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
ID Dot
1.75 NOM.
1.96 MAX.
0.76
19.0
1.80
1.91
R0.51
6.50
2.31
1.02
The date code consists of: YY = last two digits of the year,
WW = work week
Tape and Reel Information
Standard T/R size = 2000 units/reel. All dimensions are in millimeters
32.8
2.7
Ø330
ID dot
Section A-A
0.3
2.0
4.0
Ø1.5
R0.75
A 1.75
14.2
Ø102
19.6
Ø20.2
Ø13.0
2.0
Direction of travel
0.20
2.3
7.1
12.0
Ø1.5
A
32.0
28.4
Preliminary Data Sheet: Rev - 9/19/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
