MCM40800S60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM40800S60

MCM40800S60: DescriptionFast Page DRAM Module, 8MX40, 60ns, CMOS, SIMM-72; Categorystorage storage; File Size528KB，17 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM40800S60 Overview

Fast Page DRAM Module, 8MX40, 60ns, CMOS, SIMM-72

MCM40800S60 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	SIMM-72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; PRESENCE DETECT & ERROR CORRECTION PINS
JESD-30 code	R-XSMA-N72
memory density	335544320 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	2048
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

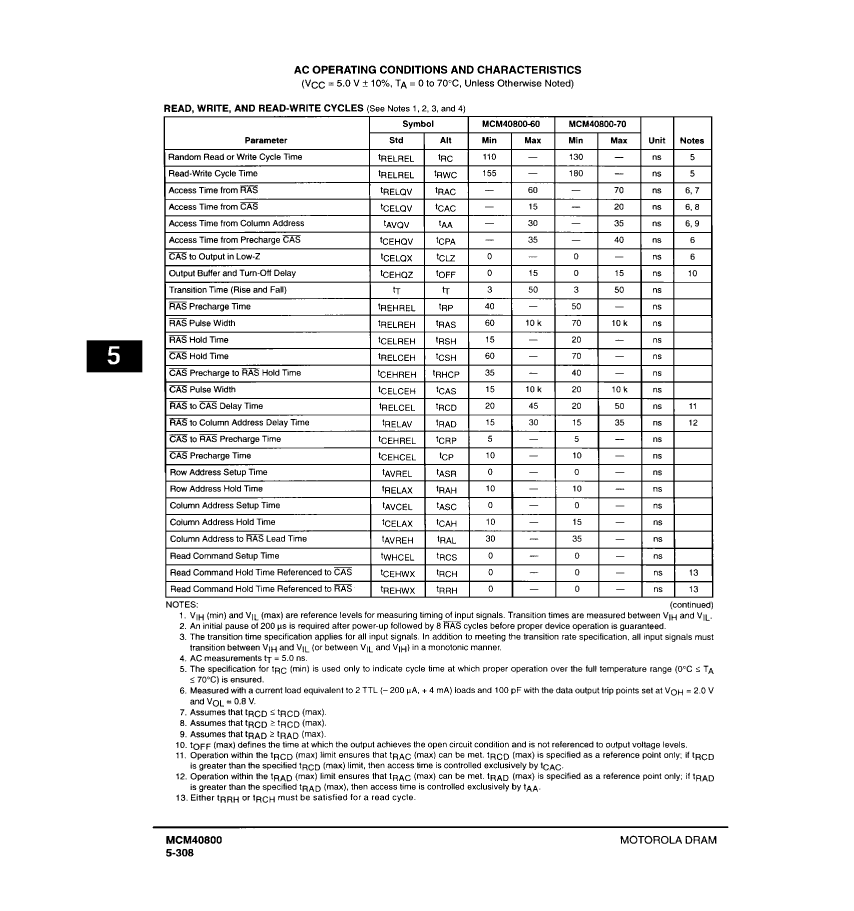

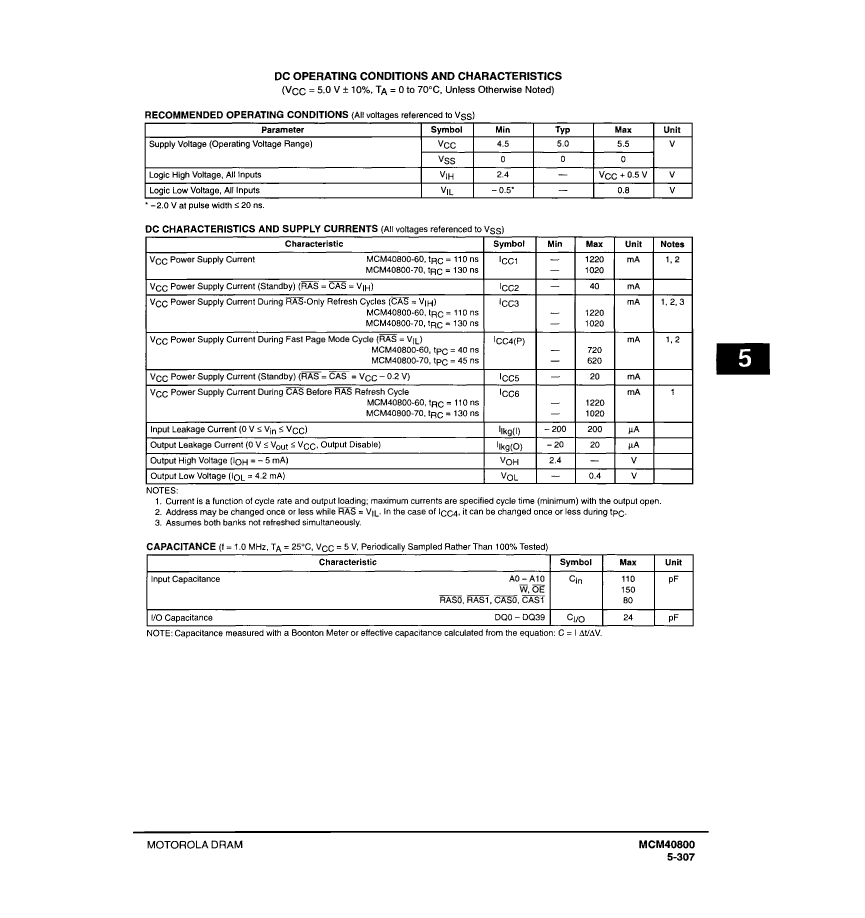

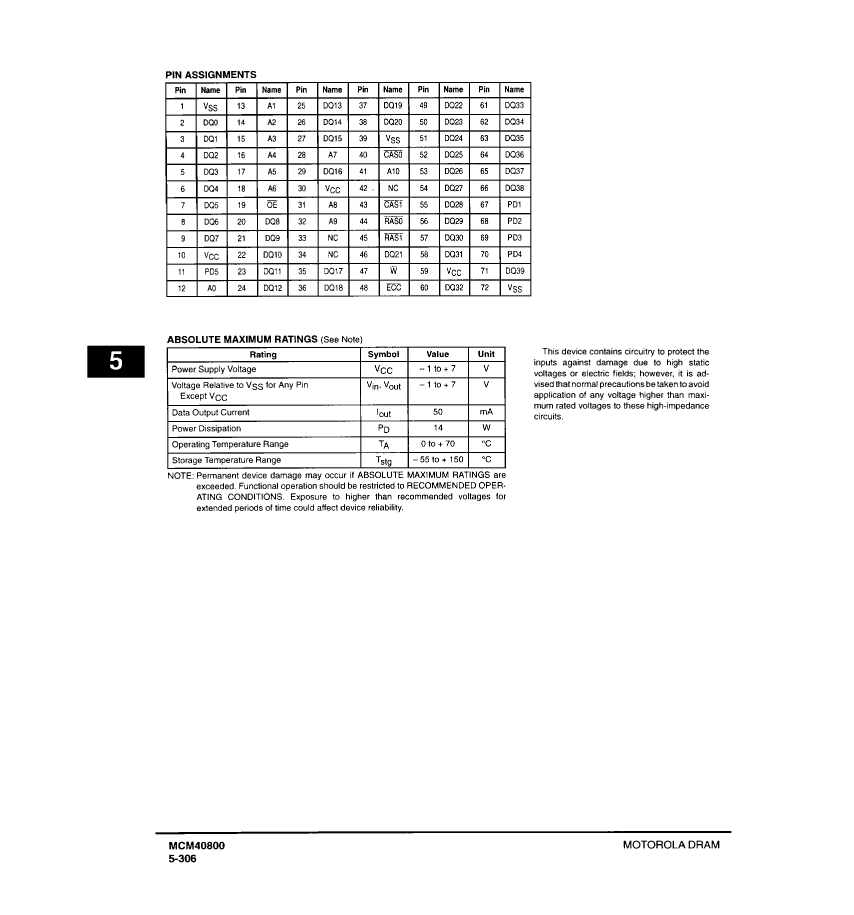

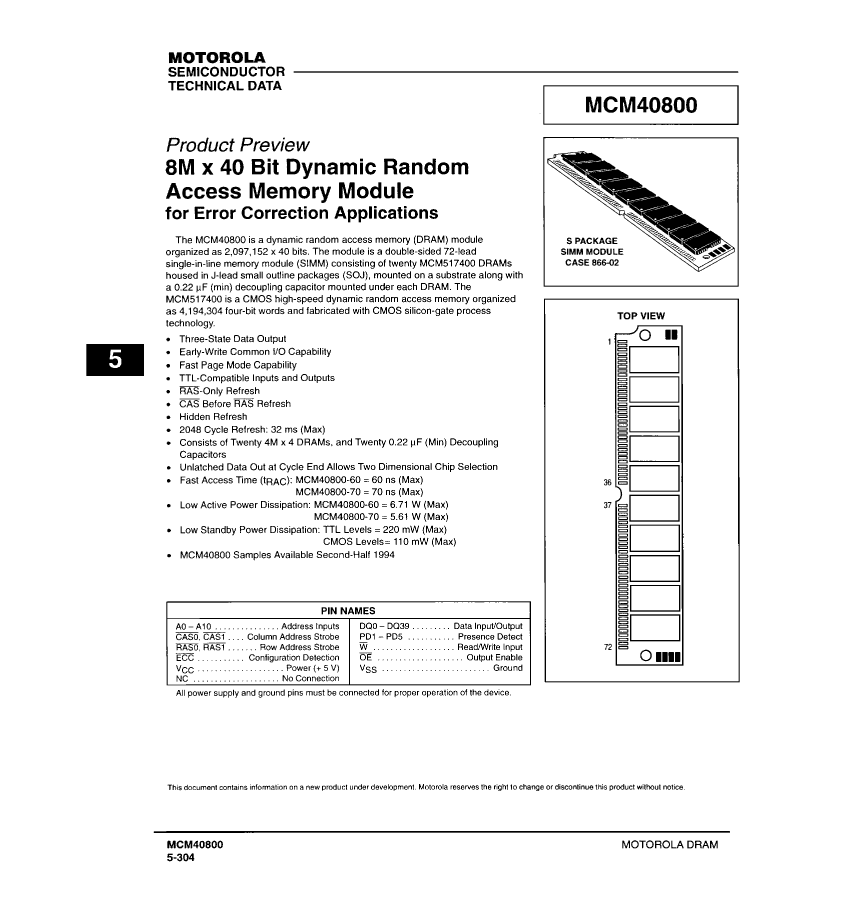

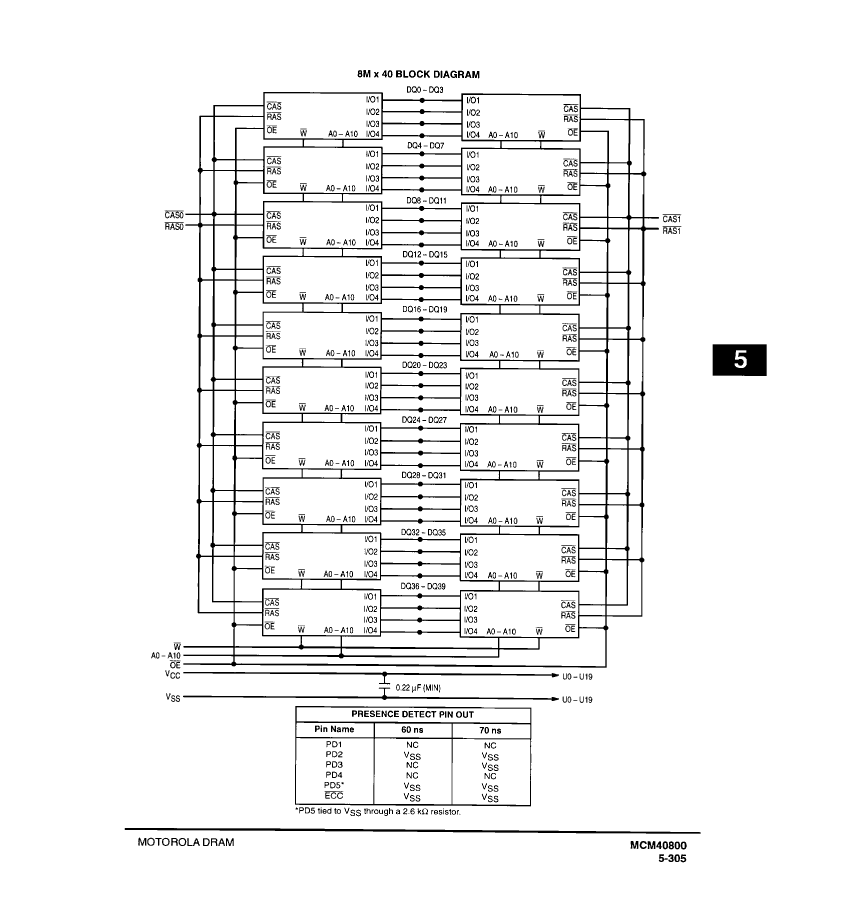

Preview

Download Datasheet

View All

MCM40800S60 Related Products

	MCM40800S60	MCM40800SG60	208-1112LPTNP	MCM40800SG70
Description	Fast Page DRAM Module, 8MX40, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 8MX40, 60ns, CMOS, SIMM-72	Multifunctional Through Hole Through Hole	8MX40 FAST PAGE DRAM MODULE, 70ns, SMA72, SIMM-72
Maker	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )
package instruction	SIMM-72	SIMM-72	-	SIMM, SSIM72
Reach Compliance Code	unknown	unknown	-	unknow
ECCN code	EAR99	EAR99	-	EAR99
access mode	FAST PAGE	FAST PAGE	-	FAST PAGE
Maximum access time	60 ns	60 ns	-	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; PRESENCE DETECT & ERROR CORRECTION PINS	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; PRESENCE DETECT & ERROR CORRECTION PINS	-	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; PRESENCE DETECT & ERROR CORRECTION PINS
JESD-30 code	R-XSMA-N72	R-XSMA-N72	-	R-XSMA-N72
memory density	335544320 bit	335544320 bit	-	335544320 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	-	FAST PAGE DRAM MODULE
memory width	40	40	-	40
Number of functions	1	1	-	1
Number of ports	1	1	-	1
Number of terminals	72	72	-	72
word count	8388608 words	8388608 words	-	8388608 words
character code	8000000	8000000	-	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	-	70 °C
organize	8MX40	8MX40	-	8MX40
Output characteristics	3-STATE	3-STATE	-	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	-	Not Qualified
refresh cycle	2048	2048	-	2048
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V
surface mount	NO	NO	-	NO
technology	CMOS	CMOS	-	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	-	NO LEAD
Terminal location	SINGLE	SINGLE	-	SINGLE
