NEZ6472-4D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> NEZ6472-4D

NEZ6472-4D: DescriptionRF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,; CategoryDiscrete semiconductor The transistor; File Size195KB，5 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

NEZ6472-4D Overview

RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,

NEZ6472-4D Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Shell connection	SOURCE
Configuration	SINGLE
Minimum drain-source breakdown voltage	15 V
Maximum drain current (ID)	4.5 A
FET technology	METAL SEMICONDUCTOR
highest frequency band	C BAND
JESD-30 code	R-CDFM-F2
Number of components	1
Number of terminals	2
Operating mode	DEPLETION MODE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	GALLIUM ARSENIDE

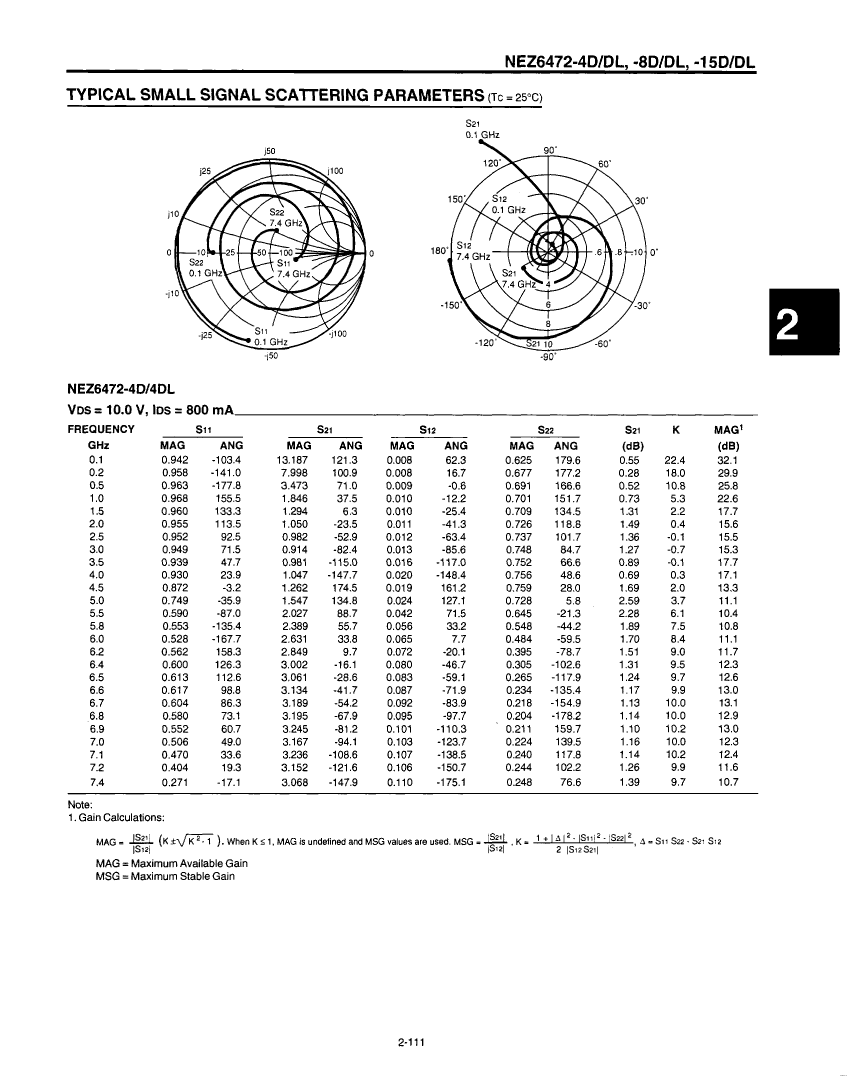

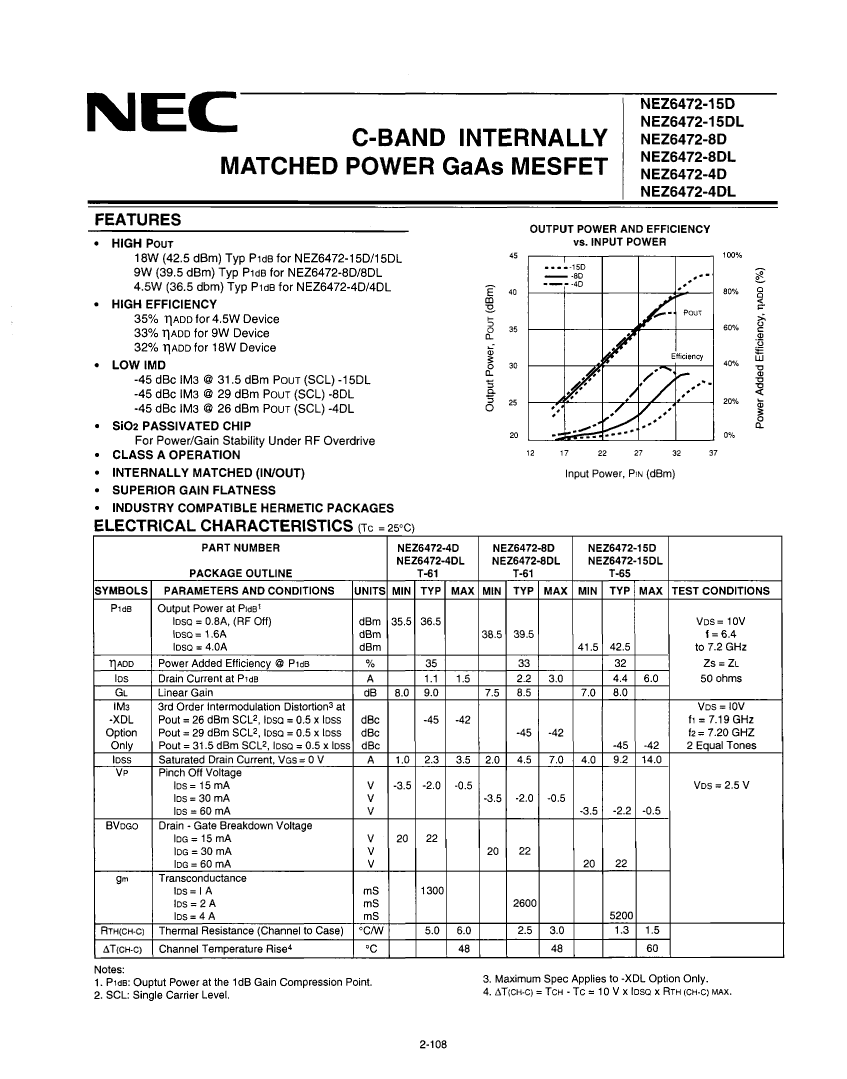

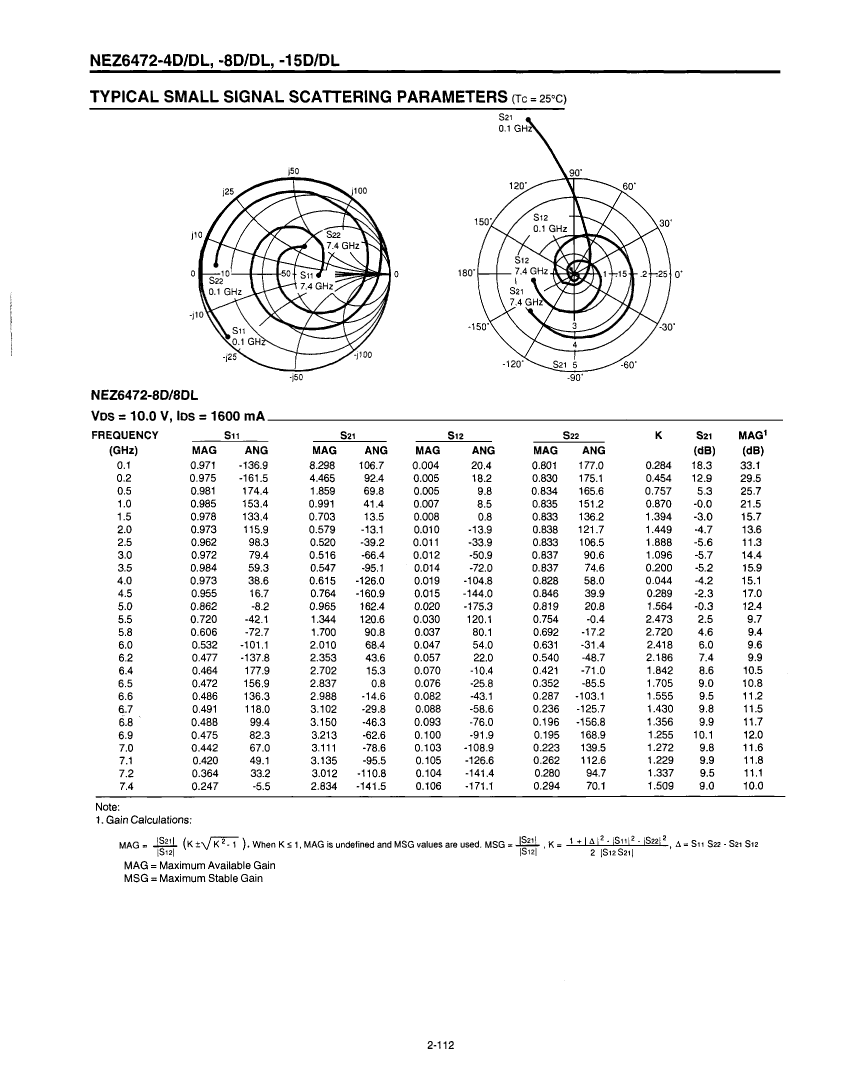

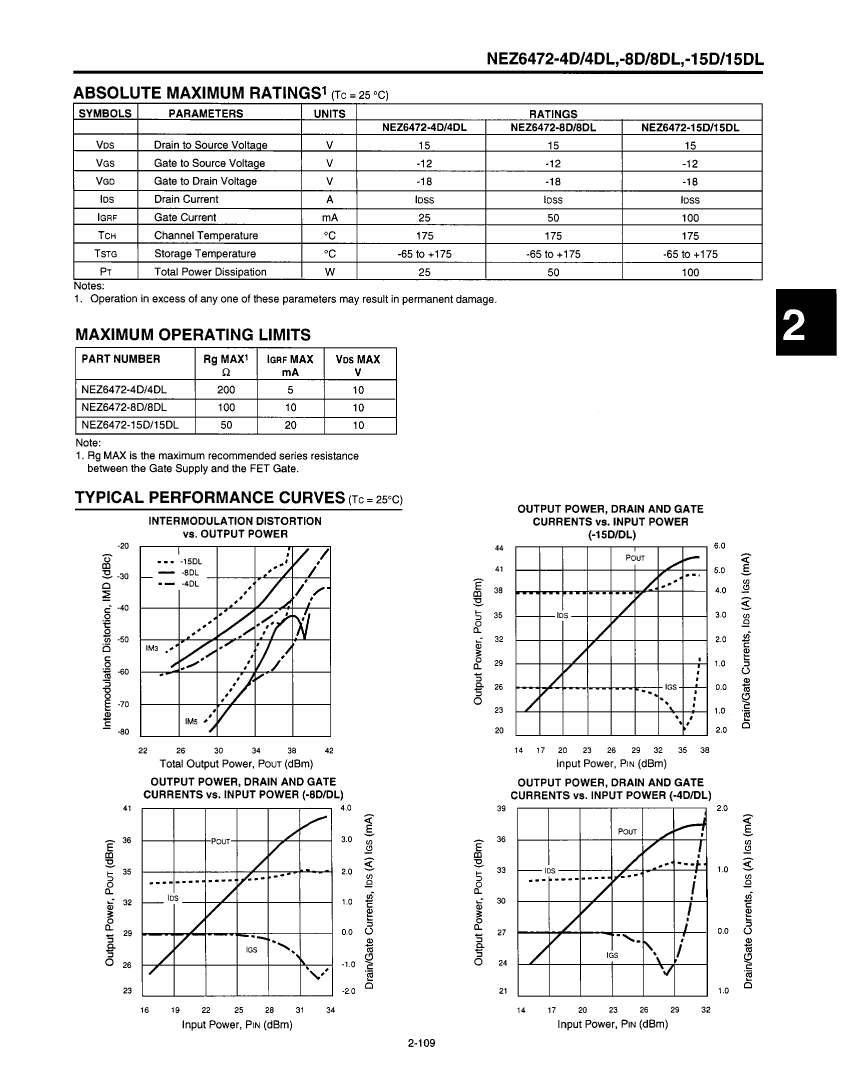

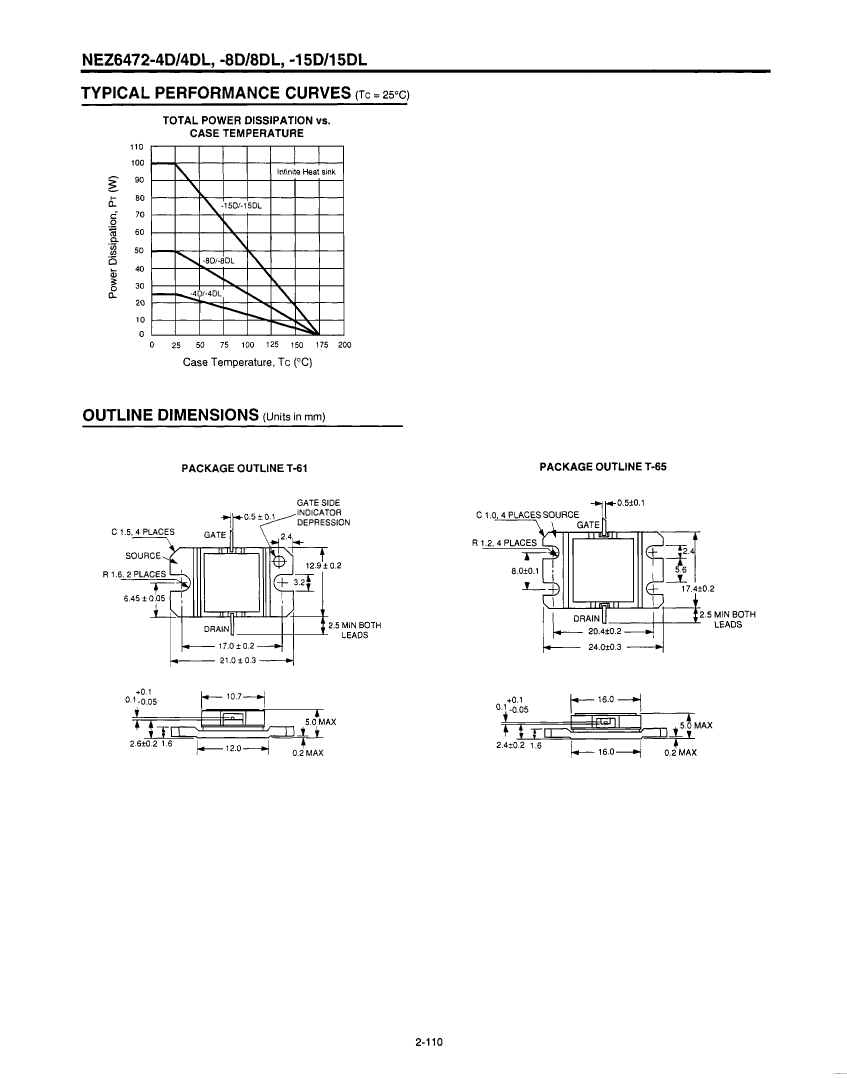

Preview

Download Datasheet

View All

NEZ6472-4D Related Products

	NEZ6472-4D	NEZ6472-15D	NEZ6472-15DL	NEZ6472-8D	NEZ6472-8DL	NEZ6472-4DL
Description	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,	RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	15 V	15 V	15 V	15 V	15 V	15 V
FET technology	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL SEMICONDUCTOR
highest frequency band	C BAND	C BAND	C BAND	C BAND	C BAND	C BAND
JESD-30 code	R-CDFM-F2	R-CDFM-F2	R-CDFM-F2	R-CDFM-F2	R-CDFM-F2	R-CDFM-F2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE
Maker	NEC Electronics	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
