SFODPSC-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> SFODPSC-02

SFODPSC-02: DescriptionCA SC-SC 9/125 DPLX PLEN 2M; CategoryThe connector Connector bracket; File Size79KB，1 Pages; ManufacturerL-com Global Connectivity; Environmental Compliance

Download Datasheet Parametric Compare View All

SFODPSC-02 Overview

CA SC-SC 9/125 DPLX PLEN 2M

SFODPSC-02 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	L-com Global Connectivity
Reach Compliance Code	unknown
Connector bracket type	CABLE ASSEMBLY

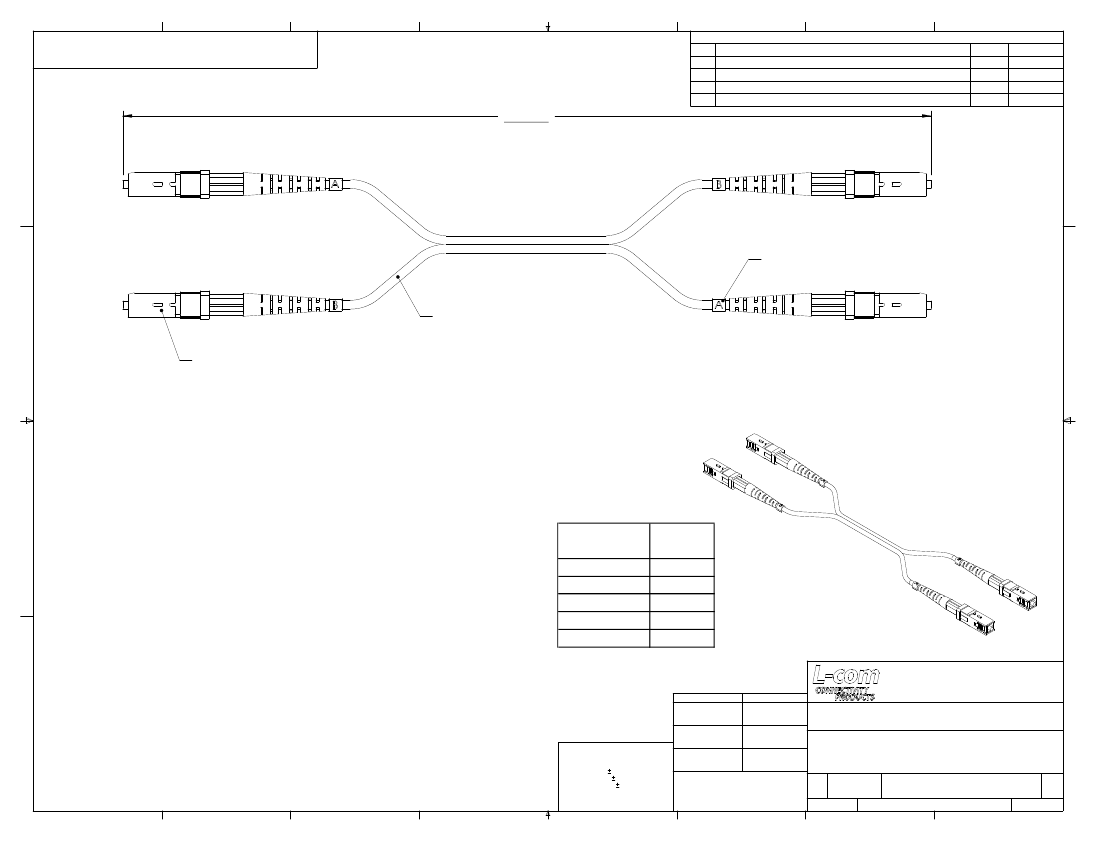

SFODPSC-02 Preview

REV

DESCRIPTION

INITIAL RELEASE

REVISIONS

DATE

APPROVED

MCCORMICK

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

11/09/04

11/10/05

ECN# 2248 CONSTRUCTION FROM 1.6mm TO 3.0mm

LENGTH

4X CABLE MARKER

9/125 PLENUM (OFNP)

3.0 mm, COLOR: YELLOW

4X SC STYLE

CONNECTOR

NOTES:

1.0

TEST:

1.1 BACK REFLECTION TESTED AT 1310nm WITH A <-40.0 dB RESULT MIN.

2.0

PACKAGING:

2.1 THE PRODUCT SHALL BE PRESERVED & PACKAGED IN A MANNER WHICH WILL

AFFORD ADEQUATE PROTECTION AGAINST CORROSION, DETERIORATION,

AND PHYSICAL DAMAGE DURING SHIPMENT.

2.2 INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG

DEPICTED ON

1AN01-001-OD1

. MARK EACH BAG PER

LSP-010-1

3.0

WORKMANSHIP:

3.1 CABLE ASSEMBLIES SHALL BE MANUFACTURED IN SUCH A MANNER AS TO BE

UNIFORM IN QUALITY AND SHALL BE FREE FROM DEFECTS THAT WILL ADVERSELY

AFFECT LIFE, SERVICEABILITY, OR APPEARANCE.

4.0

VISUAL AND MECHANICAL:

4.1. CABLE ASSEMBLIES SHALL BE INSPECTED TO VERIFY COMPLIANCE TO THIS

DRAWING.

5.0

MANUFACTURING:

5.1 CABLE ASSEMBLY UTILIZES "PC" POLISH TYPE.

PART

LENGTH

NUMBER

METERS

SFODPSC-01

1.0

SFODPSC-02

2.0

SFODPSC-03

3.0

SFODPSC-04

4.0

SFODPSC-05

5.0

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

PRODUCT DESCRIPTION

11/09/2004

APPROVALS

DRAWN BY

C.MCCORMICK

CHECKED BY

D.PARHAM

DATE

9/125 DUPLEX PLENUM CABLE ASSY

DRAWING TITLE

UNLESS OTHERWISE SPECIFIED, APPROVED BY

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

11/09/2004

R.CARRICK

.X .1

.XX .05

CONFIGURATION DETAILS OF

.XXX .005

UNDIMENSIONED FEATURES

CABLE LENGTH TOLERANCE

MAY VARY

<300" ±5% >300" ±2%

OUTLINE DRAWING

SIZE

FSCM NO.

43321

DWG. NO.

REV.

SFODPSC-01-OD1

SFODPSC-01-OD1.SLDDRW

SCALE: NONE CAD FILE:

SHEET 1 OF 1
