HS92-01111LFTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> HS92-01111LFTR

HS92-01111LFTR: DescriptionDatacom Transformer, 10 BASE-T Application(s), 1CT:1CT; 1:1, ROHS COMPLIANT; CategoryPower management transformer; File Size319KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

HS92-01111LFTR Overview

Datacom Transformer, 10 BASE-T Application(s), 1CT:1CT; 1:1, ROHS COMPLIANT

HS92-01111LFTR Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
application	10 BASE-T
high	5.52 mm
Insulation voltage	1500 V
length	27.62 mm
Manufacturer's serial number	HS92
Installation features	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	27.62mm X 16.0mm X 5.52mm
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1:1
width	16 mm

Preview

Download Datasheet

View All

Electrical / Environmental

•

Meets the required 1500 Vrms line isolation

Standard Operating Temperature Range

Extended Operating Temperature Range

RoHS Peak Solder Rating 260°C

10Base Networking Products

0°C to +70°C

-40°C to +85°C

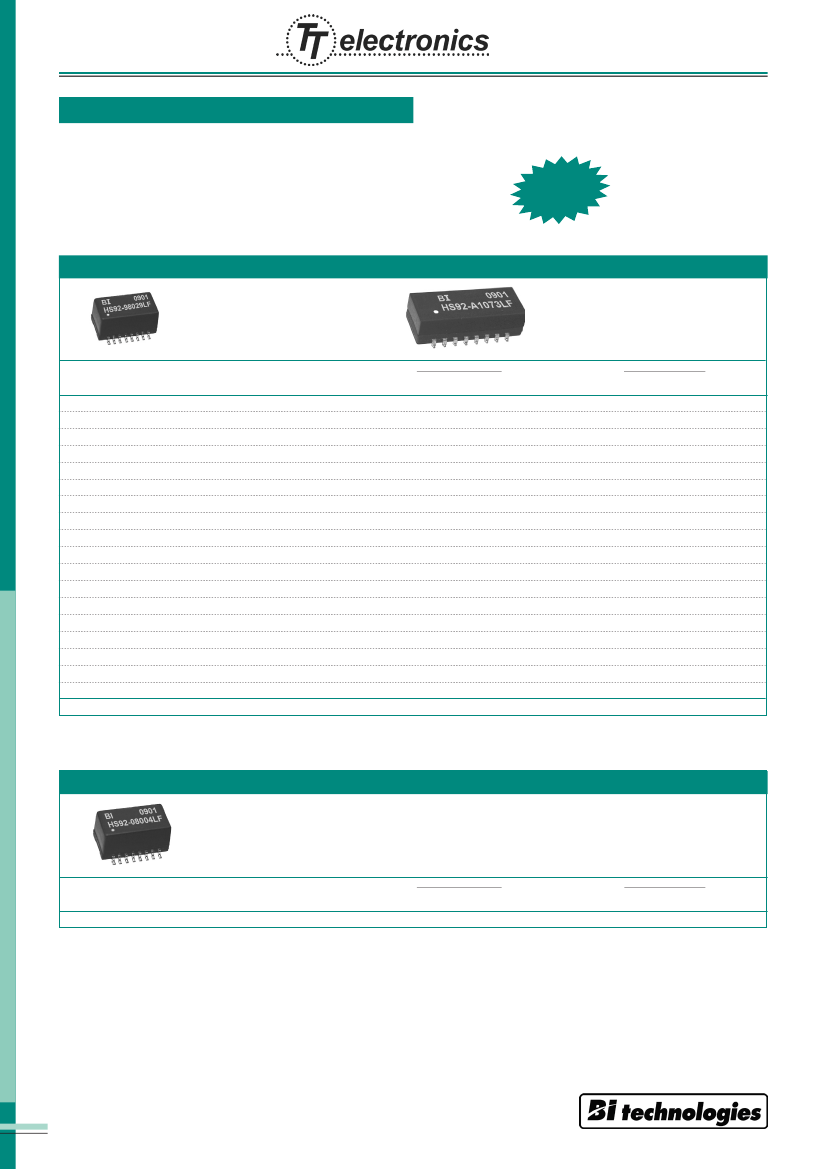

HS92

RoH

liant

SINGLE-PORT: SMT 16-PIN (2 Types)

HS92-98029LF

HS92-98703LF

HS00-99118LF

HS92-99587LF

HS00-00041LF

HS00-00078LF

HS00-00205LF

HS92-00223LF

HS92-01001LF

HS00-01005LF

HS92-A1041LF

HS92-01107LF

HS92-02014LF

HS92-02085LF

HS92-05158LF

HS92-05171LF

HS92-06143LF

HS92-07101LF

HS92-A1073LF

P/N

Ports

Supported

4(Rx)

Configuration

T,C

T, C

Turns Ratio

1CT:2CT 1CT:1CT

1CT:√2CT 1CT:1CT

1CT:1CT 1CT:1CT

1CT:2CT 1CT:1CT

1CT:2.5CT 1CT:1CT

1CT:√2CT 1CT:1CT

1CT:2.5CT 1CT:1CT

1CT:1CT 1CT:1CT

1CT:√2CT 1CT:1CT

2CT:1CT 1CT:1CT

1:1

1CT:2CT 1CT:1CT

1CT:2.5CT 1CT:1CT

1:√2

1:1

Style

16-pin SMT

Packaging (mm)

Pitch

Length

Width

1.27

12.70

9.65

1.27

12.70

9.53

1.27

12.70

9.35

1.27

12.70

9.40

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.40

1.27

12.70

9.40

1.27

12.70

9.52

1.27

12.70

9.65

1.27

12.70

9.00

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.53

1.27

12.70

9.53

2.54

25.40

12.70

Height

5.50

6.20

5.08

6.20

6.22

6.20

6.22

5.08

6.20

5.08

6.05

Hi-Pot

(Vrms)

1500

2000

1500

2000

1500

2000

1500

2000

1500

2000

1500

DUAL-PORT: SMT 16-PIN

Ports

BI P/N

Supported

HS92-08004LF

Configuration

Turns Ratio

1:2

1:1

Style

16-pin SMT

Packaging (mm)

Pitch

Length

Width

1.27

12.70

9.53

Height

5.08

Hi-Pot

(Vrms)

2200

158

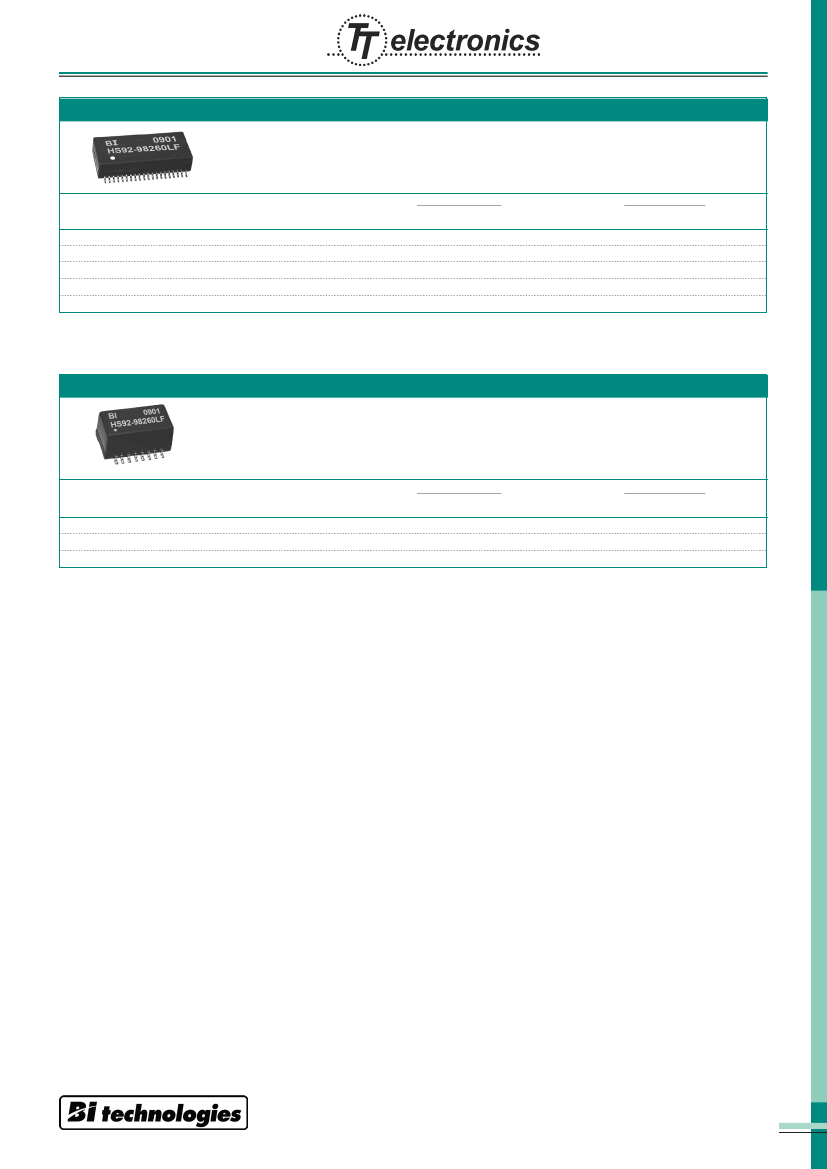

MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION

We reserve the right to change specifications without prior notice.

www.bitechnologies.com
