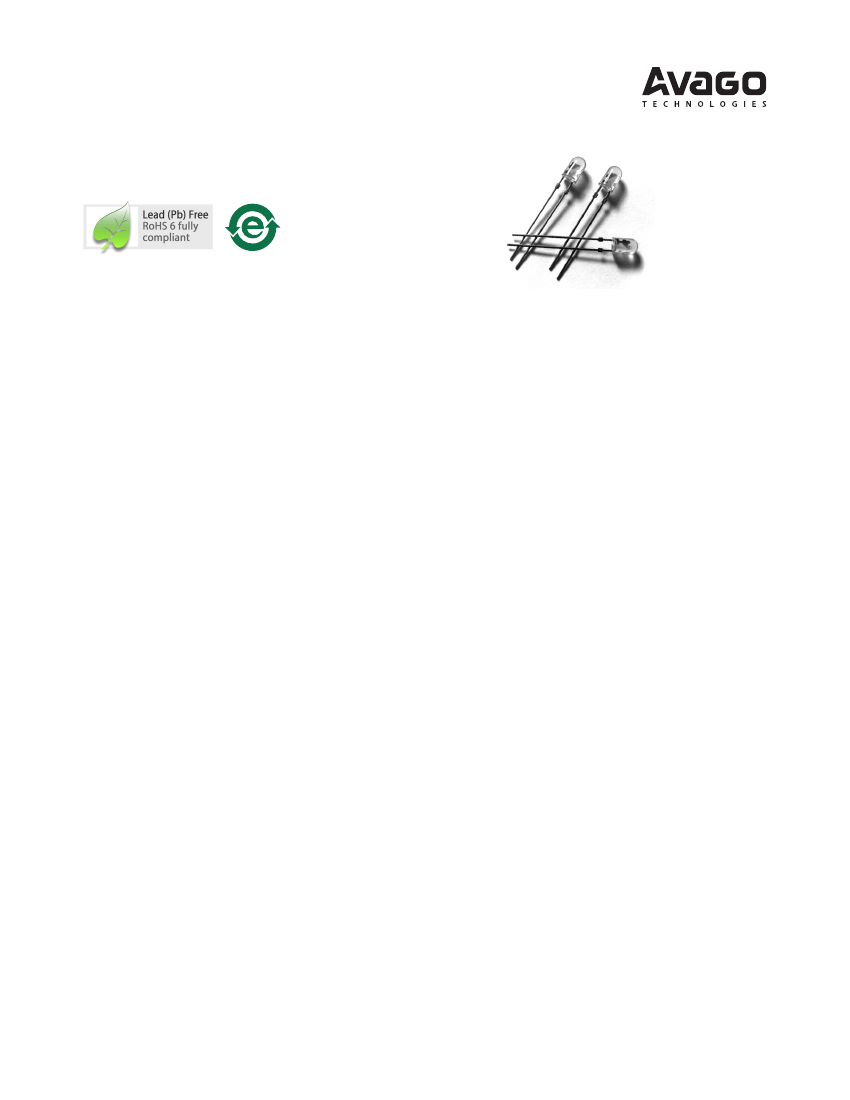

HLMP-RD11/SD11/RG10/SG10/RL10/SL10
4 mm Super Oval Precision Optical Performance
AlInGaP LEDs
Data Sheet
Description
These Precision Optical Performance Oval LEDs are specifi-
cally designed for Full Color/Video and Passenger Informa-
tion signs. The oval shaped radiation pattern (60° x 120°)
and high luminous intensity ensure that these devices
are excellent for wide field of view outdoor applications
where a wide viewing angle and readability in sunlight
are essential. These lamps have very smooth, matched
radiation patterns ensuring consistent color mixing in full
color applications, message uniformity across the viewing
angle of the sign.
High efficiency LED materials are used in these lamps:
Aluminum Indium Gallium Phosphide (AlInGaP) for Red
and Amber color. There are two families of red and amber
lamps, AlInGaP and the higher performance AlInGaP II.
Each lamp is made with an advanced optical grade epoxy
offering superior high temperature and high moisture
resistance in outdoor applications. The package epoxy
contains both uv-a and uv-b inhibitors to reduce the
effects of long term exposure to direct sunlight.
Designers can select parallel (where the axis of the leads
is parallel to the wide axis of the oval radiation pattern)
or perpendicular orientation. Both lamps are available in
tinted version.
Features
•
Well defined spatial radiation pattern
•
Viewing angle:
major axis 120°
minor axis 60°
•
High luminous output
•
Two red and amber intensity levels:
AlInGaP (bright) and AlInGaP II (brightest)
•
Colors:
626/630 nm red
590/592 nm amber
•
UV resistant epoxy
•
Superior resistance to moisture
Applications
•
Full color signs
Benefits
•
Viewing angle designed for wide field of view
applications
•
Superior performance for outdoor environments
Package Dimensions
21.0 MIN.
(0.827)
A
∅
4.0 ± 0.20
(0.157 ± 0.008)
9.50 ± 0.50
(0.374 ± 0.007)
6.30 ± 0.20
(0.248 ± 0.008)
1.25 ± 0.20
(0.049 ± 0.008)
CATHODE
LEAD
2.54 ± 0.30
(0.100 ± 0.012)
0.80 MAX. EPOXY MENISCUS
(0.016)
+0.10
0.45 –0.04
+0.004
(0.018 –0.002)
+0.10
0.40 –0
+0.004
(0.016 –0.000)
1.0 MIN.
(0.039)
0.44 ± 0.20
(0.017 ± 0.008)
21.0 MIN.
(0.827)
B
∅
4.0 ± 0.20
(0.157 ± 0.008)
9.50 ± 0.50
(0.374 ± 0.007)
6.30 ± 0.20
(0.248 ± 0.008)
1.25 ± 0.20
(0.049 ± 0.008)
CATHODE
LEAD
2.54 ± 0.30
(0.100 ± 0.012)
0.80 MAX. EPOXY MENISCUS
(0.016)
+0.10
0.45 –0.04
+0.004
(0.018 –0.002)
+0.10
0.40 –0
+0.004
(0.016 –0.000)
1.0 MIN.
(0.039)
0.44 ± 0.20
(0.017 ± 0.008)
Dimensions are in millimeters (inches).
2
Device Selection Guide for AlInGaP
Color and
Dominant
Wavelength
λd
(nm) Typ.
Red 626
Red 626
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Amber 590
Luminous Intensity
Iv (mcd) at 20 mA
Min.
240
240
180
400
400
400
400
400
520
520
520
520
400
400
520
520
Part Number
HLMP-SG10-JM0xx
HLMP-RG10-JM000
HLMP-SL10-HL0DD
HLMP-SL10-LM0DD
HLMP-SL10-LMKDD
HLMP-SL10-LMLDD
HLMP-SL10-LP0xx
HLMP-SL10-LPKDD
HLMP-SL10-MNKxx
HLMP-SL10-MP0DD
HLMP-SL10-MQ0DD
HLMP-SL10-MQLDD
HLMP-RL10-LMLDD
HLMP-RL10-LP0xx
HLMP-RL10-MP0DD
HLMP-RL10-MQLDD
Max.
680
680
520
680
680
680
1150
1150
880
1150
1500
1500
680
1150
1150
1500
Leads with
Stand-Off
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Leadframe
Orientation
Perpendicular
Parallel
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Parallel
Parallel
Parallel
Parallel
Package
Drawing
A
B
A
A
A
A
A
A
A
A
A
A
B
B
B
B
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength, λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
Device Selection Guide for AlInGaP II
Color and
Dominant
Wavelength
λ
d
(nm) Typ.
Red 630
Red 630
Red 630
Red 630
Red 630
Red 630
Red 630
Red 630
Part Number
HLMP-RD11-J0000
HLMP-RD11-LP0xx
HLMP-RD11-LPTxx
HLMP-SD11-J0000
HLMP-SD11-LP000
HLMP-SD11-LPTxx
HLMP-SD11-MN0xx
HLMP-SD11-MNTxx
Luminous Intensity
I
V
(mcd) at 20 mA
Min.
Max.
240 -
40
1150
400 1150
240 -
400 1150
400 1150
520 880
520 880
Leads with
Stand-Offs
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Leadframe
Orientation
Yes
Parallel
Parallel
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Package
Drawing
Parallel B
B
B
A
A
A
A
A
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength, λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
3
Part Numbering System
HLMP - x x xx - x x x xx
Mechanical Options
00: Bulk Packaging
DD: Ammo Pack
YY: Flexi-Bin; Bulk Packaging
ZZ: Flexi-Bin; Ammo Pack
Color Bin & V
F
Selections
0: No Color Bin Limitation
T: Red Color with V
F
Maximum of 2.6 V
K: Amber Color Bins 2 and 4
L: Amber Color BIns 4 and 6
Maximum Intensity Bin
Minimum Intensity Bin
0: No Iv Bin Limitation
Refer to Device Selection Guide
Color
D: 630 nm Red
G: 626 nm Red
L: 590 nm Amber
Package
R: 4 mm 60° x 120°Oval, Parallel
S: 4 mm 60° x 120°Oval, Perpendicular
Absolute Maximum Ratings
T
A
= 25°C
Parameter
DC Forward Current
1
Peak Pulsed Forward Current
Average Forward Current
Reverse Voltage (I
R
= 100 µA)
Power Dissipation
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Note:
1. Derate linearly as shown in Figures 4.
Amber and Red
50 mA
100 mA
30 mA
5 V
120 mW
130°C
–40°C to +100°C
–40°C to +100°C
4
Electrical/Optical Characteristics
T
A
= 25°C
Parameter
Typical Viewing Angle
[1]
Major
Minor
Forward Voltage
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Reverse Voltage
Amber and Red
Peak Wavelength
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Spectral Halfwidth
Red (λ
d
= 626/630 nm)
Amber (λ
d
= 590 nm)
Capacitance
All Colors
Thermal Resistance
All Colors
Luminous Efficacy
[3]
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Symbol
2θ
½
V
F
V
R
λ
PEAK
Δλ
½
C
Rθ
J-PIN
η
v
Min.
Typ.
120
60
1.9
2.0
2.02
20
635
639
592
17
17
40
240
150
155
480
Max.
2.4
2.4
[2]
2.4
Units
deg
V
V
nm
nm
pF
°C/W
lm/W
Test Conditions
5
I
F
= 20 mA
I
R
= 100 µA
Peak of Wavelength of
Spectral Distribution
at I
F
= 20 mA
Wavelength Width at
Spectral Distribution
½ Power Point at I
F
= 20 mA
V
F
= 0, F = 1 MHz
LED Junction-to-Cathode
Lead
Emitted Luminous Power/
Emitted Radiant Power
Notes:
1. 2θ
½
is the off-axis angle where the luminous intensity is the on-axis intensity.
2. For options -xxRxx, -xxTxx, and -xxVxx, maximum forward voltage, V
F
, is 2.6 V. Please refer to V
F
Bin Table below.
3. The radiant intensity, I
e
, in watts per steradian, may be found from the equation I
e
= I
v
/η
v
, where I
v
is the luminous intensity in candelas and η
v
is
the luminous efficacy in lumens/watt.
5
