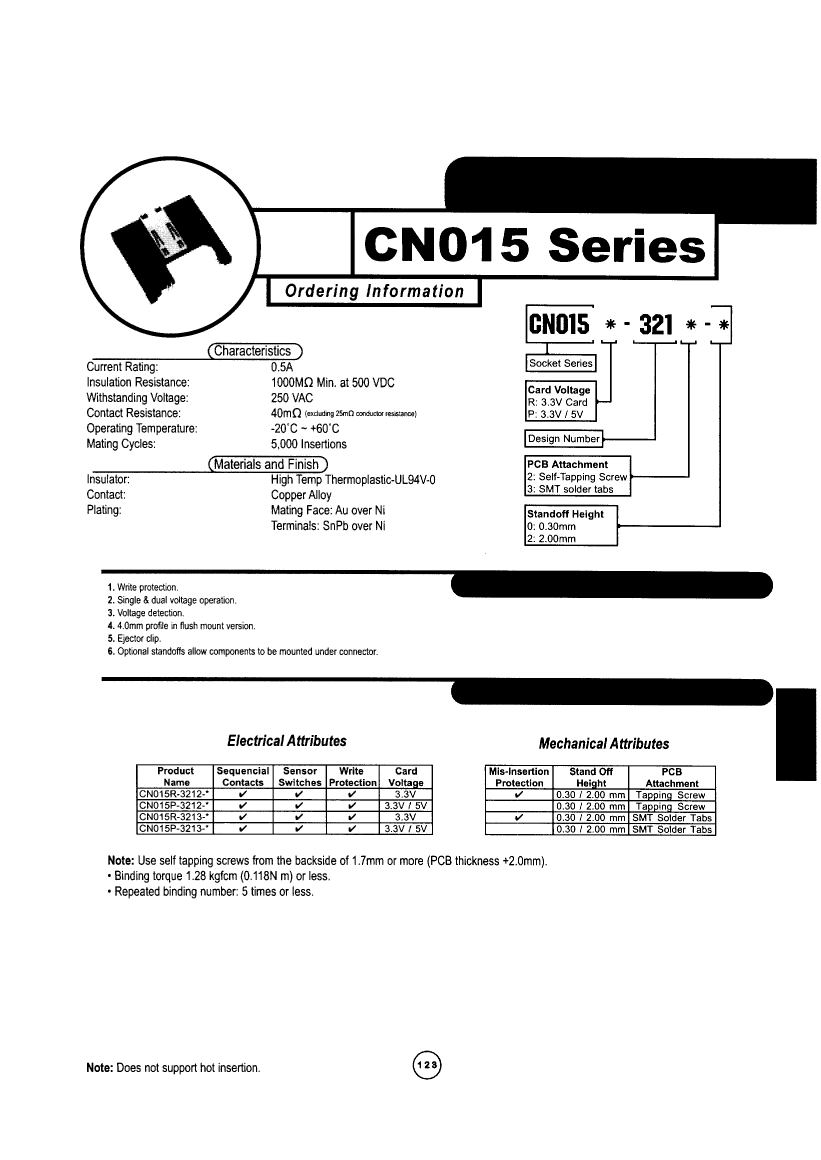

PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket

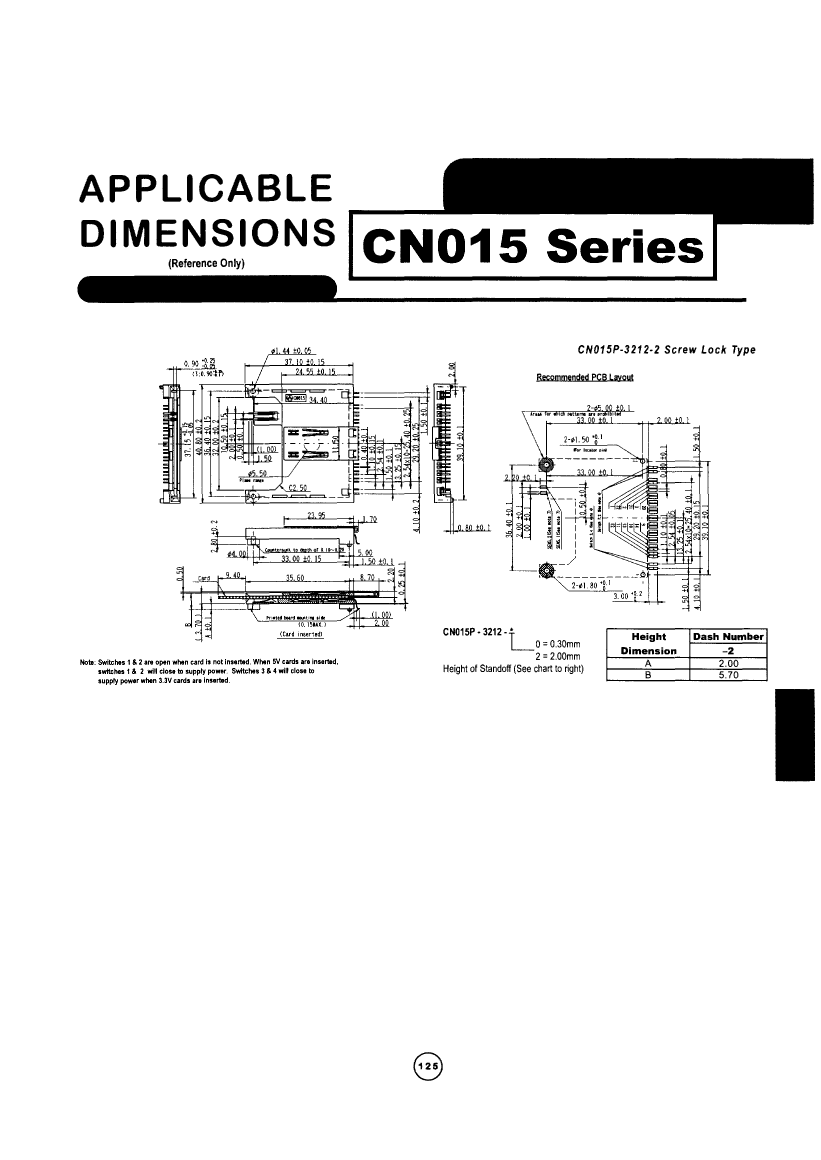

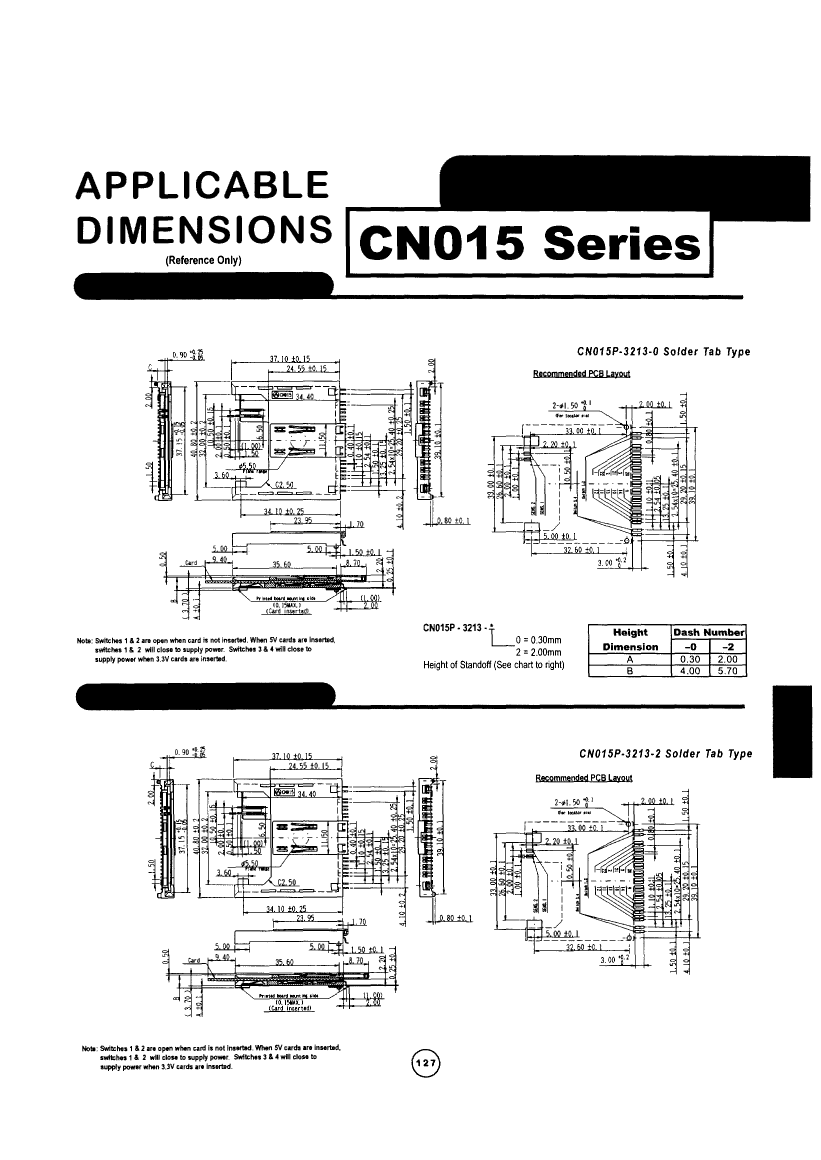

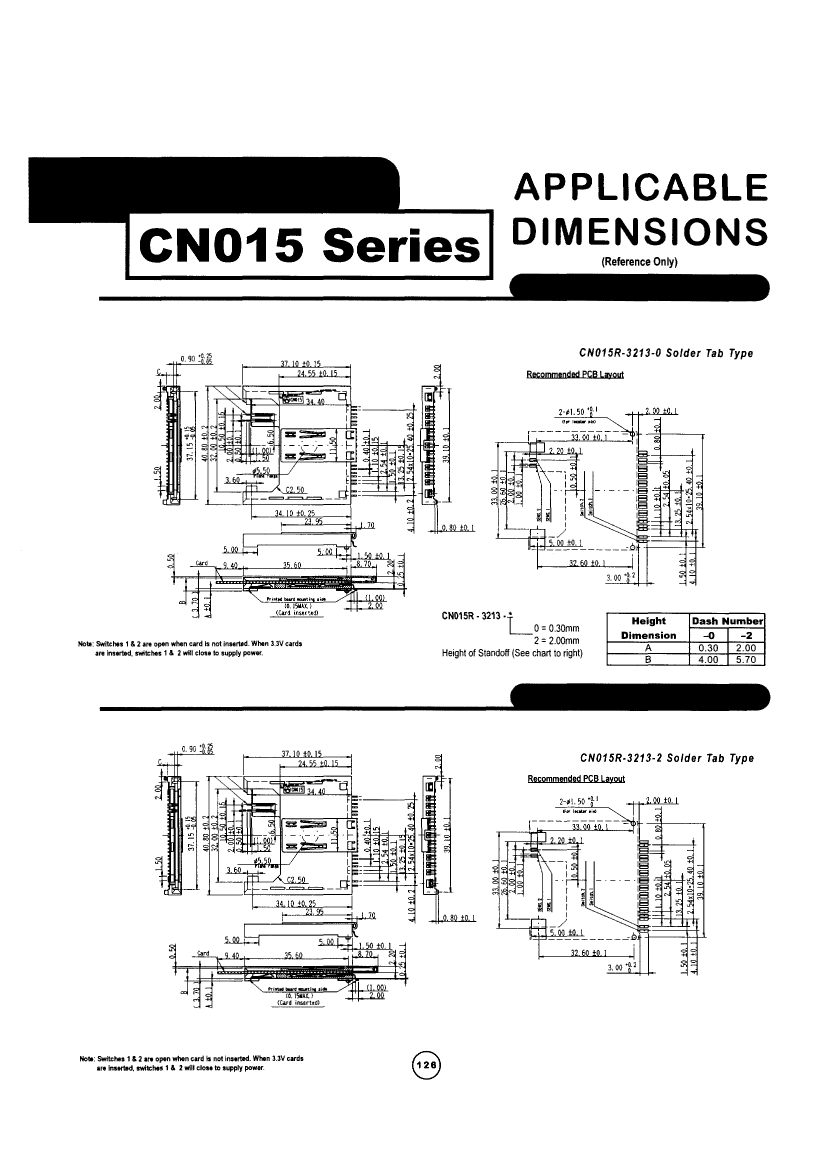

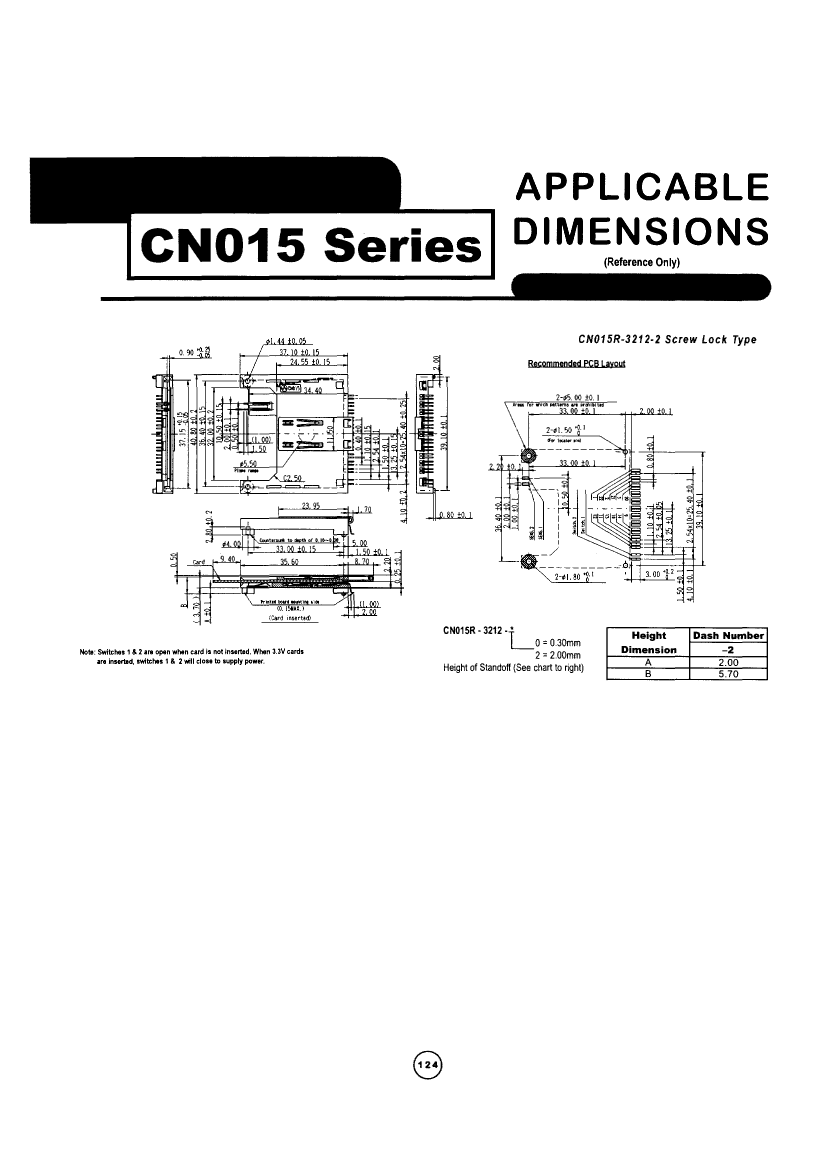

| Parameter Name | Attribute value |
| Maker | Yamaichi Electronics Co., Ltd. |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | CARD VOLTAGE - 3.3V / 5V |
| Board mount options | POSITIONING PIN |
| body width | 0.177 inch |
| subject depth | 1.461 inch |
| body length | 1.606 inch |
| Body/casing type | SOCKET |
| Connector type | PCMCIA CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 40 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 250VAC V |
| Durability | 5000 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | CN015 |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of ports | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 60 °C |
| Minimum operating temperature | -20 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 24 |
| UL Flammability Code | 94V-0 |
| CN015P-3213-0 | CN015P-3213-2 | CN015R-3212-0 | CN015R-3212-2 | CN015R-3213-0 | CN015R-3213-2 | |
|---|---|---|---|---|---|---|
| Description | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket | PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket |
| Maker | Yamaichi Electronics Co., Ltd. | Yamaichi Electronics Co., Ltd. | Yamaichi Electronics Co., Ltd. | Yamaichi Electronics Co., Ltd. | Yamaichi Electronics Co., Ltd. | Yamaichi Electronics Co., Ltd. |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | CARD VOLTAGE - 3.3V / 5V | CARD VOLTAGE - 3.3V / 5V | CARD VOLTAGE - 3.3V | CARD VOLTAGE - 3.3V | CARD VOLTAGE - 3.3V | CARD VOLTAGE - 3.3V |
| Board mount options | POSITIONING PIN | POSITIONING PIN | POSITIONING PIN | POSITIONING PIN | POSITIONING PIN | POSITIONING PIN |
| body width | 0.177 inch | 0.244 inch | 0.177 inch | 0.244 inch | 0.177 inch | 0.244 inch |
| subject depth | 1.461 inch | 1.461 inch | 1.461 inch | 1.461 inch | 1.461 inch | 1.461 inch |
| body length | 1.606 inch | 1.606 inch | 1.843 inch | 1.606 inch | 1.606 inch | 1.606 inch |
| Body/casing type | SOCKET | SOCKET | SOCKET | SOCKET | SOCKET | SOCKET |
| Connector type | PCMCIA CONNECTOR | PCMCIA CONNECTOR | PCMCIA CONNECTOR | PCMCIA CONNECTOR | PCMCIA CONNECTOR | PCMCIA CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 250VAC V | 250VAC V | 250VAC V | 250VAC V | 250VAC V | 250VAC V |
| Durability | 5000 Cycles | 5000 Cycles | 5000 Cycles | 5000 Cycles | 5000 Cycles | 5000 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | CN015 | CN015 | CN015 | CN015 | CN015 | CN015 |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 60 °C | 60 °C | 60 °C | 60 °C | 60 °C | 60 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 24 | 24 | 24 | 24 | 24 | 24 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
