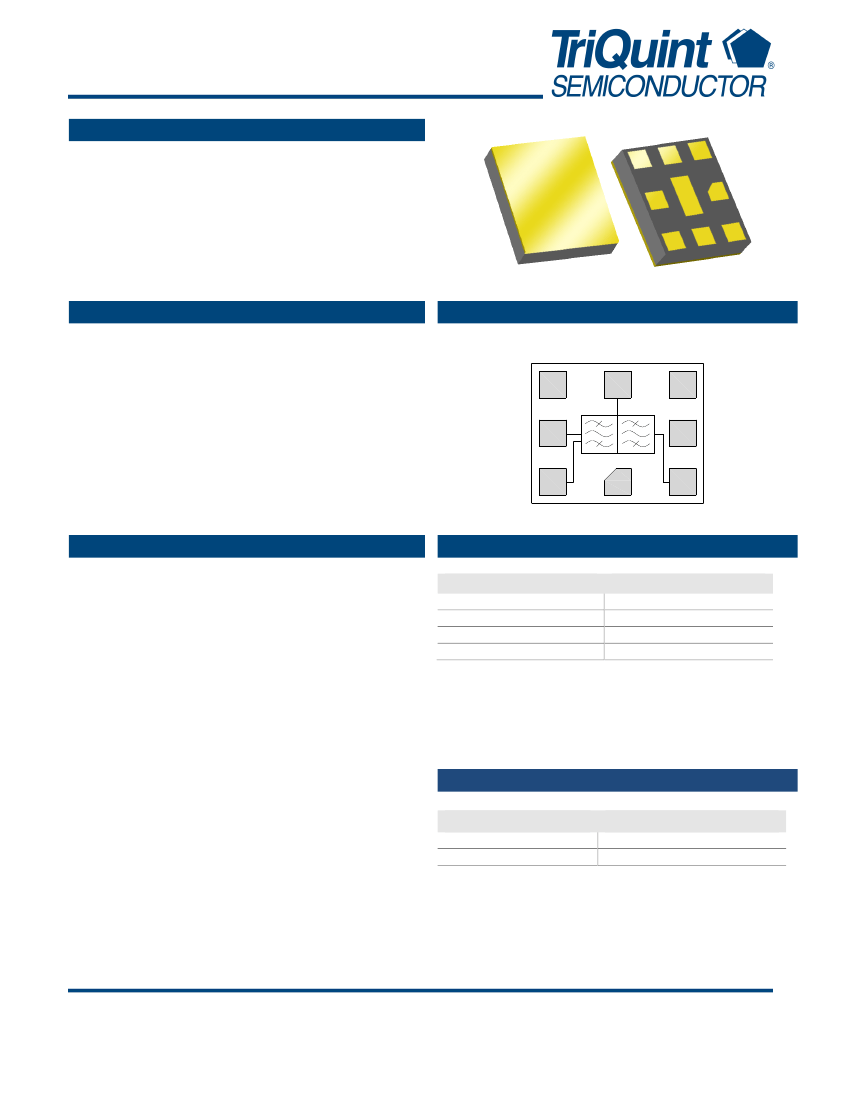

856999
833/878 MHz Duplexer
Applications
•
•
•
•
For BC10 applications
CDMA EvDO handsets
Data Cards
Mobile Routers
Product Features
•
•
•
•
•
•
•
•
Usable bandwidth 32 MHz
Low loss
High attenuation
High Tx-Rx isolation
Single-ended-Balanced operation
Ceramic chip-scale Package (CSP)
Small Size: 2.5 x 2.00 x 0.56 mm
Hermetic
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
Gnd
7
Ant
6
Gnd
5
4
Rx
Out
Rx
Out
8
1
2
Gnd
3
Gnd
Tx in
General Description
The 856999 is a high-performance Surface Acoustic Wave
(SAW) duplexer designed to meet the strict CDMA
requirements for use in the Cellular extension band, also
known as Band Class 10 (BC10).
856999 is specifically designed to meet the high performance
expectations of insertion loss, isolation and triple beat for
CDMA systems over the extended bandwith of BC10
applications under all operating conditions. Due to the
exceptional Receive isolation and GPS rejection performance
no transmit SAW filter should be required.
The 856999 uses common module packaging techniques to
achieve the industry standard 2.5 x 2.0 x 0.6 mm footprint.
The duplexer exhibits excellent power handling capabilities.
Pin Configuration
Pin # SE-Balanced
1,8
3
6
2,4,5,7,9
Description
Rx output
Tx input
Antenna/Phasing inductor
Ground
Ordering Information
Part No.
856999
856999-EVB
Description
packaged part
evaluation board
Standard T/R size = 10,000 units/reel.
Preliminary Data Sheet: Rev C 02/08/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 9 -
Disclaimer: Subject to change without notice
