TITLE:
PART IDENTIFIER:
SPECIFICATION CONTROL DRAWING
SHIFT
(NEG)
-.003
-.004
-.005
-.006
-.007
-.008
-.009
DB VALUE
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
1, 2, 3, 4, 5, 6
1, 2, 3, 4, 5
SHIFT
(POS)
.003
.005
.006
.007
.008
.009
DB VALUE
1, 3, 6
1, 3, 6
1, 3, 6
1, 2, 3, 6
6
6
DESCRIPTION:
TEMPERATURE VARIABLE CHIP ATTENUATOR WITH HIGH RELIABILITY TESTING.
NOTE:
SINGLE LOT AND DATE CODE AVAILABLE UPON REQUEST.
ASSEMBLY DWG:
N/A
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
OPERATING FREQUENCY RANGE: DC - 6 GHZ.
1.1.3
ATTENUATION VALUE: SEE TABLE ABOVE.
1.1.4
ATTENUATION ACCURACY AT 25°C: ±0.5DB @ 1 GHZ.
1.1.5
VSWR: 1.30:1 MAX. @ 1 GHZ.
1.1.6
INPUT POWER:
NEGATIVE SHIFTING: 2 WATTS CW.
POSITIVE SHIFTING: 0.25 WATTS CW.
1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.
1.1.7
TEMPERATURE COEFFICIENT OVER OPERATING TEMPERATURE RANGE:
SEE TABLE ABOVE, TEMPERATURE COEFFICIENT TOLERANCE: ±0.001 DB/DB/°C.
1.2
MECHANICAL:
1.2.1

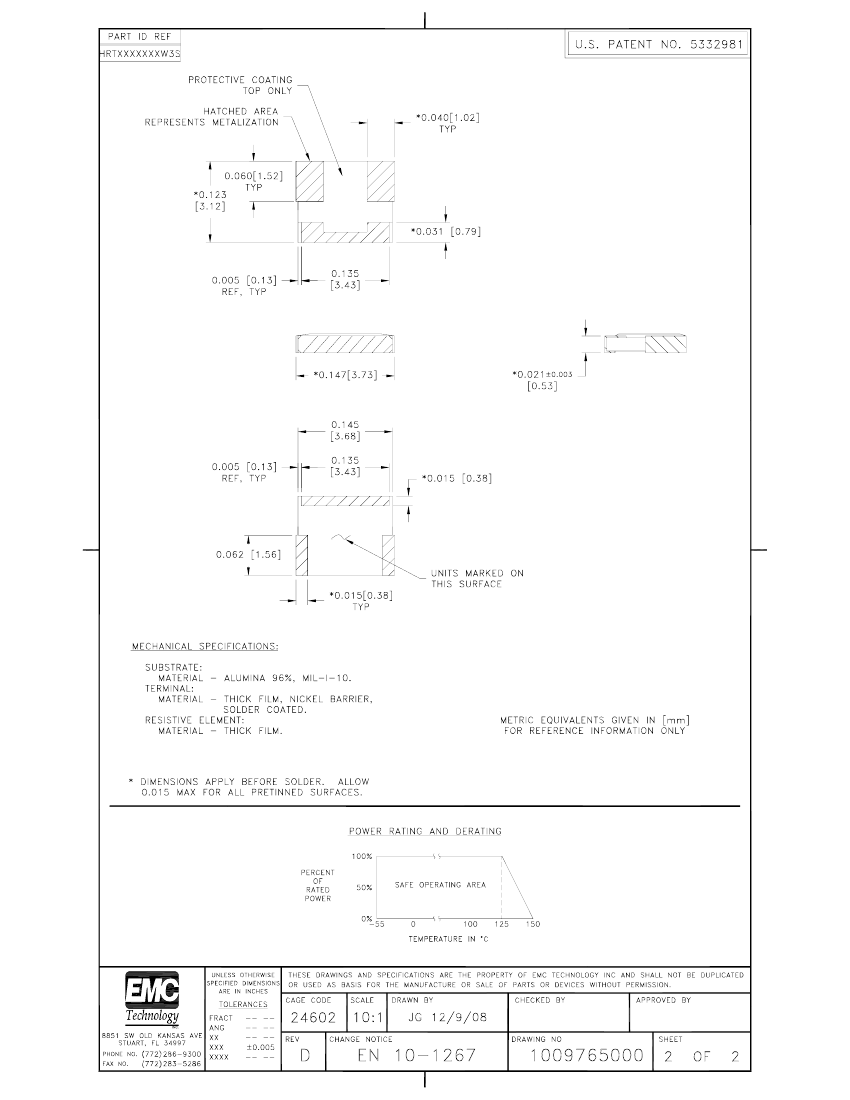

OUTLINE DWG: SEE SHEET 3.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
1.3
ENVIRONMENTAL:
1.3.1
OPERATING TEMPERATURE RANGE: -55°C TO +150°C.
UNIT MARKING:
DB VALUE (X), DIRECTION OF SHIFT (N OR P) AND TCA SHIFT (X).
LEGIBILITY AND PERMANENCY PER MIL-STD-130.
2.0
3.0
QUALITY ASSURANCE:
3.1
VERIFY 100% VISUAL PRE-CAP INSPECTION PERFORMED PER TP-8965.
3.2
PERFOM GROUP A, B AND/OR C TESTING AS INDICATED BY THE PART NUMBER PER TP-8965.
3.3
TEST DATA REQUIREMENTS:
3.3.1
TEST DATA REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
3.3.2
DATA RETENTION - 24 MONTHS.
3.3.3
TEST SAMPLES REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
PACKAGING:
STANDARD PACK PER 755W002. (SERIALIZED WAFFLE PACK)
4.0
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 10-1267
DWG #
REV LVL
SHEET
1009765000
D
1
OF
2
