500 Series
Numerical Display Sockets

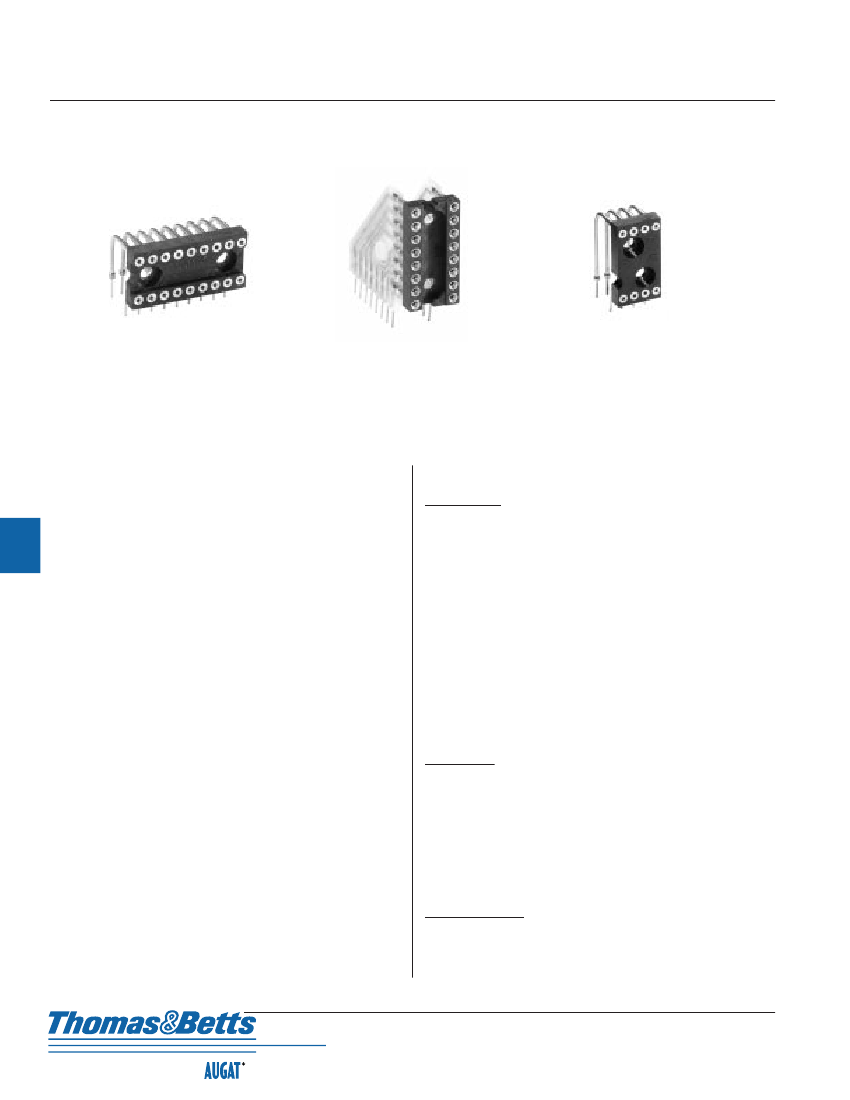

518-AG7D
516-AG21D
508-AG8D
FEATURES:
Augat offers a wide range of LED and ganged unit sockets to
allow for total flexibility and size variations while incorporating
the design features of our standard 500 Series sockets.
PERFORMANCE SPECIFICATIONS:
MECHANICAL
Vibration ........................ Passed MIL-STD-1344, Method 2005.1,
Condition II, 10 G's
Shock .............................. Passed MIL-STD-1344, Method 2004.1,
Condition C, 100 G's
Durability ...................... Passed MIL-STD-1344, Method 2016
Normal Force ................ 200 Grams (7.0 oz.) average with .018" (0,46) dia.
polished steel pin
Insertion Force .............. 179 Grams (6.3 oz.) average with .018 (0,46)" dia.
polished steel pin
Withdrawal Force .......... 63 Grams (2.2 oz.) average with .018" (0,46) dia.
polished steel pin
Solderability .................. Passed MIL-STD-202F, Method 208
Sleeve Retention
in Plastic .................... 3.5 Lbs. per line minimum solderless wrap;
3.0 Lbs. PC tail
Inner Contact
Retention .................... 7.5 Lbs. per line average
ELECTRICAL
Contact Resistance ........ 10 Milliohms
Contact Rating .............. 3 Amps
Capacitance .................... 1.0 pF per MIL-STD-202, Method 305
(contact to contact)
Insulation Resistance .... 5,000 Megohms min. @ 500 VDC per
MIL-STD-1344, Method 3003.1
Dielectric Withstanding
Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,
Method 3001.1
ENVIRONMENTAL
Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Cond. II
Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A
Operation Temperature .. Gold inner contact -55°C to +125°C
Tin/lead inner contact -55°C to +105°C
G
• Two-piece tapered entry socket terminal — four-fingered, gold plated
inner contact and machined tin/lead plated outer sleeve.
• Available in either solderless wrap or printed circuit termination.
• Horizontal or right angle mounting.

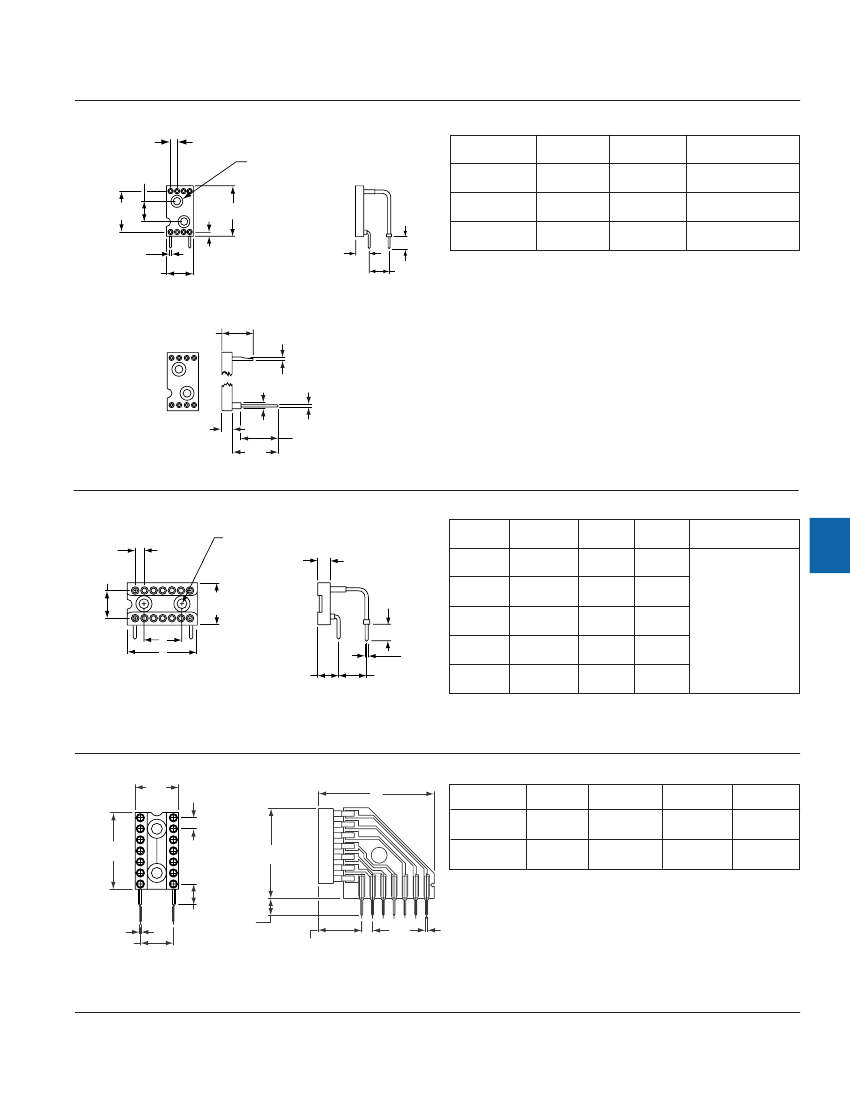

MATERIAL SPECIFICATIONS (Figures 1, 2, 3):
Inner Contact .................. Four-fingered beryllium copper, gold
Outer Sleeve .................. Machined brass, tin/lead plated
Insulator ........................ Thermoplastic polyester UL rated 94V-0
MATERIAL SPECIFICATIONS (Figure 4):
Inner Contact .................. Four-fingered beryllium copper, gold
Outer Sleeve .................. Brass, tin/lead plated
Board .............................. Glass epoxy, tin-plated copper circuitry
Terminal ........................ Phosphor bronze, solder-coated
Spacer ............................ Delrin
