The LC709202F is an IC that measures the remaining power level of 1-cell lithium-ion (Li+) batteries used for a
portable equipment etc.
This product is able to reduce a fuel gauge errors by implementing its unique correction technology for measurement
value of battery temperature and voltage.
It is possible for this to realize high precision for measurement in battery power measurement IC that does not need a
current sensing resistor. (±3% under certain conditions)
Applications
•
Wireless Handsets
•
Smartphones/PDA devices
•
MP3 players
•
digital cameras
•
Portable Game Players
•
USB-related devices

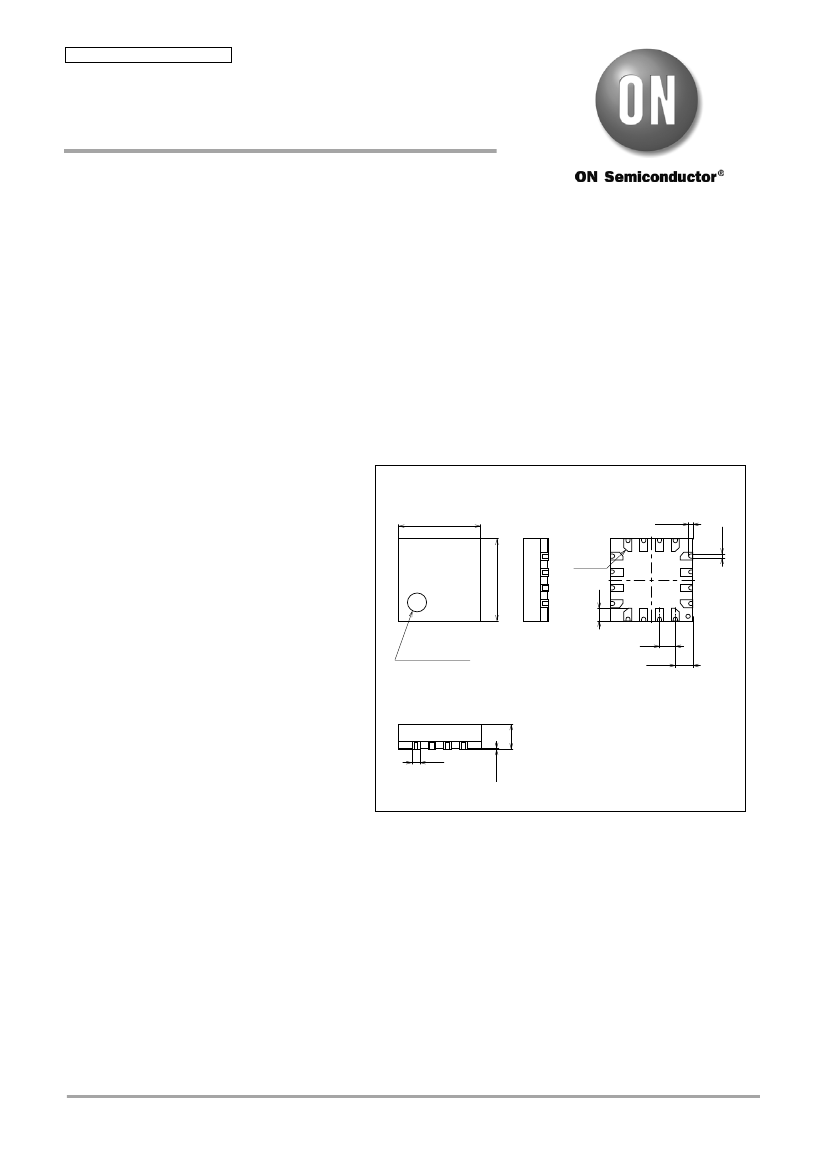

Package Dimensions
unit : mm (typ)
3318
TOP VIEW
2.6
SIDE VIEW
BOTTOM VIEW
(0.125)
Features
Accuracy of remaining battery power level
measurement
•
±3% (at an ambient operating temperature of
0°C to 50°C)
Note: The accuracy above is the value of an
experiment using the evaluation board.
Precision ±7.5mV/Cell Voltage Measurement
A current sensing resistor is unnecessary.
Alert function
Interface
•
I
2
C Interface (up to 400 kHz supported)
Low power consumption
•
Normal Mode : 15μA
•
Sleep Mode
: 0.1μA
(0.035)
0.25
(C0.116)
2.6
0.4
2
LASER MARKED
INDEX
0.5
(0.55)
1
SIDE VIEW
0.8
VCT16(2.6X2.6)
Corresponding battery
•
Model to be used depending on the material of the electrode of the battery pack + is different.
LC709202F-01: ternary system
LC709202F-02: nickelic acid
* I
2
C Bus is a trademark of Philips Corporation.
Semiconductor Components Industries, LLC, 2013
April, 2013
40313HKIM 20130314-S00002 No.A2173-1/10
16
(0.13)
LC709202F
Ports
•
I
2
C communication pin
•
Battery temperature reading control pin
•
Analog voltage input pin for battery temperature
•
External alarm / Interrupt for Low-Battery warning
•
Reset pin
•
TEST pin
•
Power supply pin
Package form
•
VCT16 (2.6×2.6) : Lead-free type
2 (SDA, SCL)
1 (TSW)
1 (TSENSE)
1 (ALARMB)
1 (RESB)
3 (TEST0, TEST1, TEST2)
3 (VSS, VDD1, VDD2)
Pin Assignment
TSENSE
TSW
8
SDA
SCL
VDD2
NC
NC
TEST2
13
14
15
16
12 11 10 9
TEST1
NC
NC
ALARMB
LC709202FRD
1
VSS
2
RESB
3
VDD1
4
TEST0
7
6
5
Top view
VCT16 (2.6×2.6) “Lead-free Type”
Pin Function
VCT16
1
2
3
4
Pin Name
VSS
RESB
VDD1
TEST0
I/O
-
I
-
I
Connect to the - terminal of the battery.
Reset pin
Connect to the + terminal of the battery.
Test pin
*Connect to VSS.
5
ALARMB
O
Alert indication. An active low output used to indicate specified condition thresholds have been met.
*When you do not use an alert function, please connect with VSS.
8
9
TEST1
TSW
O
O
Set “OPEN”
Battery temperature reading control pin
*Set high when reading in the temperature, held low at other times.
10
11
12
13
16
TSENSE
SDA
SCL
VDD2
TEST2
I
I/O
I/O
-
O
Battery temperature analog voltage input pin
I
2
C data pin
I
2
C clock pin
+ power pin for I
2
C-Bus communication pin(SDA,SCL)
Set “OPEN”
Description
No.A2173-2/10
LC709202F

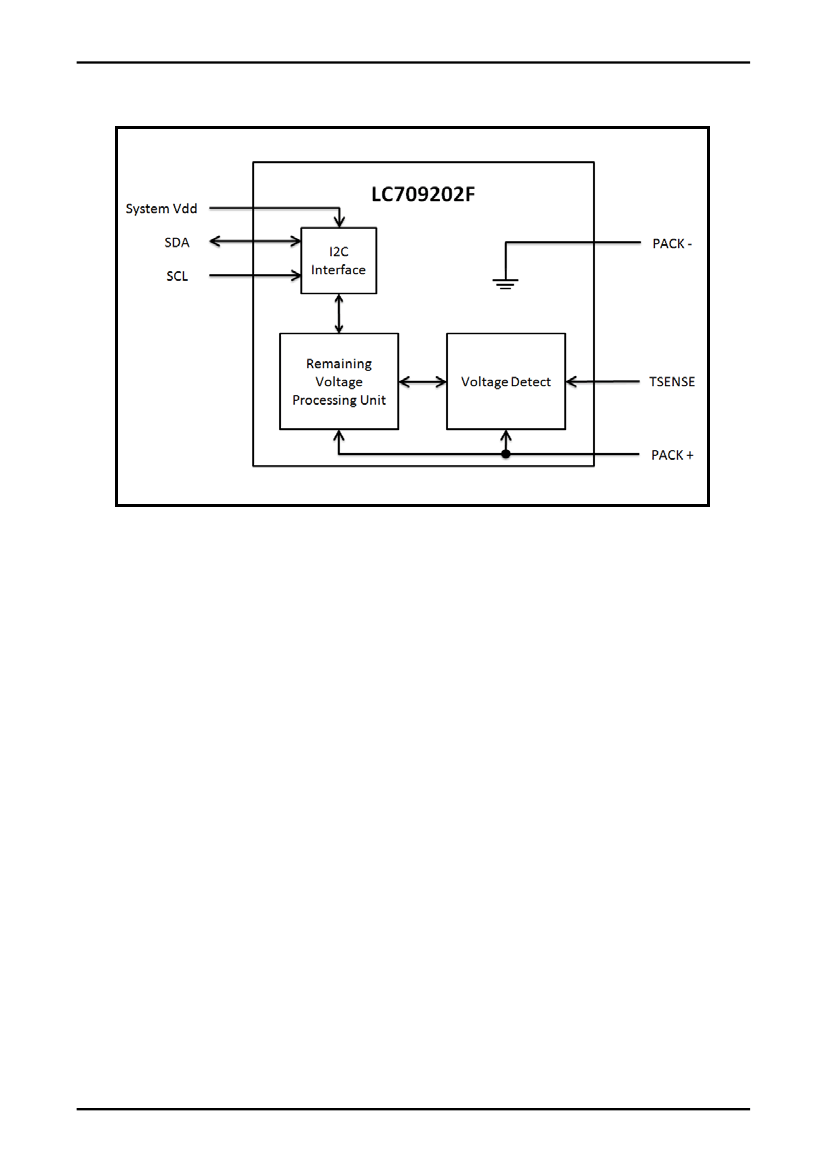

Block Diagram
No.A2173-3/10
LC709202F
Absolute Maximum Ratings
at Ta=25°C, VSS=0V
Specification
Parameter
Maximum supply
voltage
Input voltage
Output voltage
VI (1)
Vo (1)
Vo (2)
Input/output voltage
Allowable power
dissipation
Operating ambient
temperature
Storage ambient
temperature
Tstg
Topr
-40
-55
VIO (1)
Pd max
RESB, TSENSE
TSW
ALARMB
SDA, SCL
VCT16
Ta=-40 to+85°C
Symbol
VDD max
Pin/Remarks
VDD1, VDD2
Conditions
VDD[V]
min
-0.3
-0.3
-0.3
-0.3
-0.3
+5.5
55
+85
°C
+125
mW
typ
max
+6.5
VDD1
+0.3
VDD1
+0.3
V
Unit
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Allowable Operating Conditions
at Ta= -40 to +85°C, VSS=0V
Specification
Parameter
Operating supply
voltage
High level input
voltage
VIH (1)
VIH (2)
VIH (3)
Low level input
voltage
VIL (1)
VIL (2)
VIL (3)
TSENSE
RESB
SDA, SCL
TSENSE
RESB
SDA, SCL
VDD2=1.6V to 5.5V
VDD2=1.6V to 5.5V
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
Symbol
VDD (1)
Pin/Remarks
VDD1
Conditions
VDD[V]
min
2.5
0.70VDD1
0.75VDD1
0.70VDD2
VSS
VSS
VSS
typ
max
4.5
VDD1
VDD1
VDD2
0.25VDD1
0.25VDD1
0.30VDD2
V
unit
No.A2173-4/10
LC709202F
Electrical Characteristics
at Ta= -40 to +85°C, VSS=0V
Specification
Parameter
High level input
current
IIH (2)
SDA, SCL
Symbol
IIH (1)
Pin/Remarks
RESB
Conditions
VDD[V]
VIN=VDD1
(including output transistor off
leakage current)
VIN=VDD2
VDD2=1.6V to 5.5V
(including output transistor off
leakage current)
Low level input
current
IIL (2)
SDA, SCL
IIL (1)
RESB
VIN=VSS
(including output transistor off
leakage current)
VIN=VSS
VDD2=1.6V to 5.5V
(including output transistor off
leakage current)
High level output
voltage
Low level output
voltage
Hysteresis
voltage
Pin capacitance
VOH (1)
VOH (2)
VOL (1)
VOL (2)
VHYS(1)
VHYS(2)
CP
TSW,
ALARMB,
SDA, SCL
RESB
SDA, SCL
All pins
Pins other than the pin under
test
VIN=VSS
Ta=25°C
Consumption
current
(Note 1)
IDD (1)
IDD (2)
IDD (3)
Voltage
measurement
accuracy
VME (1)
VME (2)
VDD1
VDD1
Normal Mode
Auto Mode
Sleep Mode
Ta= +25°C
Ta= -20°C to +70°C
2.5 to 4.5
10
pF
TSW
IOH=-0.4 mA
IOH=-0.2 mA
IOL=3.0 mA
IOL=1.3 mA
3.0 to 4.5
2.5 to 4.5
3.0 to 4.5
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
0.1VDD1
0.1VDD2
VDD-0.4
VDD-0.4
0.4
V
0.4
2.5 to 4.5
-1
2.5 to 4.5
min
typ
max
Unit
1
2.5 to 4.5
1
μA
2.5 to 4.5
-1
2.5 to 4.5
2.5 to 4.5
2.5 to 4.5
3.6
2.5 to 4.5
-7.5
-20
15
2 to 15
0.1
26
4 to 26
5
+7.5
mV/cell
+20
μA
Note 1: Consumption current is a value in the range of -20°C to +70°C
