EX351-FREQ-STBY4-SR-TEMP1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> EX351-FREQ-STBY4-SR-TEMP1

Preview

EX351-FREQ-STBY4-SR-TEMP1: DescriptionSeries - Fundamental Quartz Crystal, 3.579MHz Min, 29.491MHz Max; CategoryPassive components Crystal/resonator; File Size93KB，1 Pages; ManufacturerINFICON EDC Inc

Download Datasheet Parametric View All

EX351-FREQ-STBY4-SR-TEMP1 Overview

Series - Fundamental Quartz Crystal, 3.579MHz Min, 29.491MHz Max

EX351-FREQ-STBY4-SR-TEMP1 Parametric

Parameter Name	Attribute value
Maker	INFICON EDC Inc
Reach Compliance Code	unknown
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0025%
frequency tolerance	50 ppm
Manufacturer's serial number	EX35
Installation features	SURFACE MOUNT
Maximum operating frequency	29.491 MHz
Minimum operating frequency	3.579 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L13.1XB4.4XH5 (mm)
surface mount	YES

Preview

Download Datasheet

View All

EDC

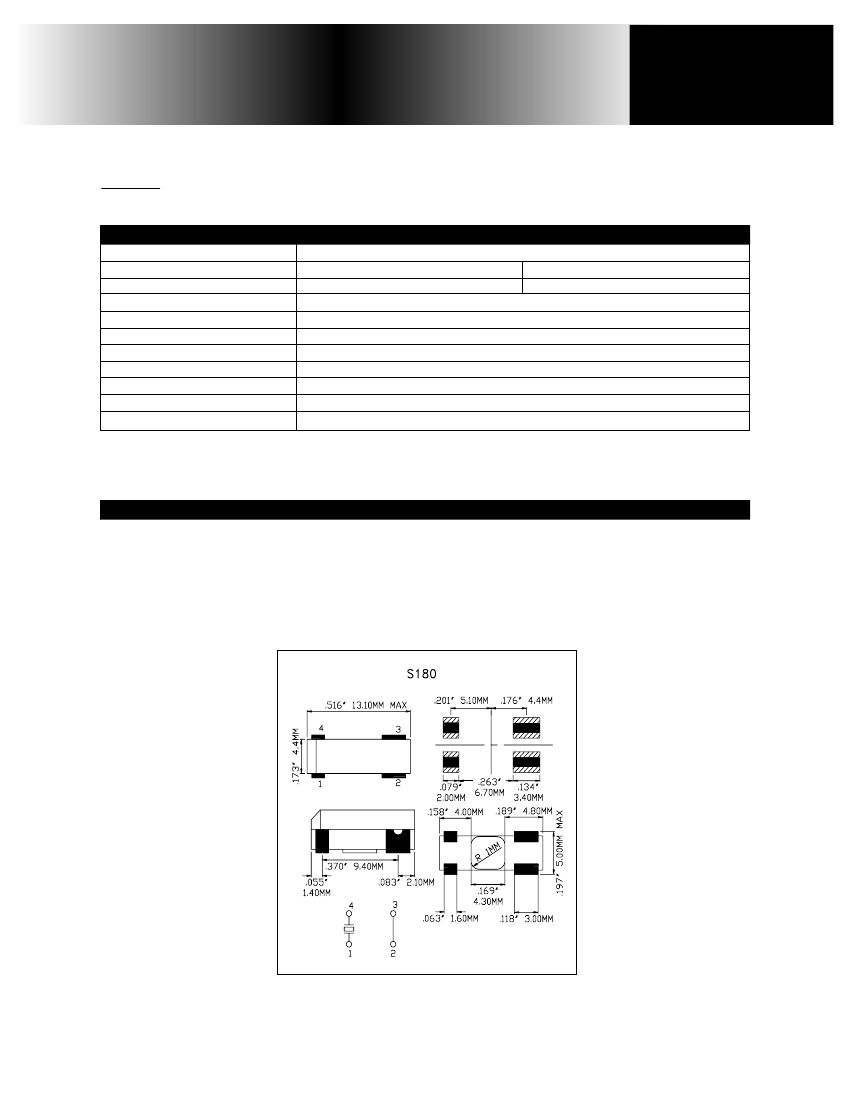

Features: Available on Tape & Reel, 5 x 13.1 x 5 mm, Plastic Package

EX 35

Series

COMMERCIAL

SMD Crystal

PARAMETERS

Package Part#

Frequency Range (MHz)

Overtone

Frequency Calibration (ppm)

Frequency Stability (ppm)

Operating Temp. Range (C)

Max. Resistance Level (ohms)

Resonance Type

Maximum Drive Level (uW)

Test Drive Level (uW)

Aging For The First Year (ppm)

EX351

S180

3.579 ~ 29.491

Fundamental

EX352

30.0 ~ 90.0

3rd

Series

+/- 50

+/- 100

-10 ~ +70

Frequency Dependent

or Parallel (Specify 10 ~ 50 pF)

100

50

+/- 5 Max

STANDARD AVAILABLE OPTIONS

Frequency Stability (ppm): +/- 10, 15, 20, 25 & 50 (Frequency and Temp. Range Dependent)

Operating Temp. Range (C): Downward to -40 and upward to +85 (Frequency Range Dependent)

All specifications subject to change. Please contact factory for current specifications. 9/98
