MLRF1010-681KS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MLRF1010-681KS

MLRF1010-681KS: DescriptionGeneral Purpose Inductor, 6.8uH, 10%, 1 Element, SMD, CHIP, 0909; CategoryPassive components inductor; File Size1MB，2 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

MLRF1010-681KS Overview

General Purpose Inductor, 6.8uH, 10%, 1 Element, SMD, CHIP, 0909

MLRF1010-681KS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Gowanda Electronics
package instruction	1311
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1311
structure	Rectangular
core material	FERRITE
DC Resistance	2.2 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.16 mm
Package length	3.3 mm
Package form	SMT
Package width	2.79 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	22
Maximum rated current	0.21 A
Guideline	MIL-PRF-83446/4
self resonant frequency	50 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	7.9 MHz
Tolerance	10%

Preview

Download Datasheet

View All

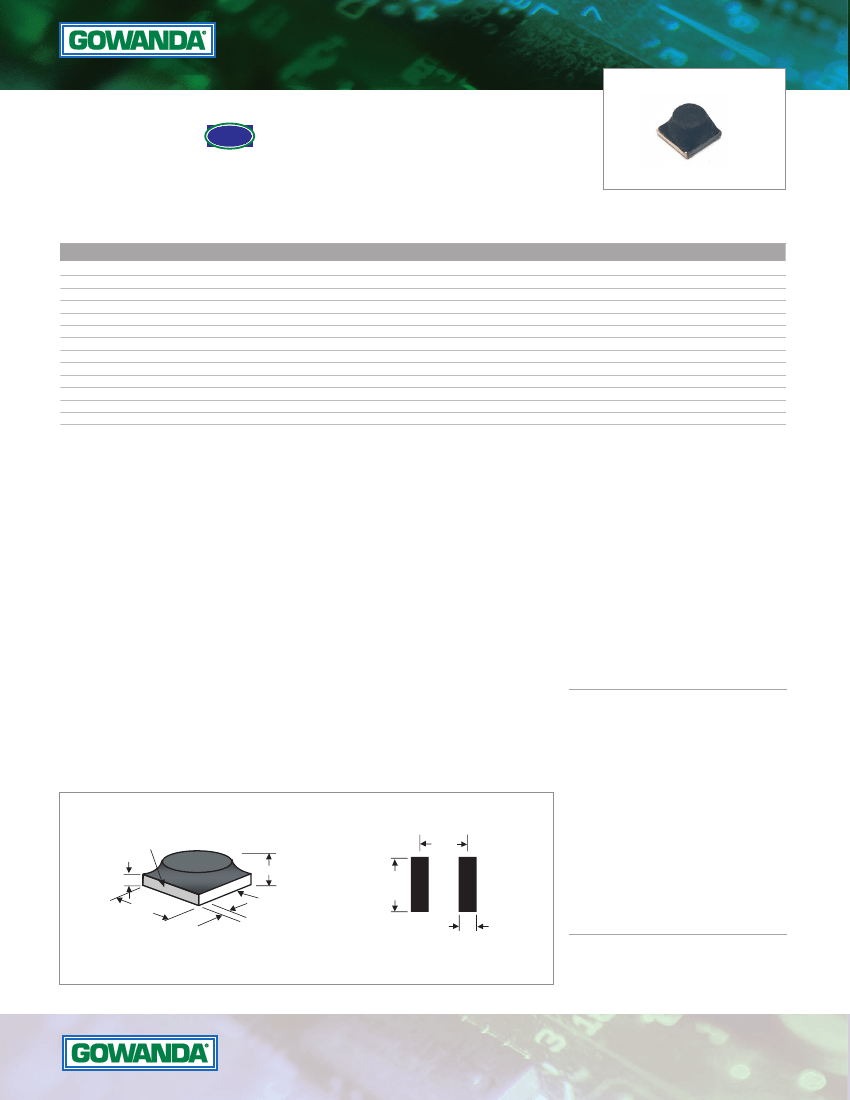

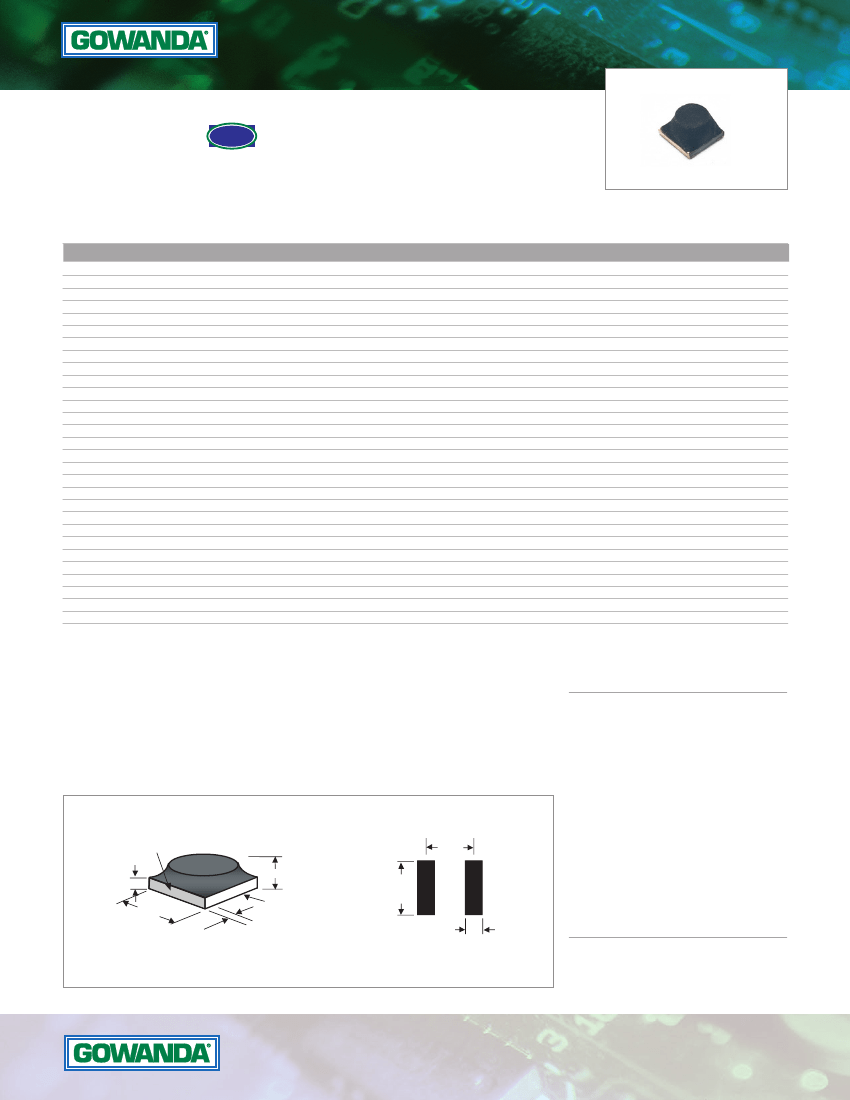

QPL RF INDUCTORS - SURFACE MOUNT

MLRF1010

TRADITIONAL

Epoxy Coated, MIL-PRF-83446

M83446/4 Phenolic Core & Ferrite Core

PART

NUMBER (1)

MIL DASH

NUMBER **

L µH

MIN

M83446/4

MLRF1010-010*

MLRF1010-012K

MLRF1010-015*

MLRF1010-018K

MLRF1010-022*

MLRF1010-027K

MLRF1010-033*

MLRF1010-039K

MLRF1010-047*

MLRF1010-056K

MLRF1010-068*

MLRF1010-082K

MLRF1010-100*

30/37

31/39

32/41

33/43

34/45

35/47

36/49

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.100

TEST

SRF

FREQ

MHz

MIN (2)

PHENOLIC CORE

2700

2450

2200

2000

1800

1625

1450

1335

1220

1110

1000

915

830

DCR

OHMS

MAX

0.060

0.069

0.078

0.093

0.108

0.114

0.120

0.133

0.145

0.170

0.195

0.212

0.230

DC CURRENT

RATING

mA MAX (3)

1270

1190

1110

1030

950

925

900

860

820

760

705

675

650

INDUCTANCE

TOLERANCE

continued next page

* Suffix “K” for 10% tolerance, Suffix “M” for 20% tolerance

** Where there are 2 MIL DASH NUMBERS, the first is 20% tolerance and the second is 10% tolerance

(1) Add suffix letter “S” to order with tin/lead solder coat

(2) SRF values above 250 MHz are calculated and are for reference only

(3) These values are also the maximum incremental current for ferrites only. Incremental current will not

change the inductance more than 5% from the zero DC inductance measurement

Wrap around Plated

Termination on Ceramic Base,

Gold or Tin-Lead Solder coated

NOTES:

.020 MAX

(.508)

.090/.110 SQ

(2.28/2.79)

.085 (2.16) MAX

• Operating Temperature Range:

-55°C to +125°C

• Weight maximum 0.50 grams

• DWV 200 Vrms @ Sea Level

80 Vrms @ 70,000 Feet

• Rated Current is based on a 35°C Rise at an

ambient temperature of 90°C

Gold termination is code “A” finish of

MIL-PRF-83446

Solder termination is code “B” & “F” finish of

MIL-PRF-83446

Example of ordering by Military number for

MLRF1010-220K: M83446/4-04A

MLRF1010-220KS: M83446/4-04B

TAPE AND REEL SPECS:

Pcs./Reel Maximum:

Pitch Between Parts:

Tape Width:

Reel Diameter:

2000

4 mm

12 mm

7 in.

Space Between

Terminals

.030 (.762) MIN

.015 (.381) MIN Terminal Width

Wrap around Plated

Termination on Ceramic Base,

Gold or Tin-Lead Solder coated

RECOMMENDED FOOT PRINT

.100

(2.54)

.085 (2.16) MAX

.130

(3.30)

Space Between

Terminals

.030 (.762) MIN

.020 MAX

(.508)

.090/.110 SQ

(2.28/2.79)

.015 (.381) MIN Terminal Width

.050

(1.27)

in. (mm)

RECOMMENDED FOOT PRINT

.100

(2.54)

.130

(3.30)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

.050

101713
