UPT-06-03.0-01-T-V-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> UPT-06-03.0-01-T-V-LC

UPT-06-03.0-01-T-V-LC: DescriptionRectangular Power Connector, 6 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size418KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

UPT-06-03.0-01-T-V-LC Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

UPT-06-03.0-01-T-V-LC Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POWERSTRIP
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	UPT
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	6

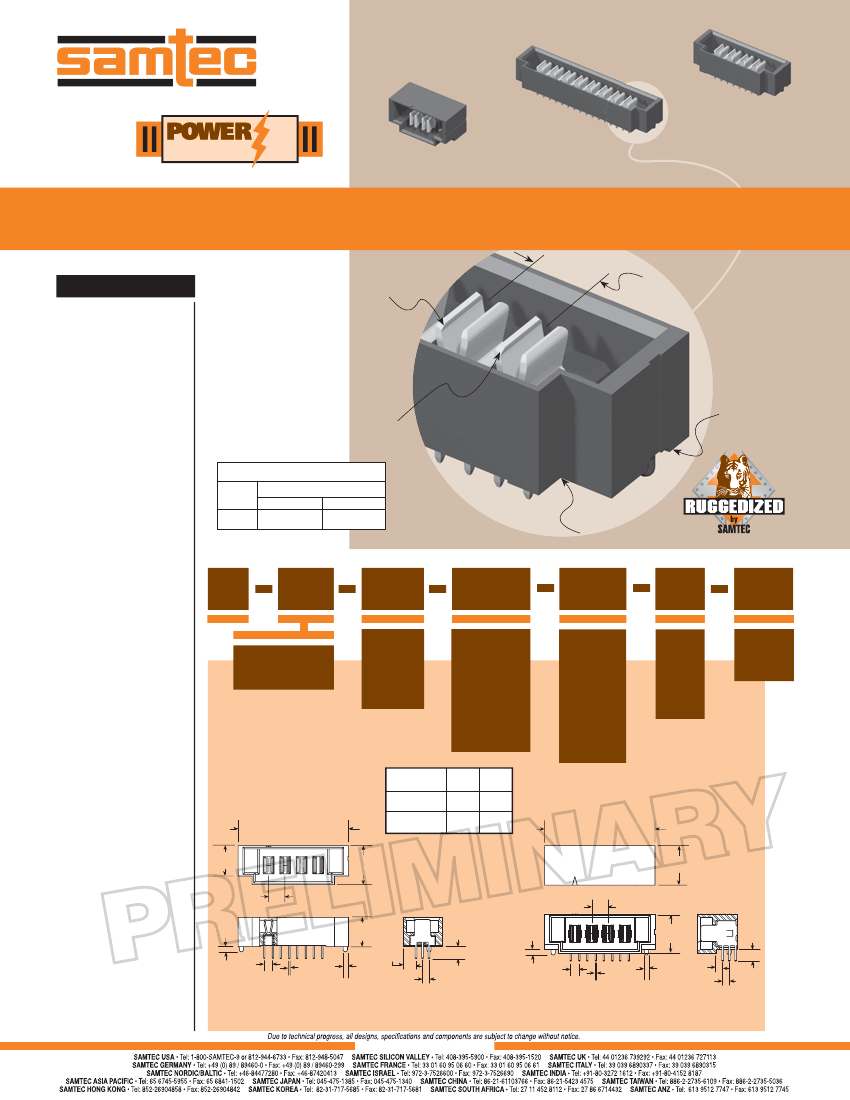

UPT-06-03.0-01-T-V-LC Preview

F-209-1

UPS–04–03.0–02–L–V

UPS–08–03.0–02–L–V

STRIP

UPT–02–01–L–RA–LC

POWERSTRIP/10 HEADER

™

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?UPT

Insulator Material:

Black LCP

Terminal Material:

BeCu

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold

Currrent Rating:

Testing Now!

Voltage Rating:

Testing Now!

RoHS Compliant:

Yes

UPT

SERIES

(3,81mm)

.150" pitch

Mates with:

UPS

Dual leaf

blade contacts

2, 4, 6 or 8

Power Pins

STACK HEIGHT

UPT

LEAD

STYLE

UPS LEAD STYLE

Optional

Locking Clip

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

–04.0

(7,00) .276

–07.0

(10,00) .394

–03.0

Vertical or

Right Angle

UPT

POWER

PINS

LEAD

STYLE

(Leave blank

for –RA)

TAIL

LENGTH

PLATING

OPTION

TAIL

OTHER

OPTION

–02, –04,

–06, –08

–01

= Use with

(1,60mm) .062"

Thick PCB

–L

= 10µ"

(0,25µm)

Gold on

contact,

Matte Tin

on tail

–V

= Vertical

–LC

= Locking

Clip

–03.0

= (03,0mm)

.118"

–RA

= Right

Angle

–02

= Use with

(2,36mm) .093"

Thick PCB

–T

= Matte Tin

TAIL

LENGTH

(2,74)

.108

(3,50)

.138

138

(2,69)

.106

(3,45)

)

.136

–01

No. of power pins x

(3,81) .150 + (10,26) .404

(7,00)

.276

( 8

(3,81)

.150

(1,25)

.049

(2,00)

.0787

(6,75)

.266

(0,30)

.012

(3,00)

(1,00) .118

.039

DIA

(9,00)

.354

–02

No. of power pins x

(3,81) .150 + (10,26) .404

0,26

(9,12)

.359

(3,81)

.150

(1,25)

.049

(9,00)

.354

(1,00)

.039

DIA

(1,54)

.061

(1,50)

.059

(2,00)

.0787

(0,30)

.012

(1,50)

.059

–V

Note:

Some sizes, styles

and options are non-standard,

non-returnable.

–RA

WWW.SAMTEC.COM

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
