BS616LV8017DCG55

Description
Standard SRAM, 512KX16, 55ns, CMOS, GREEN, DIE PACKAGE
Categorystorage    storage
File Size240KB，11 Pages
ManufacturerBrilliance
Download Datasheet Parametric Compare View All

BS616LV8017DCG55 Overview

Standard SRAM, 512KX16, 55ns, CMOS, GREEN, DIE PACKAGE

BS616LV8017DCG55 Parametric

Parameter NameAttribute value
MakerBrilliance
Parts packaging codeDIE
package instructionDIE,
Reach Compliance Codeunknown
ECCN code3A991.B.2.A
Maximum access time55 ns
JESD-30 codeR-XUUC-N
memory density8388608 bit
Memory IC TypeSTANDARD SRAM
memory width16
Number of functions1
word count524288 words
character code512000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize512KX16
Package body materialUNSPECIFIED
encapsulated codeDIE
Package shapeRECTANGULAR
Package formUNCASED CHIP
Parallel/SerialPARALLEL
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.4 V
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formNO LEAD
Terminal locationUPPER

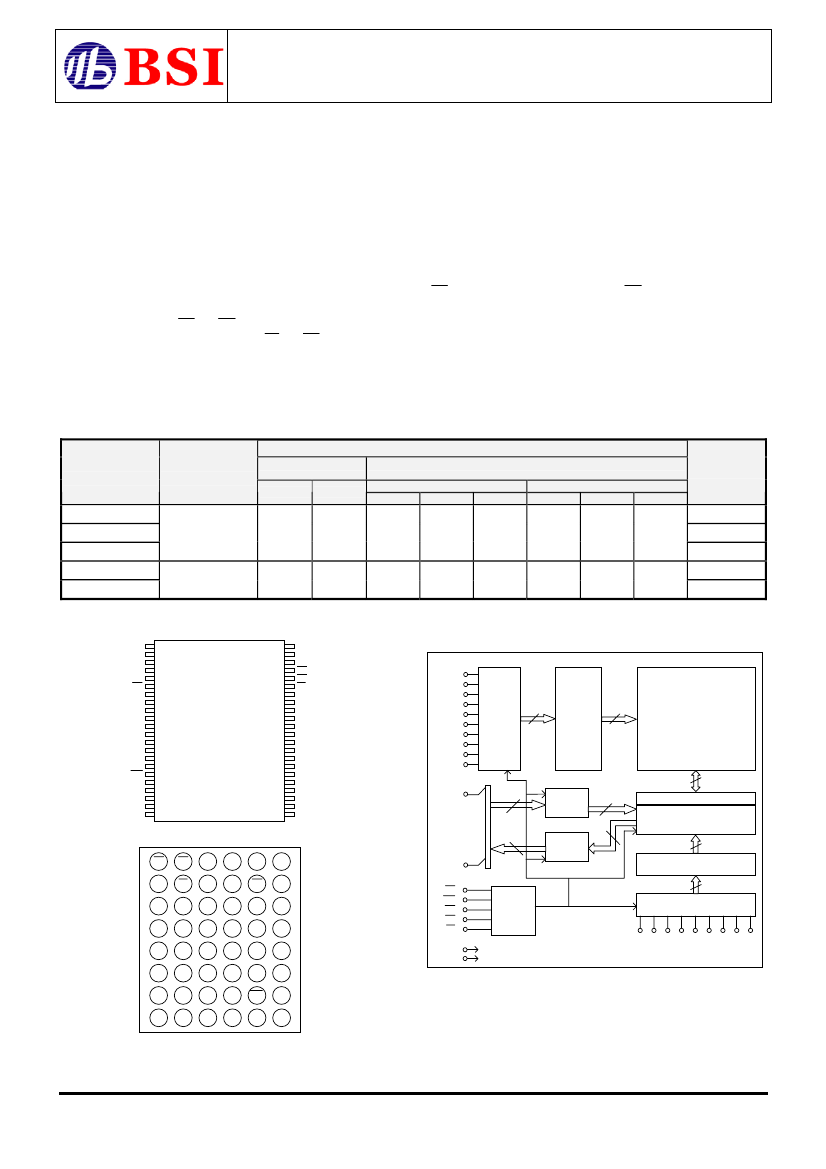

BS616LV8017DCG55 Preview

Very Low Power CMOS SRAM
512K X 16 bit
Pb-Free and Green package materials are compliant to RoHS
BS616LV8017
FEATURES
Wide V
CC
operation voltage : 2.4V ~ 5.5V
Very low power consumption :
Operation current : 31mA (Max.) at 55ns
V
CC
= 3.0V
2mA (Max.) at 1MHz
O
Standby current : 4/8uA (Max.) at 70/85 C
Operation current : 76mA (Max.) at 55ns
V
CC
= 5.0V
10mA (Max.) at 1MHz
O
Standby current : 25/50uA (Max.) at 70/85 C
High speed access time :
-55
55ns(Max.) at V
CC
=3.0~5.5V
-70
70ns(Max.) at V
CC
=2.7~5.5V
Automatic power down when chip is deselected
Easy expansion with CE and OE options
I/O Configuration x8/x16 selectable by LB and UB pin.
Three state outputs and TTL compatible
Fully static operation
Data retention supply voltage as low as 1.5V
DESCRIPTION
The BS616LV8017 is a high performance, very low power CMOS
Static Random Access Memory organized as 524,288 by 16 bits and
operates form a wide range of 2.4V to 5.5V supply voltage.
Advanced CMOS technology and circuit techniques provide both
high speed and low power features with maximum CMOS standby
current of 8/50uA at Vcc=3/5V at 85 C and maximum access time of
55/70ns.
Easy memory expansion is provided by an active LOW chip enable
(CE) and active LOW output enable (OE) and three-state output
drivers.
The BS616LV8017 has an automatic power down feature, reducing
the power consumption significantly when chip is deselected.
The BS616LV8017 is available in DICE form, JEDEC standard
44-pin TSOP II and 48-ball BGA package.
O
POWER CONSUMPTION
POWER DISSIPATION
PRODUCT
FAMILY
BS616LV8017DC
BS616LV8017EC
BS616LV8017FI
BS616LV8017EI
BS616LV8017FI
Industrial
O
-40 C to +85 C
O
OPERATING
TEMPERATURE
STANDBY
(I
CCSB1
, Max)
Operating
(I
CC
, Max)
PKG TYPE
V
CC
=3.0V
10MHz
f
Max.
V
CC
=5.0V
V
CC
=3.0V
1MHz
V
CC
=5.0V
10MHz
f
Max.
1MHz
Commercial
O
O
+0 C to +70 C
DICE
25uA
4.0uA
9mA
39mA
75mA
1.5mA
19mA
30mA
TSOP II-44
BGA-48-0912
50uA
8.0uA
10mA
40mA
76mA
2mA
20mA
31mA
TSOP II-44
BGA-48-0912
PIN CONFIGURATIONS
A4
A3
A2
A1
A0
CE
DQ0
DQ1
DQ2
DQ3
VCC
VSS
DQ4
DQ5
DQ6
DQ7
WE
A18
A17
A16
A15
A14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
A5
A6
A7
OE
UB
LB
DQ15
DQ14
DQ13
DQ12
VSS
VCC
DQ11
DQ10
DQ9
DQ8
A8
A9
A10
A11
A12
A13
BLOCK DIAGRAM
BS616LV8017EC
BS616LV8017EI
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
Address
Input
Buffer
10
Row
Decoder
1024
Memory Array
1024 x 8192
8192
DQ0
.
.
.
.
.
.
DQ15
CE
WE
OE
UB
LB
V
CC
V
SS
16
.
.
.
.
.
.
16
Data
Output
Buffer
16
512
Column Decoder
9
Control
Address Input Buffer
Data
Input
Buffer
16
Column I/O
Write Driver
Sense Amp
1
A
B
C
D
E
F
G
H
LB
D8
D9
VSS
VCC
D14
D15
A18
2
OE
UB
D10
D11
D12
D13
NC
A8
3
A0
A3
A5
A17
NC
A14
A12
A9
4
A1
A4
A6
A7
A16
A15
A13
A10
5
A2
CE
D1
D3
D4
D5
WE
A11
6
NC
D0
D2
VCC
VSS
D6
D7
NC
A14 A15 A16 A17 A18 A0 A1 A2 A3
48-ball BGA top view
Brilliance Semiconductor, Inc.
reserves the right to change products and specifications without notice.
R0201-BS616LV8017
1
Revision
2.4
Oct.
2008
BS616LV8017
PIN DESCRIPTIONS
Name
A0-A18 Address Input
CE Chip Enable Input
Function
These 19 address inputs select one of the 524,288 x 16-bit in the RAM
CE is active LOW. Chip enable must be active when data read form or write to the
device. If chip enable is not active, the device is deselected and is in standby power
mode. The DQ pins will be in the high impedance state when the device is deselected.
WE Write Enable Input
The write enable input is active LOW and controls read and write operations. With the
chip selected, when WE is HIGH and OE is LOW, output data will be present on the
DQ pins; when WE is LOW, the data present on the DQ pins will be written into the
selected memory location.
OE Output Enable Input
The output enable input is active LOW. If the output enable is active while the chip is
selected and the write enable is inactive, data will be present on the DQ pins and they
will be enabled. The DQ pins will be in the high impendence state when OE is inactive.
LB and UB Data Byte Control Input
DQ0-DQ15 Data Input/Output
Ports
V
CC
V
SS
Lower byte and upper byte data input/output control pins.
There 16 bi-directional ports are used to read data from or write data into the RAM.
Power Supply
Ground
TRUTH TABLE
MODE
Chip De-selected
(Power Down)
CE
H
X
L
L
WE
X
X
H
H
OE
X
X
H
H
LB
X
H
L
X
L
UB
X
H
X
L
L
L
H
L
L
H
IO0~IO7
High Z
High Z
High Z
High Z
D
OUT
High Z
D
OUT
D
IN
X
D
IN
IO8~IO15
High Z
High Z
High Z
High Z
D
OUT
D
OUT
High Z
D
IN
D
IN
X
V
CC
CURRENT
I
CCSB
, I
CCSB1
I
CCSB
, I
CCSB1
I
CC
I
CC
I
CC
I
CC
I
CC
I
CC
I
CC
I
CC
Output Disabled
Read
L
H
L
H
L
L
Write
L
L
X
H
L
NOTES: H means V
IH
; L means V
IL
; X means don’t care (Must be V
IH
or V
IL
state)
R0201-BS616LV8017
2
Revision
2.4
Oct.
2008
BS616LV8017
ABSOLUTE MAXIMUM RATINGS
(1)
SYMBOL
V
TERM
T
BIAS
T
STG
P
T
I
OUT
OPERATING RANGE
UNITS
V
O
PARAMETER
Terminal Voltage with
Respect to GND
Temperature Under
Bias
Storage Temperature
Power Dissipation
DC Output Current
RATING
-0.5
(2)
RANG
Commercial
Industrial
AMBIENT
TEMPERATURE
0 C to + 70 C
-40 C to + 85 C
O
O
O
O
V
CC
2.4V ~ 5.5V
2.4V ~ 5.5V
to 7.0
-40 to +125
-60 to +150
1.0
20
C
C
O
W
mA
CAPACITANCE
(1)
(T
A
= 25
O
C, f = 1.0MHz)
SYMBOL PAMAMETER CONDITIONS MAX. UNITS
C
IN
C
IO
Input
Capacitance
Input/Output
Capacitance
V
IN
= 0V
V
I/O
= 0V
6
8
pF
pF
1. Stresses greater than those listed under ABSOLUTE
MAXIMUM RATINGS may cause permanent damage to the
device. This is a stress rating only and functional operation of
the device at these or any other conditions above those
indicated in the operational sections of this specification is not
implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
2. –2.0V in case of AC pulse width less than 30 ns.
1. This parameter is guaranteed and not 100% tested.
DC ELECTRICAL CHARACTERISTICS (T
A
= -40
O
C to +85
O
C)
PARAMETER
NAME
V
CC
V
IL
V
IH
I
IL
I
LO
V
OL
V
OH
I
CC
(5)
I
CC1
I
CCSB
I
CCSB1
(6)
PARAMETER
Power Supply
Input Low Voltage
TEST CONDITIONS
MIN.
2.4
-0.5
(2)
TYP.
(1)
--
--
MAX.
5.5
0.8
(3)
UNITS
V
V
Input High Voltage
V
IN
= 0V to V
CC
CE= V
IH
V
I/O
= 0V to V
CC
,
CE= V
IH
or OE = V
IH
V
CC
= Max, I
OL
= 2.0mA
V
CC
= Min, I
OH
= -1.0mA
CE = V
IL
,
I
IO
= 0mA, f = F
MAX
CE = V
IL
,
I
IO
= 0mA, f = 1MHz
CE = V
IH
,
I
IO
= 0mA
CE≧V
CC
-0.2V
V
IN
≧V
CC
-0.2V or V
IN
≦0.2V
(4)
2.2
--
V
CC
+0.3
1
V
Input Leakage Current
--
--
uA
Output Leakage Current
--
--
1
uA
Output Low Voltage
--
--
0.4
V
Output High Voltage
Operating Power Supply
Current
Operating Power Supply
Current
Standby Current – TTL
2.4
V
CC
=3.0V
V
CC
=5.0V
V
CC
=3.0V
V
CC
=5.0V
V
CC
=3.0V
V
CC
=5.0V
V
CC
=3.0V
V
CC
=5.0V
--
--
--
31
76
2
10
1.0
2.0
8.0
50
V
mA
--
--
--
mA
--
--
0.8
3.5
mA
Standby Current – CMOS
O
--
uA
1. Typical characteristics are at T
A
=25 C and not 100% tested.
2. Undershoot: -1.0V in case of pulse width less than 20 ns.
3. Overshoot: V
CC
+1.0V in case of pulse width less than 20 ns.
4. F
MAX
=1/t
RC.
O
5. I
CC (MAX.)
is 30mA/75mA at V
CC
=3.0V/5.0V and T
A
=70 C.
O
6. I
CCSB1(MAX.)
is 4.0uA/25uA at V
CC
=3.0V/5.0V and T
A
=70 C.
R0201-BS616LV8017
3
Revision
2.4
Oct.
2008
BS616LV8017
DATA RETENTION CHARACTERISTICS (T
A
= -40
O
C to +85
O
C)
SYMBOL
V
DR
I
CCDR
(3)
t
CDR
t
R
PARAMETER
V
CC
for Data Retention
Data Retention Current
Chip Deselect to Data
Retention Time
See Retention Waveform
Operation Recovery Time
O
TEST CONDITIONS
CE≧V
CC
-0.2V
V
IN
≧V
CC
-0.2V or V
IN
≦0.2V
CE≧V
CC
-0.2V
V
IN
≧V
CC
-0.2V or V
IN
≦0.2V
MIN.
1.5
TYP.
(1)
--
MAX.
--
UNITS
V
--
0.4
4.0
uA
0
(2)
--
--
ns
t
RC
--
--
ns
1. V
CC
=1.5V, T
A
=25 C and not 100% tested.
2. t
RC
= Read Cycle Time.
O
3. I
CCDR(Max.)
is 2.0uA at T
A
=70 C.
LOW V
CC
DATA RETENTION WAVEFORM (CE Controlled)
Data Retention Mode
V
CC
V
CC
V
DR
≧1.5V
V
CC
t
CDR
V
IH
CE≧V
CC
- 0.2V
t
R
V
IH
CE
AC TEST CONDITIONS
(Test Load and Input/Output Reference)
Input Pulse Levels
Input Rise and Fall Times
Input and Output Timing
Reference Level
Output Load
t
CLZ
, t
OLZ
, t
CHZ
, t
OHZ
, t
WHZ
Others
Vcc / 0V
1V/ns
0.5Vcc
C
L
= 5pF+1TTL
C
L
= 30pF+1TTL
ALL INPUT PULSES
1 TTL
Output
C
L
(1)
KEY TO SWITCHING WAVEFORMS
WAVEFORM
INPUTS
MUST BE
STEADY
MAY CHANGE
FROM “H” TO “L”
MAY CHANGE
FROM “L” TO “H”
DON’T CARE
ANY CHANGE
PERMITTED
DOES NOT
APPLY
OUTPUTS
MUST BE
STEADY
WILL BE CHANGE
FROM “H” TO “L”
WILL BE CHANGE
FROM “L” TO “H”
CHANGE :
STATE UNKNOW
CENTER LINE IS
HIGH INPEDANCE
“OFF” STATE
V
CC
GND
10%
90%
90%
10%
→ ←
Rise Time:
1V/ns
→ ←
Fall Time:
1V/ns
1. Including jig and scope capacitance.
R0201-BS616LV8017
4
Revision
2.4
Oct.
2008
BS616LV8017
AC ELECTRICAL CHARACTERISTICS (T
A
= -40
O
C to +85
O
C)
READ CYCLE
JEDEC
PARANETER
PARAMETER
NAME
NAME
DESCRIPTION
Read Cycle Time
Address Access Time
Chip Select Access Time
Data Byte Control Access Time
Output Enable to Output Valid
Chip Select to Output Low Z
Data Byte Control to Output Low Z
Output Enable to Output Low Z
Chip Select to Output High Z
(CE)
(CE)
(LB, UB)
(CE)
(LB, UB)
CYCLE TIME : 55ns
(V
CC
=3.0~5.5V)
MIN.
55
--
--
--
--
10
10
5
--
--
--
10
TYP.
--
--
--
--
--
--
--
--
--
--
--
--
MAX.
--
55
55
55
30
--
--
--
30
30
25
--
CYCLE TIME : 70ns
(V
CC
=2.7~5.5V)
MIN.
70
--
--
--
--
10
10
5
--
--
--
10
TYP.
--
--
--
--
--
--
--
--
--
--
--
--
MAX.
--
70
70
70
35
--
--
--
35
35
30
--
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
UNITS
t
AVAX
t
AVQX
t
ELQV
t
BLQV
t
GLQV
t
ELQX
t
BLQX
t
GLQX
t
EHQZ
t
BHQZ
t
GHQZ
t
AVQX
t
RC
t
AA
t
ACS
t
BA
t
OE
t
CLZ
t
BE
t
OLZ
t
CHZ
t
BDO
t
OHZ
t
OH
Data Byte Control to Output High Z (LB, UB)
Output Enable to Output High Z
Data Hold from Address Change
SWITCHING WAVEFORMS (READ CYCLE)
READ CYCLE 1
(1,2,4)
t
RC
ADDRESS
t
OH
D
OUT
t
AA
t
OH
R0201-BS616LV8017
5
Revision
2.4
Oct.
2008
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BS616LV8017DCG55 Related Products

BS616LV8017DCG55 BS616LV8017DCG70 BS616LV8017DCP55 BS616LV8017DCP70
Description Standard SRAM, 512KX16, 55ns, CMOS, GREEN, DIE PACKAGE Standard SRAM, 512KX16, 70ns, CMOS, GREEN, DIE PACKAGE Standard SRAM, 512KX16, 55ns, CMOS, ROHS COMPLIANT, DIE PACKAGE Standard SRAM, 512KX16, 70ns, CMOS, ROHS COMPLIANT, DIE PACKAGE
Maker Brilliance Brilliance Brilliance Brilliance
Parts packaging code DIE DIE DIE DIE
package instruction DIE, DIE, DIE, DIE,
Reach Compliance Code unknown unknown unknown unknown
ECCN code 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A
Maximum access time 55 ns 70 ns 55 ns 70 ns
JESD-30 code R-XUUC-N R-XUUC-N R-XUUC-N R-XUUC-N
memory density 8388608 bit 8388608 bit 8388608 bit 8388608 bit
Memory IC Type STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM
memory width 16 16 16 16
Number of functions 1 1 1 1
word count 524288 words 524288 words 524288 words 524288 words
character code 512000 512000 512000 512000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
organize 512KX16 512KX16 512KX16 512KX16
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
encapsulated code DIE DIE DIE DIE
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form UNCASED CHIP UNCASED CHIP UNCASED CHIP UNCASED CHIP
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2.4 V 2.4 V 2.4 V 2.4 V
Nominal supply voltage (Vsup) 3 V 3 V 3 V 3 V
surface mount YES YES YES YES
technology CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form NO LEAD NO LEAD NO LEAD NO LEAD
Terminal location UPPER UPPER UPPER UPPER

Recommended Resources

AM low power broadcast transmitter circuit

Practical equal loudness control circuit

Simple lighting control circuit

Light control cycle flashing lights

Circuit diagram of three new phone anti-theft protectors (3)

Automatic gain control amplifier circuit

How to send commands when PC communicates with Mitsubishi FX2N PLC
How do I send commands when the PC communicates with the PLC? I saw the following code on the Internet: Public Function GetData(ByVal StartAddress As String, ByVal GetBytes As Integer, ByVal Hex_Bytes...
123456ZJ Embedded System
[National Technology N32WB452 Review]_Unboxing and RT-Thread Example Running
[i=s]This post was last edited by yang8555u on 2022-7-13 17:23[/i] [TOCM] # 1. Unboxing I received a development board sent by National Technology Company from Beijing a few days ago. Today I finally ...
yang8555u RF/Wirelessly
Virtual serial port problem, solve it and get rewarded
I want to implement such a function: [/font][/color][/align] [align=left][color=#000][font=simsun]Insert three cards in the computer, each card has 16 virtual serial ports. For example, card 1 corresp...
evita119 Embedded System
Operational Amplifier Power Supply Rejection Ratio (PSRR) vs. Supply Voltage.pdf
...
qin552011373 ADI Reference Circuit
Hardware I2C debugging capacitive touch screen
Hello everyone, I am debugging a capacitive touch screen, but I am using hardware I2C. The ARM side is the master and the touch screen side is the slave. However, no matter how I debug it, it doesn't ...
emmaylj Analog electronics
Question: Is it possible to enter an interrupt during +430 simulation?
Is it possible to enter interrupt simulation during 430 simulation? If not, what should I do? For example, I want to observe the change of a certain value in the interrupt?...
jxsl Microcontroller MCU
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. CR1206-FX-2700E
  2. ROX3003K00FKEM
  3. ATS-12E-93-C1-R0
  4. 62-31129-4C-0300
  5. 8LT5L25F29SC
  6. M55342K12B52A3CT5
  7. 77311-SAL-07
  8. 250-7.3728M-16-HS-TR
  9. GMZ24BT/R7
  10. 1.5SMC200_R1_10001
  11. C6351MA-GB-L
  12. A3963HA-4P-BR

Popular Articles

  1. The high voltage switch dynamic characteristic tester performs single closing/opening test, but the switch operates but no data is obtained
  2. 2021 Smart Cockpit Design Trend Research: Entering the Third Living Space
  3. Toshiba will close its Dalian plant at the end of the month, becoming the first production center in China
  4. VC MIPI modules and accessories are now available from Mouser Electronics
  5. GLOBALFOUNDRIES and Qualcomm Sign Delivery Agreement for Advanced 5G RF Front-End Products
  6. Will auto insurance cover all the problems of spontaneous combustion and water damage? The world of auto insurance is changing! You must read these terms!
  7. 51 MCU simulation - two 51 MCUs realize simple communication through interruption
  8. The originator of foldable screen mobile phone now has a "discounted" price: FlexPai 1st generation can be bought for more than 2,000 yuan
  9. Tongxingda: We are vigorously developing products in non-mobile phone fields and are not directly applied to VR
  10. Mouser Electronics and Amphenol Launch Plugged In Video Series Introducing New Connectivity Solutions

Technical ResourceMore

  1. Classification and development overview of high-frequency switching power supply integrated circuits
  2. Design and optimization of DC-DC converter in single-phase photovoltaic grid-connected power generation system
  3. Ferrite core high frequency transformer design II
  4. FP-SNS-ALLMEMS1
  5. Timing Constraints User Guide (Chinese)
  6. MATLAB Case 19 Classification Prediction of Probabilistic Neural Network - Transformer Fault Diagnosis Based on PNN.rar
  7. HSE_RDY is abnormally set when there is no external crystal oscillator
  8. Protues simulation example (8051) - PWM wave output (adjustable).rar
  9. 51 full set of development tools + programs + data
  10. High-precision 50/60 Hz pulse signal source for digital electronic clock

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2270  713  1639  1122  685  46  15  33  23  14
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
