Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Nominal Operating Parameters
Specification
Parameter
Min
Typ
Max
Unit
Condition
General Performance
RF Frequency
LO Frequency
IF Frequency
LO Input Drive
Conversion Gain
NF (17.7GHz to 19.7GHz)
NF (21.2GHz to 23.6GHz)
NF (24.5GHz to 26.5GHz)
IIP3
Image Rejection
LO-RF Isolation
LO-IF Isolation
LO Return Loss
RF Return Loss
V
D
I
D
17.7
6.85
DC
+5
13
2.5
2.7
2.9
6
15
40
15
12
12
3 to 5
350
26.5
15.25
4.0
GHz
GHz
GHz
dBm
dB
dB
dB
dB
dBm
dB
dB
dB
dB
dB
V
mA
NOTES: Measurements performed on part soldered on evaluation board with SMA connectors and IF ports connected to an external 90° Hybrid Combiner
and LO Power of +5dBm and at 25°C, unless otherwise stated.
IF = 2.5GHz, RF Power = -20dBm, IIP3 is measured with a 2-tone input of -23dBm power for each tone and Δf = 10MHz, Vd1 = 3V, Vd2 = 4V, Vd3 through
Vd5 = 5V, MixerBias = 0V
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131025
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
2 of 7
RFRX1701

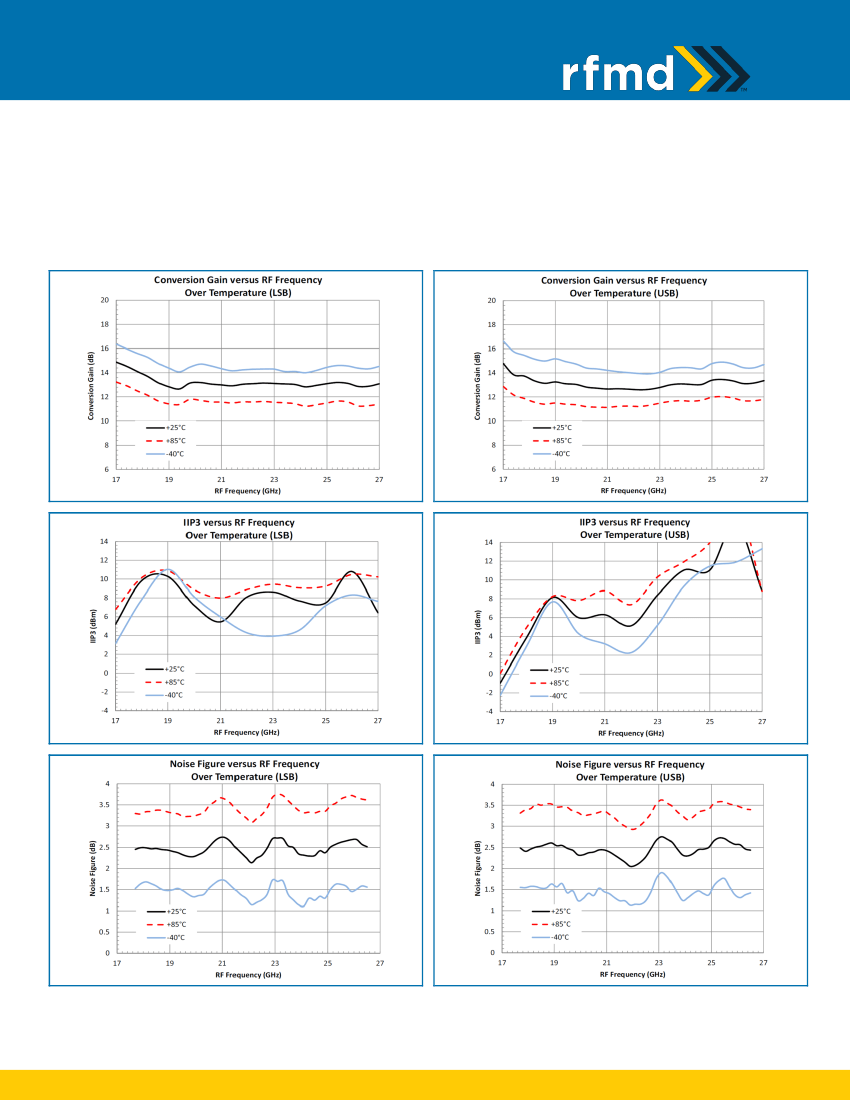

Typical Electrical Performance
Measurements performed on part soldered on evaluation board with SMA connectors and IF ports
connected to an external 90° Hybrid Combiner and LO Power of +5dBm, unless otherwise stated.
IF = 2.5GHz, RF Power = -20dBm, IIP3 is measured with a 2-tone input of -23dBm power for each tone and
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131025
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 7
RFRX1701

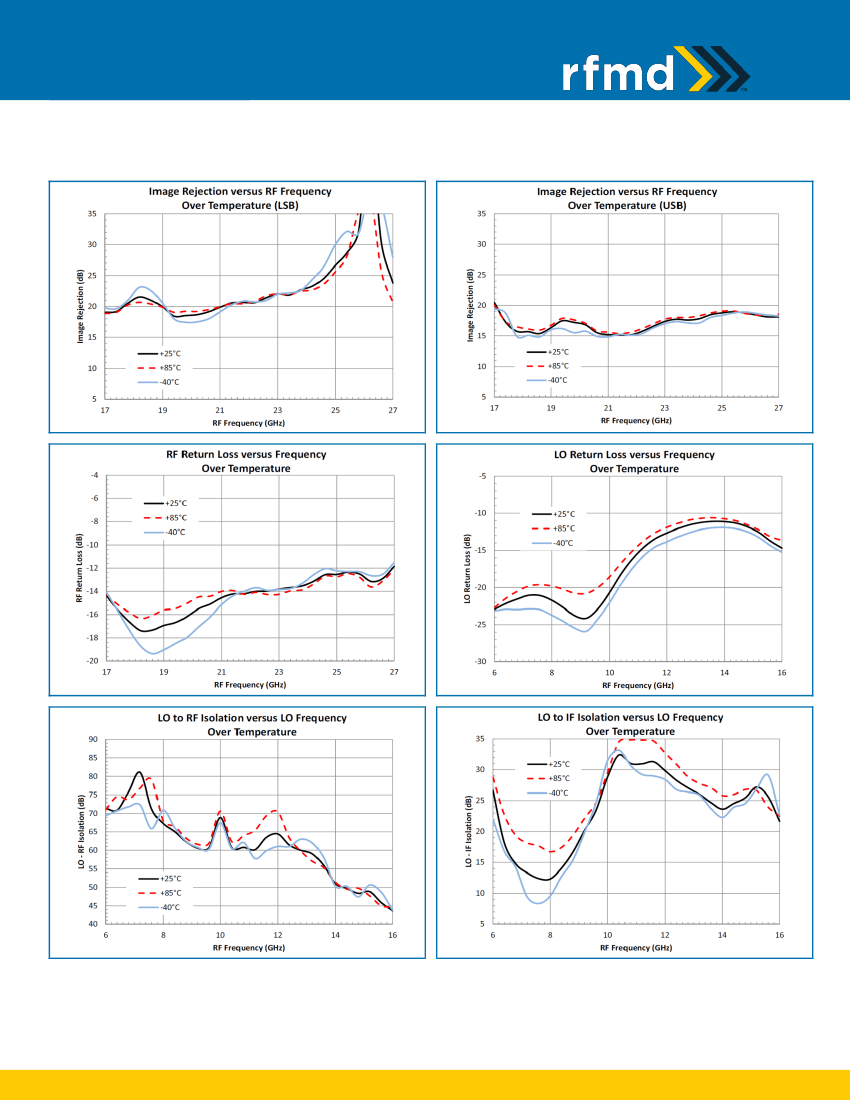

Typical Electrical Performance (continued)
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131025
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 7
RFRX1701
Pin Out
Pin Names and Descriptions
Pin
1-4
5
6
7
8-9
10
11
12
13
14
15
16
17
18
19
20-24
25
26
27
28
29
30
31
32
Name
N/C
GND
RF
GND
N/C
GND
IF1
GND
IF2
GND
Mixer Bias
N/C
GND
LO
GND
N/C
Vd5
Vd4
N/C
Vd3
N/C
Vd2
N/C
Vd1
Not Connected
Ground
RF Input, AC coupled and matched to 50Ω
Ground
Not Connected
Ground
IF1 Output
Ground
IF2 Output
Ground
Mixer Bias = 0V
Not Connected
Ground
LO Input, AC coupled and matched to 50Ω
Ground
Not Connected
Vd5 (LOA bias) = 5V
Vd4 (LOA bias) = 5V
Not Connected
Vd3 (LOA bias) = 5V
Not Connected
LNA drain bias2 = 4V
Not Connected
LNA drain bias1 = 3V
Description
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131025
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
