CMSD2836

CMSD2838

SURFACE MOUNT

DUAL SILICON

SWITCHING DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMSD2836 and

CMSD2838 are ultra-high speed silicon switching

diodes manufactured by the epitaxial planar

process, in an epoxy molded SUPERmini™ surface

mount package, designed for high speed switching

applications.

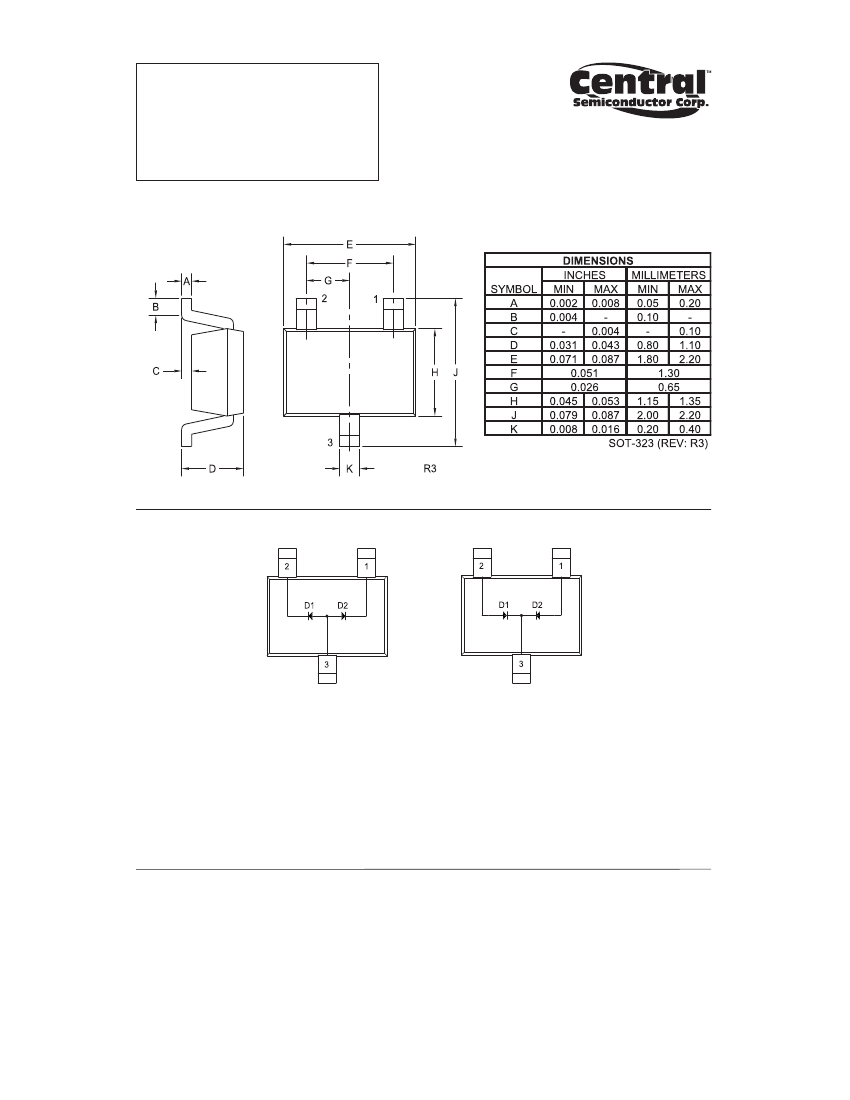

SOT-323 CASE

The following configurations are available:

CMSD2836

CMSD2838

DUAL, COMMOM ANODE

DUAL, COMMON CATHODE

MARKING CODE: A2C

MARKING CODE: A6C

SYMBOL

VRRM

IFM

TJ, Tstg

UNITS

°C

°C/W

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Average Forward Current

Peak Forward Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

200

300

275

-65 to +150

455

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

BVR

trr

VR=50V

IR=100μA

IF=10mA

IF=50mA

IF=100mA

VR=0, f=1.0MHz

IR=IF=10mA, Irr=1.0mA, RL=100Ω

100

1.0

1.2

4.0

UNITS

1.5

R4 (8-February 2010)
