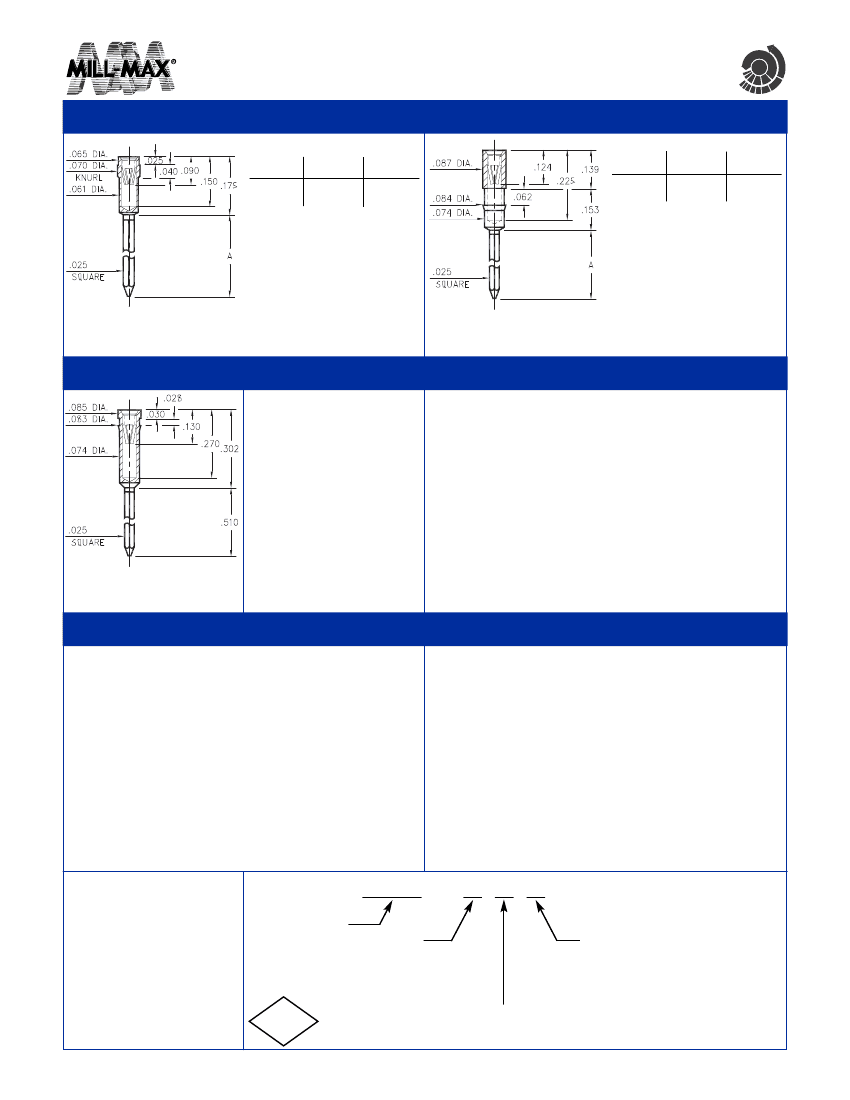

WRAPOST RECEPTACLES
for .022” - .032” diameter pins (#06 contact)
and .022” - .034” diameter pins (#16 contact)
PR
E
CI
M
ON
S
I
CHI
A
PINS
NE
D
2297
Basic Part
Number
# of
Wraps
Length
A
0280
Basic Part
Number
# of
Wraps
Length
A
2297-2
2297-3
2
3
.370
.430
0280-2
0280-3
2
3
.360
.510
2297-X-17-XX-16-XX-02-0
Press-fit in .067 mounting hole
0280-X-17-XX-06-XX-02-0
Press-fit in .081 mounting hole
0281
0281-3-17-XX-06-XX-02-0
Press-fit in .080 mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 17 - XX - XX - XX - 02 - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
15
10μ” GOLD OVER NICKEL (RoHS)
2002/95/EC
SPECIFY CONTACT FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
27
30μ” GOLD OVER NICKEL (RoHS)
RoHS
SELECT CONTACT
#06 or #16
CONTACT (DATA ON PAGES 221 & 222)
