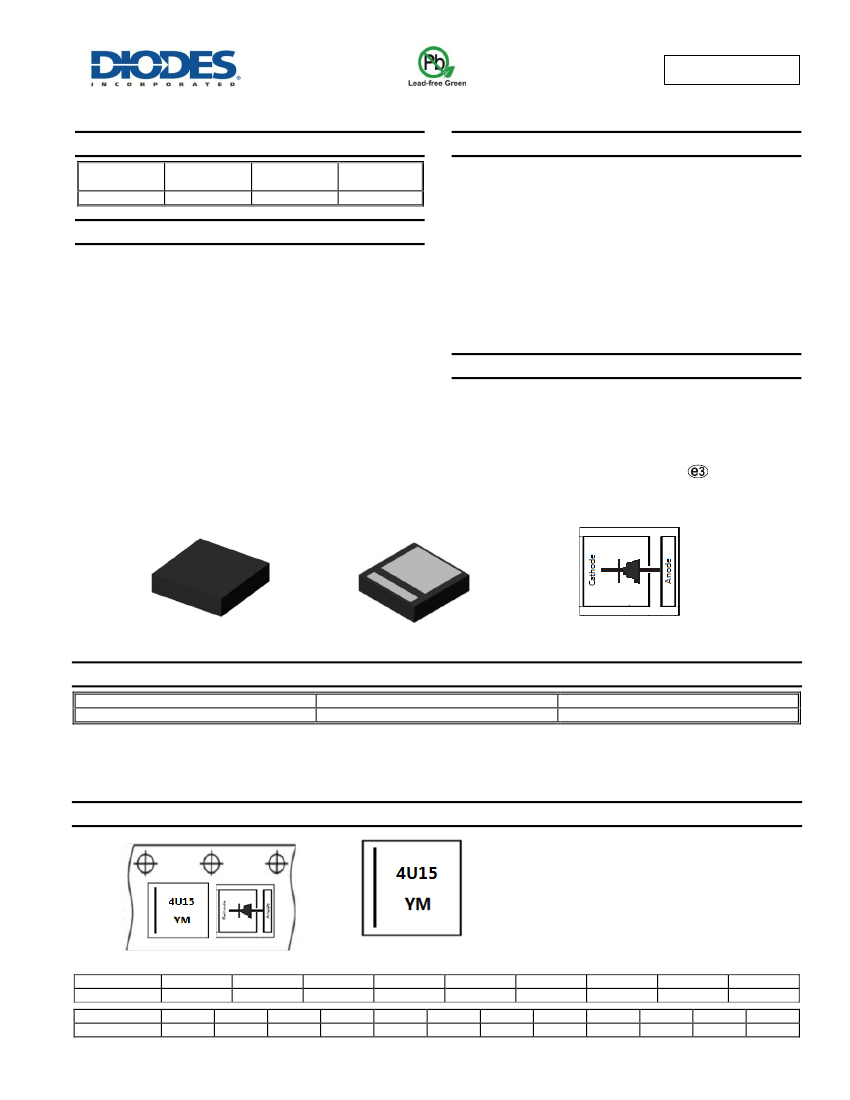

SBRT4U15LP

4A TrenchSBR

TRENCH SUPER BARRIER RECTIFIER

Product Summary

NEW PROD

ADVANCED INFORMATION

RRM

(V)

(A)

F(MAX)

(V)

@ +25°C

0.48

R(MAX)

(mA)

@ +25°C

0.1

Features and Benefits



Patented TrenchSBR technology provides superior avalanche

capability versus schottky diodes, ensuring more rugged and

reliable end applications.

Reduced ultra-low forward voltage drop (V

); Better efficiency

and cooler operation.

Reduced high temperature reverse leakage and increased

reliability against thermal runaway failure in high temperature

operation.

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability



Description and Applications

The SBRT4U15LP provides very low V

and excellent reverse

leakage stability at high temperatures. It is ideal for use as bypass

diode and rectifier, freewheel diode or blocking diode in applications

such as:



Solar Panels

Blocking Diode

Bypass Diode

Boost Diode

Recirculating Diode



Mechanical Data



Case: U-DFN2020-2 (Type B)

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Annealed over Copper Leadframe;

Solderable per MIL-STD-202, Method 208

Polarity: See Below

Weight: 6.757 mg (Approximate)

U-DFN2020-2 (Type B)

Top View

Bottom View

Top View

Internal Schematic

Ordering Information

(Note 4)

Part Number

SBRT4U15LP-7

Notes:

Case

U-DFN2020-2 (Type B)

Packaging

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

4U15 = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: B = 2014)

M = Month (ex: 6 = June)

Bar = Cathode

Date Code Key

Year

Code

Month

Code

2014

Jan

Feb

2015

Mar

2016

Apr

2017

May

Jun

2018

Jul

2019

Aug

2020

Sep

Oct

2021

Nov

2022

Dec

March 2015

SBRT4U15LP

Document number: DS37652 Rev. 3 - 2

1 of 5

www.diodes.com

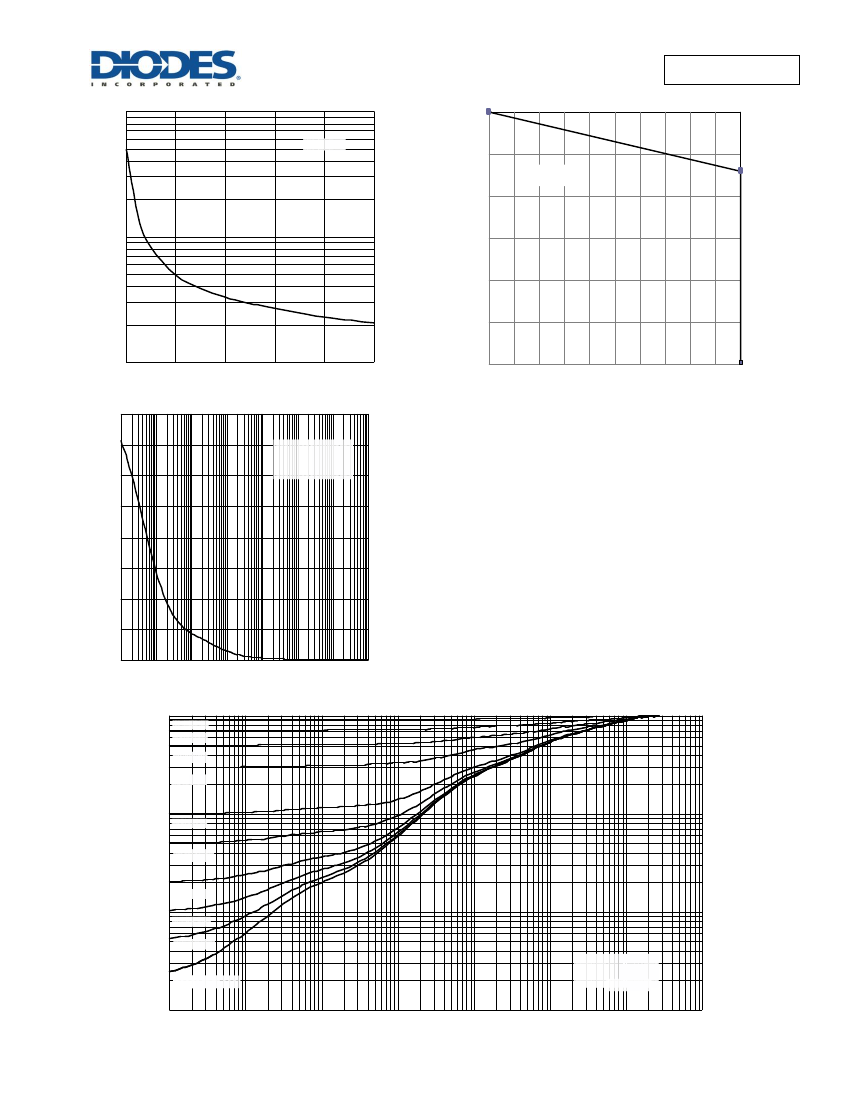

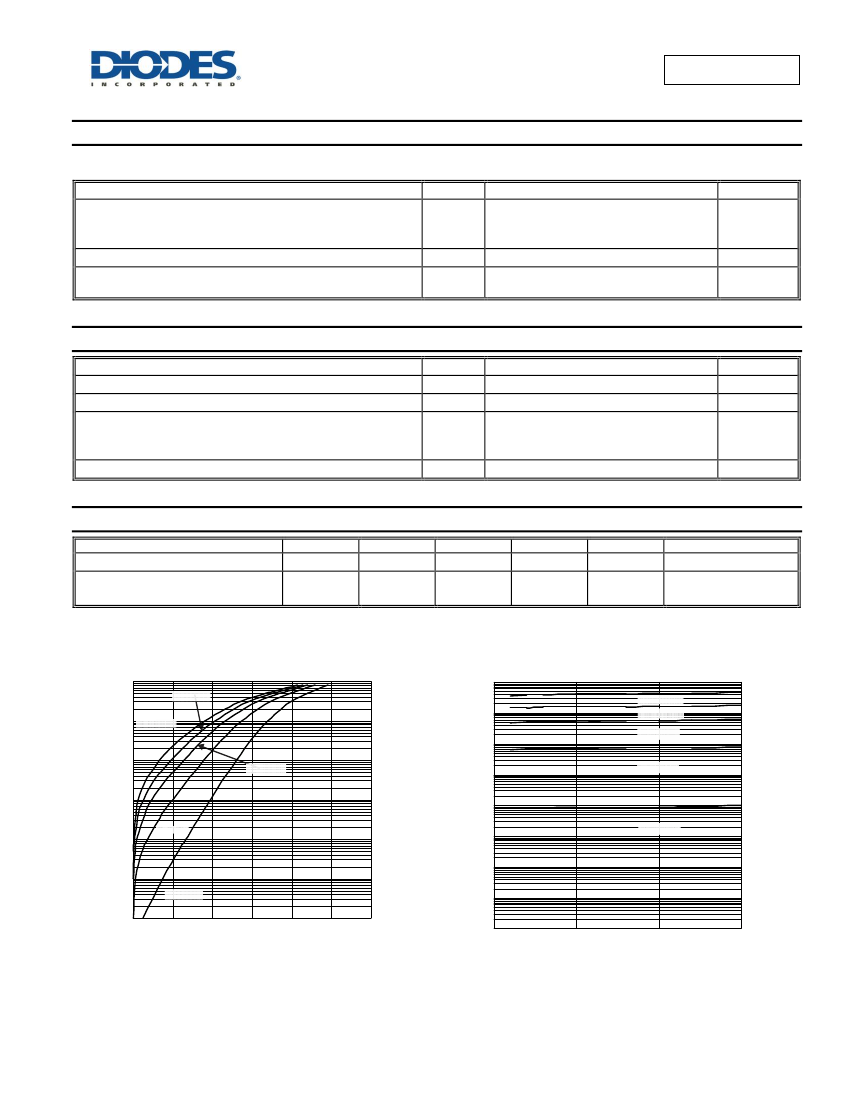

SBRT4U15LP

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

NEW PROD

ADVANCED INFORMATION

SBRT4U15LP

Document number: DS37652 Rev. 3 - 2

5 of 5

www.diodes.com

March 2015
