TAZA105K020LSLD0923 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TAZA105K020LSLD0923

TAZA105K020LSLD0923: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 1uF, Surface Mount, 1505, CHIP; CategoryPassive components capacitor; File Size53KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

TAZA105K020LSLD0923 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 1uF, Surface Mount, 1505, CHIP

TAZA105K020LSLD0923 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 1005
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	1 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	7500 mΩ
high	1.27 mm
JESD-609 code	e4
leakage current	0.001 mA
length	2.54 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
ripple current	30 mA
size code	1005
surface mount	YES
Delta tangent	0.06
Terminal surface	Gold (Au) - electroplated
Terminal shape	J BEND
width	1.27 mm

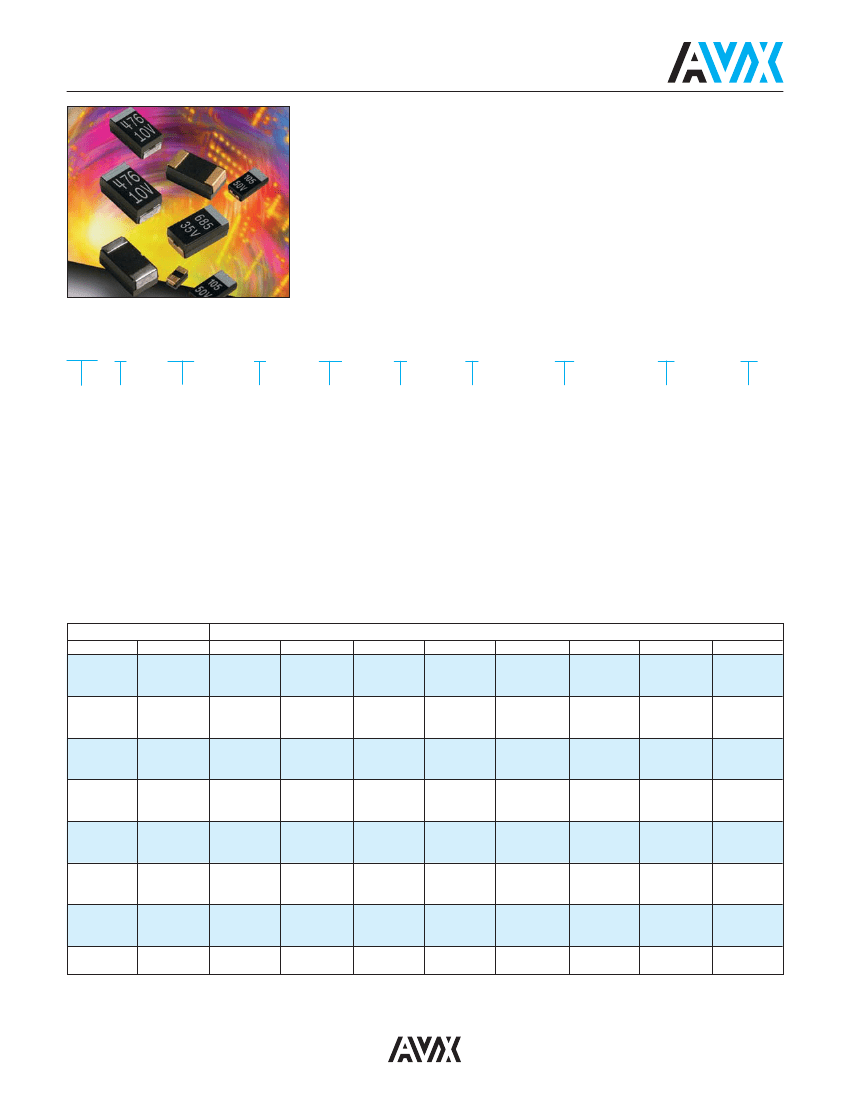

TAZA105K020LSLD0923 Preview

TAZ Series

COTS-Plus

The TAZ part has fully molded, compliant leadframe construction designed for use

in applications utilizing solder (Reflow, Wave or Vapor Phase), conductive adhesive

or thermal compression bonding techniques. Each chip is marked with polarity,

capacitance code and rate voltage. The series comprises ten case sizes (see

dimensional chart below) with the maximum size V case giving capacitance values

to 470 µF. The C case, with its non-standard aspect ratio, is retained as a QPL

(Qualified Product List) only special.

HOW TO ORDER

TAZ

Type

Case

Size

227

Capacitance

Code

pF code:

1st two digits

represent

significant

figures 3rd digit

represents

multiplier

(number of zeros

to follow)

Capacitance

Tolerance

M = ±20%

K = ±10%

J = ±5%

006

Voltage

Code

004 = 4Vdc

006 = 6Vdc

010 = 10Vdc

015 = 15Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

Standard or

Low ESR

Range

C = Std ESR

L = Low ESR

Packaging

B = Bulk

R = 7" T&R

S = 13" T&R

Qualification/

Reliability

# = Inspection Level

S = Std. Conformance

L = Group A

@ = Failure Rate Level

Weibull:

B = 0.1%/1000 hrs,

90% conf.

C = 0.01%/1000 hrs,

90% conf.

D = 0.001%/1000 hrs,

90% conf.

Comm: Z = Non ER

Termination

Finish

09 = Gold Plated

08 = Hot Solder

Dipped

00 = Solder

Fused

Surge Test

Option

00 = None

23 = 10 cycles,

+25°C

24 = 10 cycles,

-55°C &

+85°C

45 = 10 cycles,

-55ºC &

+85ºC

before

Weibull

CAPACITANCE AND RATED VOLTAGE, V

(VOLTAGE CODE) RANGE

(LETTER DENOTES CASE SIZE)

Capacitance

µF

Code

0.10

104

0.15

154

0.22

224

0.33

334

0.47

474

0.68

684

1.0

105

1.5

155

2.2

225

3.3

335

4.7

475

6.8

685

106

156

226

336

476

686

100

107

150

157

220

227

330

337

470

447

4V (C)

6V (D)

10V (F)

Rated voltage DC (V

) at 85ºC

15V (H)

20V (J)

25V (K)

35V (M)

50V (N)

A/B

A/C

B/D

B/E

B/D

D/E/F

E/G

F/H

A/B

A/C

B/D

B/E

B/D/E

D/E/F

F/G

F/G/H

A/B

A/C

B/C/D

B/C/D/E

D/E/F

F/G

F/G/H

G/H

H/X

A/B

A/C

B/D

B/C/D/E

D/E

D/E/F

E/F

F/G

F/G/H

G/H

A/B

B/C

B/D

D/E

E/F

F/G

G/H

H/X

B/C

D/E

F/G

G/H

G/H/X

H/X

G/H

NOTE: TAZ Standard Range ratings are also available in CWR09 Military parts.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
