61-26UWC_15: DescriptionPower White Surface Mount Device; File Size334KB，6 Pages; ManufacturerA-BRIGHT; Websitehttp://www.a-bright.com.tw

Download Datasheet View All

61-26UWC_15 Overview

Power White Surface Mount Device

Preview

Download Datasheet

View All

A-BRIGHT

Part Number: 61-26UWC

A-BRIGHT INDUSTRIAL CO., LTD.

SURFACE MOUNT LED LAMPS

Power White Surface Mount Device

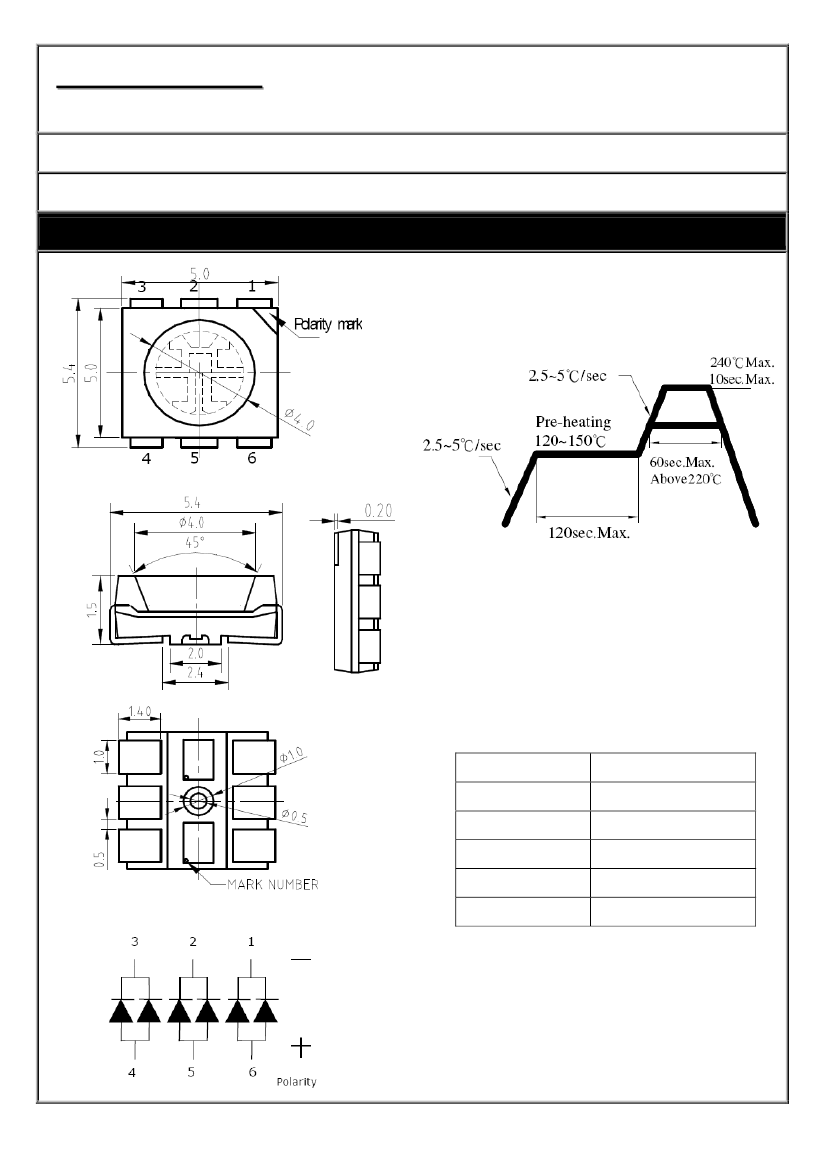

Package outlines & Re-flow Profile

Reflow Temp/Time

Soldering iron

Basic spec is 5sec when 260℃. If temperature is higher,

time should be shorter (+10℃ -1sec ).Power dissipation

of iron should be smaller than 15W, and temperatures

should be controllable .Surface temperature of the device

should be under 230℃ .

ITEM

Resin (mold)

Lens color

Printed circuit board

Emitted color

For reflow soldering (Propose)

Material

MATERIALS

Epoxy

Yellow Diffused

White

InGaN

NOTES:

1. All dimensions are in millimeters (inches);

2. Tolerances are

±0.1mm

(0.004inch) unless otherwise

noted.

3. Polarity referring onto the cathode mark is reversed on the

red.
