PAL20RS10MJS/883B datasheet, PDF

PAL20RS10MJS/883B: DescriptionOT PLD, 25ns, PAL-Type, TTL, CDIP20, 0.250 X 1 INCH, CERAMIC, DIP-20; CategoryProgrammable logic devices Programmable logic; File Size699KB，30 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

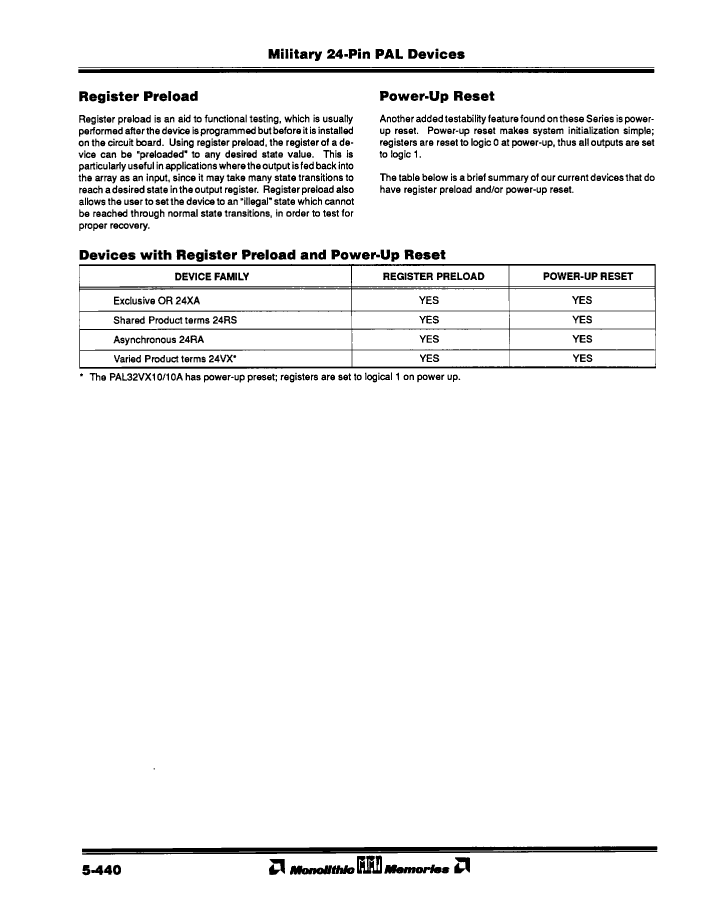

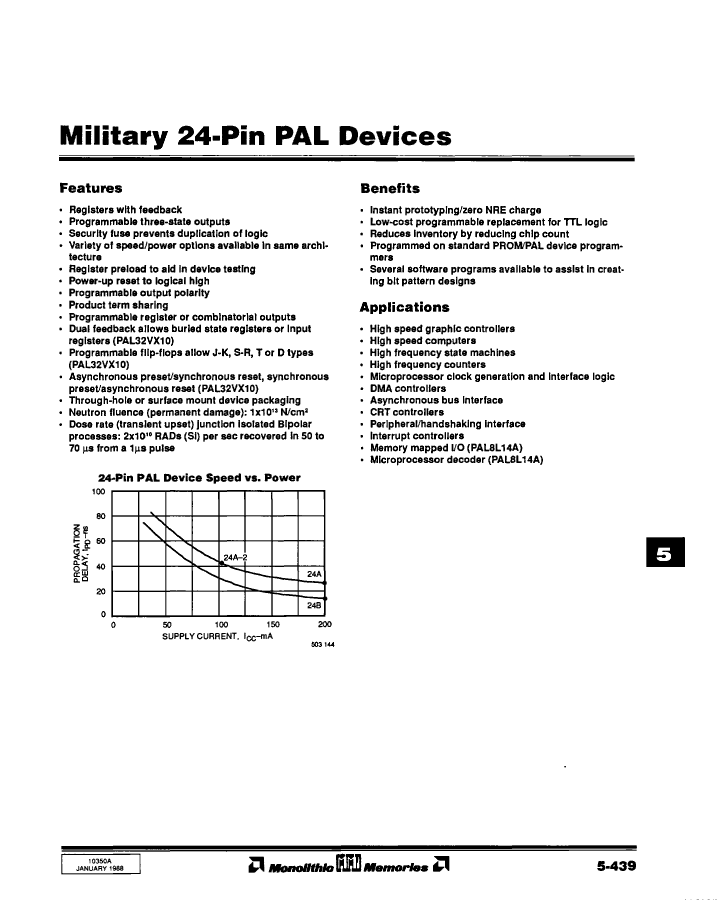

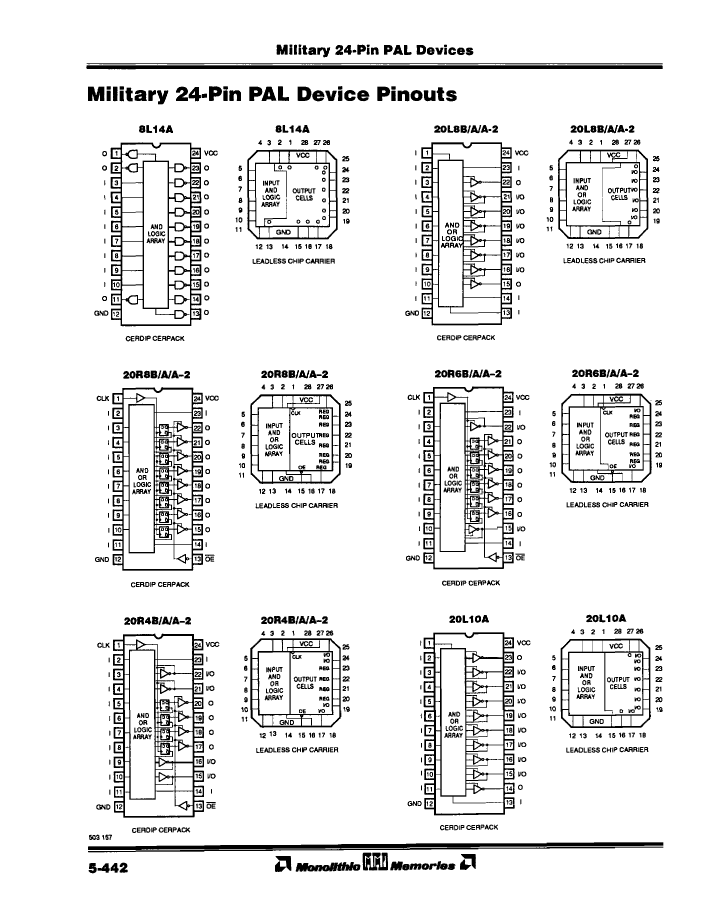

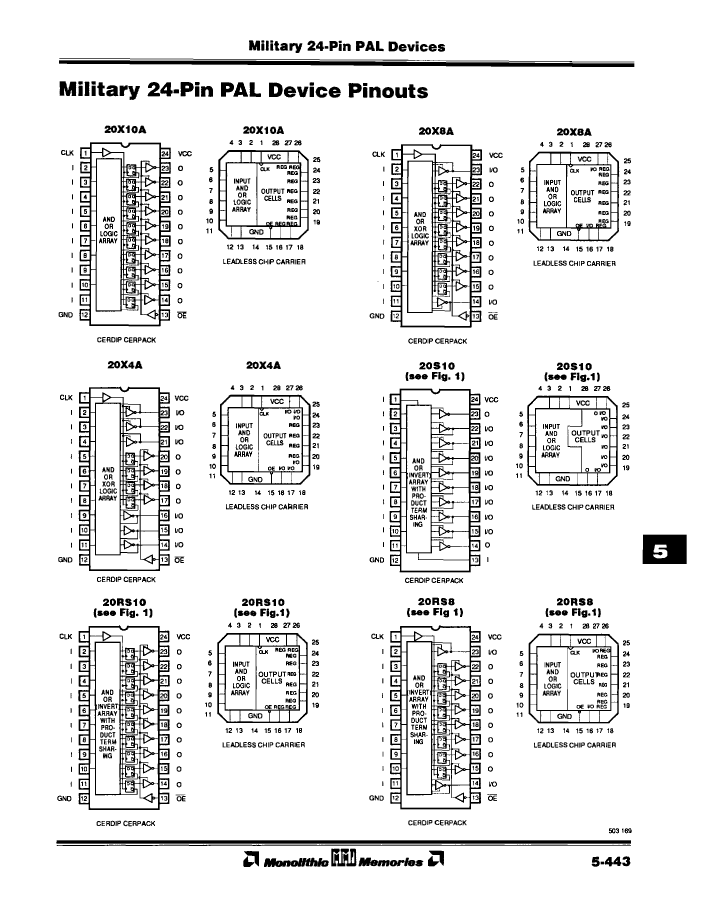

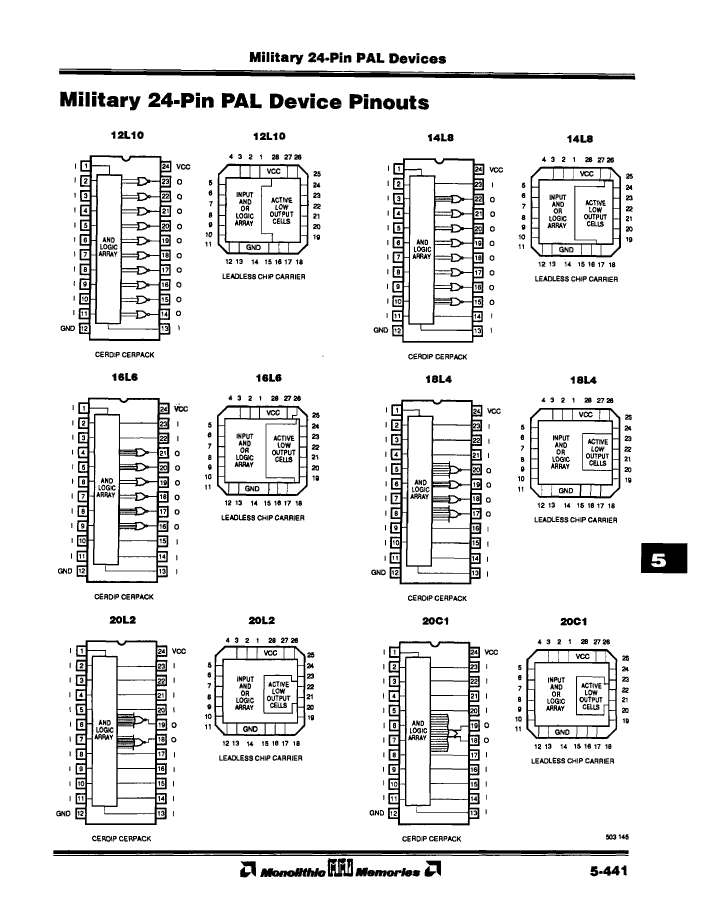

PAL20RS10MJS/883B Overview

OT PLD, 25ns, PAL-Type, TTL, CDIP20, 0.250 X 1 INCH, CERAMIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	0.250 X 1 INCH, CERAMIC, DIP-20
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Architecture	PAL-TYPE
maximum clock frequency	16.7 MHz
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
length	25.908 mm
Dedicated input times	10
Number of I/O lines
Number of entries	20
Output times	10
Number of product terms	80
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	25 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.318 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
