Data Sheet
Features
•
•
•
•
•
•
•
•
•
Usable bandwidth 35 MHz
For GSM-900 base station applications
Low loss
High Attenuation
Single-ended operation
No impedance matching required for operation at
50
Ω
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856657
897.5 MHz SAW Filter
•

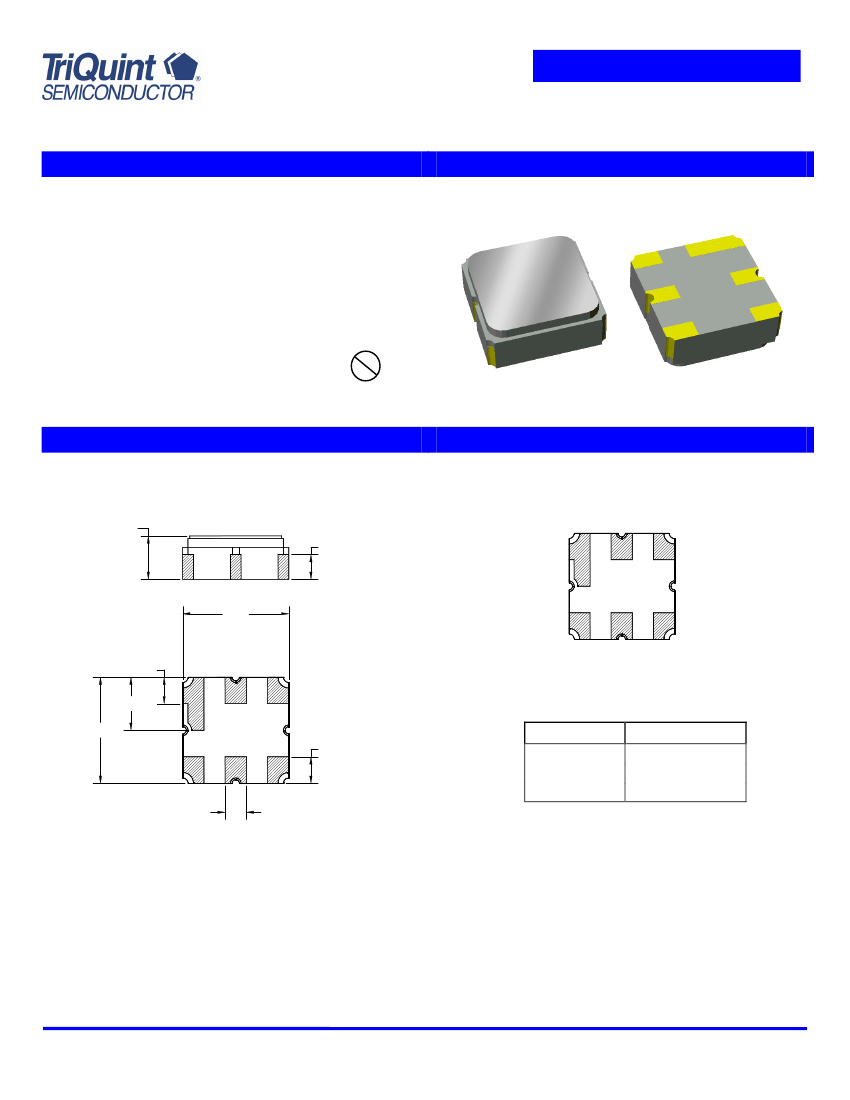

Package
Surface Mount 3.00 x 3.00 x 1.22 mm
SMP-12A
1.22 NOM.
1.32 MAX.
0.69
Pin Configuration
Bottom View
1
2
3
3.00
6
5
4
0.75
1.50
3.00
0.75
Pin No.
2
5
1,3,4,6
Description
Input
Output
Case ground
0.60
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
01-08 TriQuint Semiconductor, Inc. ©
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856657
897.5 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
880 - 915 MHz
Absolute Attenuation
738 - 773 MHz
773 - 836 MHz
836 - 860 MHz
930 - 935 MHz
935 - 960 MHz
960 - 1000 MHz
Amplitude Variation
(5)
880 - 915 MHz
Input/Output VSWR
880 - 915 MHz
RF Power Handling
(6)
Load /Source Impedance
(7)
Notes:
1.
2.
3.
4.
5.
6.
7.
Minimum
-
-
40
20
17
15
15
20
-
-
-
-
Typical
(4)
897.5
1.5
45
25
20
18
18
24
0.5
1.8:1
-
50
Maximum
-
2.25
-
-
-
-
-
-
1.3
2:1
17
-
Unit
MHz
dB
dB
dB p-p
dB
dBm
Ω
All specifications are based on TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
Describes the total variation over the defined frequency range
Power handling is targeted for an applied CW modulated RF signal at 55 oC for 10,000 hours. The filter is also able to sustain an
instantaneous 20dBm signal without decay
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
50
Ω
Single-ended
Subject to change or obsolescence without notice
Rev A
01-08 TriQuint Semiconductor, Inc. ©
Page 2 of 5
Data Sheet
Part Number 856657
897.5 MHz SAW Filter

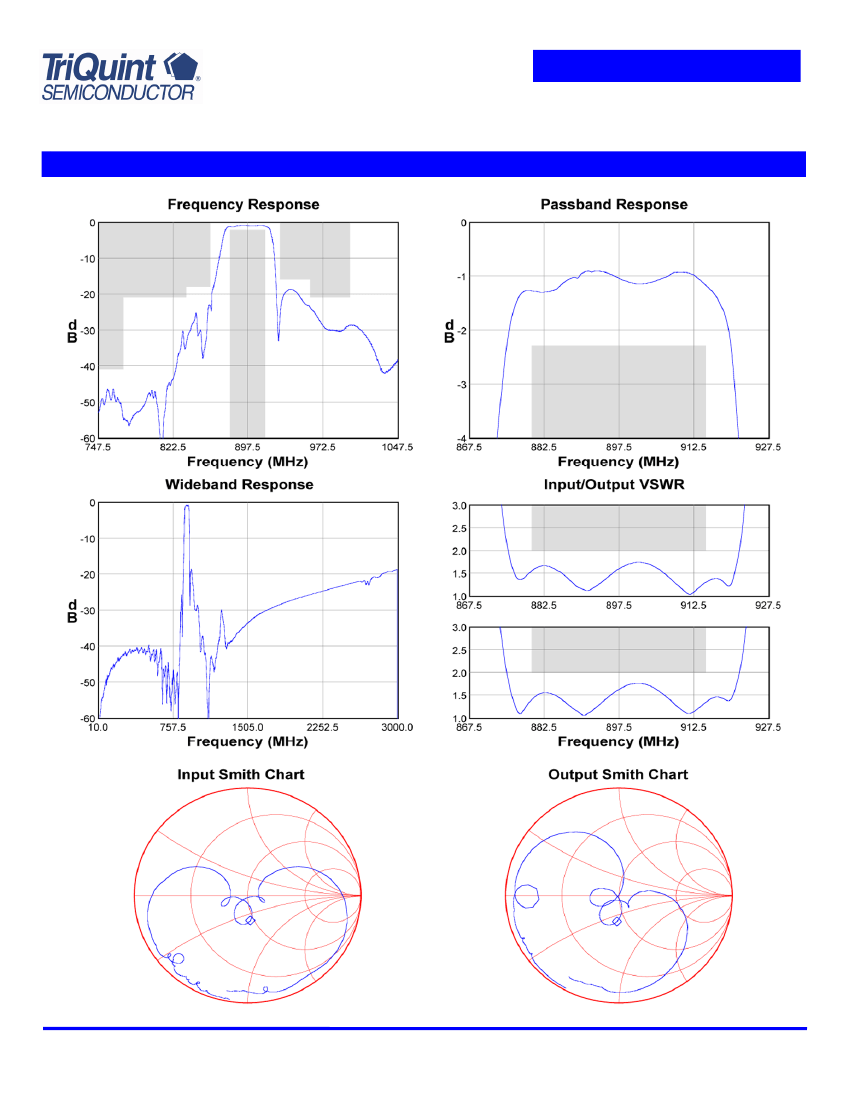

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev A
01-08 TriQuint Semiconductor, Inc. ©
Page 3 of 5
Data Sheet
Part Number 856657
897.5 MHz SAW Filter

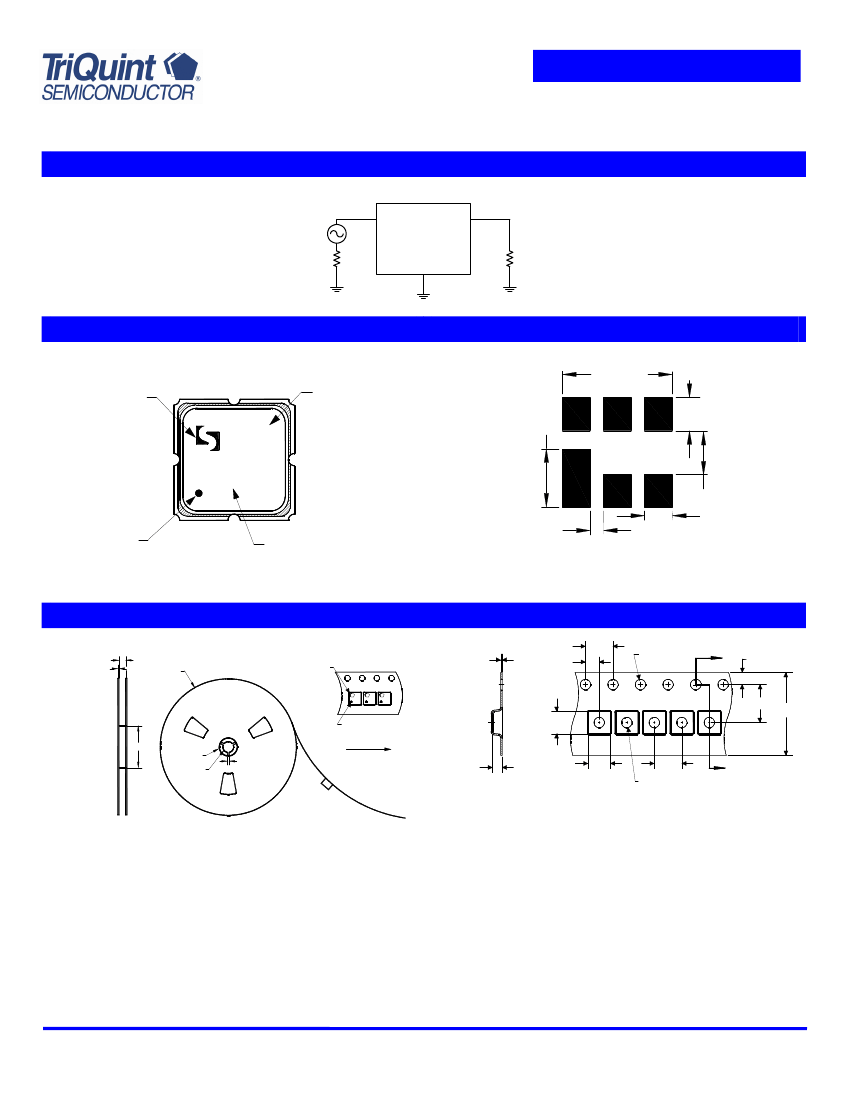

Matching Schematics
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
50
Ω
Single-ended
Marking
Sawtek
logo
Marking
code
PCB Footprint
3.20 SQ
.96
DD
JJJYM
1.70
1.27
.81
.38
ID dot
Date code
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
4.0
2.7
12.8
Ø330
TriQuint
logo
0.21
2.0
Ø1.5
A
1.75
5.5
12.0
Pad 1 ID dot
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev A
01-08 TriQuint Semiconductor, Inc. ©
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856657
897.5 MHz SAW Filter
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev A
01-08 TriQuint Semiconductor, Inc. ©
Page 5 of 5
