SBR10250
Elektronische Bauelemente
Voltage 250 V
10.0 Amp Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Low forward voltage drop
High current capability
High reliability
High surge current capability
Epitaxial construction
TO-220
B
N
D
E
M
P
A
O
C
G
F
REF.
J
K
L
M
N
O
P
Millimeter
Min.
Max.
0.7
1.78
0.38
1.02
2.39
2.69
2.50
3.43
3.10
4.09
8.38
9.65
0.89
1.45
MECHANICAL DATA
Case: Molded plastic
Epoxy: UL94V-0 rate flame retardant
Lead: Lead solder able per MIL-STD-202
method 208 guaranteed
Polarity: As Marked
Mounting position: Any
Weight: 2.064 grams (approximate)
H
J
K
L
Millimeter
Min.
Max.
14.22
16.51
9.65
10.67
12.50
14.75
3.56
4.90
0.51
1.45
2.03
2.92
0.31
0.76
3.5
4.5
L
REF.
A
B
C
D
E
F
G
H
1
3
2
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Per Leg
Per Device
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous
Forward Voltage
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance
Typical Thermal Resistance
Typical Thermal Resistance
2
3
4
1
Symbol
V
RRM
V
RSM
V
DC
I
F
I
FSM
V
F
I
R
C
J
R
θJA
R
θJC
dv / dt
T
J
T
STG
Rating
250
250
250
5
10
125
0.89
0.74
0.1
10
68
10
2
10000
-50~150
-65~150
Unit
V
V
V
A
A
V
mA
pF
°C
/ W
°C
/ W
V /
µs
°C
°C
I
F
=5A, T
A
=25°C, per leg
I
F
=5A, T
A
=125°C, per leg
T
A
=25°C
T
A
=125°C
Voltage Rate Of Chance (Rated V
R
)
Operating Temperature Range T
J
Storage Temperature Range T
STG
Notes:
1.
2.
3.
4.
Measured at 1MHz and applied reverse voltage of 5.0V D.C.
Thermal Resistance Junction to Ambient.
Thermal Resistance Junction to Case.
Pulse test: 300µS pulse width, 1% duty cycle.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-Aug-2014 Rev. A
Page 1 of 2
SBR10250
Elektronische Bauelemente
Voltage 250 V
10.0 Amp Schottky Barrier Rectifiers

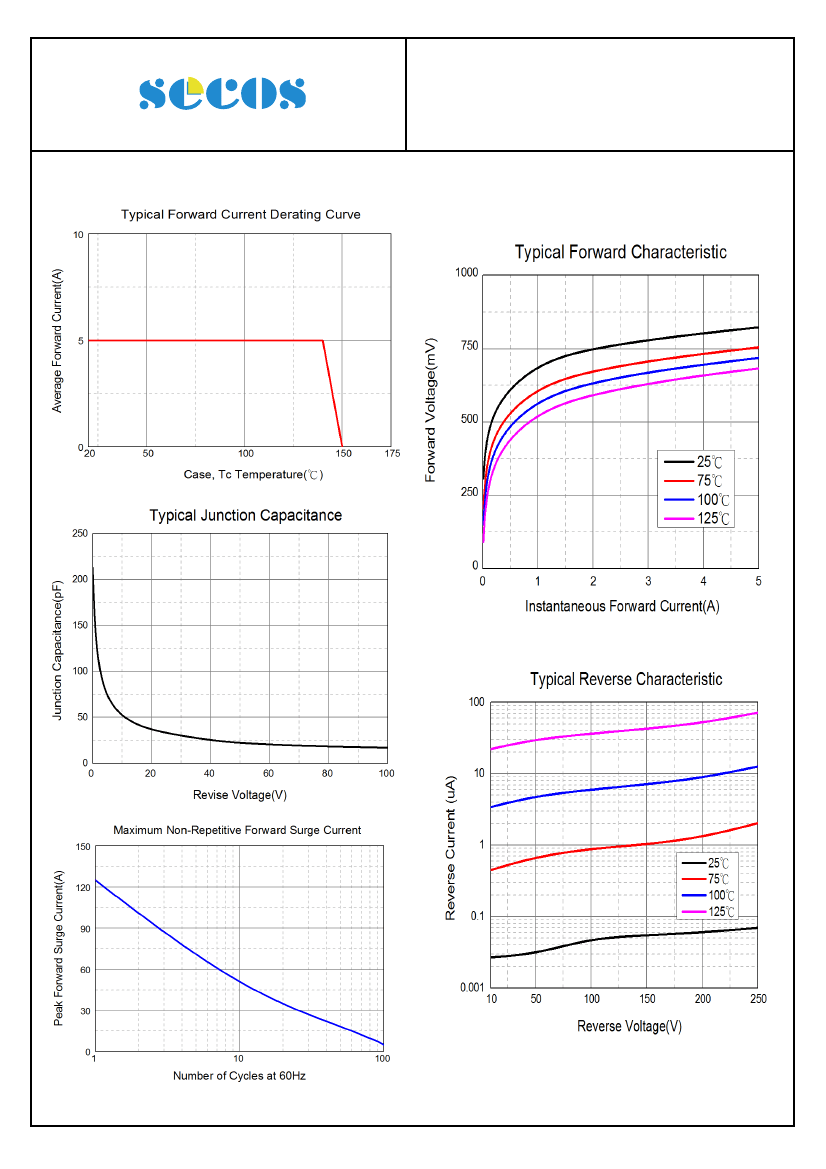

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-Aug-2014 Rev. A
Page 2 of 2
