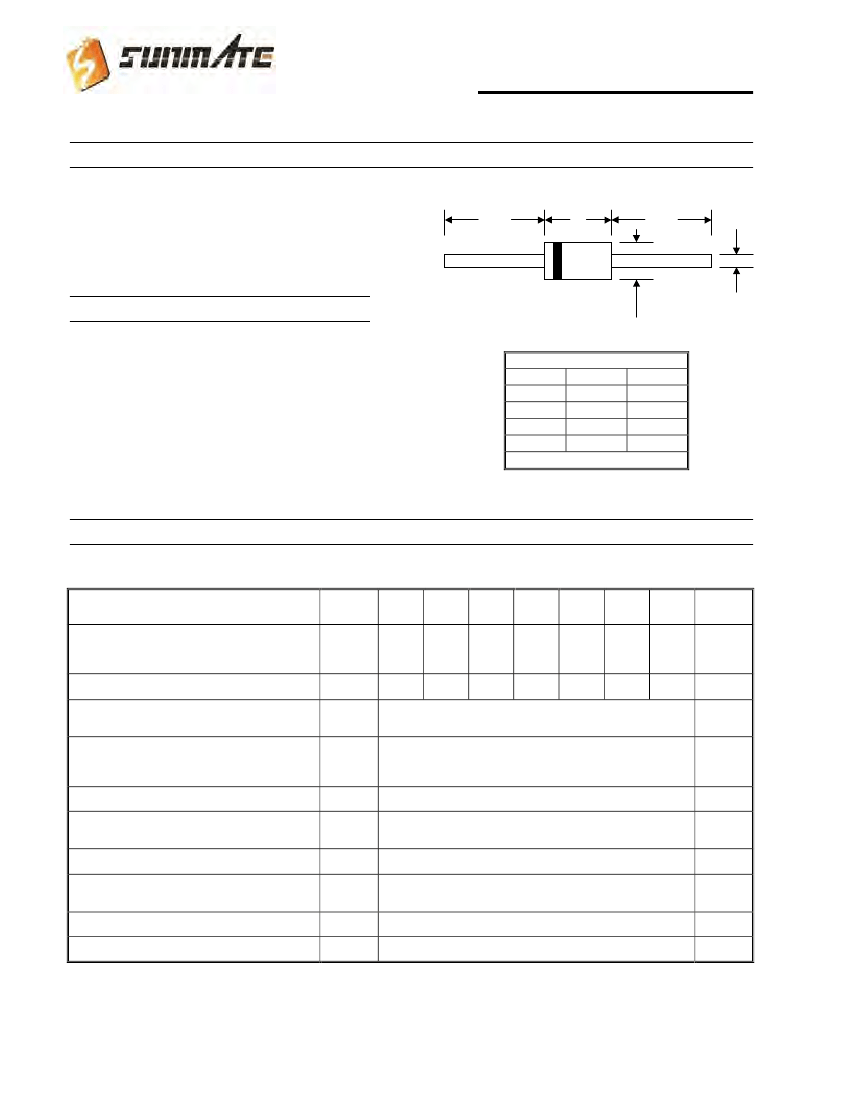

1N5400 – 1N5408
3.0A Axial Leaded Rectifier
Features
!
!
!
!
!
Diffused Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability
A
B
A
Mechanical Data
!
!
!
!
!
!
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 1.2 grams (approx.)
Mounting Position: Any
Marking: Type Number
Epoxy: UL 94V-O rate flame retardant
D
DO-201AD
Dim
Min
Max
A
25.4
—
B
8.50
9.50
C
1.20
1.30
D
5.0
5.60
All Dimensions in mm
C
!
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
1N
5400
50
35
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@T
A
= 75°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 3.0A
@T
A
= 25°C
@T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
1N
5401
100
70
1N
5402
200
140
1N
5404
400
280
3.0
1N
5406
600
420
1N
5407
800
560
1N
5408
1000
700
Unit
V
V
A
I
FSM
V
FM
I
RM
C
j
R
JA
T
j
T
STG
200
1.0
5.0
100
50
18
-65 to +125
-65 to +150
A
V
µA
pF
K/W
°C
°C
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance Junction to Ambient
(Note 1)
Operating Temperature Range
Storage Temperature Range
*Glass passivated forms are available upon request
Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case
2. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V D.C.
1of2
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
4.0
200
100
T
j
= 25ºC
I
(AV)
, AVERAGE FORWARD CURRENT (A)
3.0
10
2.0
1.0
1.0
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE (°C)

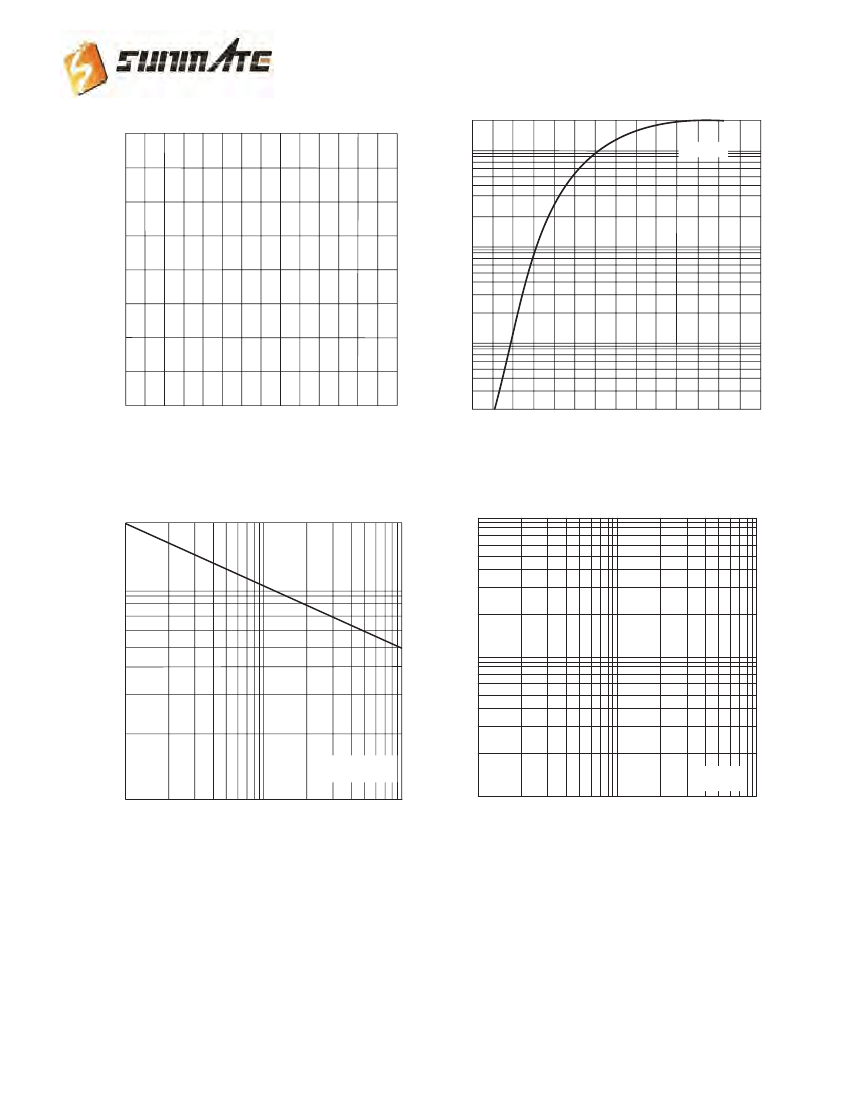

Fig. 1 Forward Current Derating Curve
0.2
0.4
0.8
1.2
1.6
2.0
2.4
2.8
3.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
200
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
100
C
j
, CAPACITANCE (pF)
Tj = 25°C
Pulse width = 300µs
10
f = 1MHz
T
j
= 25ºC
10
1.0
10
100
1.0
1.0
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Maximum Non-Repetitive Surge Current
2of2
