WPANT30078-R1A: Description4G Cellular Panel Antenna; File Size460KB，6 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com

Download Datasheet View All

WPANT30078-R1A Overview

4G Cellular Panel Antenna

Preview

Download Datasheet

View All

WPANT30078-R1A

4G Cellular Panel Antenna

Description / Application

This is a High Gain 4G Cellular directional antenna that can be used for base-stations. It comes with a Type-N female connector.

The antenna is at DC ground to ensure protection against lightning.

We can assist your engineers to optimize mounting positions for these antennas in your applications and can further customize the

antennas for your specific needs. Please contact

sales@worldproducts.com

with your specific application requirements.

Electrical Properties

Operating Frequency

Approximate Antenna Impedance [Ω]

VSWR – Typical

Peak Gain [dBi] (Typical)

Polarization

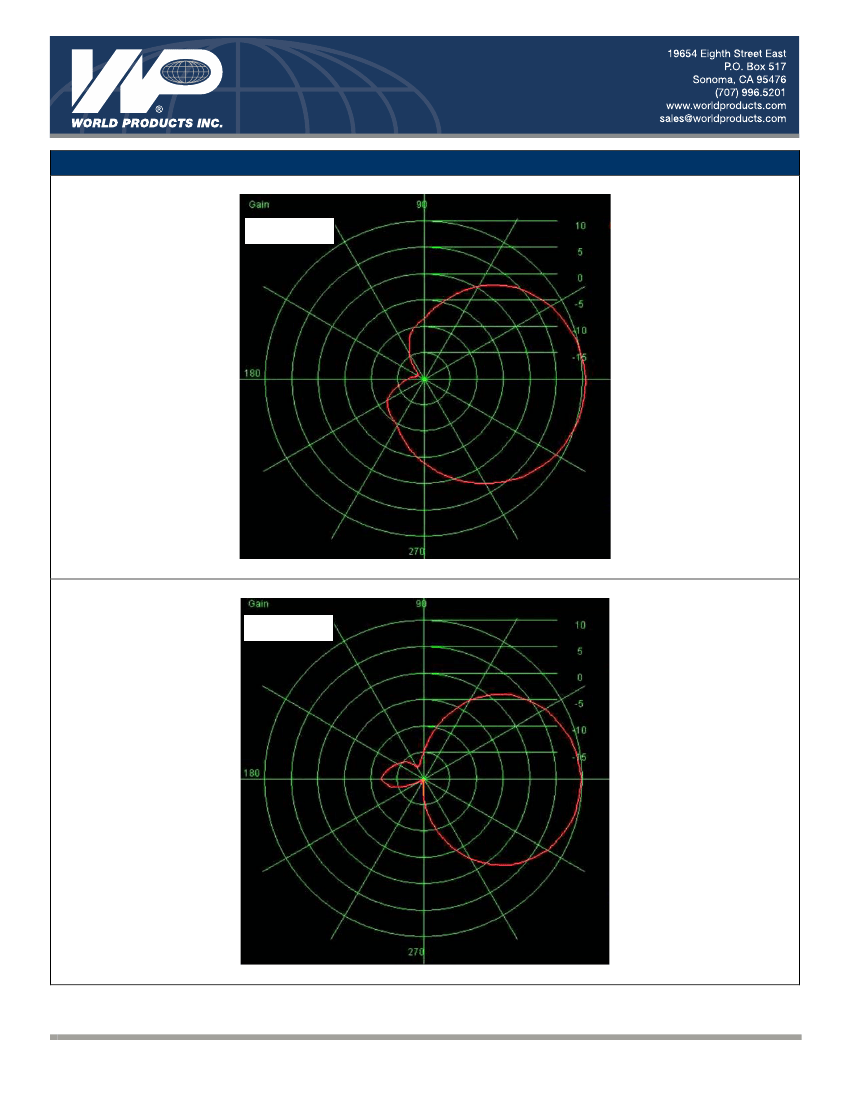

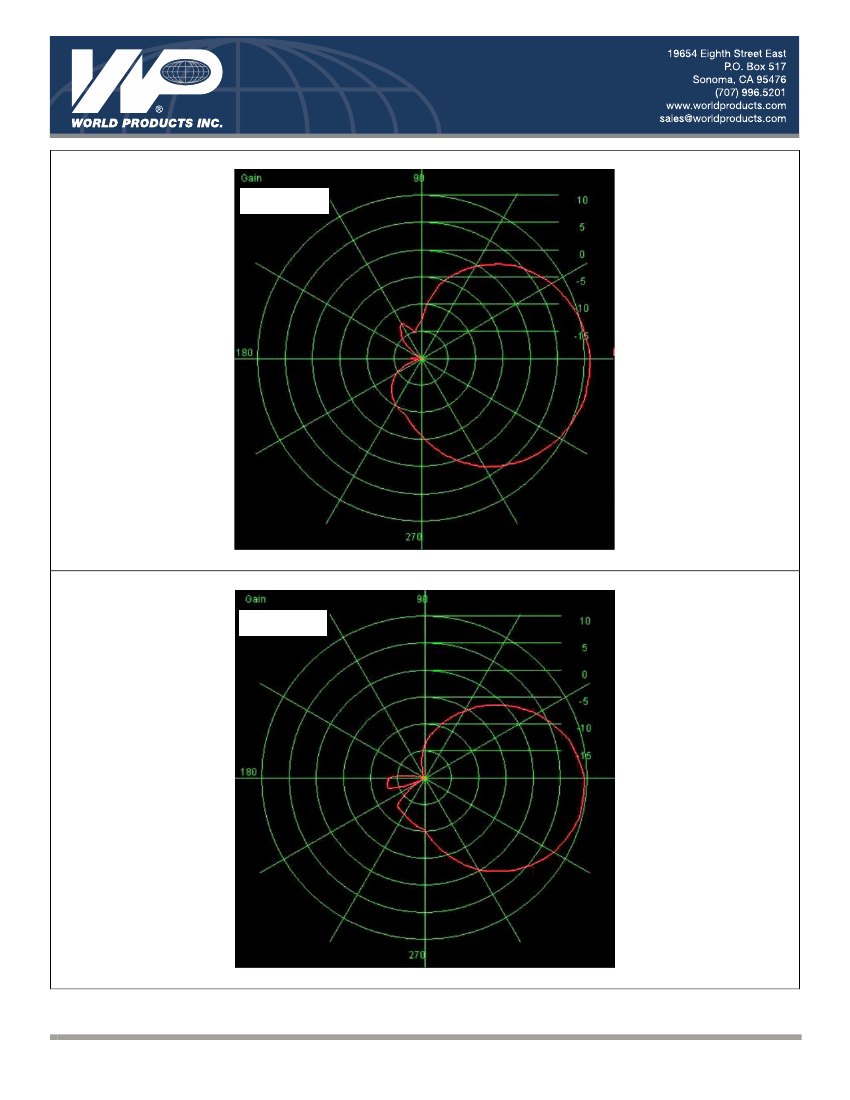

Pattern

Horizontal Beamwidth (Typical)

Vertical Beamwidth (Typical)

Electrical Downtilt

Accepted Power [W] (Max)

Lightning Protection

698 – 960 MHz

50Ω

< 2.5:1

11 dBi

Vertical

55° – 80°

20° – 40°

0°

500 Watts

DC ground

1710 – 2700 MHz

50Ω

< 2.5:1

12 dBi

Vertical

Directional (> 20 dB front-to-back ratio)

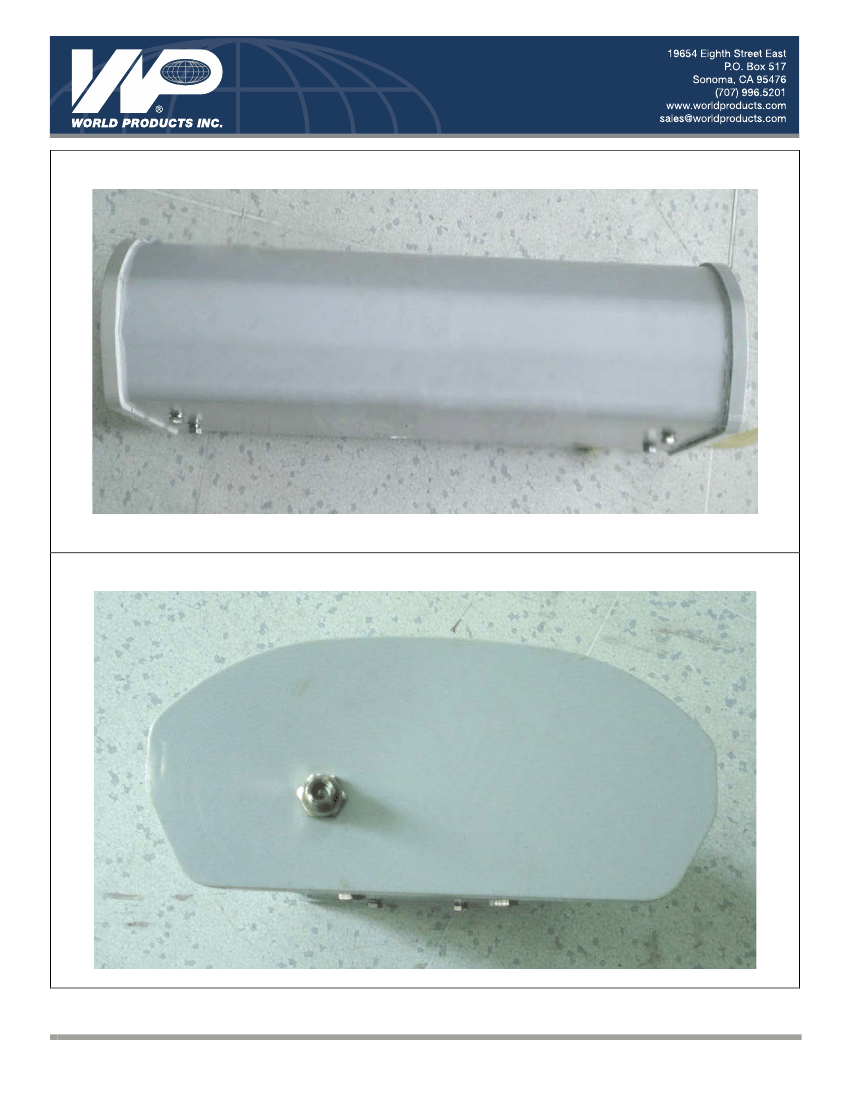

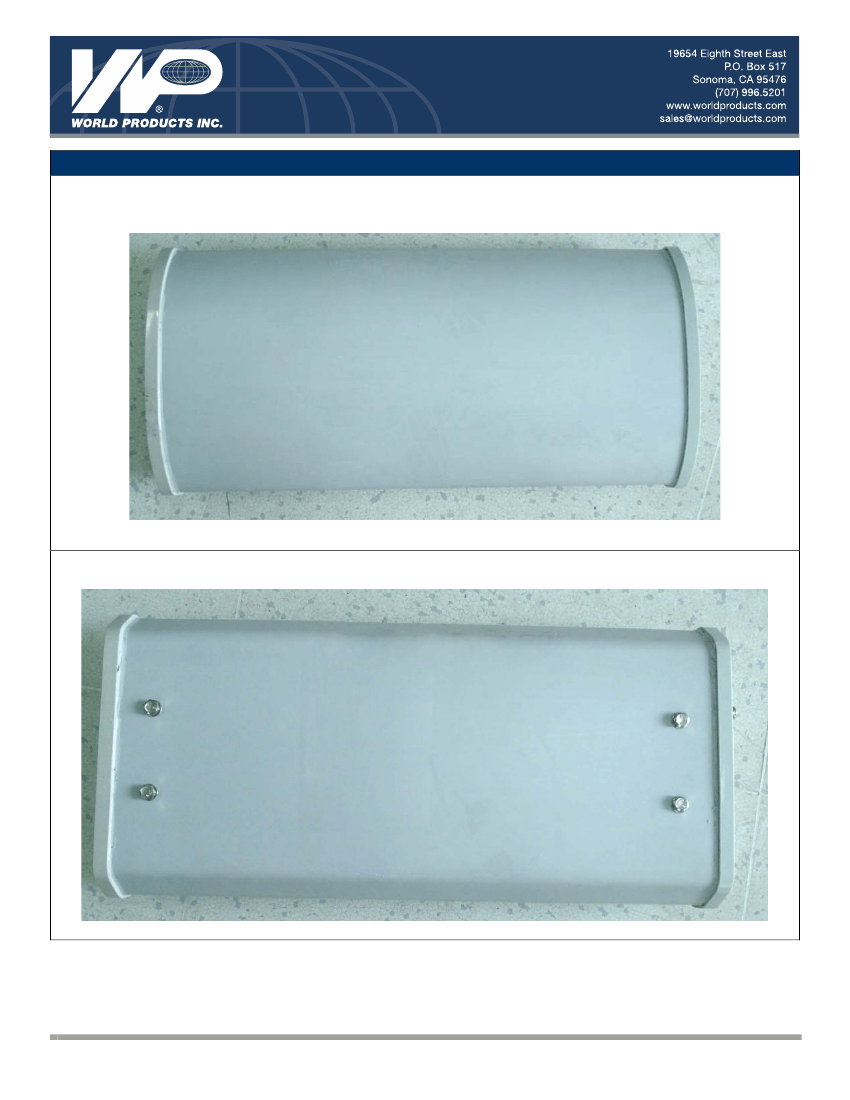

Mechanical / Environmental Properties

Antenna Dimensions

Antenna Weight

Antenna Color

Connector

Antenna Radome

Mechanical Tilt

Pole Diameter

Max Wind Speed

Operating / Storage Temperature

Environmental

Hazardous Materials

26’’ X 11’’ X 5.3’’

9.9 lbs

Grey

UPVC

0 – 16 degrees

2’’ – 3.15’’

60 m/s

-40 C to +90 C

Meets standards for UL 94V-0

RoHS Compliant

(660mm X 280mm X 135mm)

(4.5 kg)

Type-N Female

(50 – 80 mm)

Rev: 2.0

Created on: June 24, 2013

Created by: MKS

Approved by: BP
