SMD Type
Zener Diodes
BZT52B Series
(KZT52B Series)
■
Features
●
Wide Zener Voltage Range Selection, 2.0V to 75V
●
VZ Tolerance Selection of ±2% (B Series)
●
Flat Lead SOD-123FL Plastic Package
●
Surface Device Type Mounting
●
Green EMC
2.6±0.1
Diodes
SOD-123FL
1.6±0.1
Unit:mm
0.1
+0.1
-0.05
●
RoHS Compliant
1
2
Cathode
Anode
0.6±0.1
3.5±0.2
0.9±0.1
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Power Dissipation
Junction Temperature
Operating Temperature Range
Storage Temperature range
Symbol
P
D
T
J
T
OPR
T
stg
Rating
500
150
-65 to 150
-65 to 150
℃
Unit
mW
■
Electrical Characteristics Ta = 25℃
Device
Type
BZT52B2V0
BZT52B2V2
BZT52B2V4
BZT52B2V7
BZT52B3V0
BZT52B3V3
BZT52B3V6
BZT52B3V9
BZT52B4V3
BZT52B4V7
BZT52B5V1
BZT52B5V6
BZT52B6V2
BZT52B6V8
BZT52B7V5
BZT52B8V2
BZT52B9V1
BZT52B10
BZT52B11
BZT52B12
BZT52B13
BZT52B15
Device
Marking
2V0B
2V2B
2V4B
2V7B
3V0B
3V3B
3V6B
3V9B
4V3B
4V7B
5V1B
5V6B
6V2B
6V8B
7V5B
8V2B
9V1B
10VB
11VB
12VB
13VB
15VB
V
Z
@ I
ZT
(Volts)
Min
1.95
2.14
2.35
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
14.70
Nom
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
Max
2.05
2.26
2.45
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
15.30
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
100
100
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Z
ZK
@ I
ZK
(Ω)
Max
564
564
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
I
R
@ V
R
(µA)
Max
120
120
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
V
R
(Volts)
0.5
0.7
1
1
1
1
1
1
1
2
2
2
4
4
5
5
6
7
8
8
8
10.5
www.kexin.com.cn
1
SMD Type
Zener Diodes
BZT52B Series
(KZT52B Series)
■
Electrical Characteristics Ta = 25℃
Device
Type
BZT52B16
BZT52B18
BZT52B20
BZT52B22
BZT52B24
BZT52B27
BZT52B30
BZT52B33
BZT52B36
BZT52B39
BZT52B43
BZT52B47
BZT52B51
BZT52B56
BZT52B62
BZT52B68
BZT52B75
Device
Marking
16VB
18VB
20VB
22VB
24VB
27VB
30VB
33VB
36VB
39VB
43VB
47VB
51VB
56VB
62VB
68VB
75VB
V
Z
@ I
ZT
(Volts)
Min
15.68
17.64
19.60
21.56
23.52
26.46
29.40
32.34
35.28
38.22
42.14
46.06
49.98
54.88
60.76
66.64
73.50
Nom
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Max
16.32
18.36
20.40
22.44
24.48
27.54
30.60
33.66
36.72
39.78
43.86
47.94
52.02
57.12
63.24
69.36
76.50
I
ZT
(mA)
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
Z
ZT
@ I
ZT
(Ω)
Max
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
I
ZK
(mA)
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
188
212
212
235
235
282
282
306
329
329
353
353
376
400
423
447
470
Diodes
I
R
@ V
R
(µA)
Max
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
V
R
(Volts)
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
V
F
Forward Voltage = 900mV Maximum @
I
F
= 10 mA for all types
Notes:
1.
2.
3.
4.
The Zener Voltage (V
Z
) is tested under pulse condition of 10mS.
The device numbers listed have a standard tolerance on the nominal zener voltage of ±2%.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
■

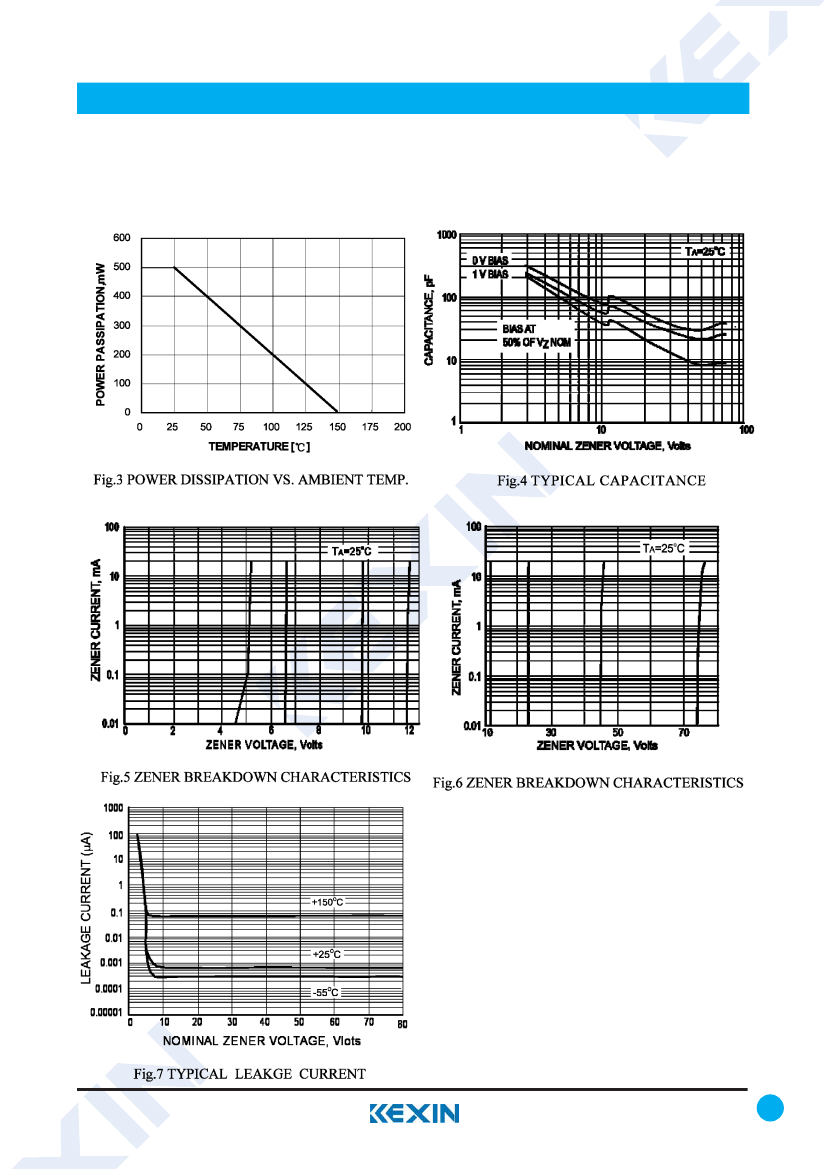

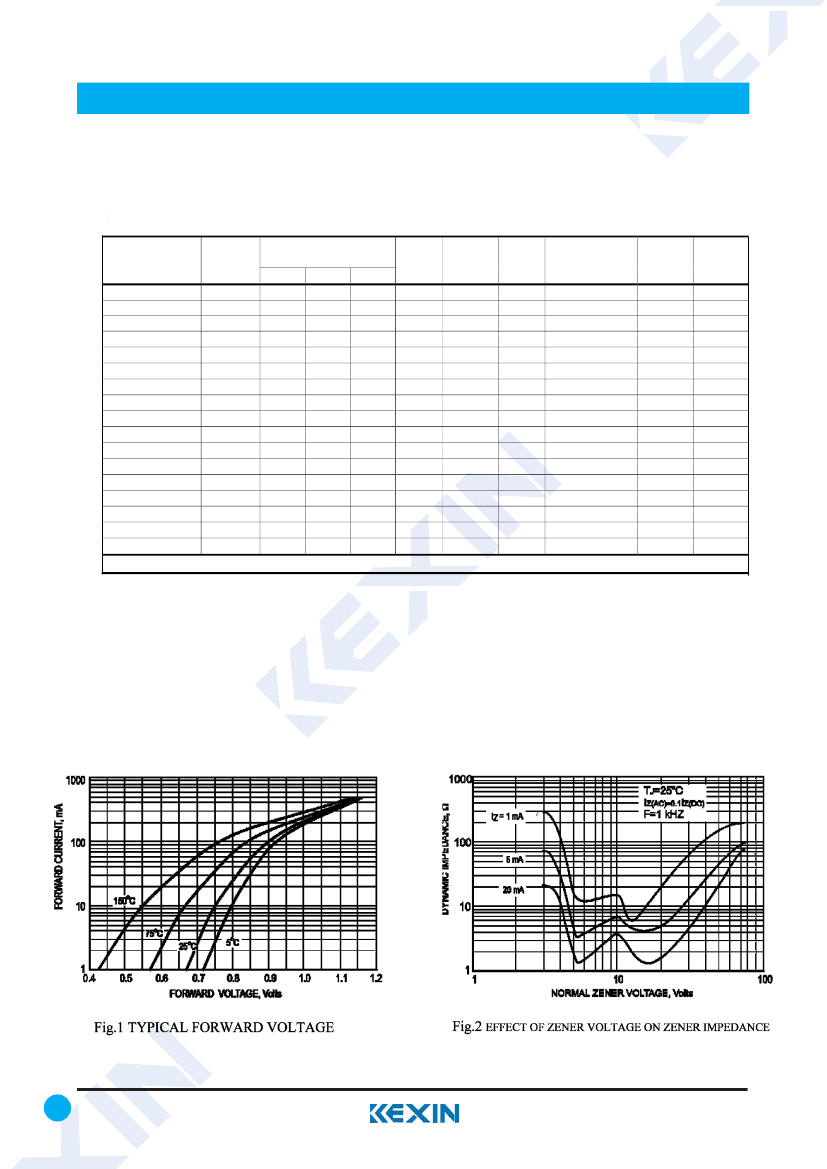

Typical Characterisitics
