X1G003621020000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> X1G003621020000

Preview

X1G003621020000: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size269KB，5 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

X1G003621020000 Overview

CMOS Output Clock Oscillator,

X1G003621020000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	4.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Installation features	SURFACE MOUNT
Nominal operating frequency	10.00025 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.7mm
longest rise time	4.5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

X1G003621020000 Preview

Clock OSC

SG-211SCE

SG-211SCE 10.000250 MHz T

Product name

Product Number / Ordering code

X1G0036210200xx

Please refer to the 8.Packing information about xx (last 2 digits)

Output waveform CMOS

Pb free / Complies with EU RoHS directive

Reference weight Typ. 13 mg

1.Absolute maximum ratings

Parameter

Symbol

Maximum supply voltage

Storage temperature

Input voltage

Min.

-0.6

-40

-0.6

Typ.

-

Max.

+6

+125

Vcc+0.6

Unit

V

ºC

V

Conditions / Remarks

-

Storage as single product

ST terminal

Vcc-GND

T_stg

Vin

2.Specifications(characteristics)

Parameter

Symbol

Output frequency

Supply voltage

Operating temperature

Frequency tolerance

Current consumption

Stand-by current

Symmetry

Output voltage

Output load condition

Input voltage

Rise time

Fall time

Start-up time

Jitter

Min.

2.7

-40

-15

-

45

0.9Vcc

-

0.8Vcc

-

Typ.

10.000250

3.3

-

TBD

-

2.14

-

-95

-119

-139

-152

-153

-

Max.

3.63

+85

15

3.5

5.0

55

-

0.1Vcc

15

-

0.2Vcc

4.5

5

-

Unit

MHz

V

ºC

x10

-6

mA

µA

%

Conditions / Remarks

-

T_use

No load condition

ST = GND

50% Vcc Level L_CMOS=<15pF

IOH=-4mA

IOL=4mA

f0

Vcc

T_use

f_tol

Icc

I_std

SYM

V

OH

V

OL

L_CMOS

V

IH

V

IL

t

r

tf

t_str

t

DJ

t

RJ

t

RMS

t

p-p

t

acc

pF

CMOS Load

ST terminal

ns

ms

ps

dBc/Hz

x10

-6

0.2Vcc to 0.8Vcc Level, L_CMOS=15pF

t = 0 at 0.9Vcc

Deterministic Jitter Vcc=3.3V

Random Jitter Vcc=3.3V

δ(RMS of total distribution) Vcc=3.3V

Peak to Peak Vcc=3.3V

Accumulated Jitter(δ) n=2 to 50000

cycles

Off set Frequency: 12kHz to 20MHz Vcc=3.3V

Phase jitter

Phase noise

t

PJ

L(f)

Off set 1Hz Vcc=3.3V

Off set 10Hz Vcc=3.3V

Off set 100Hz Vcc=3.3V

Off set 1kHz Vcc=3.3V

Off set 10kHz Vcc=3.3V

Off set 100kHz Vcc=3.3V

Off set 1MHz Vcc=3.3V

Included in Frequency tolerance First year

Frequency aging

f_age

-

1 Page

3.Timing chart

V

CC

80 %V

CC

tr

tf

50 %V

CC

20 %V

CC

GND

tw

t

4.Test circuit

1) Waveform observation

V

CC

ST

swich

by-pass

capacitor

supply

GND

OUT

Test Point

L_CMOS

2) Current consumption

swich

ST

V

CC

A

by-pass

capacitor

supply

GND

OUT

Test

Point

*Current consumption under the

disable function should be

= GND.

3) Condition

(1) Oscilloscope

· Band width should be minimum 5 times higher (wider) than measurement frequency.

· Probe earth should be placed closely from test point and lead length should be as short as possible

* Recommendable to use miniature socket. (Don’t use earth lead.)

(2) L_CMOS also includes probe capacitance.

(3) By-pass capacitor (0.01 µF to 0.1 µF) is placed closely between VCC and GND.

(4) Use the current meter whose internal impedance value is small.

(5) Power supply

· Start up time (0 %VCC to 90 %VCC) of power source should be more than 150 µs.

· Impedance of power supply should be as lowest as possible.

2 Page

5.External dimensions

(Unit: mm)

6.Footprint(Recommended)

C

(ex. 0.01 µF)

Resist

(Unit: mm)

#4

1.1

#3

1.3

#1

#2

1.7

To maintain stable operation, provide a 0.01uF to 0.1uF by-pass

capacitor at a location as near as possible to the power source

terminal of the crystal product (between Vcc - GND).

7.Reflow profile

Reflow condition (Follow of JEDEC STD-020D.01)

Temperature[C]

300

250

200

150

100

50

Time

+25CtoPeak

0

60

120 180 240 300 360 420 480 540 600 660 720 780

Time[s]

;+217C

Tsmax;+200C



TL

TP



;+260C

+255C

Avg.

Ramp-up

3



C/sMax.



tp

;20sto40s

tL

60sto150s

(+217Cover)

Ramp-down

6C/sMax.

Tsmin;+150C

ts

60sto180s

(+150Cto+200C)

8.Packing information

[ 1 ]Product number last 2 digits code(xx) description

The recommended code is "00"

Code

14

15

00

Condition

1000pcs / Reel

2000pcs / Reel

3000pcs / Reel

X1G0036210200xx

Code

01

11

12

Condition

Any Q'ty vinyl bag(Tape cut)

Any Q'ty / Reel

250pcs / Reel

3 Page

0.9

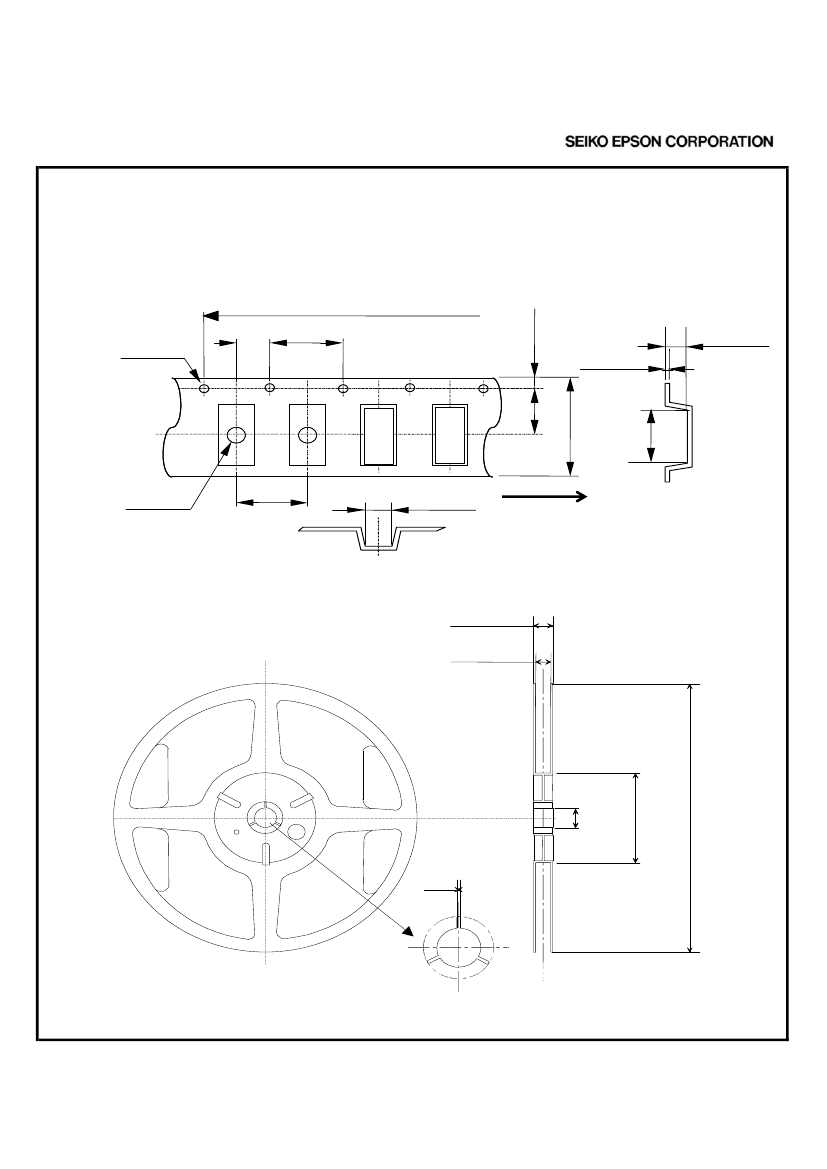

[ 2 ] Taping specification

Subject to EIA-481 & IEC-60286

(1) Tape dimensions

　　　Material

of the Carrier Tape : PS

　　　Material

of the Top Tape : PET+PE

10 P: 400.1

Unit: mm

φ1.5

+0.1

-0

2.00.1

4.00.1

1.750.1

1.150.1

0.250.005

3.50.1

8.00.2

φ1.0+0.1/-0

4.00.1

2.30.1

User direction of feed

(2) Reel dimensions

Center material

: PS

Material of the Reel : PS

11.41.0

9.00.3

Unit: mm

φ

13.00.2

2.80.1

φ

180.0

-3.0

φ

60.0

+0

EPSON

2.0

-0

+0.3

4 Page

9.Notice

· This material is subject to change without notice.

· Any part of this material may not be reproduced or duplicated in any form or any means without the written

permission of Seiko Epson.

· The information about applied data,circuitry, software, usage, etc. written in this material is intended for

reference only.

Seiko Epson does not assume any liability for the occurrence of customer damage or infringing on any patent

or copyright of a third party.

This material does not authorize the licensing for any patent or intellectual copyrights.

· When exporting the products or technology described in this material, you should comply with the applicable

export control laws and regulations and follow the procedures required by such laws and regulations.

· You are requested not to use the products (and any technical information furnished, if any) for the development

and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that

you

would not make the products available to any third party who may use the products for such prohibited

purposes.

· These products are intended for general use in electronic equipment. When using them in specific applications

that require

extremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson

in advance.

/ Space equipment (artificial satellites, rockets, etc.)

/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)

/ Medical instruments to sustain life

/ Submarine transmitters

/ Power stations and related

/ Fire work equipment and security equipment

/ Traffic control equipment

/ And others requiring equivalent reliability.

10.Contact us

http://www5.epsondevice.com/en/contact/

5 Page

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
