FP-MVFEMTO-OH-850-1DI-5-FIXYYY-DL

Description
Laser Diode Module Emitter,
CategoryWireless rf/communication    Optical fiber
File Size286KB，8 Pages
ManufacturerLaser Components USA Inc.
Download Datasheet Parametric View All

FP-MVFEMTO-OH-850-1DI-5-FIXYYY-DL Overview

Laser Diode Module Emitter,

FP-MVFEMTO-OH-850-1DI-5-FIXYYY-DL Parametric

Parameter NameAttribute value
MakerLaser Components USA Inc.
Reach Compliance Codeunknown
Body length or diameter8 mm
Fiber optic equipment typesLASER DIODE MODULE EMITTER
Maximum operating temperature50 °C
Minimum operating temperature
Nominal operating wavelength850 nm
Supply current100 mA
Maximum supply voltage30 V
Minimum supply voltage4.5 V
Transmission typeANALOG

FP-MVFEMTO-OH-850-1DI-5-FIXYYY-DL Preview

Laser
Diodes
FLEXPOINT
®
Machine Vision Lasers
MVfemto Series (Edition 2017)
Smallest Machine Vision Laser on the Market

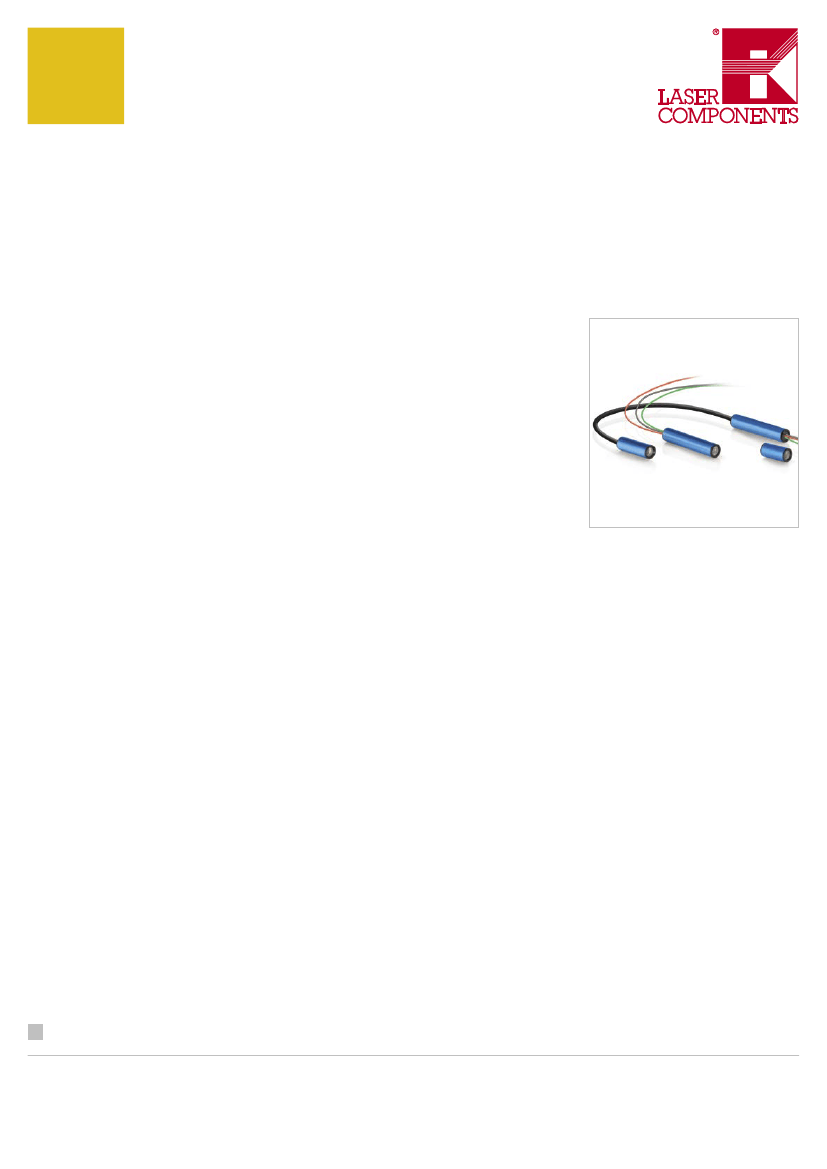

With the MVfemto line laser, LASER COMPONENTS presents the
smallest machine vision laser with outstanding optical performance. With
dimensions of only 40 mm in length and 8 mm in diameter, it is the best
choice for integration into 3D sensors that have very little space.
MVfemto lasers come with a fixed focus that is set at the factory. They
are available in a standard housing, in a version with separate housings
for the optical and electronic parts, or in a short housing without the laser
driver.
Features
▪
▪
▪
▪
Smallest size
Superior line quality
Many focus / optics options
Modular housing options
Applications
▪
▪
▪
07/17 / V06 / HW / laser-modules/mv_femto
3D machine vision
Industrial inspection
Structured lighting
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
Laser
Diodes
FLEXPOINT
®
Machine Vision Lasers
MVfemto Series (Edition 2017)
Specifications
Spectral range
Wavelength stability
Output power
Power stability
Beam profile
Fan angle
Focus distance
Focus options
Line intensity variation
Line straightness
Boresight deviation
Pointing stability
Operating voltage
405 nm, 450 nm, 520 nm, 640 nm, 660 nm, 685 nm, 785 nm, 850 nm
(other wavelengths on request)
< 0.25 nm / °C
< 1 mW – 50 mW
≤ 5% (after warm up at 25 °C)
laser line with uniform power distribution, FOV/COS
4
correction available
5°, 10°, 15°, 20°, 30°, 45°, 60°, 75°, 90°
fixed focus, factory preset (50 mm - collimated)
Standard, DL, DLE, DLSE, TS1, TS2
± 20% related to average power (within 80% of the line)
± 0.1% ( ± 0.05% as option)
≤10 mrad (≤3 mrad as option)
≤10 µrad/°C (improved pointing stability available on request)
4.5 – 30 V (10 – 30 V for 405/450/520 nm)
(405/520 nm available with 5 V electronics on request)
reverse voltage protection
< 100 mA (supply current)
digital (low/high acitve, 0 – 10 kHz, higher frequency on request),
dimmable (low/high active by 0 – 5 V signal)
0 °C bis +50 °C (case temperature, depending on wavelength and heat sink)
-20 °C bis +60 °C (depending on wavelength)
Ø 8 × length (see product map for length --> depending on chosen feature)
Aluminum (blue anodized, potential free)
200 mm flying leads
Red: +VDC , Black: GND, Green: modulation (option), Yellow: adjustable
power (option),
no wires for optical heads,
150 mm cable between housings for 2H versions
DIN EN 60825-1:2014
Current consumption
Modulation options
Operating temperature
Storage temperature
Housing size
Housing material
07/17 / V06 / HW / laser-modules/mv_femto
Pin defintion
Laser class
2
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
Laser
Diodes
FLEXPOINT
®
Machine Vision Lasers
MVfemto Series (Edition 2017)
Focus Options
MVfemto lasers are available with different focus options to achieve the right combination of line thickness and
depth of focus for the application.
The individual options are:
▪
▪
▪
▪
▪
▪
STD: Standard, good compromise for line thickness vs. depth of focus
DL: Thin line
DLE: Thin line enhanced
DLSE: Thin line super enhanced
TS1: Enhanced depth of focus
TS2: Enhanced depth of focus, factor 2
(Abbreviations: LT = line thickness / DOF = depth of focus)
250
150
920
1900
depth of focus [mm] (total)
Line thickness
Depth of focus
150
90
Line thickness
680
Depth of focus
1300
560
1000
100
60
440
700
50
30
320
400
0
50
100
150
200
250
300
350
400
450
500
0
200
focus distance [mm]
500
750
1000
1250
1500
1750
100
2000
focus distance [mm]
Fig. 1:
Standard laser line characteristics
(short range)
Fig. 2:
Standard laser line characteristics
(long range)
07/17 / V06 / HW / laser-modules/mv_femto
To calculate line thickness and DOF, note the value in the graphs above and multiply them by the factors for your
requested wavelength, output power, and focus option listed in the following table.
3
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
depth of focus [mm] (total)
200
120
800
1600
line thickness 1/e² [µm]
line thickness 1/e² [µm]
Laser
Diodes
FLEXPOINT
®
Machine Vision Lasers
MVfemto Series (Edition 2017)
Specifications MVfemto
P
out
&
l
l
[nm]
P
out
[mW]
1-30
1-50
1-8
1-20
21-30
1-30
1-40
1-10
1-40
∆
l
[nm]
LT
405
450
520
640
640
660
685
785
850
±5
±10
±10
±5
±5
±5
±10
±10
±10
0,71
0,69
0,78
1,02
1,02
1,00
1,14
0,90
0,90
Std
DOF
0,81
0,69
0,78
1,07
1,07
1,00
1,24
0,68
0,63
LT
0,49
0,45
0,53
0,69
0,69
0,67
0,76
0,61
0,61
Focus options (conversion factor related to the reference laser)
DL
DOF
0,39
0,30
0,36
0,48
0,48
0,44
0,56
0,31
0,29
LT
0,35
0,33
0,39
0,51
0,51
0,49
0,57
0,45
0,45
DLE
DOF
0,20
0,16
0,19
0,27
0,27
0,24
0,31
0,17
0,16
LT
0,27
0,25
0,29
0,39
0,39
0,39
0,45
0,35
0,35
DLSE
DOF
0,12
0,10
0,11
0,16
0,16
0,15
0,20
0,10
0,10
LT
1,04
1,49
1,71
1,65
1,47
1,51
1,43
1,65
1,63
TS1
DOF
1,76
3,25
3,69
2,79
2,23
2,27
1,97
2,28
2,05
LT
1,53
2,20
2,55
2,43
2,18
2,25
2,12
2,43
2,41
TS2
DOF
3,80
7,06
8,23
6,08
4,87
5,07
4,31
4,96
4,51
Abbreviations
Reference laser (for LT and DOF)
Laser with standard availability
Laser available with modification
Laser available on request
Modulation Options
MVfemto lasers can either be ordered with digital modulation or analog power adjustment (both of which are
optional). The digital option is referred to as option ‘M’, and power adjustment is referred to as option ‘D’.
07/17 / V06 / HW / laser-modules/mv_femto
The individual options are:
▪
▪
▪
▪
M: digital modulation, active low
MI: digital modulation (inverted), active high
D: Dimmable, active low
DI: Dimmable (inverted), active high
4
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
Laser
Diodes
FLEXPOINT
®
Machine Vision Lasers
MVfemto Series (Edition 2017)
Available combinations of options M and D are listed in the table below.
P
out
&
l
l
[nm]
405
450
520
640
640
660
685
785
850
P
out
[mW]
1-30
1-50
1-8
1-20
21-30
1-30
1-40
1-10
1-40
∆
l
[nm]
±5
±10
±10
±5
±5
±5
±10
±10
±10
1)
1)
1)
1)
1)
1)
1), no TTL
1)
1)
1)
1)
1)
1)
(2)
D
DI
M
1), no TTL
Modulation options
MI
(2)
MD
MID
MDI
MIDI
Abbreviations
Reference laser (for LT and DOF)
Laser with standard availability
Laser available with modification
Laser available on request
1.
2.
3.
4.
ON@float
OFF@float
Non-linear response
No OFF
Option D, dimmable
100
90
80
70
60
100
90
80
70
60
Option M, digital Modulation
P[%]
50
40
30
20
10
0
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
D
DI
50
40
30
20
10
0
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
M
MI
07/17 / V06 / HW / laser-modules/mv_femto
U[V]
U[V]
Fig. 3:
Typical graph of an active high/low logic for option
D/DI (dim function/power adjustment).
Fig. 4:
Typical graph of an active high/low logic for option
M/MI (digital modulation).
5
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Digital video encoding circuit (AV3168)

The second frequency conversion circuit of the satellite receiver

Switch signal generation circuit

Using power lines to transmit alarm signal transmitting circuit

Tube amplifier TDA1541NOS DAC circuit diagram

6OXT(1.0) computer motherboard circuit diagram_03

MSP430-G2 requires an international card to purchase, is there any way to
RT, this board feels pretty good...
lrz123 Microcontroller MCU
EEWORLD University ---- STM32 video tutorial
STM32 video tutorial : https://training.eeworld.com.cn/course/3640...
通通 MCU
How to build wince development environment in vs2008
How to build wince5.0/wince6.0 environment on vs2008? What software do I need to download and install? What is the difference between wince simulator and wince SDK?...
精灵小妹 Embedded System
[STM32WB55 Review] +USB Dongle Bricked
[i=s]This post was last edited by freebsder on 2019-5-9 00:50[/i] I want to turn the USBDongle into a sniffer to monitor the Bluetooth wireless situation. So, install the latest STM32Cube_FW_WB_V1.1.0...
freebsder RF/Wirelessly
80 minutes... Two newly created forums (solaris, fedora), welcome to come and sit...
Scatter, scatter, scatter, scatter... Fedora Forum: http://www.chinafedora.cn/ Solaris Forum: http://www.chinasolaris.org/...
hero362631780 Embedded System
Have you heard that you need to specify the Renesas RL78/G13 development board?
[i=s]This post was last edited by paulhyde on 2014-9-15 03:23[/i] It is said that if you want to use the Renesas RL78/G13 development board, you will have to spend a lot of effort to learn this microc...
budanzhou Electronics Design Contest
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. 2200AAF150423GA
  2. 85101RT2025SY50
  3. RFB1010-470S
  4. TW-16-03-G-Q-375-064
  5. MRS25501%RP649R
  6. HPD120SFGBO000
  7. 407F3YD016M8000
  8. MC1206P-515-JT201Q
  9. SBM3060VDC
  10. P6SMBJ85C_R1_10001
  11. A2505H-4P-YL+A2505-TP
  12. SDWL1005C8N2JSTFM01

Popular Articles

  1. Galaxy Z Flip3 sales are good: Samsung may cancel the release of Galaxy S21 FE
  2. S3C2440 bare metal --- touch screen _ using ADC to read the touch screen coordinates
  3. Huawei's Wang Jun: In-vehicle displays have entered the era of optical imaging and major events have occurred recently
  4. ATmega88 Watchdog Timer
  5. ATmega168 ALU
  6. BlackBerry 5G phone is not dead, the official said it is still planning to launch
  7. Mobileye Launches New EyeQ® Ultra™ System-on-Chip for Autonomous Vehicles
  8. What is the bandwidth of an oscilloscope?
  9. Tesla's battery strategy
  10. Demand for semiconductor equipment surges, Huafeng Measurement & Control's net profit in 2021 increased by 120% year-on-year

Technical ResourceMore

  1. Design and implementation of distance meter based on PSD technology
  2. How to install plugins in AD10 [revised version]
  3. Reduce your system power and cost with Artix-7 FPGAs
  4. ADXRS453 - High Performance Digital Output Gyroscope
  5. SPMC65P2204A/SPMC65P2202A Chinese data, pdf datasheet (microcontroller OTP with ADC)
  6. 80W AC LED Street Light Solution
  7. Chapter 8_Busbar Protection
  8. Design of Accelerometer Test System Based on GP-IB Bus
  9. Capacitive load stability
  10. MAX14562 (protects valuable consumer circuits)

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1140  2745  534  1972  1182  23  56  11  40  24
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
