BP2500A1008ET BAND PASS FILTER SPECIFICATION
Rev. A
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 2.5 X 2.0 X 1.2 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.

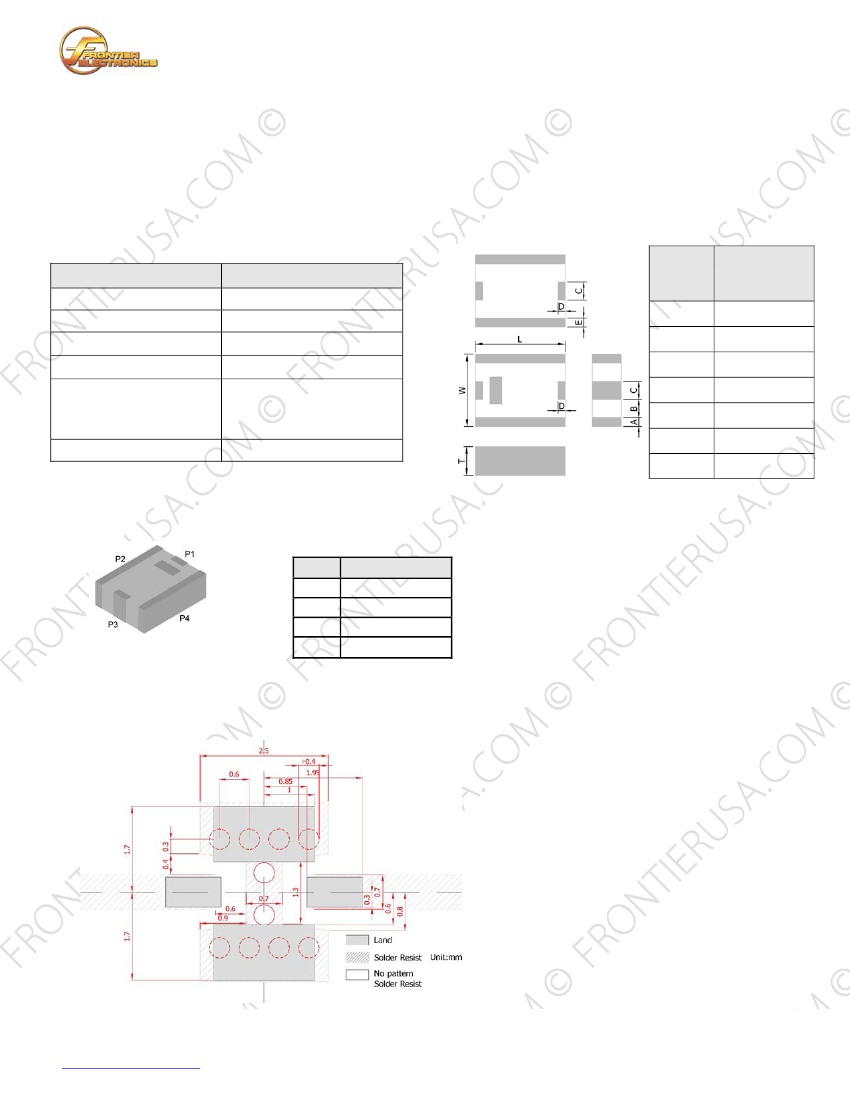

PHYSICAL DIMENSIONS
RF CHARACTERISTICS
P/N BP2500A1008ET
Frequency range
Insertion Loss (max)
VSWR
Impedance
Attenuation (min.)
Operating temperature range
Specification
2400 - 2500 MHz
1.2 dB at +25°C
2.0 max
50 Ω
30dB @ 900 MHz
30dB @ 1850 MHz
25dB @ 4800 MHz
-40°C to +85°C
C
D
0.50 ± 0.20
0.20 ± 0.20
L
W
T
A, E
B
2.50 ± 0.20
2.00 ± 0.20
1.20 ± 0.20
0.25 ± 0.20
0.50 ± 0.20
Symbol
Dimension
(mm)
TERMINAL CONFIGURATION
PIN
P1
P2
P3
P4
Definition
Input
GND
Output
GND
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Unit in mm
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500A1008ET BAND PASS FILTER SPECIFICATION

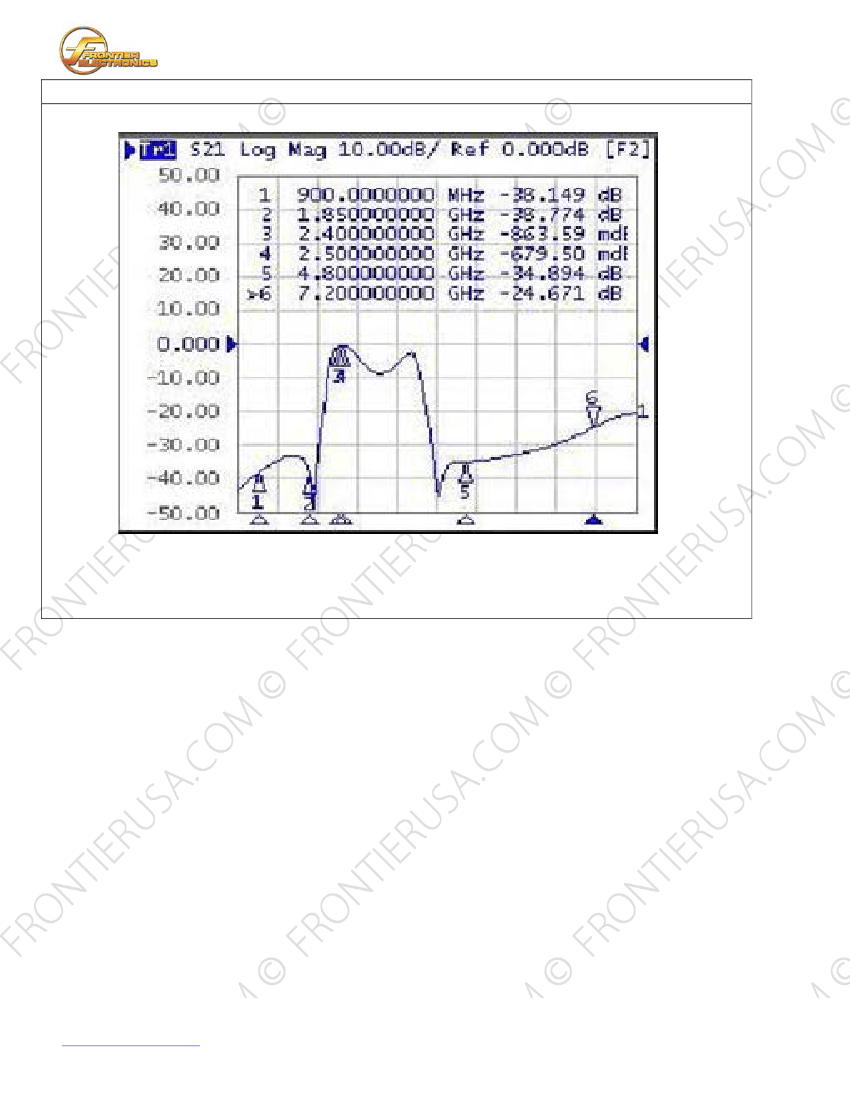

Typical RF Performance
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
