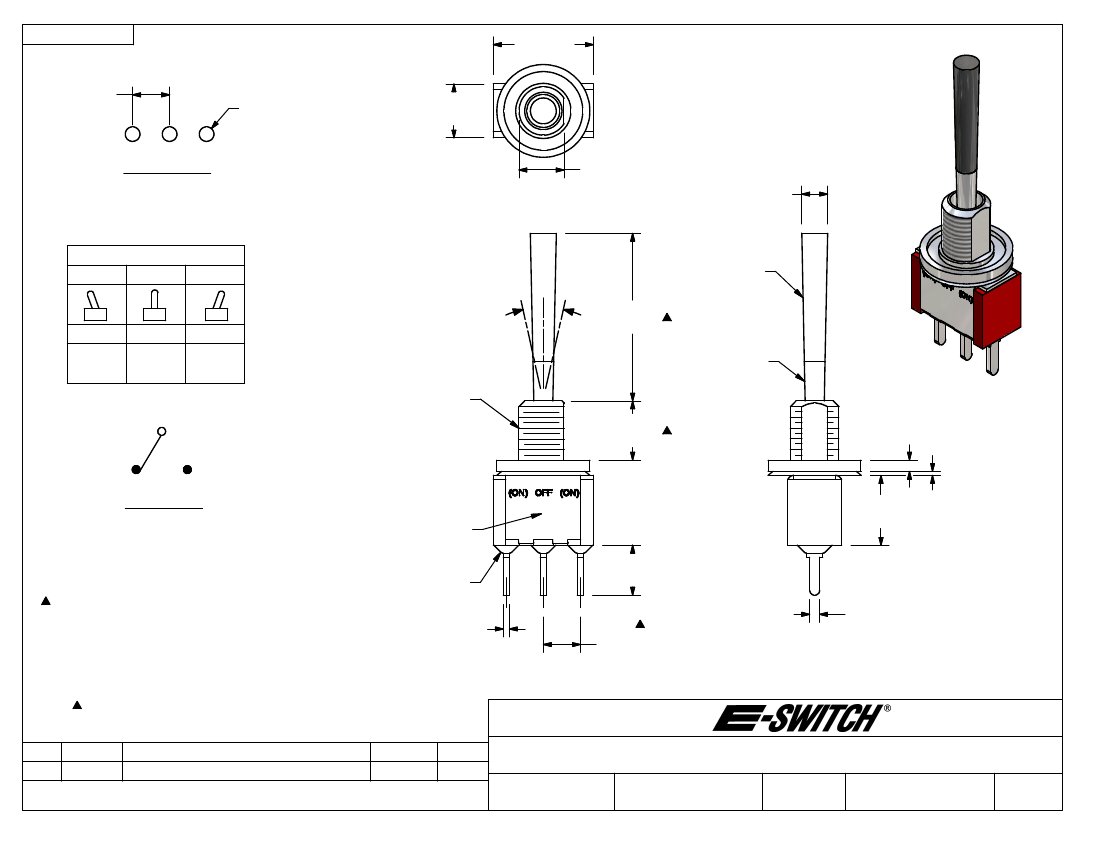

SHEET 1 OF 1
12.70
[.500 in]
4.70
[.185 in]
n
1.85
[.073 in]
6.86
[.270 in]
P.C. MOUNTING
5.72
[.225 in] FLAT
[.129 in]
n
3.28
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
POS. 1
25
~
(ON)
2-3
OFF
OPEN
(ON)
2-1
1/4-40 UNS-2A
THREADS
7.52
[.296 in]
POS. 2
POS. 3
21.34
[.840 in]
GLOSS FINISH
PLASTIC
CHROME FINISH
(ON) = MOMENTARY
2
ISOMETRIC
1.44
[.057 in]
1
3
E-SWITCH
MARKING ON
OPPOSITE SIDE
EPOXY SEAL
.76
[.030 in] TYP.
6.35
[.250 in]
3
1.27
[.050 in] TYP.
4.70
[.185 in] TYP.
.51
8.89
[.020 in]
[.350 in]
CIRCUI: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 5 AMPS W/RESITIVE LOAD @ 120VAC OR 28VDC
2 AMPS W/RESITIVE LOAD @ 250VAC
6. ELECTRIC LIFE: 40,000 make-and-break cycles
at full load.
7. INSULATION RESISTANCE: 1,000 Mega-ohm min.
8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
1
2
3
A
REV
14407
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
10/15/04
DATE
AR
BY
TITLE
SCALE
100SP4T9B9M2QE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
10/15/04
AR
T114009
A
