MC68010L8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68010L8

MC68010L8: Description16-BIT, 8MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size953KB，37 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC68010L8 Overview

16-BIT, 8MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64

MC68010L8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP64,.9
Contacts	64
Reach Compliance Code	unknown
Address bus width	24
bit size	16
boundary scan	NO
maximum clock frequency	8 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T64
JESD-609 code	e0
length	81.28 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os
Number of terminals	64
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP64,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.32 mm
speed	8 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

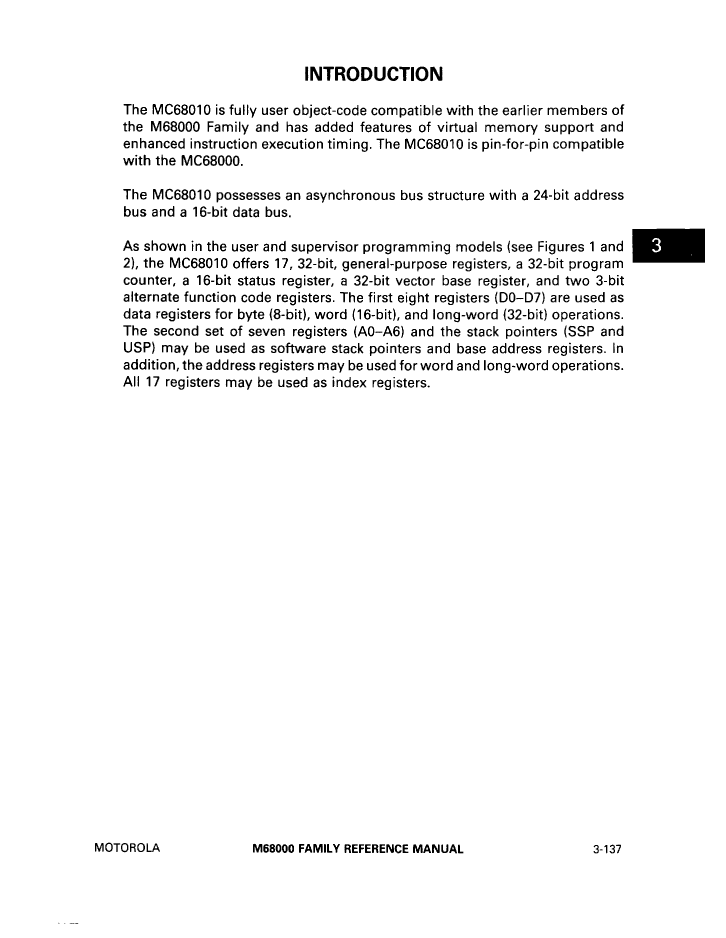

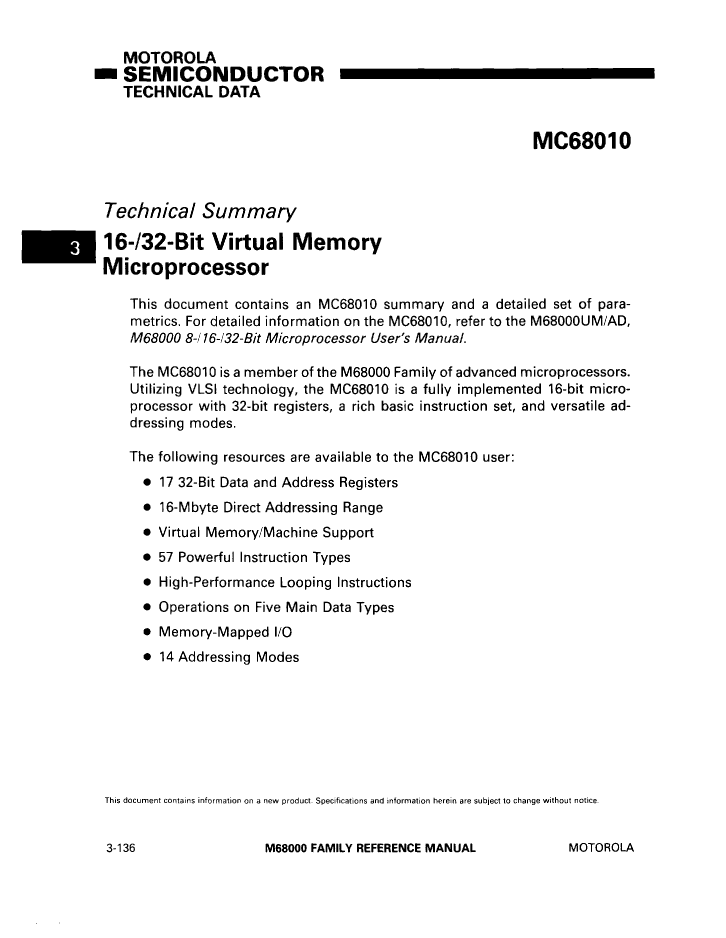

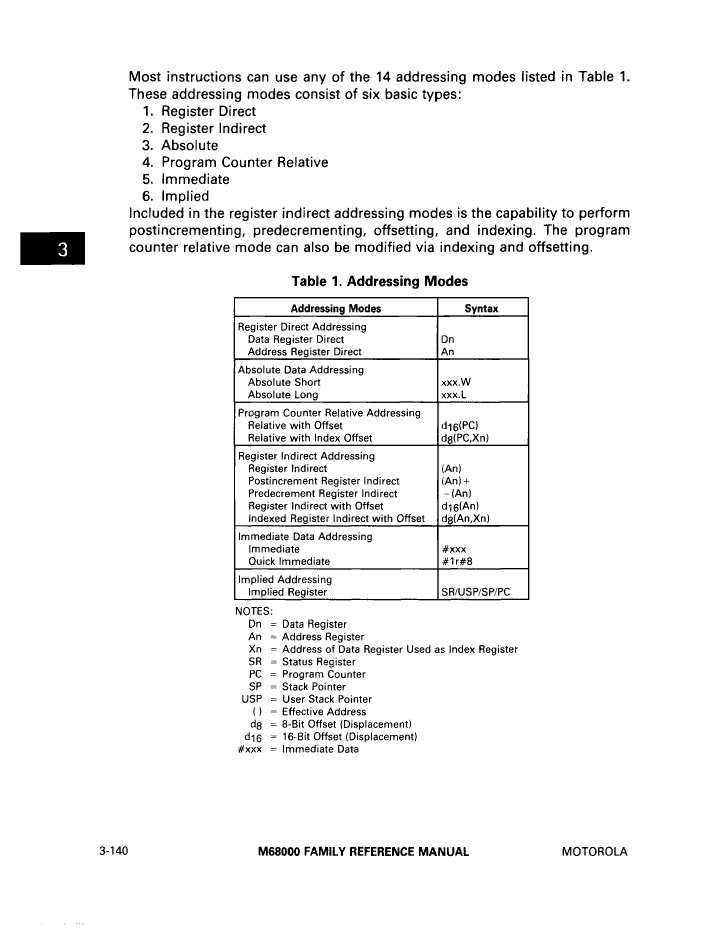

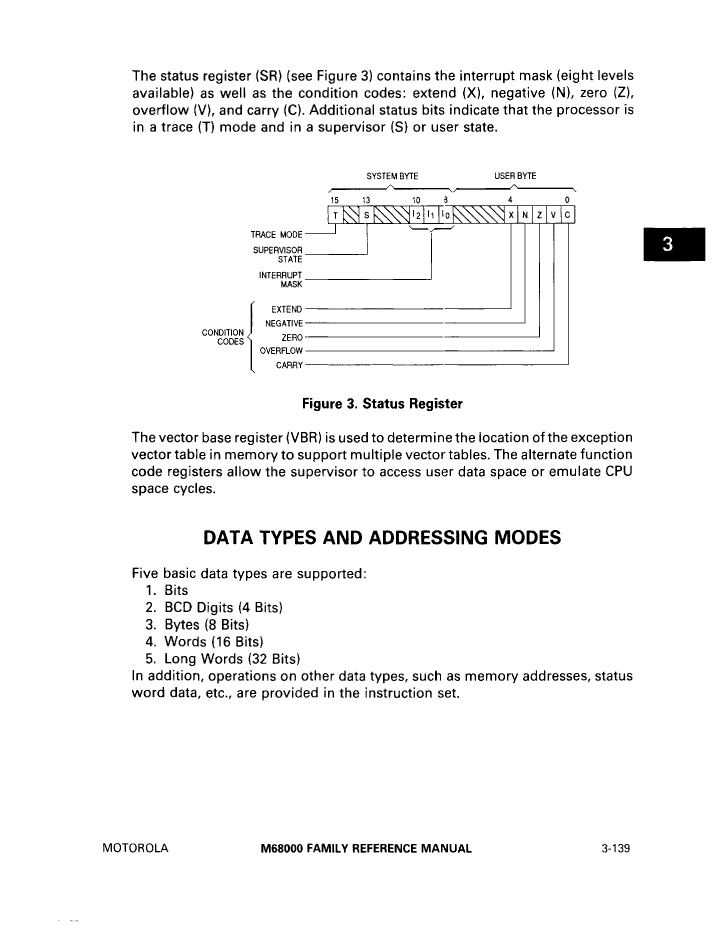

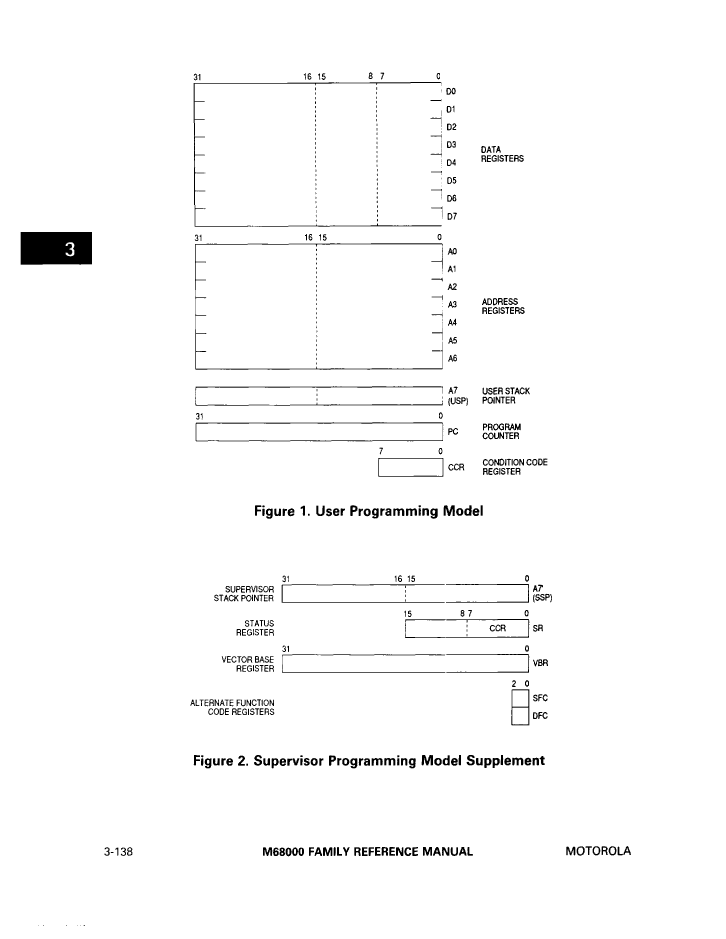

MC68010L8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MC68010L8 Related Products

	MC68010L8	MC68010CL12	MC68010CL8	MC68010CL10	MC68010L12
Description	16-BIT, 8MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64	Microprocessor, 16-Bit, 12.5MHz, NMOS, CDIP64, CERAMIC, DIP-64	16-BIT, 8MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64	16-BIT, 10MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64	16-BIT, 12.5 MHz, MICROPROCESSOR, CDIP64, CERAMIC, DIP-64
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP, DIP64,.9	DIP,	DIP, DIP64,.9	DIP, DIP64,.9	DIP, DIP64,.9
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
Address bus width	24	24	24	24	24
bit size	16	16	16	16	16
boundary scan	NO	NO	NO	NO	NO
maximum clock frequency	8 MHz	12.5 MHz	8 MHz	10 MHz	12.5 MHz
External data bus width	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO
JESD-30 code	R-CDIP-T64	R-CDIP-T64	R-CDIP-T64	R-CDIP-T64	R-CDIP-T64
length	81.28 mm	81.28 mm	81.28 mm	81.28 mm	81.28 mm
low power mode	YES	YES	YES	YES	YES
Number of external interrupt devices	3	3	3	3	3
Number of terminals	64	64	64	64	64
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm
speed	8 MHz	12.5 MHz	8 MHz	10 MHz	12.5 MHz
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	22.86 mm	22.86 mm	22.86 mm	22.86 mm	22.86 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Parts packaging code	DIP	-	DIP	DIP	DIP
Contacts	64	-	64	64	64
JESD-609 code	e0	-	e0	e0	e0
Encapsulate equivalent code	DIP64,.9	-	DIP64,.9	DIP64,.9	DIP64,.9
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
