SRAM
Austin Semiconductor, Inc.
128K x 32 SRAM
SRAM MEMORY ARRAY
AVAILABLE AS MILITARY
SPECIFICATIONS
• MIL-STD-883
AS8SLC128K32
PIN ASSIGNMENT
(Top View)
68 Lead CQFP (Q)
9
8
7
6
5
4
3
2
1
68
67
66
65
64
63
62
61
FEATURES
•
•
•
•
•
•
Fast Access Times of 10 to 25ns
Overall Configuration: 128K x 32
4 Low Power CMOS 128K x 8 SRAMs in one MCM
+3.3V power supply
Internal Decoupling Capacitors
Low Operating Power, 1/2 Previous Generation
OPTIONS
•
Operating Temperature Ranges
Military (-55
o
C to +125
o
C)
Industrial (-40
o
C to +85
o
C)
•
Timing
10ns (Contact Factory)
12ns
15ns
17ns
20ns
25ns
• Package
Ceramic Quad Flatpack
Pin Grid Array
• Low Power Data Retention Mode
MARKINGS
XT
IT
-10
-12
-15
-17
-20
-25
CS
CS2\
Vcc
A11
A12
A13
A14
A15
A16
CS1\
OE\
CS2\
NC
WE2\
WE3\
WE4\
NC
NC
NC
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
GND
I/O 8
I/O 9
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
NC
A0
A1
A2
A3
A4
A5
CS3\
GND
CS4\
WE1\
A6
A7
A8
A9
A10
Vcc
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
I/O 16
I/O 17
I/O 18
I/O 19
I/O 20
I/O 21
I/O 22
I/O 23
GND
I/O 24
I/O 25
I/O 26
I/O 27
I/O 28
I/O 29
I/O 30
I/O 31
66 Lead PGA (P)
\
CS
CS4\
\
\
NC
Q
P
L
\
NC
CS
CS1\
CS
CS3\
\
GENERAL DESCRIPTION
The Austin Semiconductor, Inc. AS8SLC128K32 is a high speed,
4MB CMOS SRAM multichip module (MCM) designed for full
temperature range, 3.3V power supply, military, space, or high
reliability mass memory and fast cache applications.
The device input and output TTL compatible. Writing is
executed when the write enable (WE\) and chip enable (CS\) inputs are
low. Reading is accomplished when WE\ is high and CS\ and output
enable (OE\) are both low. Access time grades of 10ns, 12ns, 15ns,
17ns, 20ns and 25ns maximum are standard.
The products are designed for operation over the temperature
range of -55°C to +125°C and screened under the full military
environment.

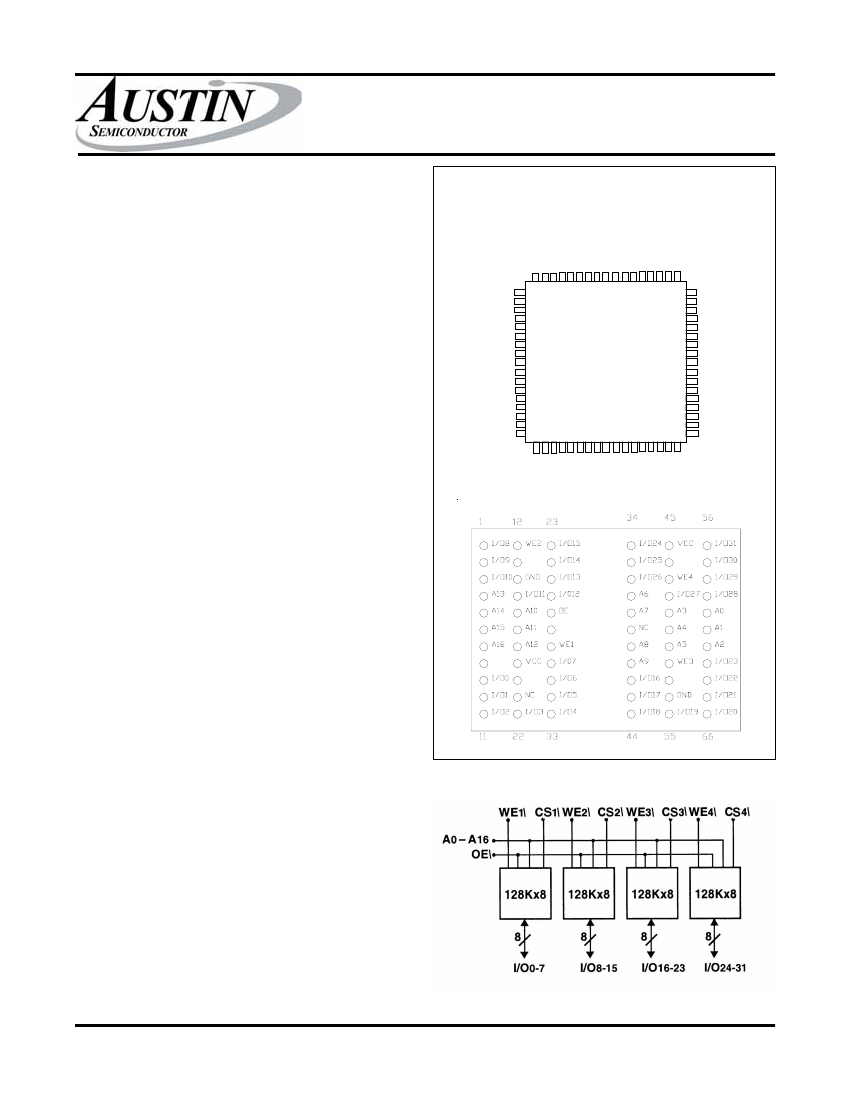

FUNCTIONAL BLOCK DIAGRAM
For more products and information
please visit our web site at
www.austinsemiconductor.com
AS8SLC128K32
Rev. 0.6 06/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
1
SRAM
Austin Semiconductor, Inc.
ABSOLUTE MAXIMUM RATINGS*
Voltage of Vcc Supply Relative to Vss...........-0.5V to +4.6V
Storage Temperature.....................................-65°C to +150°C
Short Circuit Output Current(per I/O)............................20mA
Voltage on Any Pin Relative to Vss............-.5V to Vcc+4.6V
Maximum Junction Temperature**.............................+150°C
*Stresses greater than those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
AS8SLC128K32
This is a stress rating only and functional operation on the
device at these or any other conditions above those indicated
in the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended
periods may affect reliability.
**Junction temperature depends upon package type, cycle time,
loading, ambient temperature and airflow. See the Application
Information section at the end of this datasheet for more
information.
ELECTRICAL CHARACTERISTICS AND RECOMMENDED DC OPERATING CONDITIONS
(-55
o
C < T
A
< 125
o
C and -40
o
C to +85
o
C; Vcc = 3.3V ±0.3V)
DESCRIPTION
Input High (logic 1) Voltage
Input Low (logic 1) Voltage
Input Leakage Current
ADD,OE
Input Leakage Current
WE,CE
Output Leakage Current
I/O
Output High Voltage
Output Low Voltage
0V<V
IN
<V
CC
Output(s) Disabled
0V<V
OUT
<V
CC
I
OH
=-4.0mA
I
OL
=8.0mA
CONDITIONS
CS\<V
IL
; V
CC
= MAX
High Speed
f = MAX = 1/ t
RC
(MIN)
Power Supply
Current: Operating Outputs Open, OE\ = V
IH
Low Power (L)
Low Speed
Power Supply
Current: Operating
CS\<V
IL
; V
CC
= MAX
f = 1 MHz, OE\ = V
IH
Low Power (L)
CS\>V
IH
; V
CC
= MAX
Power Supply
Current: Standby
f = MAX = 1/ t
RC
(MIN)
Outputs Open, OE\=V
IH
Low Power (L)
V
IN
= V
CC
- 0.2V, or V
SS
+0.2V
V
CC
=Max; f = 0Hz
Low Power (L)
AS8SLC128K32
Rev. 0.6 06/05
CONDITIONS
SYMBOL
V
IH
V
IL
I
LI1
I
LI2
I
LO
V
OH
V
OL
-10
280
-12
240
MIN
2.2
-0.3
-10
-10
-10
2.4
MAX
V
CC
+0.3
0.8
10
10
10
UNITS NOTES
V
V
µA
µA
µA
V
1
1
1
1
0.5
MAX
-15
220
V
DESCRIPTION
SYMBOL
-17
180
-20
160
UNITS NOTES
I
CC1
mA
2, 3,13
240
---
80
210
---
60
200
---
60
180
---
60
160
---
60
I
CC3
mA
2
I
SBT1
100
80
70
50
2
80
60
60
36
80
60
60
36
80
60
60
36
80
60
60
36
mA
3, 13
CMOS Standby
I
SBT2
mA
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
SRAM
Austin Semiconductor, Inc.
CAPACITANCE
(V
IN
= 0V, f = 1MHz, T
A
= 25
o
C)*
SYMBOL
C
ADD
C
OE
C
WE,
C
CS
C
IO
PARAMETER
A0 - A16 Capacitance
OE\ Capacitance
WEx\ and CSx\ Capacitance
I/O 0- I/O 31 Capacitance
MAX
40
40
12
15
UNITS
pF
pF
pF
pF
AS8SLC128K32
NOTE:
*This parameter is sampled.

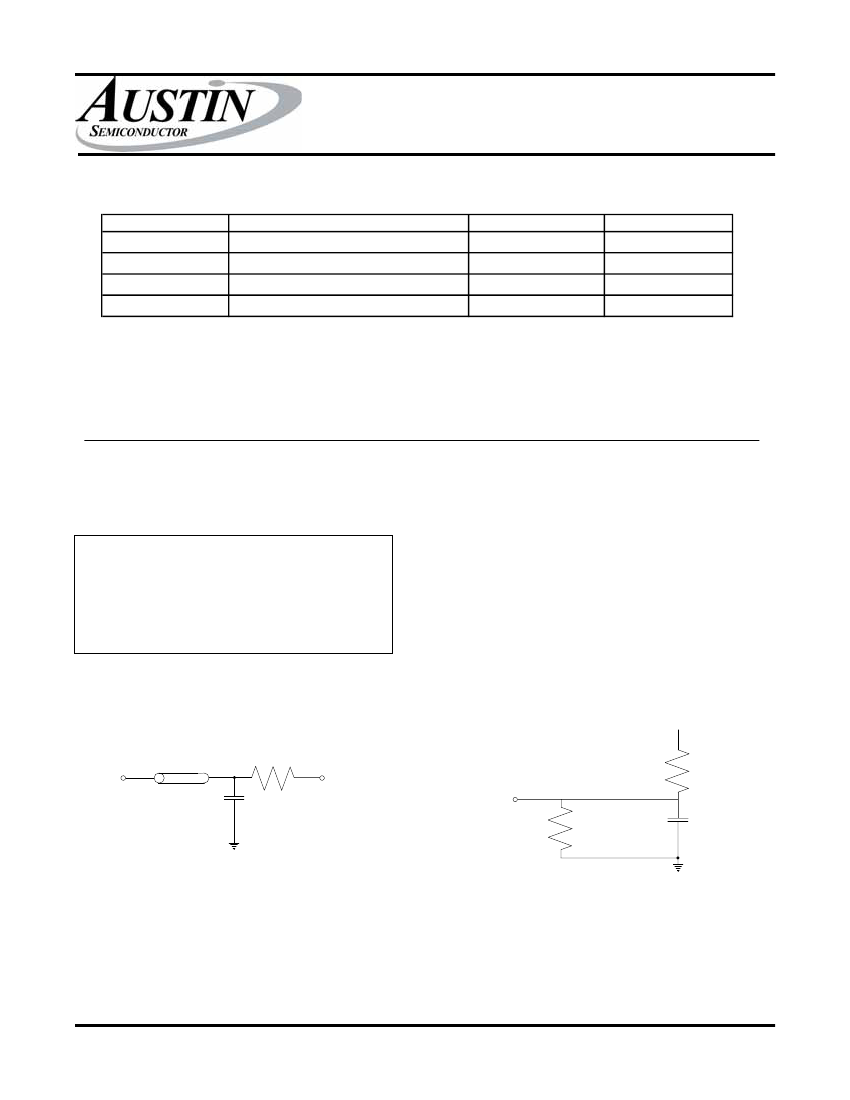

AC TEST CONDITIONS
TEST SPECIFICATIONS
Input pulse levels...........................................V
SS
to 3V
Input rise and fall times...........................................1ns/V
Input timing reference levels...............................1.5V
Output reference levels........................................1.5V
Output load..........................................See Figure 1, 2
3.3V
R
L
= 50Ω
Q
Z
O
= 50Ω
30 pF
V
L
= 1.5V
Q
333Ω
5 pF
319Ω
FIGURE 1
FIGURE 2
AS8SLC128K32
Rev. 0.6 06/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
3
SRAM
Austin Semiconductor, Inc.
AS8SLC128K32
ELECTRICAL CHARACTERISTICS AND RECOMMENDED AC OPERATING CONDITIONS
(NOTE 5) (-55
o
C<T
A
< 125
o
C and -40
o
C to +85
o
C; V
CC
= 3.3V ±0.3V)
DESCRIPTION
READ CYCLE
READ cycle time
Address access time
Chip select access time
Output hold from address change
Chip select to output in Low-Z
Chip select to output in High-Z
Output enable access time
Output enable to output in Low-Z
Output disable to output in High-Z
WRITE CYCLE
WRITE cycle time
Chip select to end of write
Address valid to end of write
Address setup time
Address hold from end of write
WRITE pulse width, CS\ controlled
WRITE pulse width, WE\ controlled
Data setup time
Data hold time
Write disable to output in Low-z
Write enable to output in High-Z
SYMBOL
RC
AA
t
ACS
t
OH
t
LZCS
t
HZCS
t
AOE
t
LZOE
t
HZOE
t
t
-10
MIN MAX
10
10
10
1
1
0
0
5.5
5.5
5.5
10
9
9
0
0
9
9
5
1
2
5
-12
MIN MAX
12
12
12
2
2
0
0
6
6
6
12
10
10
0
0
10
10
6
1
2
5
-15
MIN MAX
15
15
15
2
2
0
0
7
7
-17
MIN MAX
17
17
17
2
2
7.5
7.5
0
7.5
17
11
11
0
0
14
14
7.5
1
2
6.5
-20
UNITS NOTES
MIN MAX
20
20
20
2
2
0
0
8
8
8
20
12
12
0
0
15
15
8
1
2
7
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
4,6,7
4,6,7
4,6
4,6
7
15
10
10
0
0
12
12
7
1
2
6
WC
CW
t
AW
t
AS
t
AH
t
WP1
t
WP2
t
DS
t
DH
t
LZWE
t
HZWE
t
t
4,6,7
4,6,7
AS8SLC128K32
Rev. 0.6 06/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
4
SRAM
Austin Semiconductor, Inc.
LOW POWER CHARACTERISTICS (L Version Only)
DESCRIPTION
V
CC
for Retention Data
Data Retention Current
Chip Deselect to Data
Retention Time
Operation Recovery Time
CONDITIONS
All Inputs @ Vcc + 0.2V
or Vss + 0.2V,
CS\ = Vcc + 0.2V
V
CC
= 2V
V
CC
= 3V
SYMBOL
V
DR
I
CCDR
I
CCDR
t
CDR
t
R
0
20
MIN
2
MAX
24
32
UNITS
V
mA
mA
ns
ms
4
4, 11
NOTES
AS8SLC128K32
LOW V
CC

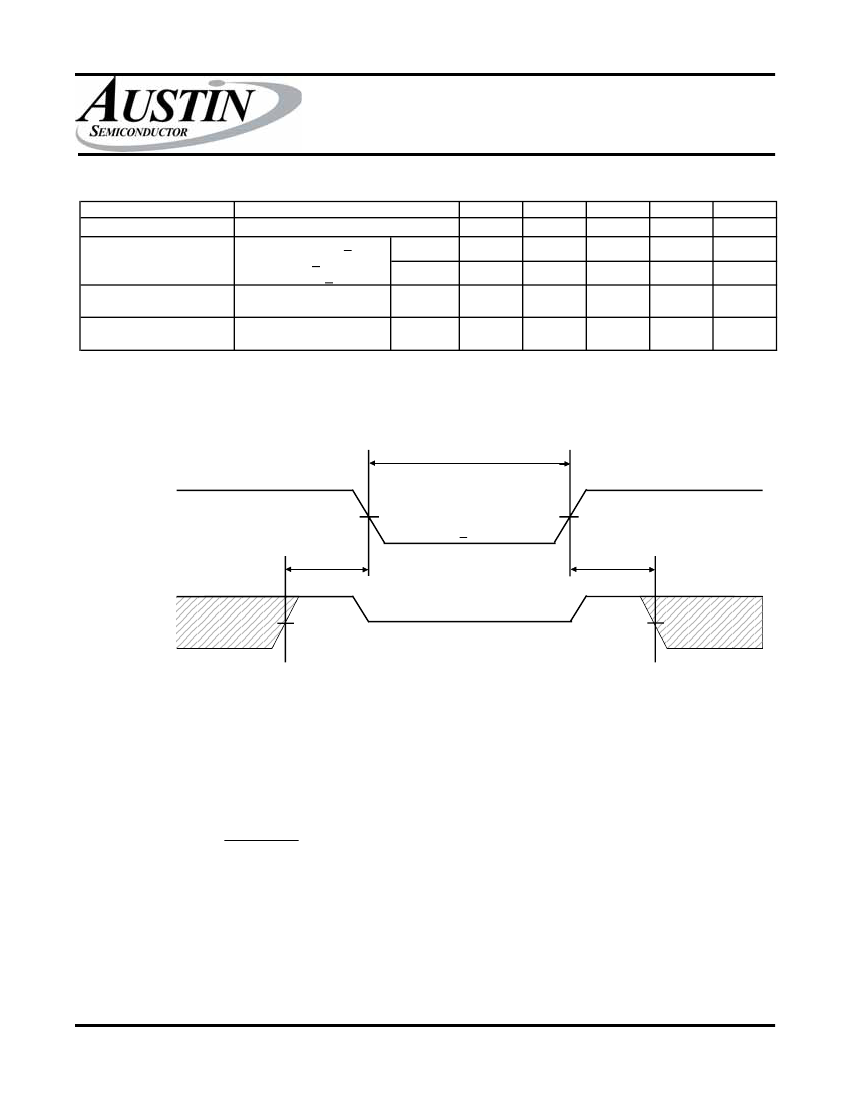

DATA RETENTION WAVEFORM
DATA RETENTION MODE
V
CC
4.5V
V
DR
> 2V
t
4.5V
CDR
t
R
CS\ 1-4
V
DR
NOTES
1. All voltages referenced to V
SS
(GND).
2. Worst case address switching.
3. I
CC
is dependent on output loading and cycle rates.
unloaded, and f=
1
t RC(MIN) H
Z.
t
HZCS
, is less than t
LZCS
, and t
HZWE
is less than t
LZWE
.
8. WE\ is HIGH for READ cycle.
9. Device is continuously selected. Chip selects and output
enable are held in their active state.
10. Address valid prior to or coincident with latest
oc-
curring chip enable.
11. t
RC
= READ cycle time.
12. Chip enable (CS\) and write enable (WE\) can initiate and
terminate a WRITE cycle.
13. I
CC
is for full 32 bit mode.
The specified value applies with the outputs
4. This parameter guaranteed but not tested.
5. Test conditions as specified with output loading as
shown in Fig. 1 & 2 unless otherwise noted.
6. t
HZCS
, t
HZOE
and t
HZWE
are specified with C
L
= 5pF as in Fig.
2. Transition is measured +/- 200 mV typical from steady
state voltage, allowing for actual tester RC time constant.
7. At any given temperature and voltage condition,
AS8SLC128K32
Rev. 0.6 06/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
5
76541
7
5
7654321
56543210987654321
74323
1
7434121
56523210987654321
74341
6543
7434121
56523210987654321
743232
56523210987654321
654
76543
7654321
56543210987654321
76541 1
76523210987654321
56521210987654321
74343
54321210987654321
7654321
7434321
76543210987654321
7654321
7654321
5432
5432
76543210987654321
76543210987654321
7654321
54321
54321
76543210987654321
7654321
76543210987654321
54321
1
1
76543210987654321
7654321
7654321
54321
54321
76543210987654321
7654321
76543210987654321
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
