B2405GD2U-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> B2405GD2U-G

B2405GD2U-G: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14/6; CategoryPower/power management The power supply circuit; File Size70KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/; Environmental Compliance

Download Datasheet Parametric View All

B2405GD2U-G Overview

DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14/6

B2405GD2U-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SENSITRON
Parts packaging code	DIP
package instruction	DIP,
Contacts	14/6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V
Minimum input voltage	21.6 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P6
length	20.4 mm
Humidity sensitivity level	1
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	6.3 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	7.62 mm

Preview

Download Datasheet

View All

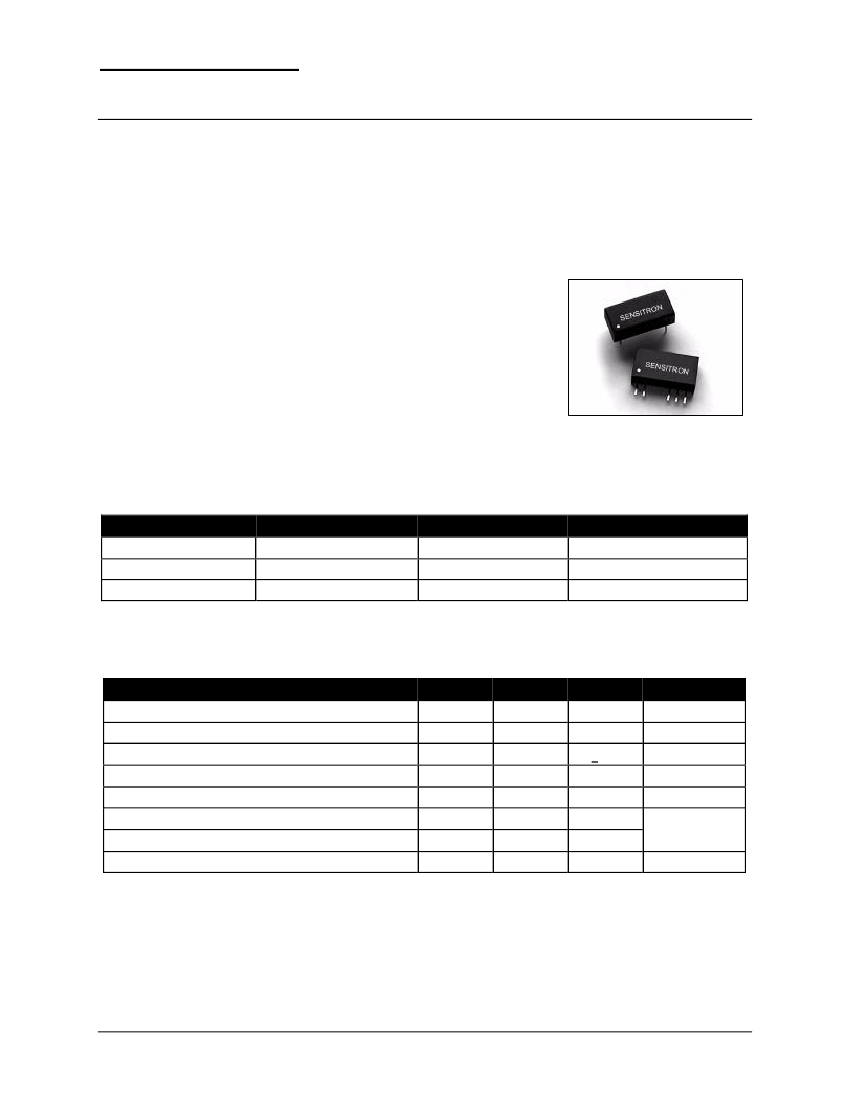

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 1102, REV. -

B - 1W/2W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Unregulated, Dual Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW), 2W (200mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B Dual Output-1W/2W Series Input Characteristics

Part Number

B05XXGS/D1/2U

B12XXGS/D1/2U

Nominal Input Voltage

5Vdc

12Vdc

Input Voltage Range

4.5~5.5Vdc

10.8~13.2Vdc

Maximum Input Voltage*

7Vdc

15Vdc

28Vdc

B24XXGS/D1/2U

24Vdc

21.6~26.4Vdc

* Voltage above this value may cause permanent damage to the device.

B Dual Output-1W/2W Series Output Characteristics

Parameter

1W Output Power

2W Output Power

Line Regulation

Efficiency at 100% Load

Temperature Coefficient

1W Ripple and Noise

2W Ripple and Noise

Switching Frequency

100

MIN

0.25

0.5

TYP

MAX

+ 1.2

0.03

150

200

Units

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•

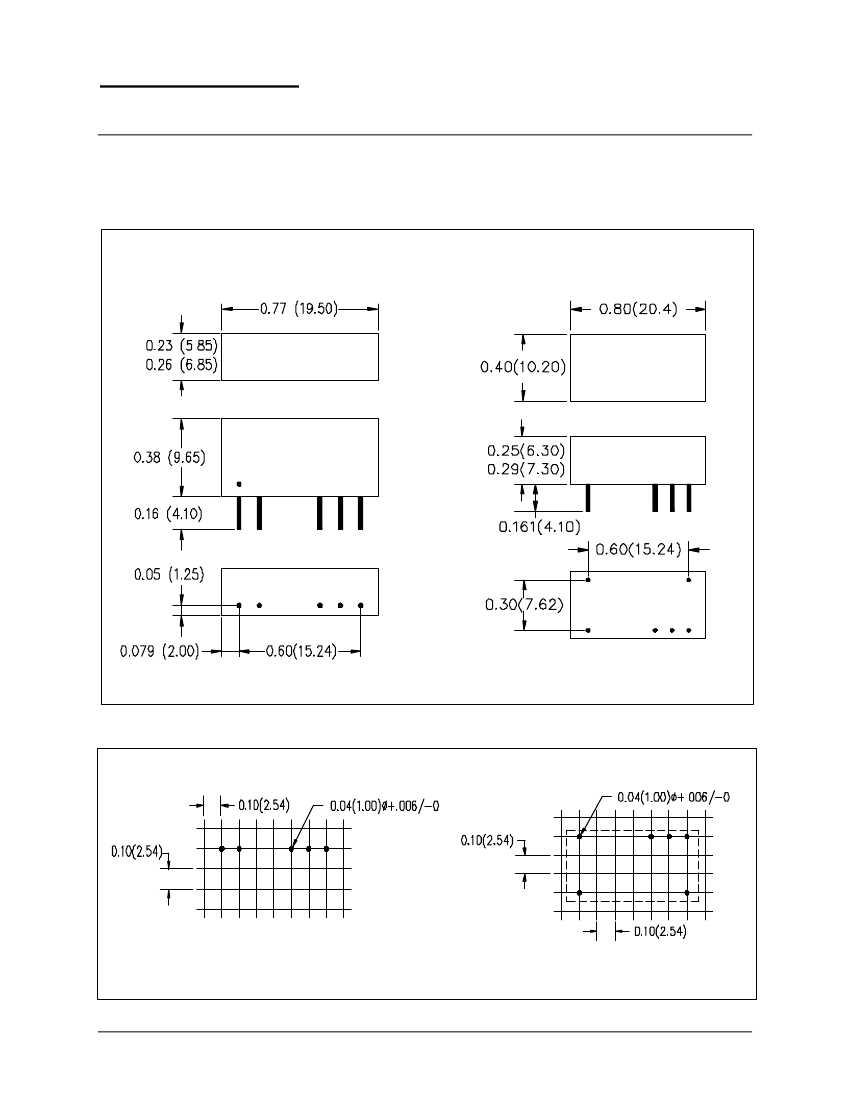

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version

of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement.

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
