THMD25N11B75 datasheet, PDF - EEWORLD Datasheet

THMD25N11B75: DescriptionIC 32M X 64 DDR DRAM MODULE, 0.75 ns, DMA184, Dynamic RAM; Categorystorage storage; File Size940KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

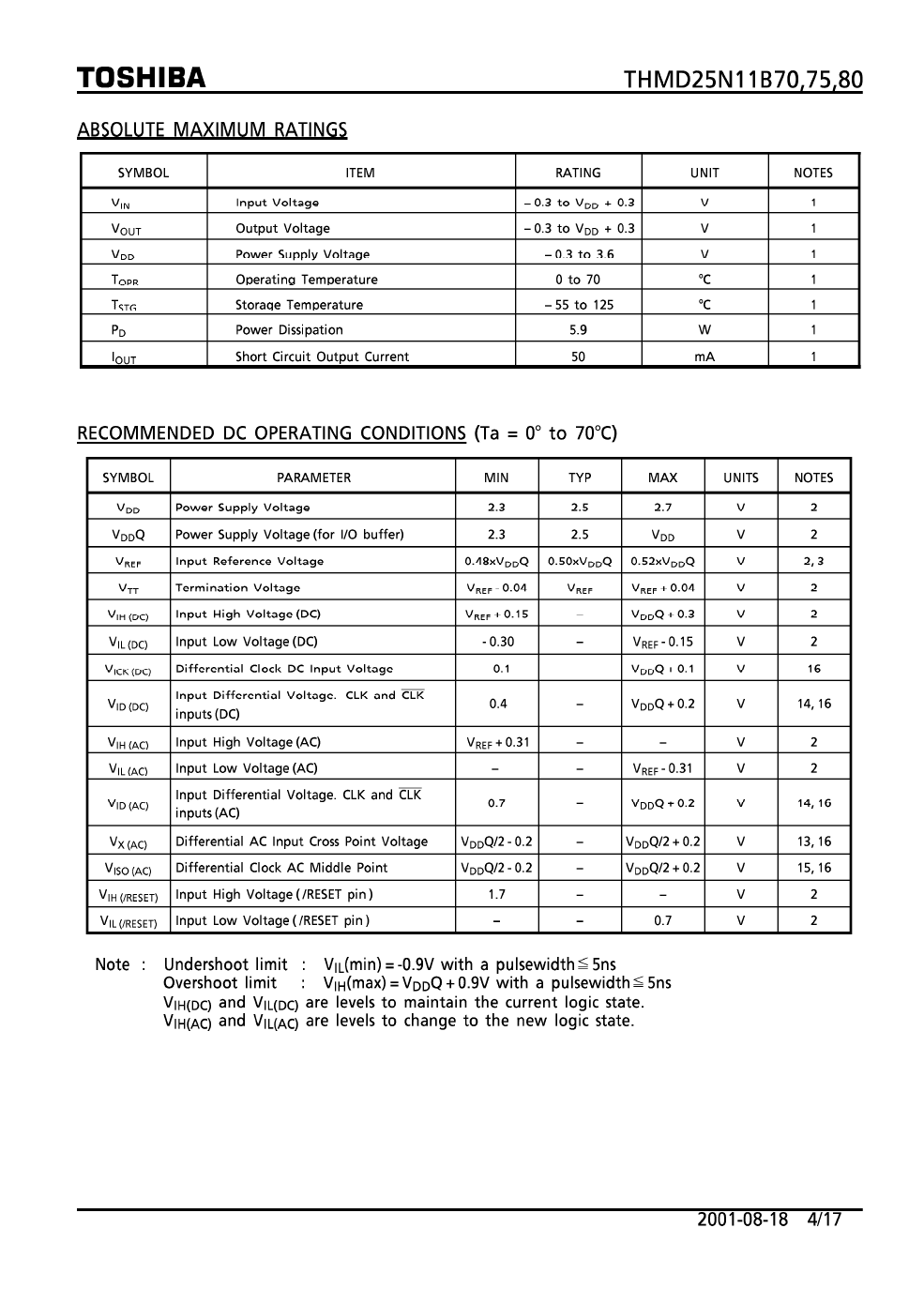

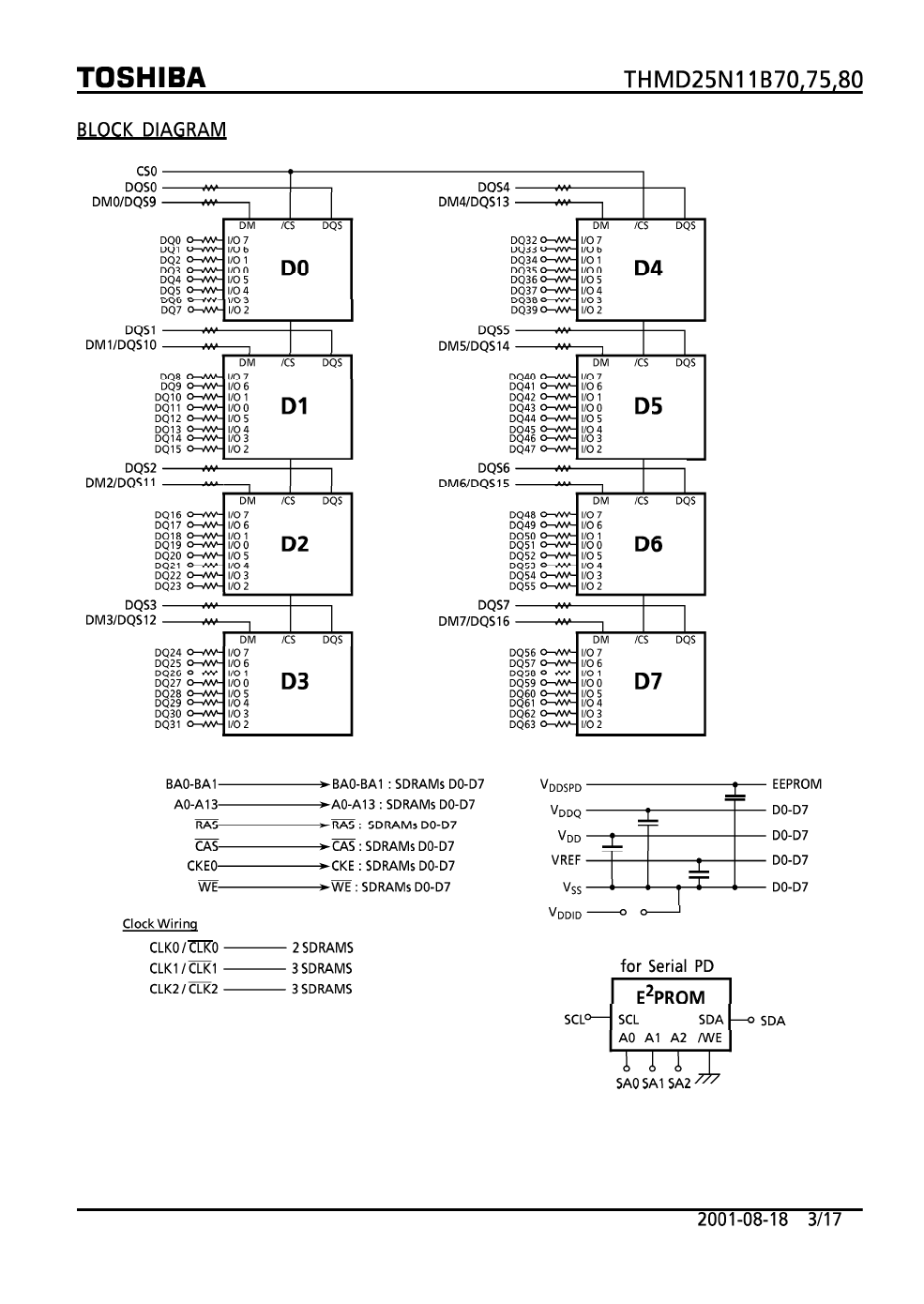

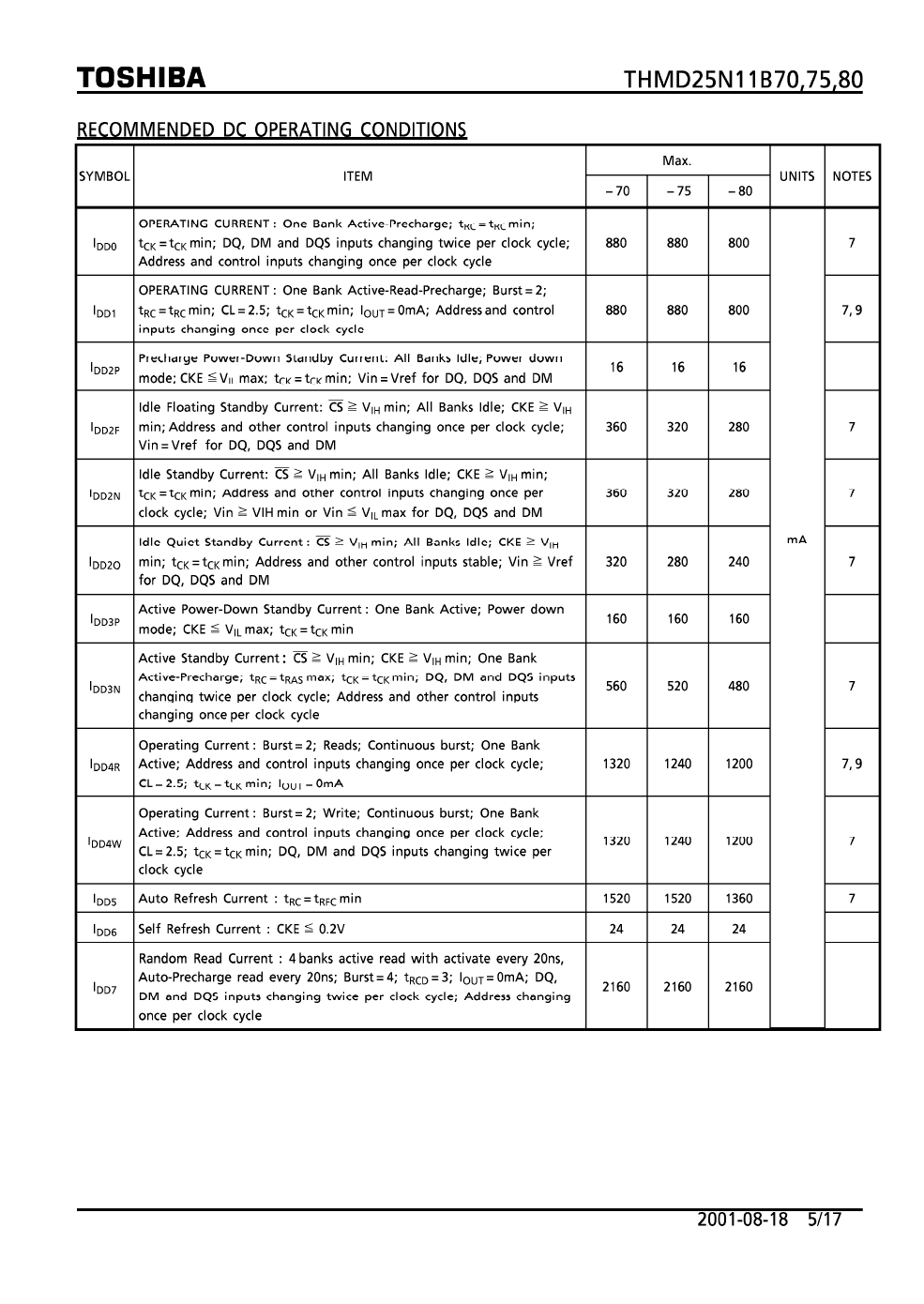

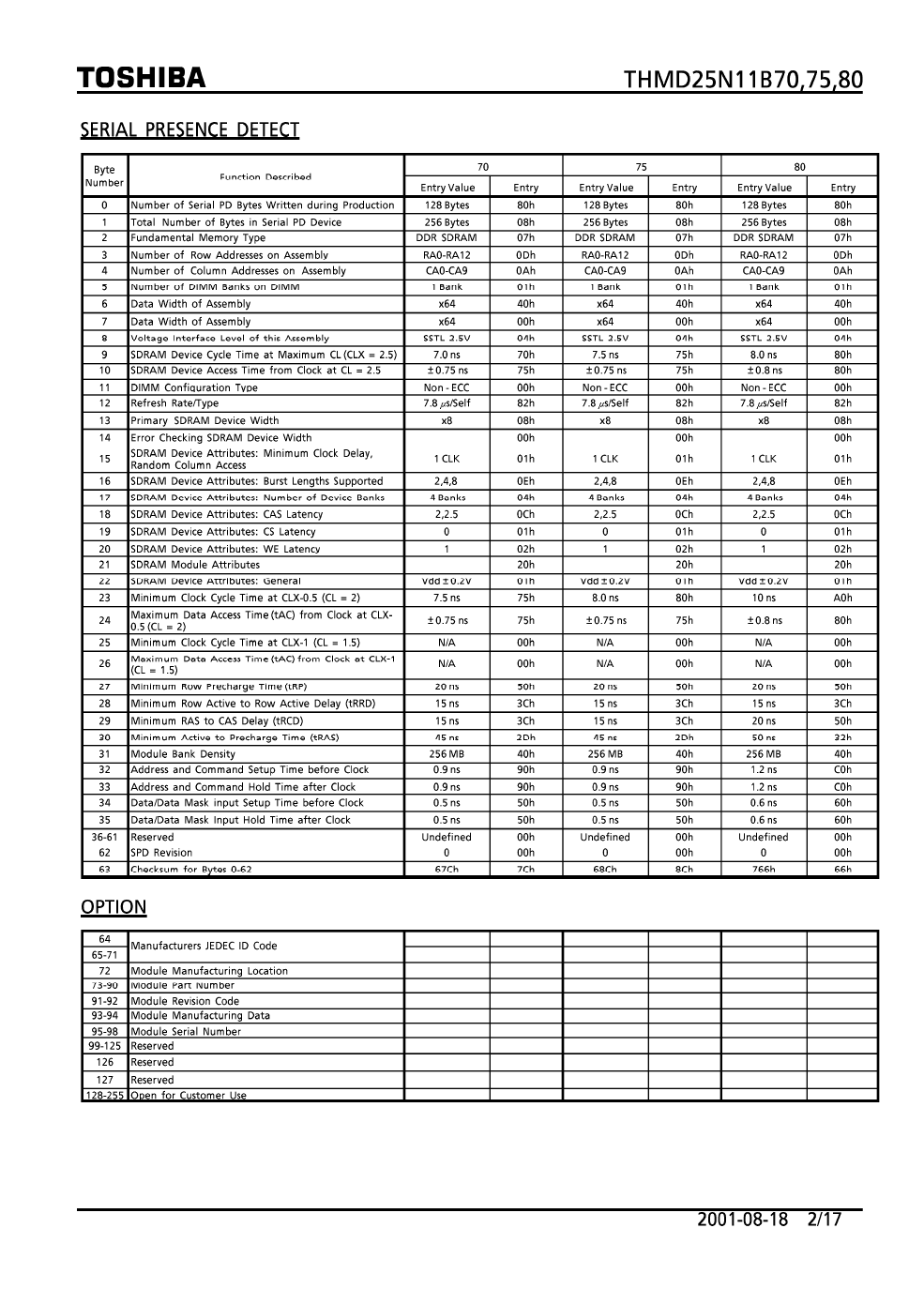

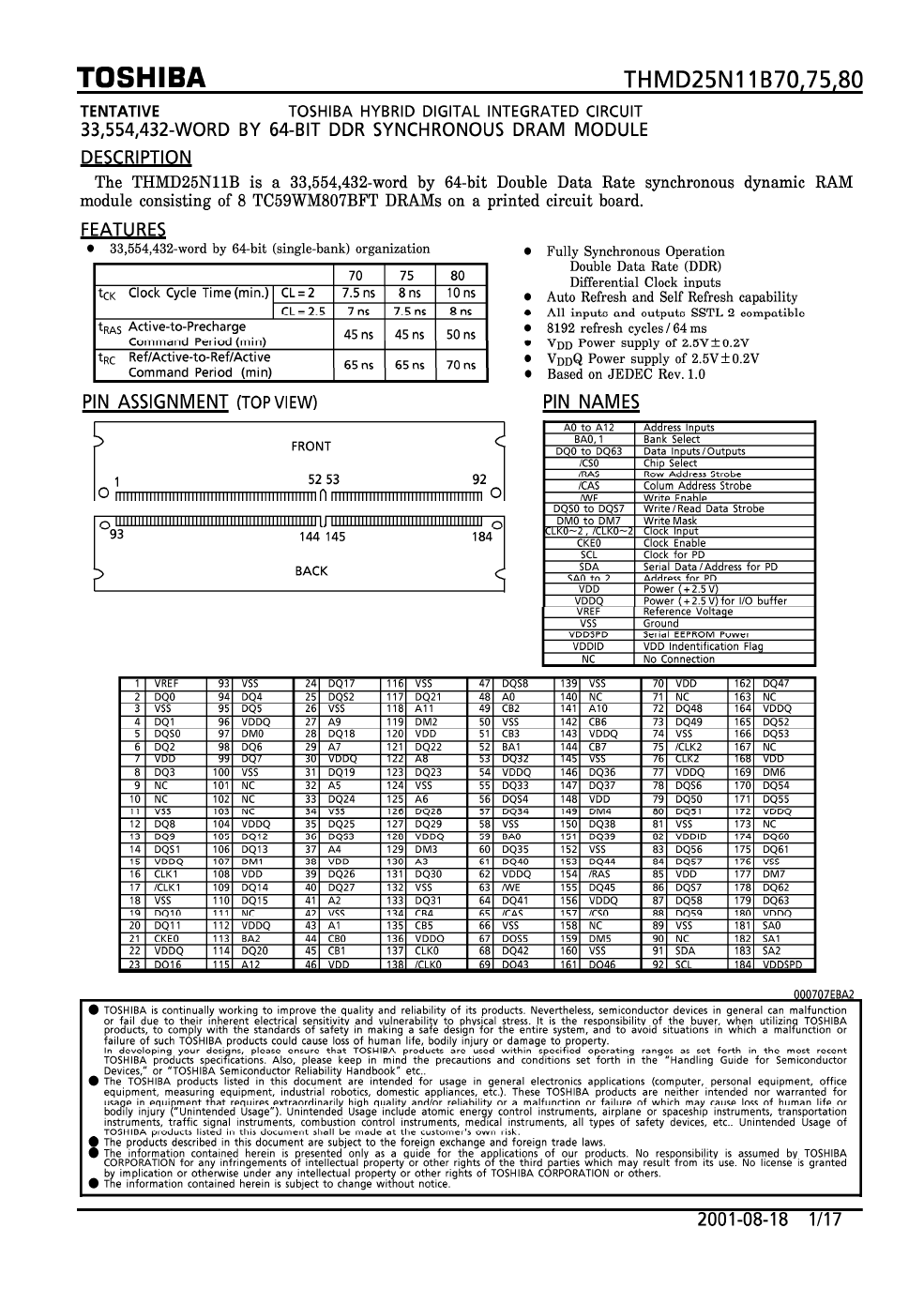

THMD25N11B75 Overview

IC 32M X 64 DDR DRAM MODULE, 0.75 ns, DMA184, Dynamic RAM

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	DIMM, DIMM184
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	SINGLE BANK PAGE BURST
Maximum access time	0.75 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	133 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N184
memory density	2147483648 bit
Memory IC Type	DDR DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	184
word count	33554432 words
character code	32000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32MX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM184
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	2.5 V
Certification status	Not Qualified
refresh cycle	8192
self refresh	YES
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

	THMD25N11B75	THMD25N11B70
Description	IC 32M X 64 DDR DRAM MODULE, 0.75 ns, DMA184, Dynamic RAM	IC 32M X 64 DDR DRAM MODULE, 0.75 ns, DMA184, Dynamic RAM
Maker	Toshiba Semiconductor	Toshiba Semiconductor
package instruction	DIMM, DIMM184	DIMM, DIMM184
Reach Compliance Code	unknown	unknown
access mode	SINGLE BANK PAGE BURST	SINGLE BANK PAGE BURST
Maximum access time	0.75 ns	0.75 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	133 MHz	143 MHz
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N184	R-XDMA-N184
memory density	2147483648 bit	2147483648 bit
Memory IC Type	DDR DRAM MODULE	DDR DRAM MODULE
memory width	64	64
Number of functions	1	1
Number of ports	1	1
Number of terminals	184	184
word count	33554432 words	33554432 words
character code	32000000	32000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	32MX64	32MX64
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM184	DIMM184
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	2.5 V	2.5 V
Certification status	Not Qualified	Not Qualified
refresh cycle	8192	8192
self refresh	YES	YES
Maximum supply voltage (Vsup)	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
