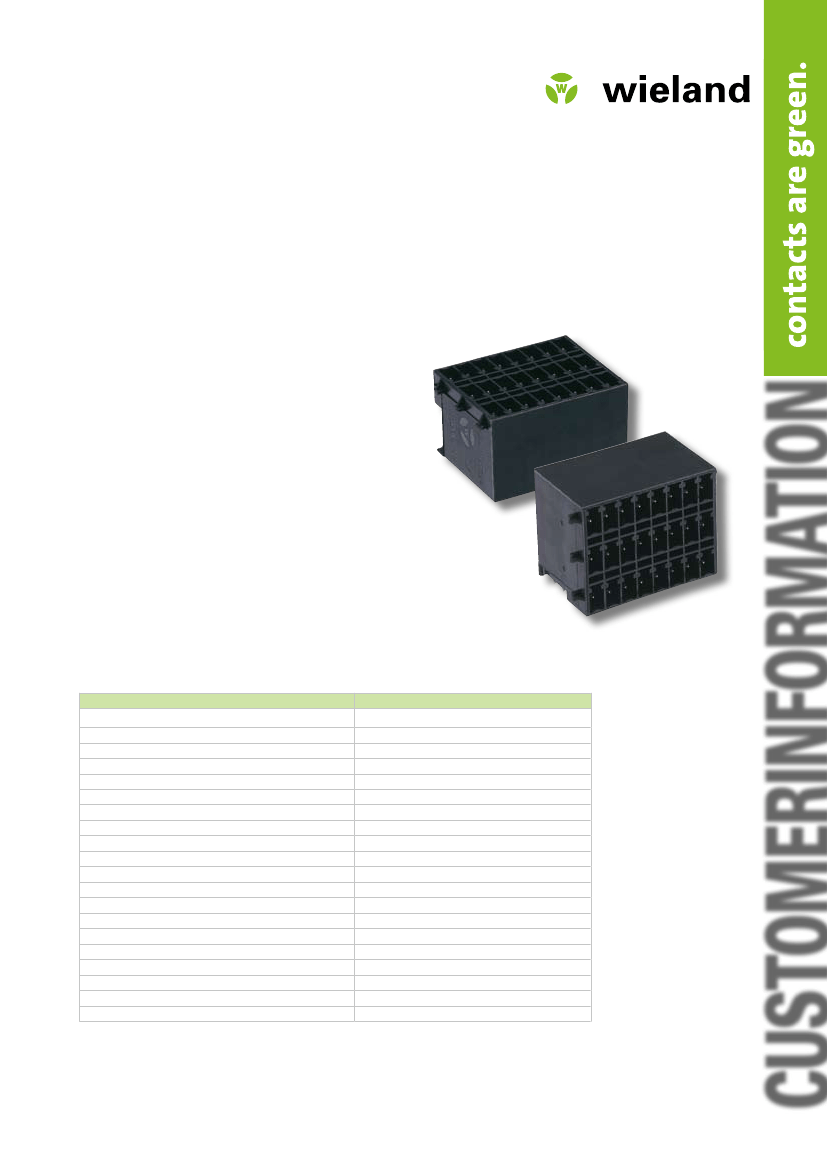

Typ 8513 SDGN/...THR
PCB pin header for the reflow process
q
articularly suitable for the through-hole reflow process
P
of SMT technology
q
High temperature stability acc. to EN 61760-1
q
ighly accurate spacing that fits the PC board
H
and mating connector
q
Ready for automatic placement
q
ray 2 pole to 16 pole per series
T
(max. 48 pole in total)
q
traight and angled versions
S
2 pole to 16 pole per series (max. 48 pole in total)
q
Standard color black (similar to RAL 9005)
Advantages
q
Applicable in the lead-free reflow process
q
High solder pad distances due to 0.8 x 0.8 pins
q
High CTI value
q
Placement possible on both sides of the PCB
q
Innovative design
q
Very high contact density on the PC board
q
Extremely compact connection area
q
With and without locking flange for mating connector
q
No manual or wave soldering
Description
wiecon Type 8513 SDGN/…G/W THR
PC board pin header
Spacing
Number of poles
Box
Tray
Rated current
Rated voltage
Rated peak voltage
Pin dimensions
Pin lengths
Pollution degree
Material
– CTI
– Halogen-free
– RoHS
Temperature range
– Dimensional stability to max. temperature
Flammability according to UL 94
Approvals
2 (6) – 16 (48)
available on request
8 A
160 V (DIN EN 60664-1)
2.5 kV
0.8 x 0.8 mm
1.5 mm,
3
PPA
> 600
yes
compliant
- 40° C – + 280° C
+ 280° C
V0
UL, CSA (pending)
3.5 mm
straight/angular
0143.3 E 07/08
Technical information
Temperature profile
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Temperature [°C]
350
300
250
200
150
100
50
0
0,0
217
Recommended temperature profile acc. to DIN 61760-1
25s bei 265°C
< 4°C/s
M.P (Sn Ag 3,5)
.
< 4°C/s
Sales- and
Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
www.gesis.com
info@wieland-electric.com
< 4°C/s
15s bei 235°C
max. 60 s
50,0
100,0
150,0
Time [°C]
200,0
250,0
300
max. Profil / maximum profile
empfohlenes Profil / recommended profile
min. Profil / minimum profile
Schmelzpunkt / Melting Point (M.P
.)
Industrial technology
Solutions for the control cabinet
• DIN rail terminal blocks
– crew, spring clamp or IDC connection
S
technology
– Wire cross sections up to 240 mm
2
– Numerous special functions
– oftware solutions interfacing to CAE
S
systems
• Safety
– Safety sensors
– Safety relays
– Modular safety systems with fieldbus link
• PLC and fieldbus components
– Standard applications in IP 20
– ncreased environmental conditions with
I
railroad and ship approvals
• Interface
– Coupling relays, semiconductor switches
– Measuring and monitoring relays
– Timer and switching relays
– Analog modules
– Passive interfaces
– Power supply units
– Overvoltage protection
Solutions for field applications
• Remote automation technology
– Power distribution
– Fieldbus interfaces and motor starters
• Connectors for industrial applications
– Square and round connectors
– Aluminum or plastic housings
– Degree of protection up to IP 68
– Current-carrying capacity up to 100 A
– Connectors for hazardous areas
– Modular, application specific technology

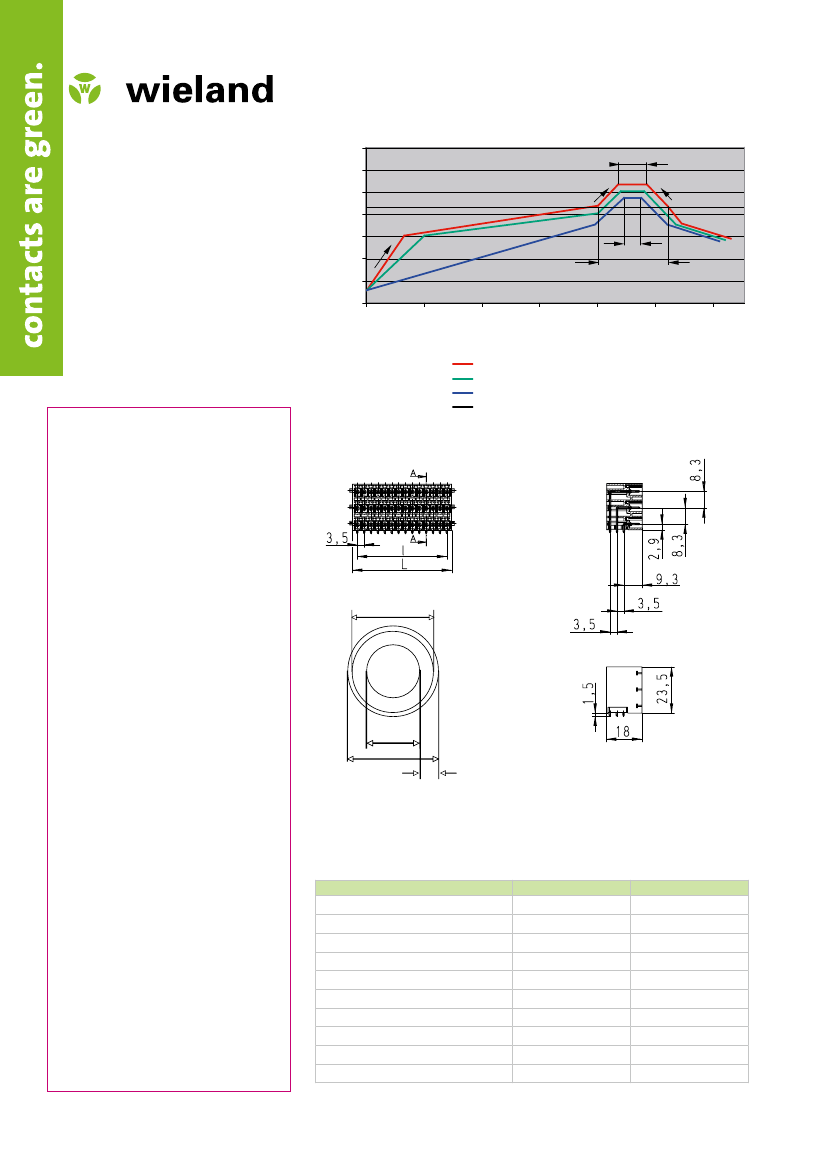

Dimensions/PCB layout
d
s
d
S
= d
h
+ 2R - 0.1
h
+ 2R - 0,1
d
s
=
d
d
S
= Template
d
s
= Maskenloch
of the hole diameter
d
h
= Inner
diameter
Bohrloch
hole
d
h
=
of the drilled
d
p
= Pad
diameter
Lötpad
d
p
=
R
= Remaining
ring width
R
= Restring
d
h
1,2
d
p
2,0
R
0,35 0,4
Type/Part No.
xx = no. of poles, ascending from 2-pole
Packaging: Box, tray
Type
Without locking flange
8513 SDGN/2 G THR OB
8513 SDGN/XX G THR OB
8513 SDGN/2 W THR OB
8513 SDGN/XX W THR OB
With locking flange
8513 SDGN/2 G F2 THR OB
8513 SDGN/XX G F2 THR OB
8513 SDGN/2 W F2 THR OB
8513 SDGN/XX W F2 THR OB
25.666.6208.0
25.666.XX08.0
25.667.6208.0
25.667.XX08.0
On request
On request
On request
On request
25.666.0208.0
25.666.XX08.0
25.667.0208.0
25.667.XX08.0
On request
On request
On request
On request
Box
Tray
PC board terminals and connectors
– crew or spring clamp connection technology
S
– Spacings: 3.5 mm to 10.16 mm
– Reflow or wave soldering process
Building and installation technology
• Building installation systems
– ain power supply connectors IP 20/IP 65 ...
M
IP 68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Power distribution system with flat cables
– Distribution systems
– us systems in KNX, LON and radio
B
technology
– IN rail terminal blocks for electrical
