QL8X12-2PF100C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL8X12-2PF100C

QL8X12-2PF100C: DescriptionField Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQFP100, PLASTIC, QFP-100; CategoryProgrammable logic devices Programmable logic; File Size230KB，8 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

QL8X12-2PF100C Overview

Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQFP100, PLASTIC, QFP-100

QL8X12-2PF100C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Parts packaging code	QFP
package instruction	LFQFP, QFP100,.63SQ,20
Contacts	100
Reach Compliance Code	unknown
Other features	MAX 56 I/OS
maximum clock frequency	100 MHz
Combined latency of CLB-Max	10.375 ns
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
length	14 mm
Configurable number of logic blocks	96
Equivalent number of gates	1000
Number of entries	66
Number of logical units	96
Output times	58
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
organize	96 CLBS, 1000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP100,.63SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm

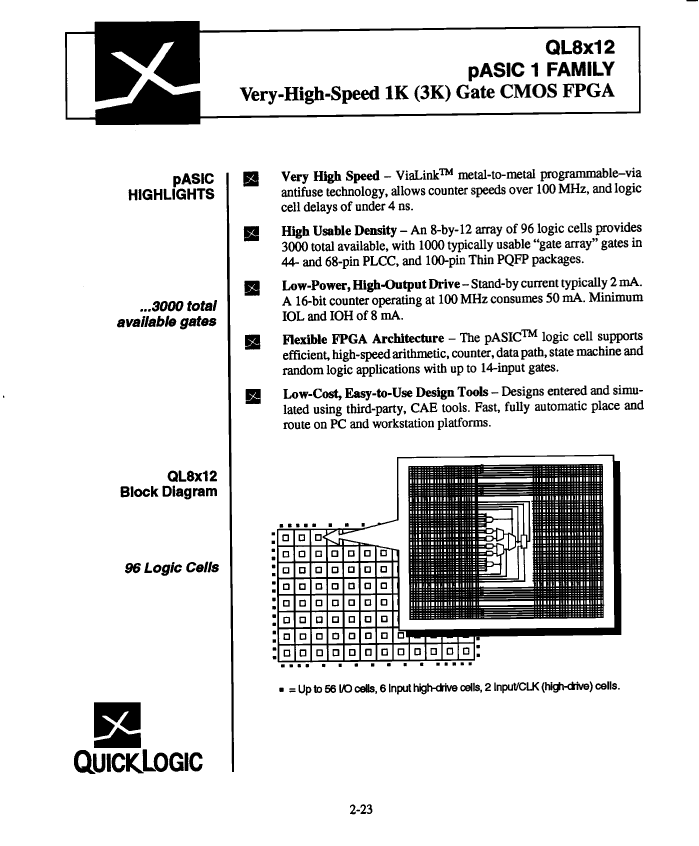

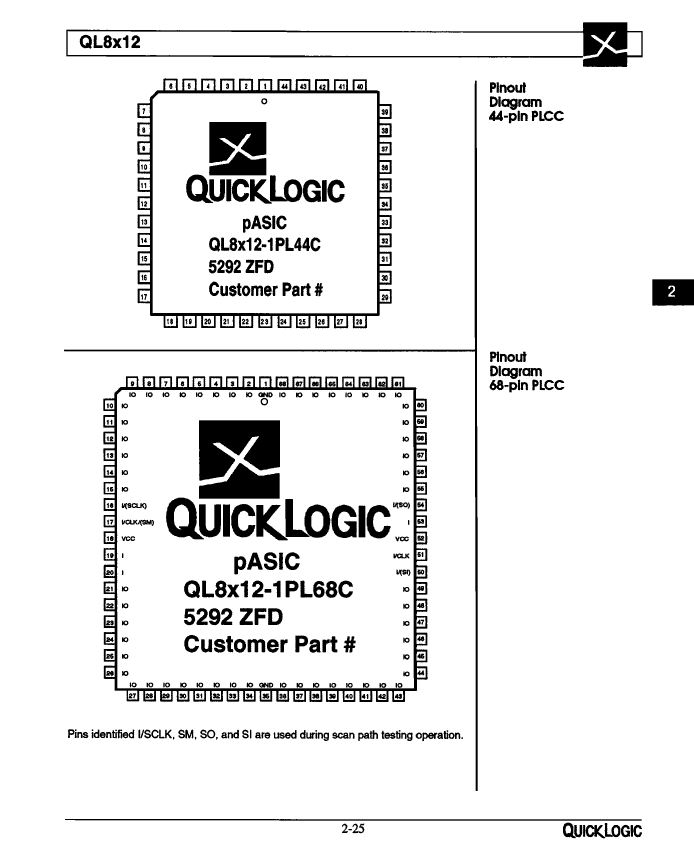

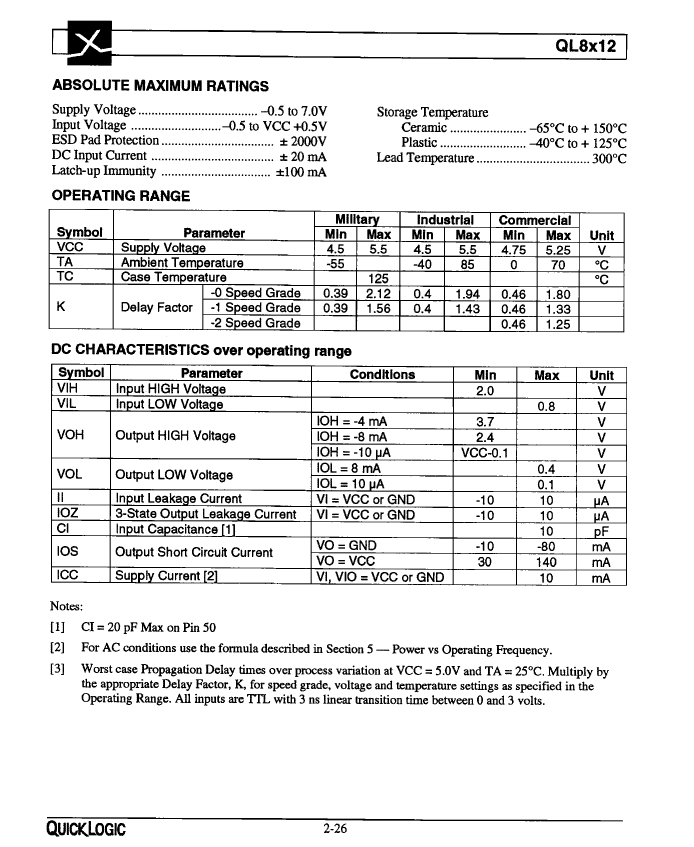

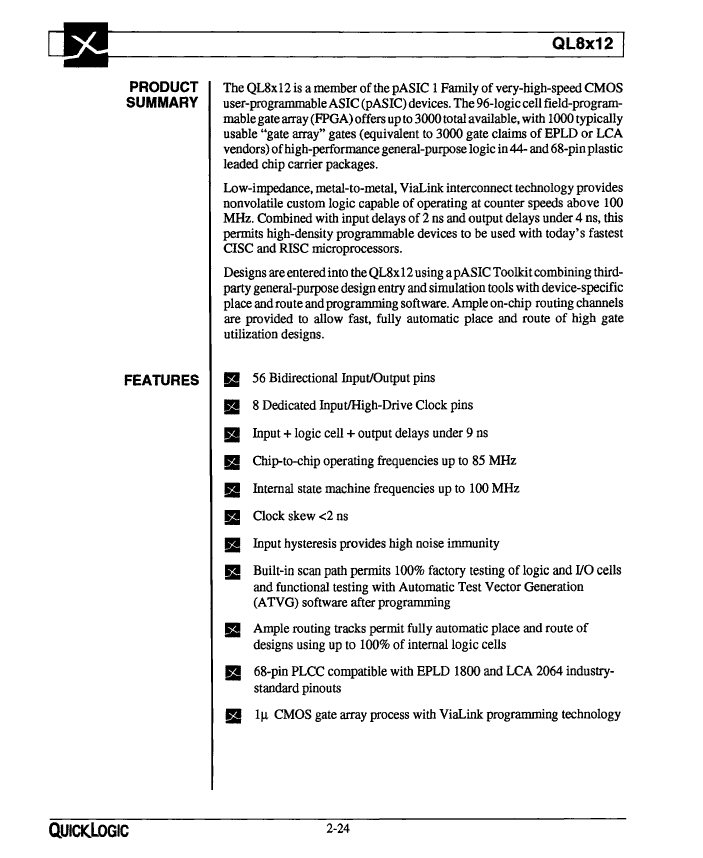

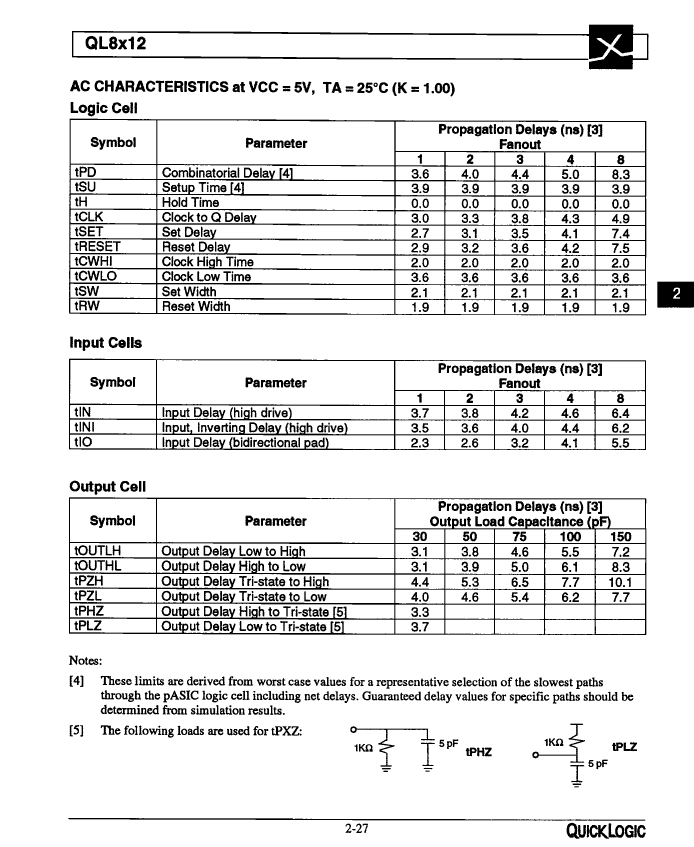

QL8X12-2PF100C Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

QL8X12-2PF100C Related Products

	QL8X12-2PF100C	QL8X12-1PL68C	QL8X12-2PL44C	QL8X12-2PL68C	QL8X12-0PF100C	QL8X12-0PL44C	QL8X12-0PL68C	QL8X12-1PF100C	QL8X12-1PL44C
Description	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC68, PLASTIC, LCC-68	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC44, PLASTIC, LCC-44	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC68, PLASTIC, LCC-68	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC44, PLASTIC, LCC-44	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC68, PLASTIC, LCC-68	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 96 CLBs, 1000 Gates, 100MHz, 96-Cell, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation
Parts packaging code	QFP	LCC	LCC	LCC	QFP	LCC	LCC	QFP	LCC
package instruction	LFQFP, QFP100,.63SQ,20	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC44,.7SQ	QCCJ, LDCC68,1.0SQ	LFQFP, QFP100,.63SQ,20	QCCJ, LDCC44,.7SQ	QCCJ, LDCC68,1.0SQ	LFQFP, QFP100,.63SQ,20	QCCJ, LDCC44,.7SQ
Contacts	100	68	44	68	100	44	68	100	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS	MAX 56 I/OS
maximum clock frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Combined latency of CLB-Max	10.375 ns	11.039 ns	10.375 ns	10.375 ns	14.94 ns	14.94 ns	14.94 ns	11.039 ns	11.039 ns
JESD-30 code	S-PQFP-G100	S-PQCC-J68	S-PQCC-J44	S-PQCC-J68	S-PQFP-G100	S-PQCC-J44	S-PQCC-J68	S-PQFP-G100	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	14 mm	24.2316 mm	16.5862 mm	24.2316 mm	14 mm	16.5862 mm	24.2316 mm	14 mm	16.5862 mm
Configurable number of logic blocks	96	96	96	96	96	96	96	96	96
Equivalent number of gates	1000	1000	1000	1000	1000	1000	1000	1000	1000
Number of entries	66	64	40	64	66	40	64	66	40
Number of logical units	96	96	96	96	96	96	96	96	96
Output times	58	56	32	56	58	32	56	58	32
Number of terminals	100	68	44	68	100	44	68	100	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES	96 CLBS, 1000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	QCCJ	QCCJ	QCCJ	LFQFP	QCCJ	QCCJ	LFQFP	QCCJ
Encapsulate equivalent code	QFP100,.63SQ,20	LDCC68,1.0SQ	LDCC44,.7SQ	LDCC68,1.0SQ	QFP100,.63SQ,20	LDCC44,.7SQ	LDCC68,1.0SQ	QFP100,.63SQ,20	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER	CHIP CARRIER	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	5.08 mm	4.57 mm	5.08 mm	1.6 mm	4.57 mm	5.08 mm	1.6 mm	4.57 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	J BEND	J BEND	GULL WING	J BEND	J BEND	GULL WING	J BEND
Terminal pitch	0.5 mm	1.27 mm	1.27 mm	1.27 mm	0.5 mm	1.27 mm	1.27 mm	0.5 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	24.2316 mm	16.5862 mm	24.2316 mm	14 mm	16.5862 mm	24.2316 mm	14 mm	16.5862 mm
