M74HC243C1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HC243C1

M74HC243C1: DescriptionHC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PQCC20, PLASTIC, CC-20; Categorylogic logic; File Size151KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M74HC243C1 Overview

HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PQCC20, PLASTIC, CC-20

M74HC243C1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	QFN
package instruction	PLASTIC, CC-20
Contacts	20
Reach Compliance Code	not_compliant
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	HC/UH
JESD-30 code	S-PQCC-J20
JESD-609 code	e0
length	8.9662 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.006 A
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
Prop。Delay @ Nom-Sup	36 ns
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	8.9662 mm

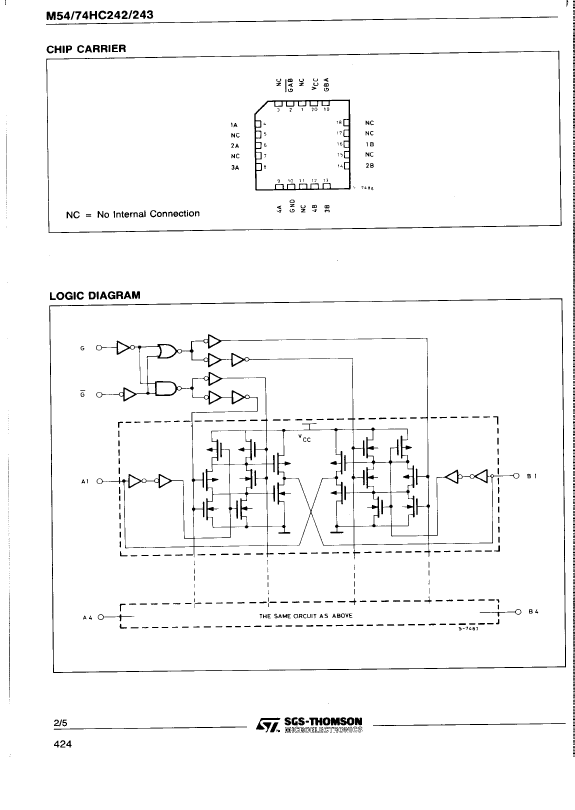

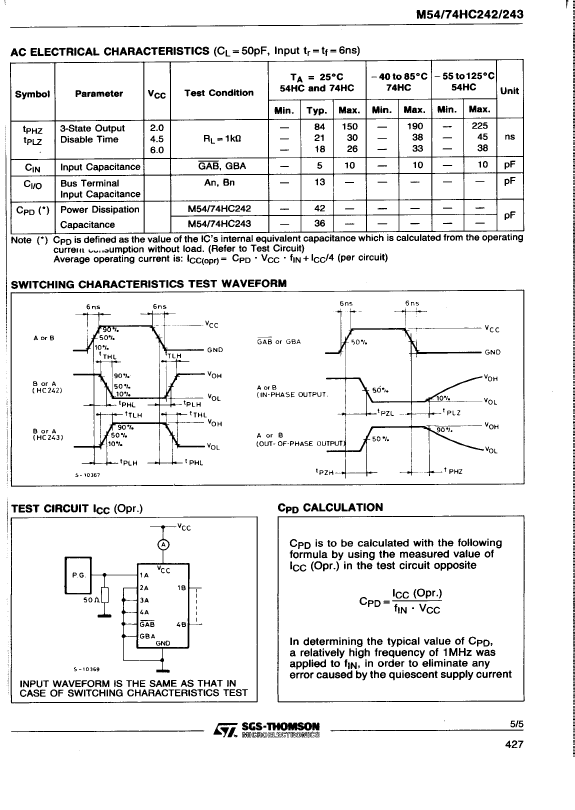

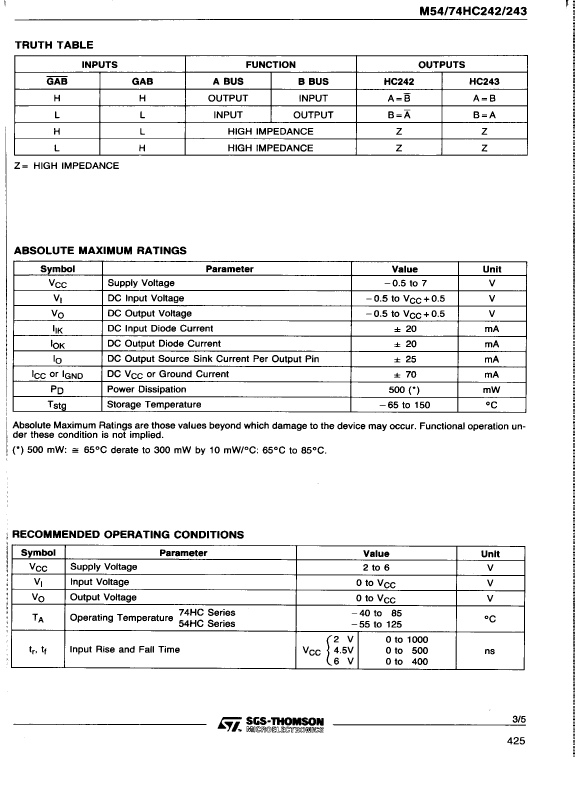

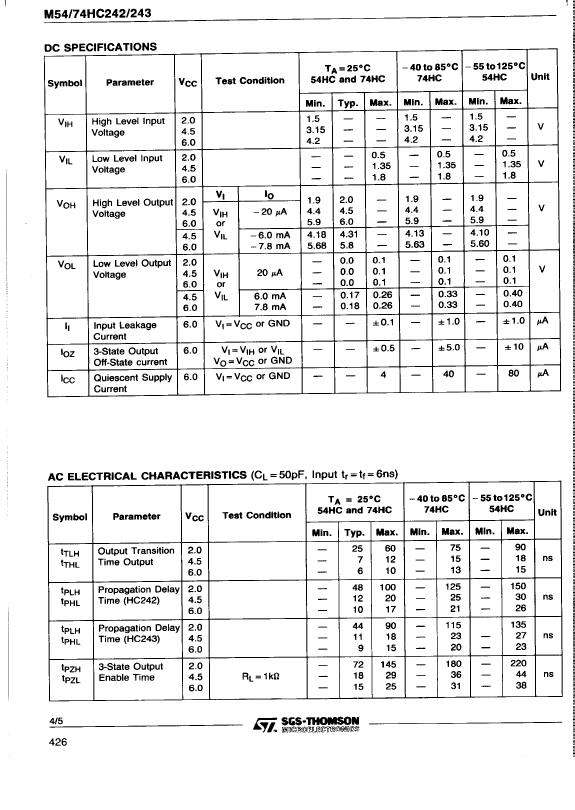

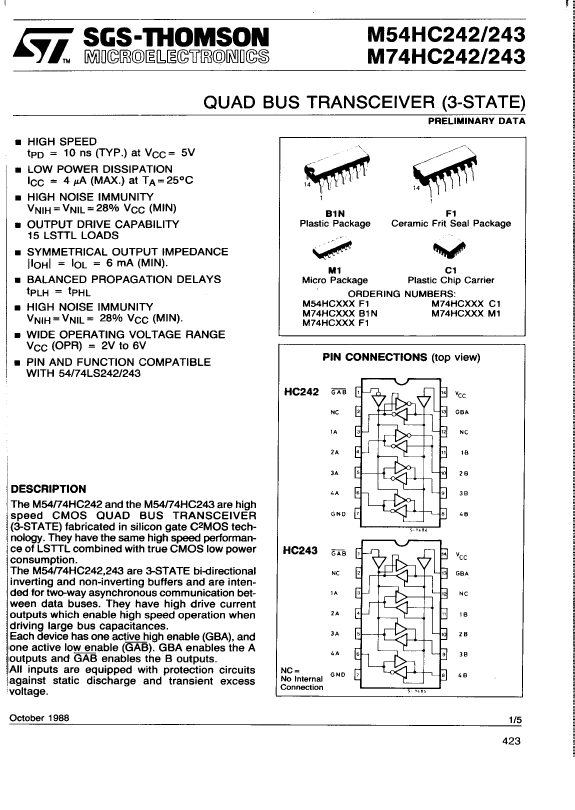

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

M74HC243C1 Related Products

	M74HC243C1	M74HC242M1	M74HC242B1N	M74HC242C1	M74HC242F1	M74HC243F1	M74HC243B1N	M74HC243M1	M54HC242F1	M54HC243F1
Description	HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PQCC20, PLASTIC, CC-20	HC/UH SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PDSO14, MICRO, PLASTIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PDIP14, PLASTIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PQCC20, PLASTIC, CC-20	HC/UH SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDIP14, FRIT SEALED, CERAMIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CDIP14, FRIT SEALED, CERAMIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PDIP14, PLASTIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PDSO14, MICRO, PLASTIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, CDIP14, FRIT SEALED, CERAMIC, DIP-14	HC/UH SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CDIP14, FRIT SEALED, CERAMIC, DIP-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFN	SOIC	DIP	QFN	DIP	DIP	DIP	SOIC	DIP	DIP
package instruction	PLASTIC, CC-20	MICRO, PLASTIC, DIP-14	PLASTIC, DIP-14	PLASTIC, CC-20	FRIT SEALED, CERAMIC, DIP-14	DIP, DIP14,.3	PLASTIC, DIP-14	MICRO, PLASTIC, DIP-14	FRIT SEALED, CERAMIC, DIP-14	DIP, DIP14,.3
Contacts	20	14	14	20	14	14	14	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	S-PQCC-J20	R-PDSO-G14	R-PDIP-T14	S-PQCC-J20	R-GDIP-T14	R-GDIP-T14	R-PDIP-T14	R-PDSO-G14	R-GDIP-T14	R-GDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2	2
Number of terminals	20	14	14	20	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	INVERTED	INVERTED	INVERTED	TRUE	TRUE	TRUE	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCJ	SOP	DIP	QCCJ	DIP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	LDCC20,.4SQ	SOP14,.25	DIP14,.3	LDCC20,.4SQ	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V
propagation delay (tpd)	23 ns	25 ns	25 ns	25 ns	25 ns	23 ns	23 ns	23 ns	30 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	1.75 mm	5.1 mm	4.57 mm	5 mm	5 mm	5.1 mm	1.75 mm	5 mm	5 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
width	8.9662 mm	3.9 mm	7.62 mm	8.9662 mm	7.62 mm	7.62 mm	7.62 mm	3.9 mm	7.62 mm	7.62 mm
Maker	STMicroelectronics	-	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Prop。Delay @ Nom-Sup	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	44 ns	-
