DG411HSDN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG411HSDN

DG411HSDN: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size111KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG411HSDN Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch

DG411HSDN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	QFN
package instruction	QCCN, LCC16,.16SQ,25
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-XQCC-N16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO/NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	91 dB
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	UNSPECIFIED
encapsulated code	QCCN
Encapsulate equivalent code	LCC16,.16SQ,25
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5,12/+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	80 ns
Maximum connection time	105 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

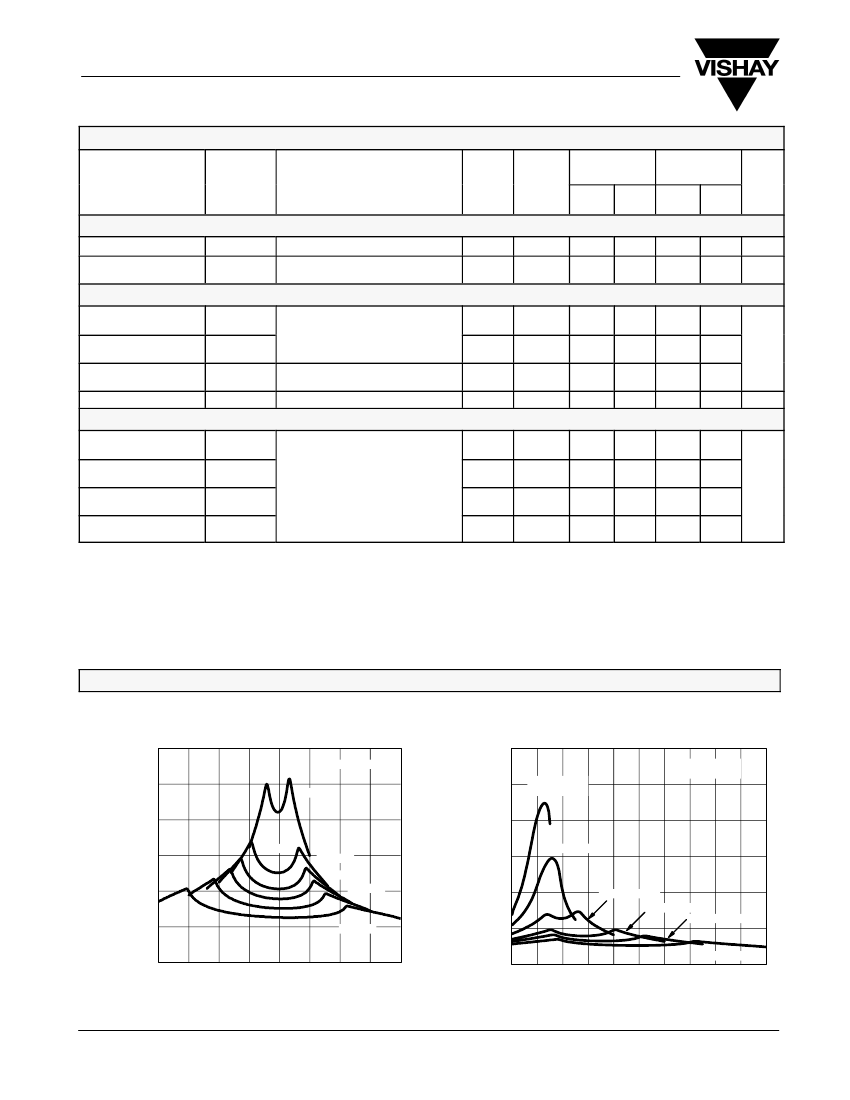

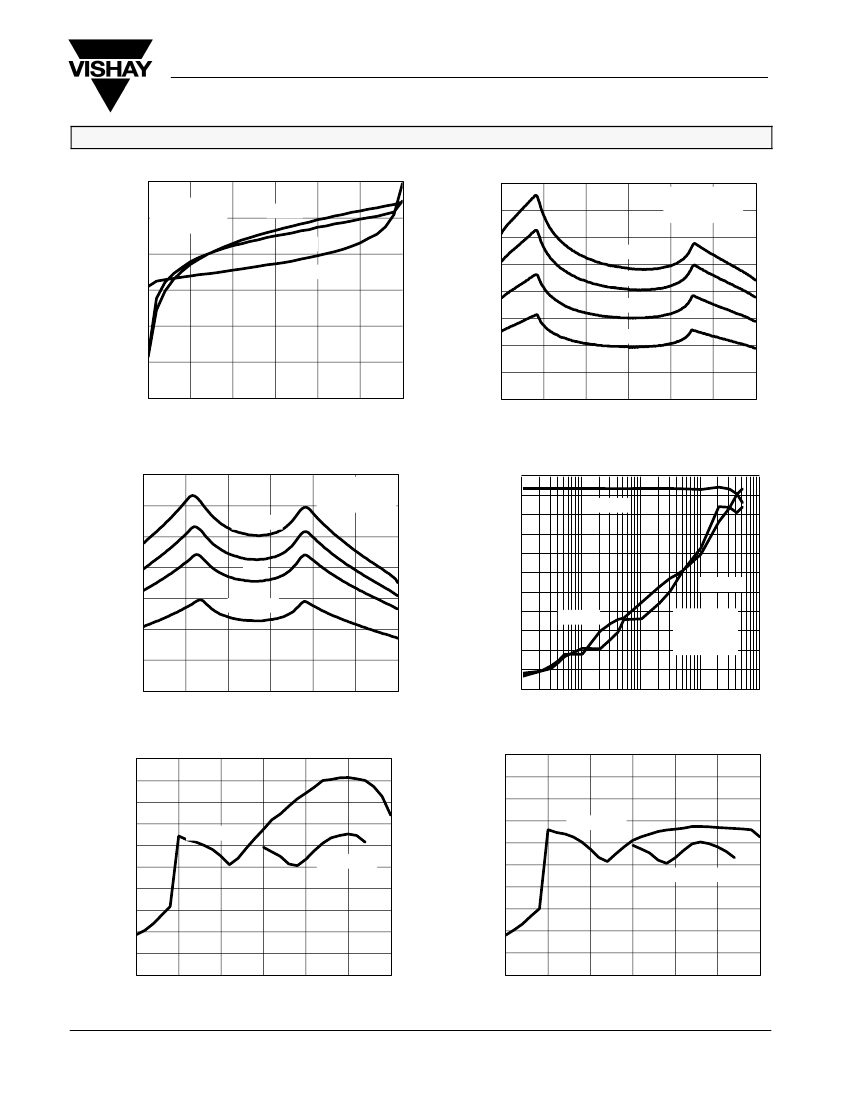

DG411HS/412HS/413HS

New Product

Vishay Siliconix

Precision Monolithic Quad SPST CMOS Analog Switches

FEATURES

44-V Supply Max Rating

"15-V

Analog Signal Range

On-Resistance—r

DS(on)

: 25

Fast Switching—t

: 68 ns

Ultra Low Power—P

: 0.35

TTL, CMOS Compatible

Single Supply Capability

BENEFITS

Widest Dynamic Range

Low Signal Errors and Distortion

Break-Before-Make Switching Action

Simple Interfacing

APPLICATIONS

Precision Automatic Test Equipment

Precision Data Acquisition

Communication Systems

Battery Powered Systems

Computer Peripherals

DESCRIPTION

The DG411HS series of monolithic quad analog switches was

designed to provide high speed, low error switching of

precision analog signals. Combining low power (0.35

mW)

with

high speed (t

: 68 ns), the DG411HS family is ideally suited

for portable and battery powered industrial and military

applications.

To achieve high-voltage ratings and superior switching

performance, the DG411HS series was built on

Vishay Siliconix’s high voltage silicon gate process. An

epitaxial layer prevents latchup.

Each switch conducts equally well in both directions when on,

and blocks input voltages up to the supply levels when off.

The DG411HS and DG412HS respond to opposite control

logic as shown in the Truth Table. The DG413HS has two

normally open and two normally closed switches.

FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION

DG411HS

Dual-In-Line and SOIC

DG411HS

QFN16

DG411HS

LCC

NC IN

Key

V-

GND

V+

V-

GND

Top View

V+

V-

GND

V+

Top View

NC IN

Top View

TRUTH TABLE

Logic

DG411HS

OFF

DG412HS

OFF

Document Number: 72053

S-22064—Rev. A, 18-Nov-02

www.vishay.com

DG411HSDN Related Products

	DG411HSDN	DG411HSAK/883	DG412HSAK/883	DG413HSDN-E3	DG411HSAZ/883	DG411HSDN-E3	DG413HSDN	DG412HSDN	DG412HSDN-E3
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch	SPST, 4 Func, CMOS, CDIP16	SPST, 4 Func, CMOS, CDIP16	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch	SPST, 4 Func, CMOS, CQCC20	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, QCC16, 4 X 4 MM, QFN-16, Multiplexer or Switch
package instruction	QCCN, LCC16,.16SQ,25	DIP, DIP16,.3	DIP, DIP16,.3	QCCN,	QCCN, LCC20,.35SQ	QCCN,	QCCN, LCC16,.16SQ,25	QCCN, LCC16,.16SQ,25	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	S-XQCC-N16	R-XDIP-T16	R-XDIP-T16	S-XQCC-N16	S-XQCC-N20	S-XQCC-N16	S-XQCC-N16	S-XQCC-N16	S-XQCC-N16
Number of functions	4	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	20	16	16	16	16
Maximum on-state resistance (Ron)	35 Ω	100 Ω	100 Ω	35 Ω	100 Ω	35 Ω	35 Ω	35 Ω	35 Ω
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	CERAMIC	CERAMIC	UNSPECIFIED	CERAMIC	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QCCN	DIP	DIP	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	YES	YES	YES	YES	YES	YES
Maximum connection time	105 ns	140 ns	140 ns	105 ns	140 ns	105 ns	105 ns	105 ns	105 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Is it lead-free?	Contains lead	-	-	Lead free	-	Lead free	Contains lead	Contains lead	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	incompatible	incompatible	-
Maker	Vishay	-	-	Vishay	Vishay	Vishay	Vishay	Vishay	-
Parts packaging code	QFN	-	-	QFN	-	QFN	QFN	QFN	QFN
Contacts	16	-	-	16	-	16	16	16	16
JESD-609 code	e0	-	-	e3	-	e3	e0	e0	e3
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-	-15 V	-	-15 V	-15 V	-15 V	-15 V
normal position	NO/NC	NO/NC	NO/NC	-	NO/NC	-	NO/NC	NO/NC	-
Number of channels	1	-	-	1	-	1	1	1	1
Nominal off-state isolation	91 dB	-	-	91 dB	-	91 dB	91 dB	91 dB	91 dB
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	-	SEPARATE OUTPUT	-	SEPARATE OUTPUT	SEPARATE OUTPUT	-
Encapsulate equivalent code	LCC16,.16SQ,25	DIP16,.3	DIP16,.3	-	LCC20,.35SQ	-	LCC16,.16SQ,25	LCC16,.16SQ,25	-
power supply	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	-	5,12/+-15 V	-	5,12/+-15 V	5,12/+-15 V	-
Nominal supply voltage (Vsup)	15 V	-	-	15 V	-	15 V	15 V	15 V	15 V
Maximum disconnect time	80 ns	-	-	80 ns	-	80 ns	80 ns	80 ns	80 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-
Terminal surface	TIN LEAD	-	-	MATTE TIN	-	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN
Terminal pitch	0.635 mm	2.54 mm	2.54 mm	-	1.27 mm	-	0.635 mm	0.635 mm	-
