HER301G - HER308G
Taiwan Semiconductor
CREAT BY ART

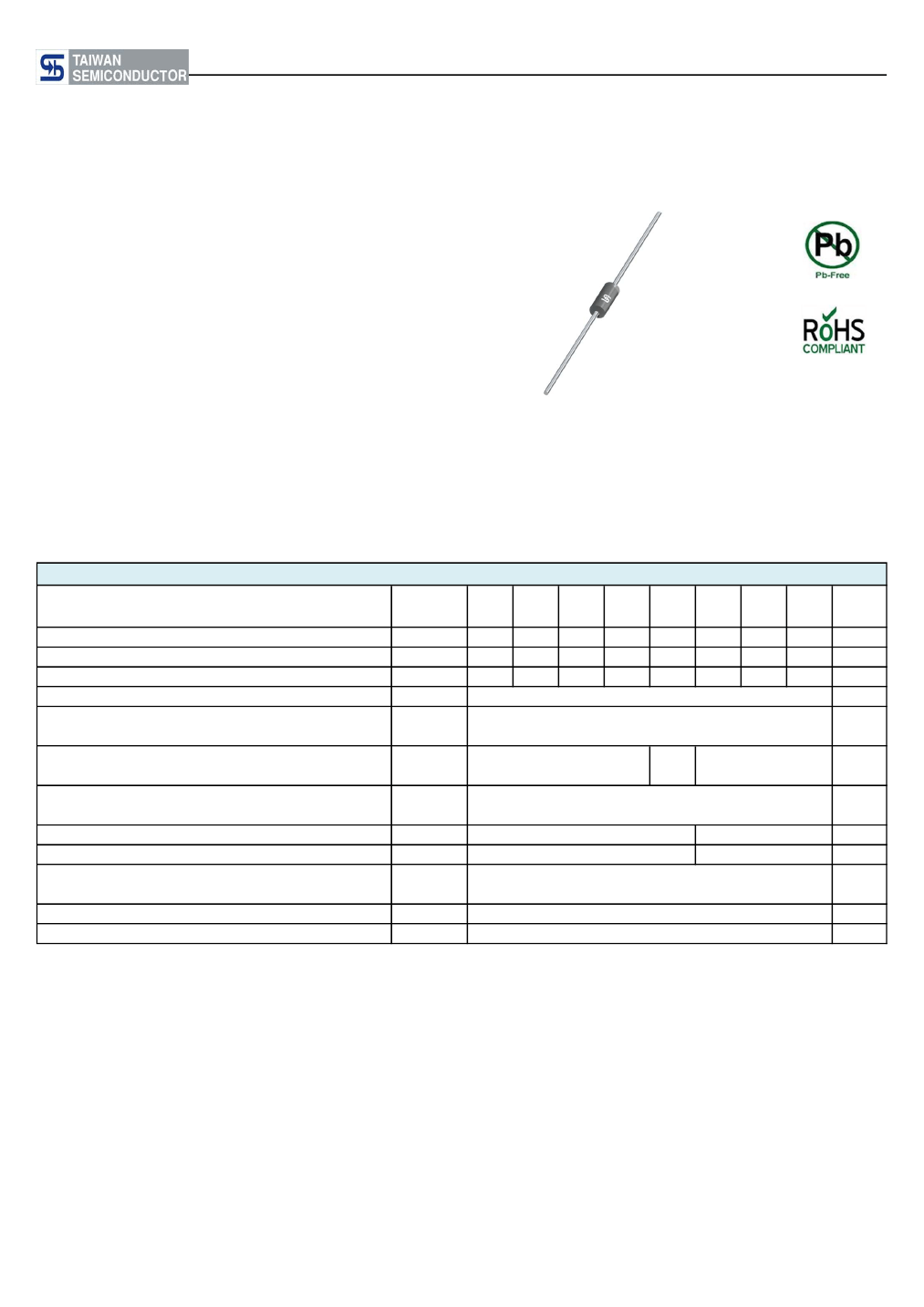

3A, 50V - 1000V Glass Passivated High Efficient Rectifiers
FEATURES
- Glass passivated chip junction
- High current capability, Low VF
- High reliability
- High surge current capability
- Low power loss, high efficiency
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
DO-201AD
Molding compound, UL flammability classification rating 94V-0
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
1.1 g (approximately)
DO-201AD
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@3A
Maximum reverse current @ rated VR
T
J
=25 °C
T
J
=125 °C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
50
60
10
35
- 55 to +150
- 55 to +150
1.0
10
200
75
35
HER
50
35
50
HER
100
70
100
HER
200
140
200
HER
300
210
300
3
125
1.3
1.7
HER
400
280
400
HER
600
420
600
HER
800
560
800
HER
1000
700
1000
301G 302G 303G 304G 305G 306G 307G 308G
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Document Number: DS_D1410041
Version: H15
HER301G - HER308G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
A0
HER30xG
(Note 1)
H
R0
B0
X0
Note 1: "x" defines voltage from 50V (HER301G) to 1000V (HER308G)
G
PACKING CODE
PACKING CODE
SUFFIX
DO-201AD
DO-201AD
DO-201AD
DO-201AD
500 / Ammo box
1,250 / 13" Paper reel
500 / Bulk packing
Forming
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N PART NO.
HER308GHA0G
HE308G
PART NO.
SUFFIX
H
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

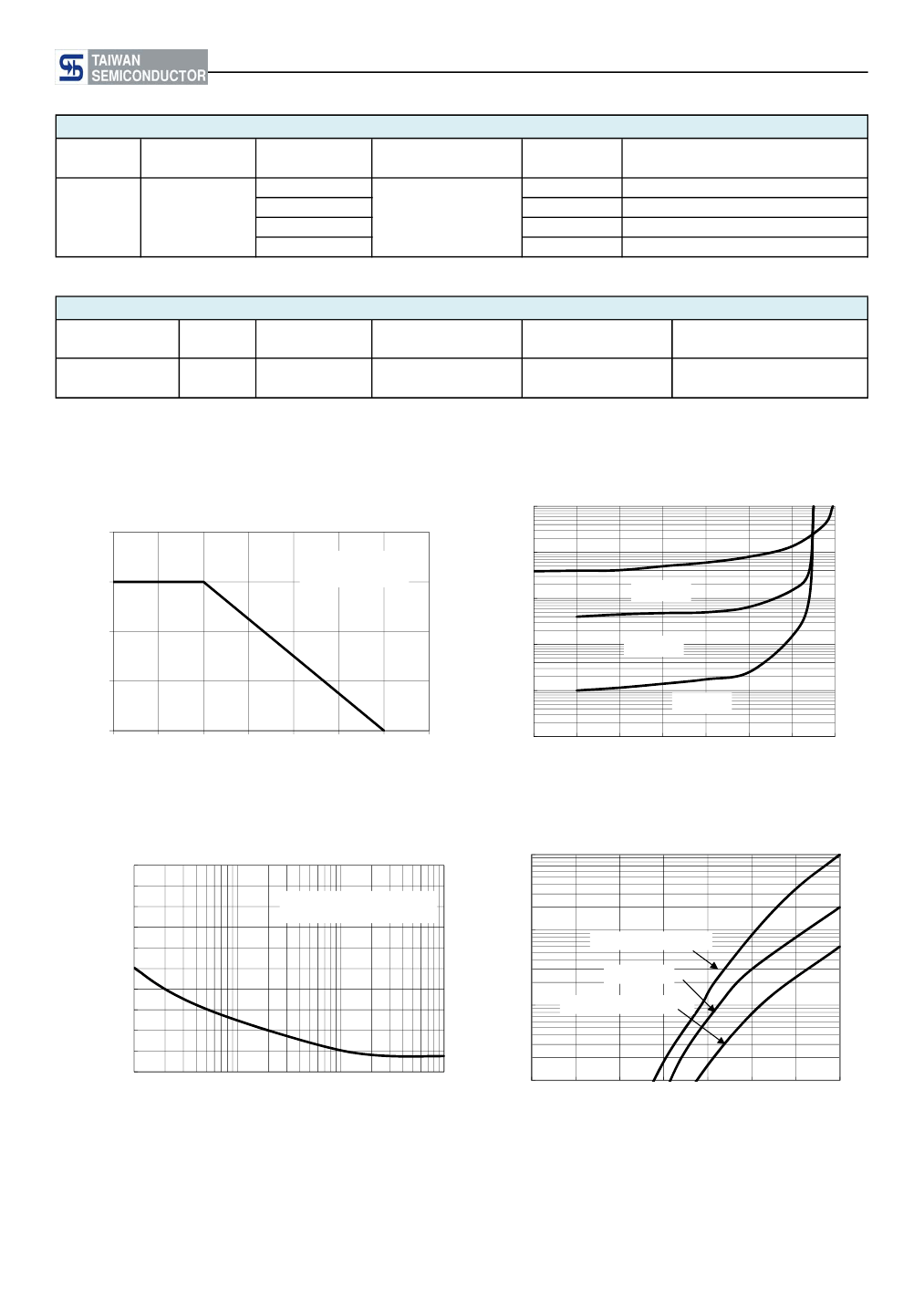

FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
4
AVERAGE FORWARD CURRENT (A)
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
100
3
10
T
J
=125°C
2
1
T
J
=75°C
1
0.1
T
J
=25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
25
50
75
100
125
150
175
CASE TEMPERATURE (
o
C)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
250
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT (A)
PEAK FORWARD SURGE CURRENT(A)
225
200
175
150
125
100
75
50
25
0
1
10
100
1000
8.3ms Single Half Sine Wave
10
HER301G-HER304G
HER305G
1
HER306G-HER308G
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
NUMBER OF CYCLES AT 60 Hz
Document Number: DS_D1410041
Version: H15
HER301G - HER308G
Taiwan Semiconductor
CREAT BY ART
FIG. 5- TYPICAL JUNCTION CAPACITANCE
175
JUNCTION CAPACITANCE (pF)
150
125
100
75
50
25
0
0.1
1
10
100
REVERSE VOLTAGE (V)
HER306G-
HER301G-HER305G

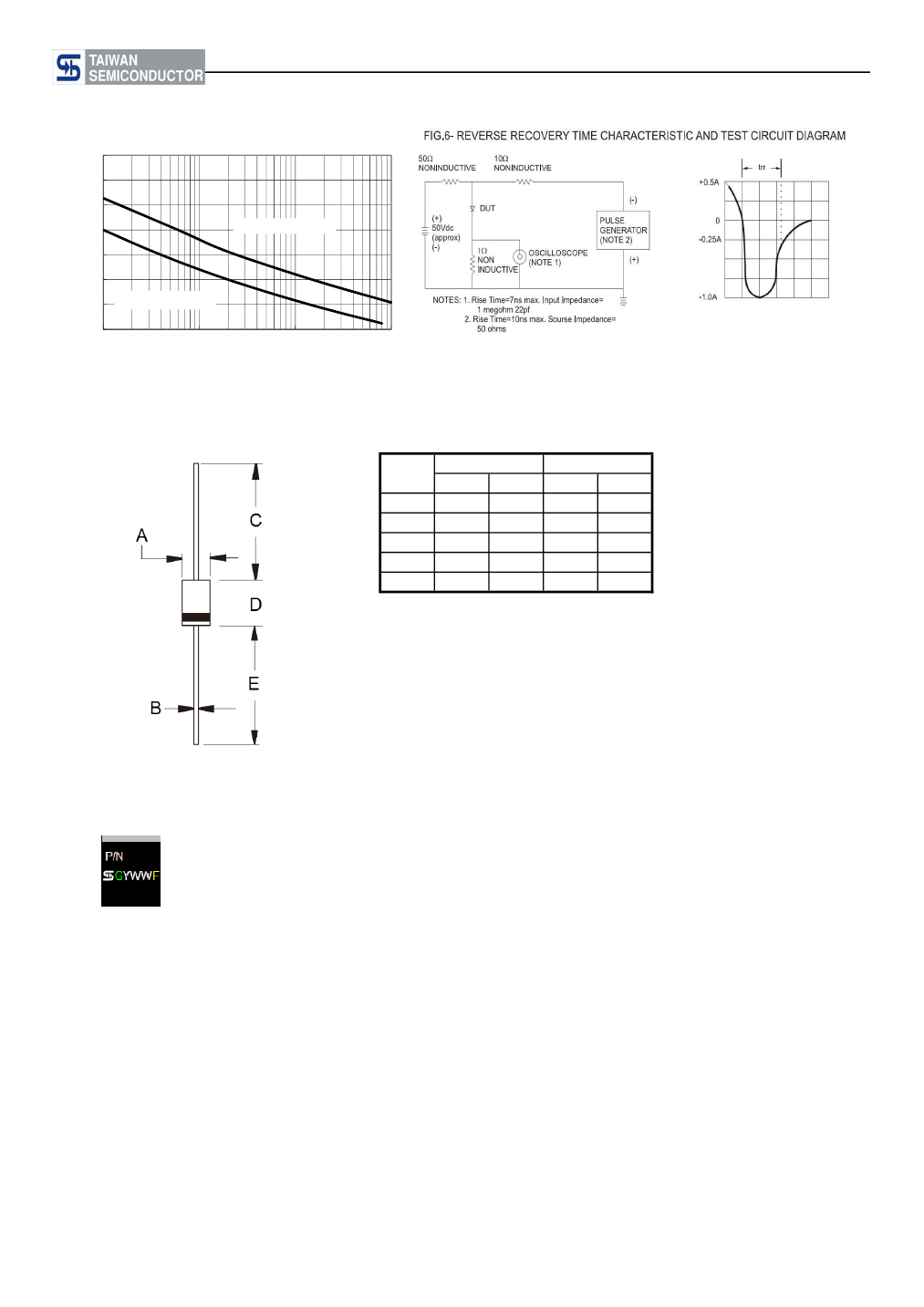

PACKAGE OUTLINE DIMENSIONS
DO-201AD
DIM.
A
B
C
D
E
Unit (mm)
Min
5.00
1.20
25.40
8.50
25.40
Max
5.60
1.30
-
9.50
-
Unit (inch)
Min
0.197
0.048
1.000
0.335
1.000
Max
0.220
0.052
-
0.375
-
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1410041
Version: H15
HER301G - HER308G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
