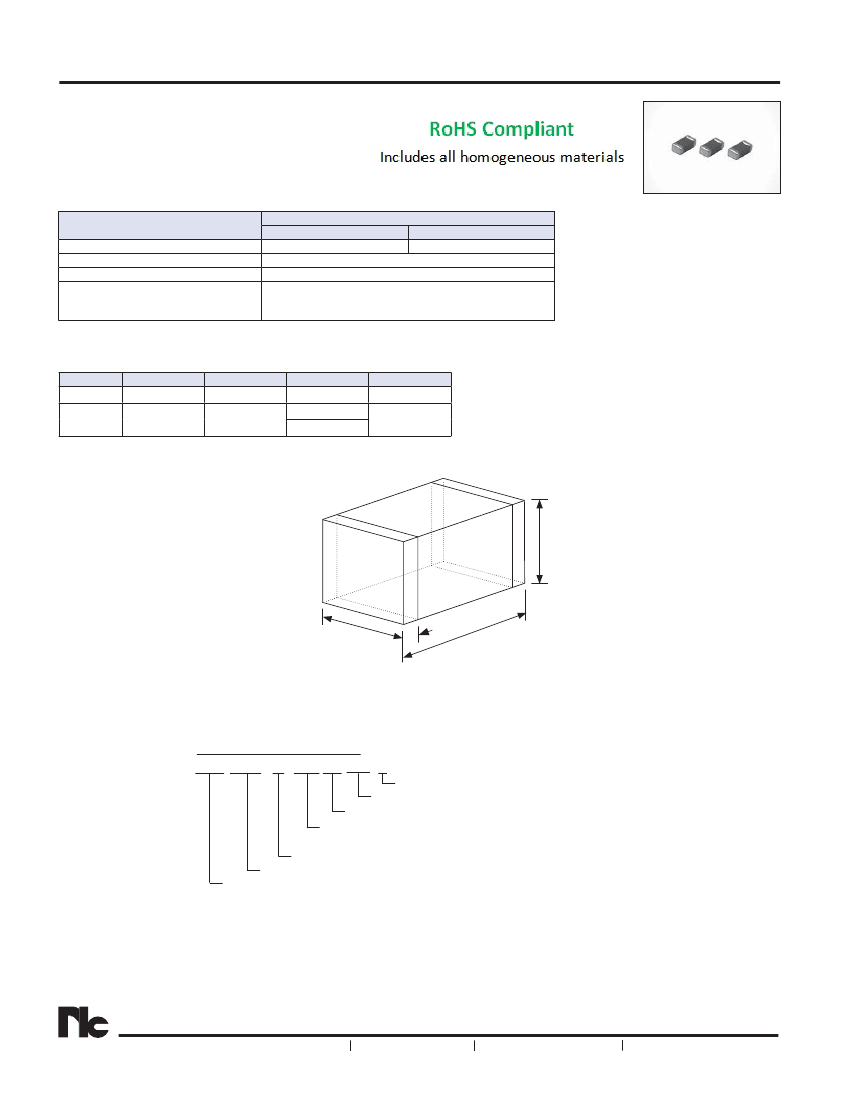

Surface Mount Multilayer Inductor
FEATURES
•
•
•
•
0603 AND 0805 CASE SIZES
HIGH DC CURRENT AND LOW DC RESISTANCE
REFLOW SOLDERING APPLICABLE
PACKAGE FOR AUTOMATIC PICK-PLACE
NFH Series
SPECIFICATIONS
0603
0805
Inductance Range
0.1μH ~ 10μH
0.1μH ~ 10μH
Inductance Tolerance
±20% (M), ±30% (N)
Operating Temperature Range
-40°C ~ +85°C
Self Resonant Frequency,
DC Resistance, Rated DC Current
See Standard Values and Specifications Table
and Inductance Tolerance
Note: Extended values, tolerances, and enhanced versions are available please contact NIC for more details.
Specifications
Case Size
DIMENSIONS (mm)
Case Size
NFH0603
NFH0805
L
1.6 ± 0.15
2.0 +0.3/-0.1
W
0.8 ± 0.15
1.25 ± 0.2
H
0.8 ± 0.15
0.85 ± 0.2
1.25 ± 0.2
P
0.3 ± 0.2
0.5 ± 0.3
H
W
P
L
PART NUMBER SYSTEM
NFH 0805 M R47 TR 055 F
RoHS compliant
Current rating code (006=60mA, 055=550mA, 100=1000mA)
Packaging: TR = Tape & Reel
Rated inductance in
μH
(R denotes decimal point)
Inductance Tolerance Code:
M = ±20%, N = ±30%
Case Size: 06 = 0603, 10 = 0805
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1
Surface Mount Multilayer Inductor

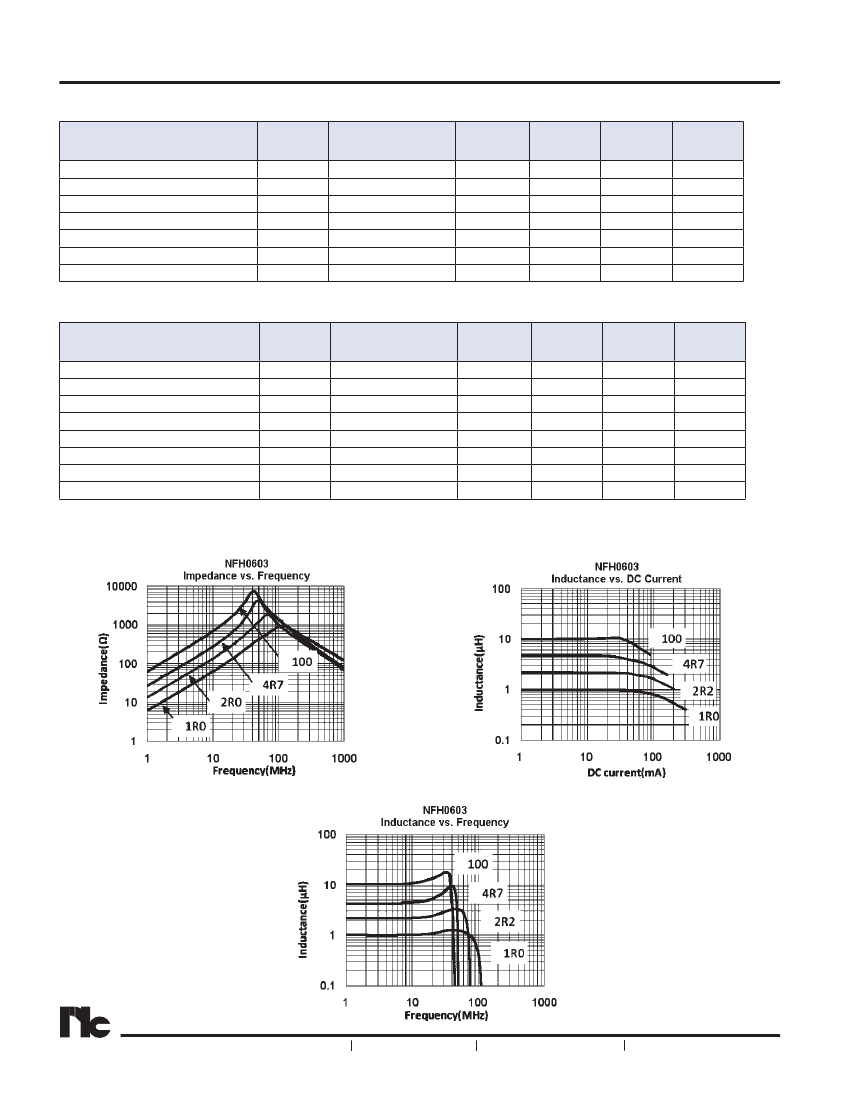

NFH0603 SERIES
Part Number
NFH0603_R10TR070F
NFH0603_R22TR055F
NFH0603_R47TR040F
NFH0603_1R0TR019F
NFH0603_2R2TR014F
NFH0603_4R7TR010F
NFH0603_100TR005F
Inductance
(μH)
0.1
0.22
0.47
1.0
2.2
4.7
10
NFH Series
0603 CASE SIZE
Tolerance
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
Test
Frequency
(MHz)
1
1
1
1
1
1
1
SRF min.
(MHz)
240
150
105
75
50
35
20
DCR
(Ω)
0.14 ± 30%
0.27 ± 30%
0.42 ± 30%
0.20 ± 30%
0.40 ± 30%
0.60 ± 30%
0.90 ± 30%
DC Current
(mA)
700
550
400
190
140
100
50
Note: Extended values, tolerances, and enhanced versions are available please contact NIC for more details.

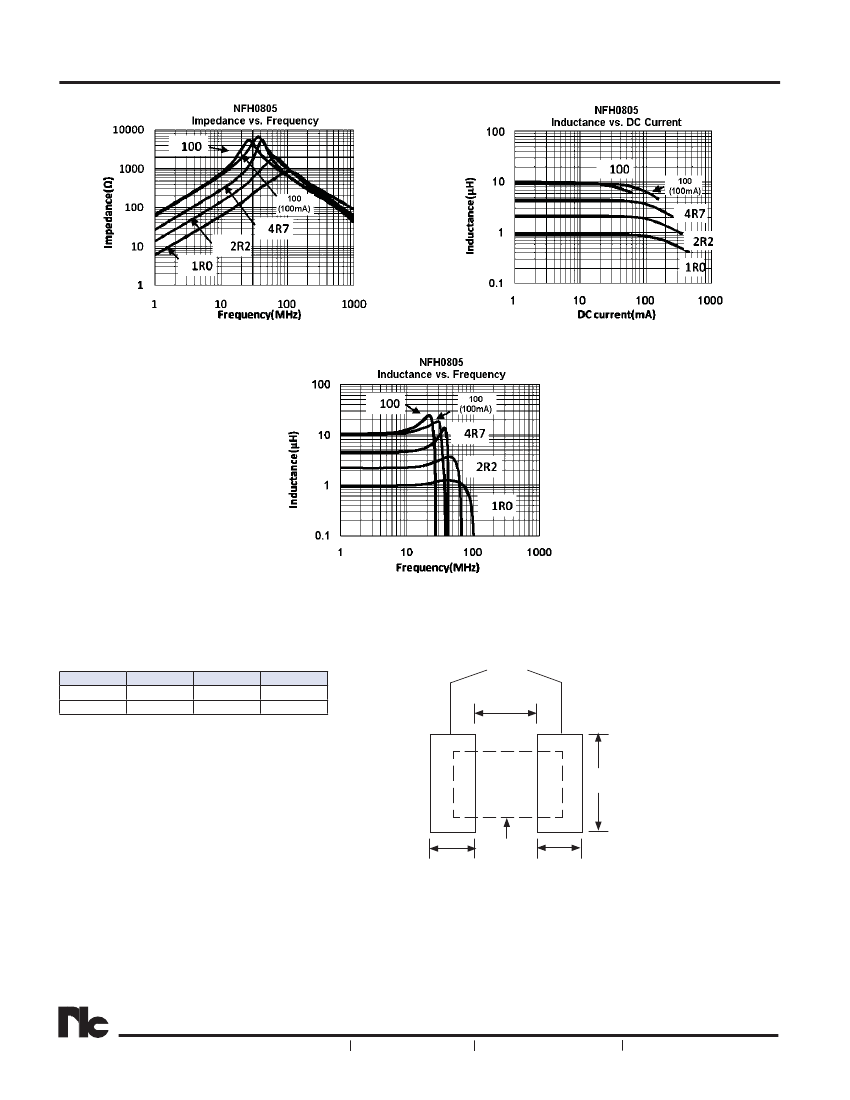

NFP0805 SERIES
Part Number
NFH0805_R10TR100F
NFH0805_R22TR080F
NFH0805_R47TR055F
NFH0805_1R0TR030F
NFH0805_2R2TR022F
NFH0805_4R7TR018F
NFH0805_100TR006F*
Inductance
(μH)
0.1
0.22
0.47
1.0
2.2
4.7
10
0805 CASE SIZE
Tolerance
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
±20% (M), ±30% (N)
Test
Frequency
(MHz)
1
1
1
1
1
1
1
SRF min.
(MHz)
235
170
125
75
50
25
15
DCR
(Ω)
0.07 ± 30%
0.13 ± 30%
0.18 ± 30%
0.20 ± 30%
0.28 ± 30%
0.30 ± 30%
0.50 ± 30%
0.50 ± 30%
DC Current
(mA)
1000
800
550
300
220
180
60
100
NFH0805_100TR010F*
10
±20% (M), ±30% (N)
1
20
Note: Extended values, tolerances, and enhanced versions are available please contact NIC for more details.
*Thickness dimension for these part number is 1.25mm ± 0.2mm
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
Surface Mount Multilayer Inductor
REFLOW SOLDERING PROFILE
NFH Series
TAPE AND REEL DIMENSIONS (mm)
TYPE
NFH0603
NFH0805 (0.85mm thickness)
NFH0805 (1.25mm thickness)
A
1.00
1.50
1.50
B
1.80
2.30
2.30
Reel Qty
4,000
4,000
3,000
TAPE AND REEL PACKAGING (mm)
1.1 Max.
4.0 ± 0.1
Sprocket Hole 1.5 +0.1/-0
178 ± 2.0
3.5
±0.05
B
A
4.0 ±0.1
®
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
58
±2.0
8.0
±0.3
