Carling
Technologies

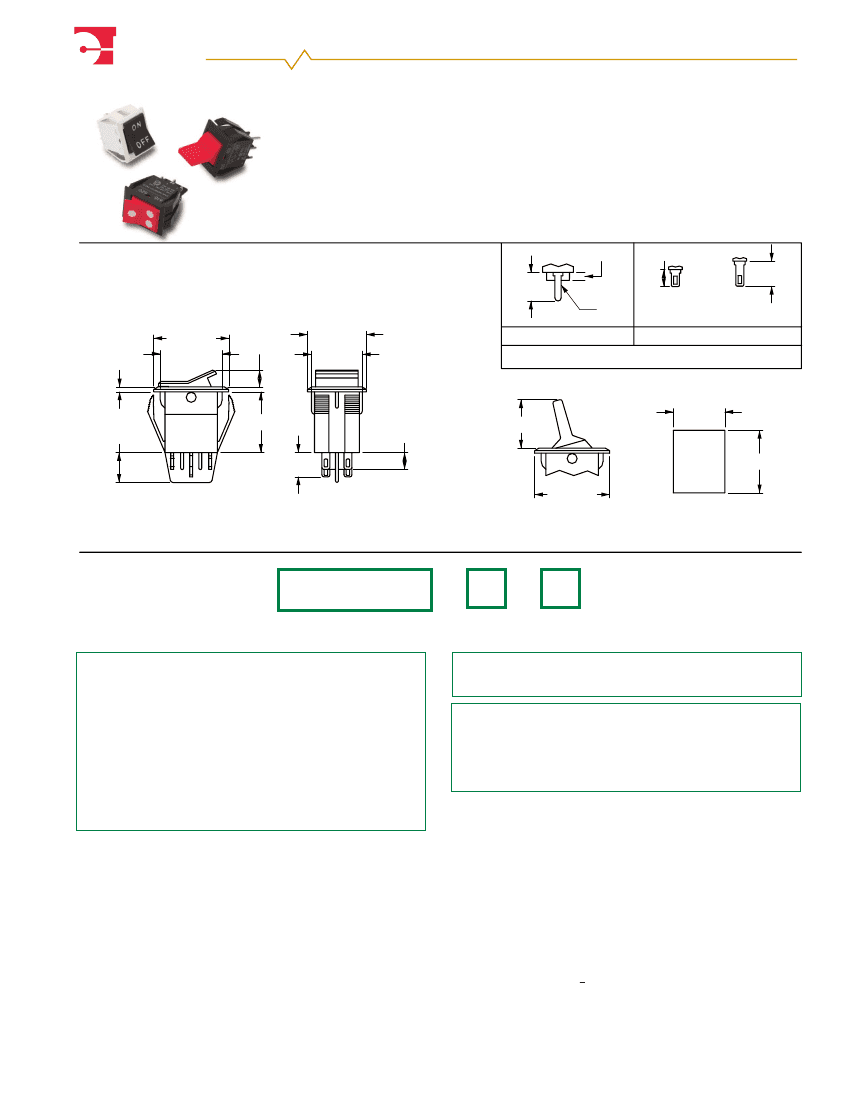

610/620-Series Miniature Rocker Switches
™
610/620-Series Miniature Rocker Switches
The miniature 610/620-Series switches are double insulated
and available in single or double pole configurations. These
snap-in mounted switches are offered with either a paddle or
rocker actuator and with ratings up to 8 amps. Applications
include: Handheld Appliance, Power Supplies, Audio-Visual,
Telecom, and Computers.
Dielectric Strength
UL/CSA:
1000V - live to dead metal parts &
opposite polarity
Electrical Life
50,000 cycles- single pole
50,000 cycles- double pole
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
.171[4.34]
.250[6.35]
.078[1.98]
.284[7.21]
.046[1.17]
x
.029[.736]
.750[19.05]
.620[15.74]
.050[1.27]
.590[14.98]
.182[4.62]
.510[12.95]
PC TERMINAL
END
CENTER
.080[2.03] X .047[1.19] SLOT
.080 SOLDER LUG
TERMINAL TYPE
.515[13.08]
.606[15.39]
.300[7.62]
.171[4.34] BARRIER
.625[15.87]
.500[12.70]
.250[6.35]
.750[19.05]
PADDLE
MOUNTING HOLE
Panel Thickness:
.030[.762] min. to
.093[2.36] max.
62012421
-
0
-
0
1
Base Part Number
2
Terminal
Sealing
3
Legend
1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING
1
/TERMINATION
1
4A 250VAC; 8A 125VAC
Single Pole
Solder Lugs
PC Term
ON-NONE-ON
62011421
62011422
ON-NONE-(ON)
62011431
62011432
ON-OFF-ON
62011461
62011462
ON-OFF-(ON)
62011471
62011472
(ON)-OFF-(ON)
62011481
62011482
Double Pole
ON-NONE-ON
62012421
62012422
ON-NONE-(ON)
62012431
62012432
ON-OFF-ON
62012461
62012462
ON-OFF-(ON)
62012471
62012472
(ON)-OFF-(ON)
62012481
62012482
2 TERMINAL SEALING
0
none
E
epoxy sealed terminals
3 LEGEND
NO LEGEND
ON-OFF vertical
ON-OFF horizontal
I-O horizontal
I-O vertical
hot stamp
0
A
B
D
G
NOTES
1
()
Base part number specifies black rocker and bezel. To specify paddle actuator, change 2
nd
digit of part number from 2 to 1 (ex. 61012421) For additional ratings and colors, consult factory.
indicates momentary function.
www.carlingtech.com
7
