SMD Shielded Power Inductors - SDT Series
SDT Series
SDT Series is the ultimate cost effective and miniature power inductors.
They are constructed of materials specially developed for surface mount
applications to ensure the best possible reliability and ease of using and
handling.
Because
of
their
“swinging”
inductance
vs.
current
characteristics, the SSL0402 Series supports used as ultra high
inductance at zero or low current.
Features
RoHS compliant
High inductance shielded power inductors
Functions equally well in filter and smoothing circuit applications
Applications
Board mounted DC-DC converters
Miniature power supplies and voltage multiplying circuits
Product Identification
Packaging: T：Tape and Reel

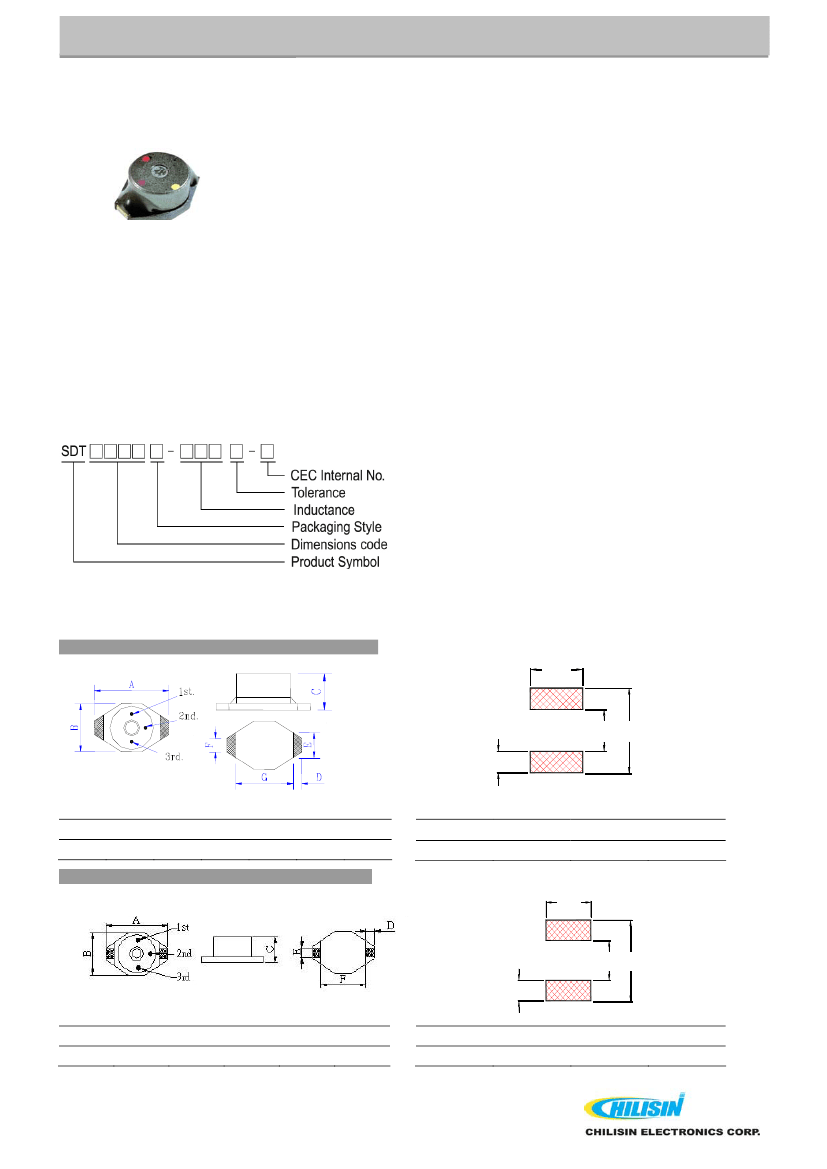

Shape and Dimensions
SDT 0402
Recommended Pattern
C
B
D
A
Dimensions in mm
A
6.60
+0
Dimensions in mm
C
D
+0
B
4.54
+0
E
3.05
F
1.27
G
4.32
A
6.86
B
4.06
C
3.56
D
1.40
2.92
1.02
SDT 0804
C
B
D
Dimensions in mm
A
12.95
+0
A
Dimensions in mm
C
5.08
+0
B
9.4
+0
D
2.54
E
2.54
F
7.62
A
13.21
B
7.37
C
2.79
D
2.92
SMD Shielded Power Inductors – SDT Series
Electrical Characteristics
Specifications
Inductance
(H)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
(±%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DC
Resistance
(Ω) Max
0.045
0.050
0.060
0.070
0.080
0.085
0.095
0.135
0.160
0.275
0.340
0.575
1.100
1.400
2.250
2.900
3.600
4.550
8.100
Self
Resonant
Frequency
(MHz) Typ.
157
108
92
69
59
51
33
26
20
17
12
11
9.4
6.7
6.1
4.7
3.85
3.1
2.3
Operating Parameters
Inductance
Rating
(H)
0.60
0.80
0.90
1.5
2.0
3.0
5.0
6.0
10
12
20
30
40
60
90
100
150
200
400
Current
Rating
(A)
2.0
1.9
1.5
1.2
1.2
1.0
0.7
0.6
0.5
0.45
0.34
0.29
0.24
0.20
0.17
0.16
0.14
0.12
0.08
Energy
Switching
Storage
Frequency
( Joules) Max
Max
1.8
1.8
1.8
1.4
1.6
1.9
1.2
1.1
1.2
1.5
1.3
1.4
1.5
1.4
1.6
1.4
1.5
1.4
1.4
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
500 KHz
500 KHz
500 KHz
500 KHz
500 KHz
500 KHz
Part Number
SDT0402T-1R0M-N
SDT0402T-1R5M-N
SDT0402T-2R2M-N
SDT0402T-3R3M-N
SDT0402T-4R7M-N
SDT0402T-6R8M-N
SDT0402T-100M-N
SDT0402T-150M-N
SDT0402T-220M-N
SDT0402T-330M-N
SDT0402T-470M-N
SDT0402T-680M-N
SDT0402T-101M-N
SDT0402T-151M-N
SDT0402T-221M-N
SDT0402T-331M-N
SDT0402T-471M-N
SDT0402T-681M-N
SDT0402T-102M-N
Inductance tested at 100 KHz,
Measured at the rated current. Refer to curves below for more detail.
Average maximum allowable current. SDT Series inductors are designed for current spikes as high as 2X the current rating
Tolerance: M =
±20%
Operating temperature range
－４０℃½１２５℃
(Including self - temperature rise )

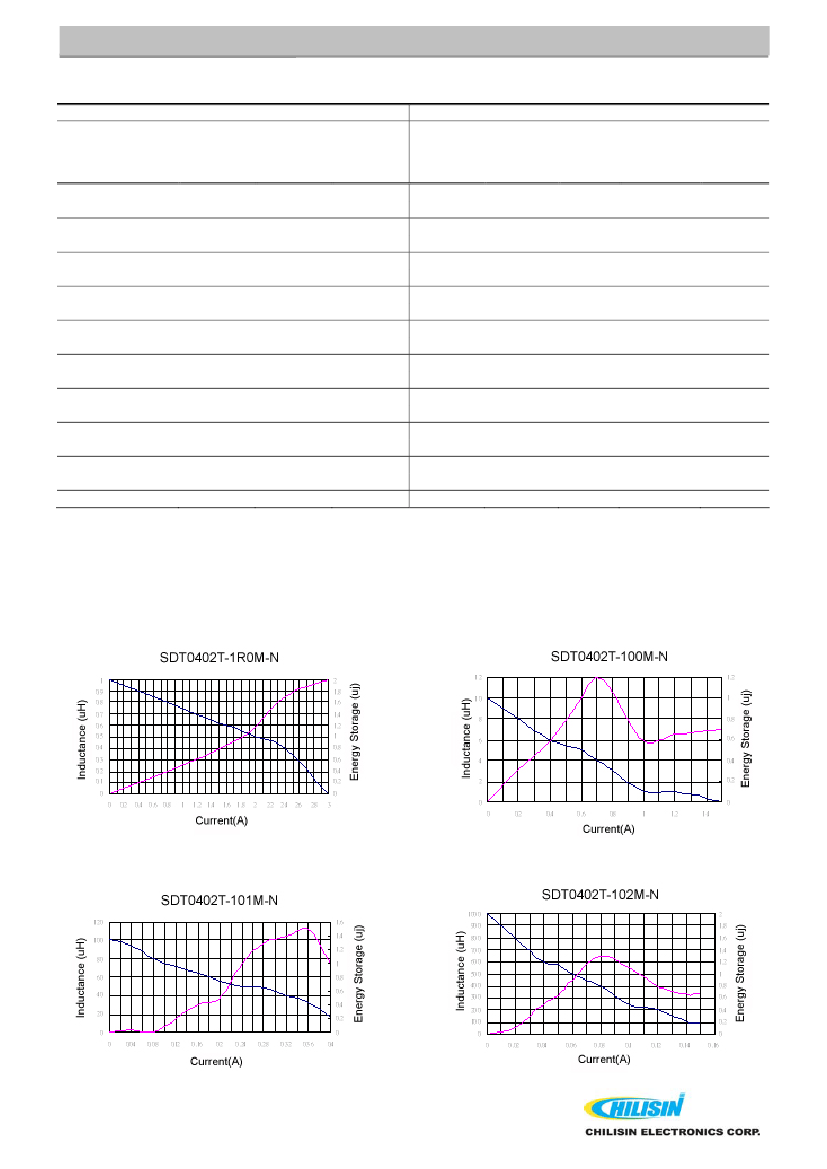

Typical Inductance Energy Storage VS. Current
SMD Shielded Power Inductors – SDT Series
Electrical Characteristics
Specifications
Inductance
(H)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
(±%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DC
Resistance
(Ω) Max
0.025
0.030
0.035
0.040
0.045
0.050
0.055
0.060
0.084
0.090
0.11
0.15
0.29
0.36
0.39
0.73
0.88
1.15
1.45
Self
Resonant
Frequency
(MHz) Typ.
60
55
55
50
45
40
35
25
22
18
16
12
9
8
6
5
4
3
2.5
Operating Parameters
Inductance
Rating
(H)
0.50
0.70
1.00
1.50
2.00
4.00
5.00
6.00
10
12
27
40
50
80
90
150
200
300
420
Current
Rating
(A)
5.0
5.0
5.0
5.0
3.0
2.5
2.0
1.8
1.5
1.3
1.0
0.90
0.80
0.60
0.50
0.40
0.35
0.30
0.25
Energy
Switching
Storage
Frequency
( Joules) Max
Max
9
12
15
16
10
14
11
12
11
13
13
17
15
15
10
13
13
13
13
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
500 KHz
500 KHz
500 KHz
500 KHz
500 KHz
500 KHz
Part Number
SDT0804T-1R0M-N
SDT0804T-1R5M-N
SDT0804T-2R2M-N
SDT0804T-3R3M-N
SDT0804T-4R7M-N
SDT0804T-6R8M-N
SDT0804T-100M-N
SDT0804T-150M-N
SDT0804T-220M-N
SDT0804T-330M-N
SDT0804T-470M-N
SDT0804T-680M-N
SDT0804T-101M-N
SDT0804T-151M-N
SDT0804T-221M-N
SDT0804T-331M-N
SDT0804T-471M-N
SDT0804T-681M-N
SDT0804T-102M-N
Inductance tested at 100 KHz,
Measured at the rated current. Refer to curves below for more detail.
Average maximum allowable current. SDT Series inductors are designed for current spikes as high as 2X the current rating
Tolerance: M =
±20%
Operating temperature range
－４０℃½１２５℃
(Including self - temperature rise )

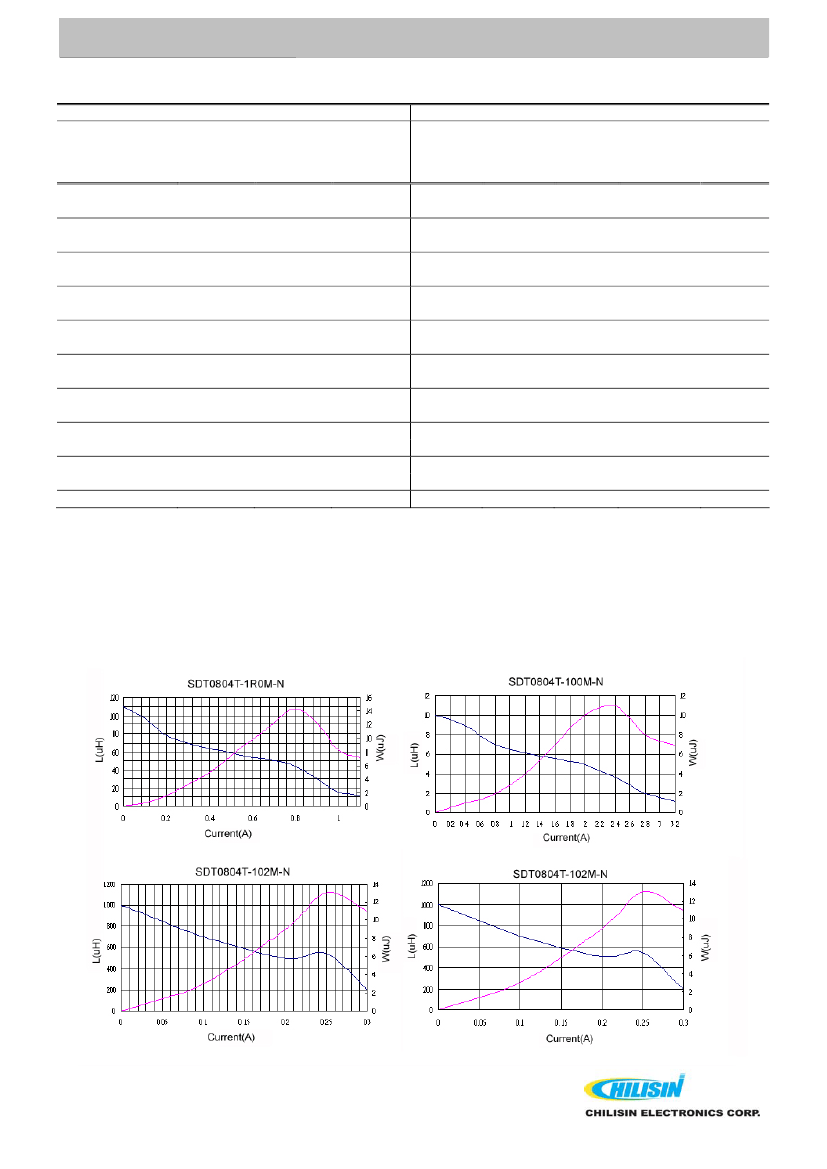

Typical Inductance Energy Storage VS. Current
SMD Shielded Power Inductors - SDT Series
Packaging Specifications

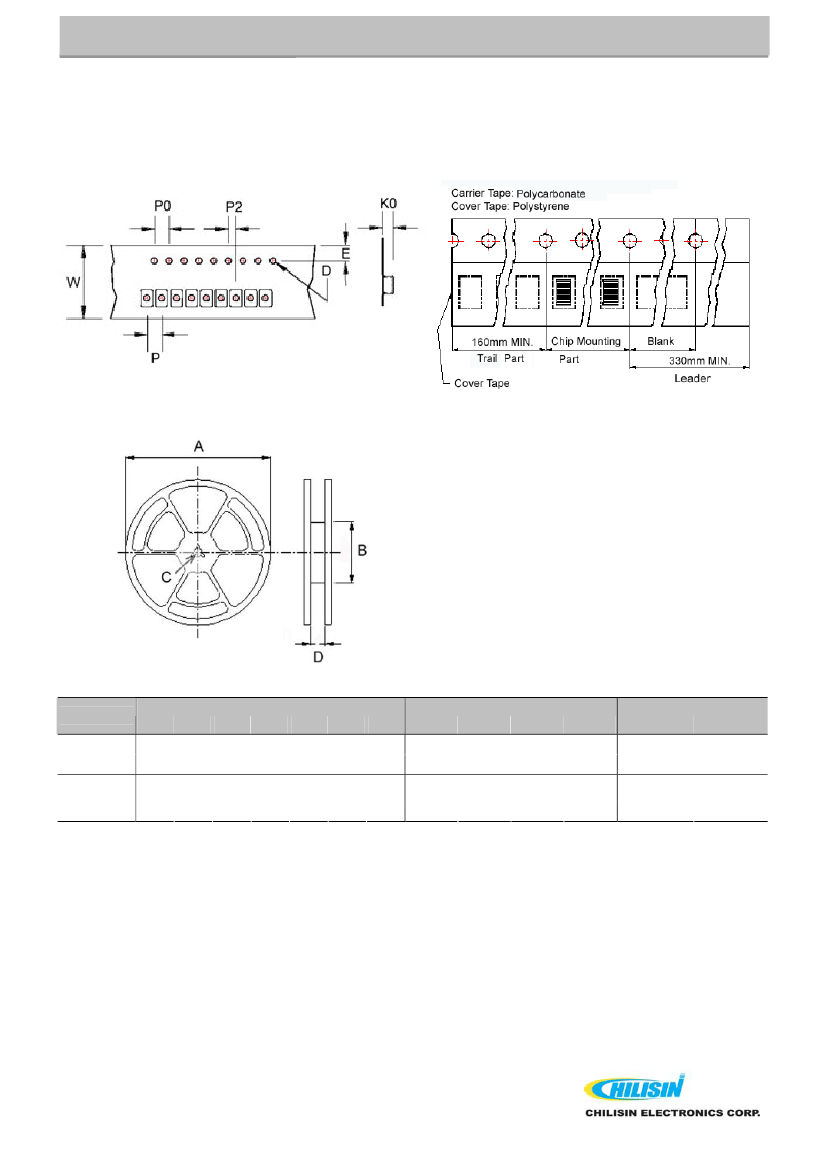

Tape Dimensions
Tape Material
Reel Dimensions
Dimensions in mm
TYPE
Tape Dimensions
K0
3.2
D
1.55
E
1.75
W
12
P
8
P0
4
P2
2
A
330
178
330
Reel Dimensions
B
100
60
100
C
13
D
13.4
13.2
24.4
Quantity (PCS / REEL)
178mm
-
750
-
330mm
2500
-
750
SDT 0402
SDT 0804
5.4
1.55
1.75
24
16
4
2
13
