MOC3163 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MOC3163

MOC3163: Description1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER; CategoryLED optoelectronic/LED photoelectric; File Size529KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

MOC3163 Overview

1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER

MOC3163 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP-6
Reach Compliance Code	compli
Other features	UL APPROVED
Configuration	SINGLE
Maximum forward current	0.06 A
Nominal input trigger current	5 mA
Maximum insulation voltage	7500 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

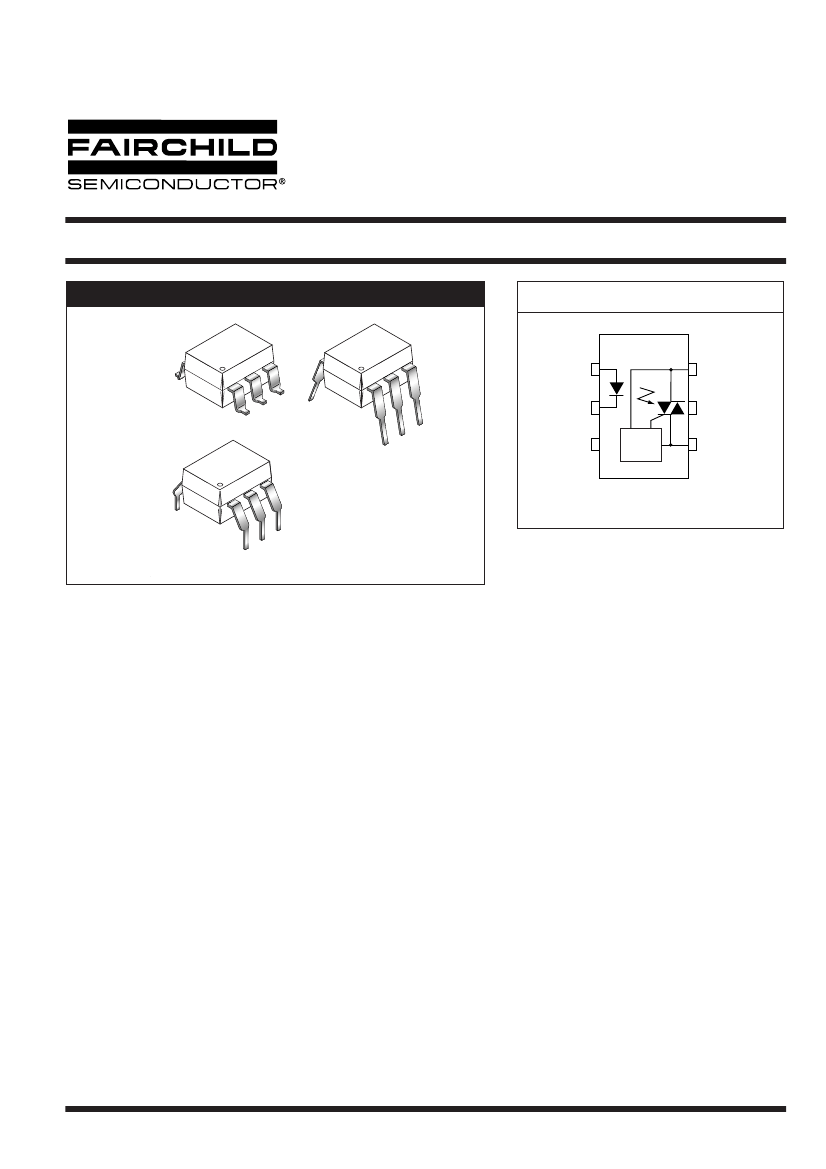

6-PIN DIP ZERO-CROSS

PHOTOTRIAC DRIVER OPTOCOUPLER

(600V PEAK)

MOC3061-M

MOC3062-M

PACKAGE

MOC3063-M

MOC3162-M

MOC3163-M

SCHEMATIC

ANODE 1

6 MAIN TERM.

N/C 3

CATHODE 2

5 NC*

ZERO

CROSSING

CIRCUIT

4 MAIN TERM.

*DO NOT CONNECT

(TRIAC SUBSTRATE)

DESCRIPTION

The MOC306X-M and MOC316X-M devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon

detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the inter-

face of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, sole-

noids and consumer appliances, etc.

FEATURES

• Simpliﬁes logic control of 115/240 VAC power

• Zero voltage crossing

• dv/dt of 1000 V/µs guaranteed (MOC316X-M),

– 600 V/ms guaranteed (MOC306X-M)

• VDE recognized (File # 94766)

– ordering option V (e.g., MOC3063V-M)

• Underwriters Laboratories (UL) recognized (File #E90700, volume 2)

APPLICATIONS

•

Solenoid/valve controls

Static power switches

Temperature controls

AC motor starters

Lighting controls

AC motor drives

E.M. contactors

Solid state relays

Page 1 of 10

5/29/03

MOC3163 Related Products

	MOC3163	MOC3163TM	MOC3163VM	1718571010_17	MOC3063SR2M	MOC3063SM	MOC3062SM	MOC3061TM
Description	1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER	1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER	1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER	2.54mm Pitch, KK 254 RPC Wire-to-Board Right-Angle Header with Friction Lock	OPTOCOUPLER TRIAC 600V 6SMD ZC	1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER	OPTOCOUPLER TRIAC 600V 6SMD ZC	1 CHANNEL TRIAC OUTPUT WITH ZERO CRSVR OPTOCOUPLER
Is it Rohs certified?	incompatible	conform to	conform to	-	conform to	conform to	conform to	conform to
Maker	Fairchild	Fairchild	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP-6	0.400 INCH, DIP-6	DIP-6	-	SURFACE MOUNT, DIP-6	SURFACE MOUNT, DIP-6	SURFACE MOUNT, DIP-6	0.400 INCH, DIP-6
Reach Compliance Code	compli	compli	compli	-	compli	compliant	compli	compli
Other features	UL APPROVED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.06 A	0.06 A	0.06 A	-	0.06 A	0.06 A	0.06 A	0.06 A
Nominal input trigger current	5 mA	5 mA	5 mA	-	5 mA	5 mA	10 mA	15 mA
Maximum insulation voltage	7500 V	7500 V	7500 V	-	7500 V	7500 V	7500 V	7500 V
JESD-609 code	e0	e3	e3	-	e3	e3	e3	e3
Number of components	1	1	1	-	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	-	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V	600 V	600 V	-	600 V	600 V	600 V	600 V
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Is it lead-free?	-	Lead free	Lead free	-	Lead free	Lead free	Lead free	-
Maximum input trigger current	-	0.005 A	0.005 A	-	0.005 A	0.005 A	0.01 A	0.015 A
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT
Maximum on-state voltage	-	3 V	3 V	-	3 V	3 V	3 V	3 V
Peak surge current	-	1 A	1 A	-	1 A	1 A	1 A	1 A
Off-state repetitive peak voltage	-	600 V	600 V	-	600 V	600 V	600 V	600 V
surface mount	-	NO	NO	-	YES	YES	YES	NO
Maximum reverse leakage current	-	-	0.0001 A	-	0.0001 A	0.0001 A	0.0001 A	5e-7 A
