BZT52C2V4-BZT52C75
500mW,5% Tolerance SMD Zener Diode
Small Signal Diode
SOD-123F
B
Features
Wide zener voltage range selection : 2.4V to 75V
V
Z
Tolerance Selection of ±5%
Moisture sensitivity level 1
Matte Tin(Sn) lead finish
Pb free version and RoHS compliant
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
C
A
D
E
F
Unit (mm)
Min
1.5
3.3
0.5
2.5
0.8
0.05
Max
1.7
3.85
0.7
2.7
1.15
0.2
Unit (inch)
Min
Max
0.059 0.067
0.130 0.152
0.020 0.028
0.098 0.106
0.031 0.045
0.002 0.008
Mechanical Data
Case : Flat lead SOD-123 small outline plastic package
Terminal: Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
High temperature soldering guaranteed: 260°C/10s
Polarity : Indicated by cathode band
Weight : 8.85±0.5 mg
Dimensions
A
B
C
D
E
F
Ordering Information
Package
SOD-123F
SOD-123F
Part No.
BZT52Cxx RH
BZT52Cxx RHG
Packing
3Kpcs / 7" Reel
3Kpcs / 7" Reel
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation @ T
L
=75°C (Lead Temperature)
Forward Voltage
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
I
F
=10mA
(Note 1)
Symbol
P
D
V
F
RθJA
T
J
, T
STG
Value
500
1
350
-65 to + 150
Units
mW
V
°C/W
°C
Notes:1. Valid provided that electrodes are kept at ambient temperature
Zener I vs. V Characteristics
Current
I
F
V
ZM
V
Z
V
BR
V
R
I
R
I
ZK
V
F
Voltage
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
Forward Region
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
I
ZT
I
ZM
BreakdownRegion
Leakage Region
I
ZM
V
ZM
Version :E12
BZT52C2V4-BZT52C75
500mW, 5% Tolerance SMD Zener Diode
Small Signal Diode
Electrical Characteristics
Ta = 25°C unless otherwise noted
VF Forward Volatge = 1 V Maximum @ IF = 10mA for all part numbers
Part Number
BZT52C2V4
BZT52C2V7
BZT52C3V0
BZT52C3V3
BZT52C3V6
BZT52C3V9
BZT52C4V3
BZT52C4V7
BZT52C5V1
BZT52C5V6
BZT52C6V2
BZT52C6V8
BZT52C7V5
BZT52C8V2
BZT52C9V1
BZT52C10
BZT52C11
BZT52C12
BZT52C13
BZT52C15
BZT52C16
BZT52C18
BZT52C20
BZT52C22
BZT52C24
BZT52C27
BZT52C30
BZT52C33
BZT52C36
BZT52C39
BZT52C43
BZT52C47
BZT52C51
BZT52C56
BZT52C62
BZT52C68
BZT52C75
Device
Marking
2V4Z
2V7Z
3V0Z
3V3Z
3V6Z
3V9Z
4V3Z
4V7Z
5V1Z
5V6Z
6V2Z
6V8Z
7V5Z
8V2Z
9V1Z
10VZ
11VZ
12VZ
13VZ
15VZ
16VZ
18VZ
20VZ
22VZ
24VZ
27VZ
30VZ
33VZ
36VZ
39VZ
43VZ
47VZ
51VZ
56VZ
62VZ
68VZ
75VZ
V
Z
@ I
ZT
(Volt)
Min
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.11
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
Nom
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
5.10
5.60
6.20
6.80
7.50
8.20
9.10
10.00
11.00
12.00
13.00
15.00
16.00
18.00
20.00
22.00
24.00
27.00
30.00
33.00
36.00
39.00
43.00
47.00
51.00
56.00
62.00
68.00
75.00
Max
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.86
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
Z
ZT
@ I
ZT
(Ω)
Z
ZK
@ I
ZK
(Ω) I
R
@ V
R
(μA)
I
ZK
(mA)
V
R
(V)
Max
Max
Max
100
100
100
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
188
212
212
235
235
282
282
306
329
329
353
353
376
400
423
447
470
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
1
1
1
1
1
1
1
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
Notes:
1. The Zener Voltage (V
Z
) is tested under pulse condition of 10ms.
2. The device numbers listed have a standard tolerance on the nominal zener voltage of
±5%.
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and
tighter voltage tolerances, contact your nearest
Taiwan semiconductor
representative.
4. The Zener impedance is derived from the 60-cycle ac volatge, which results when an ac current having an rms value
equal to
Version :E12
BZT52C2V4-BZT52C75
500mW, 5% Tolerance SMD Zener Diode
Small Signal Diode

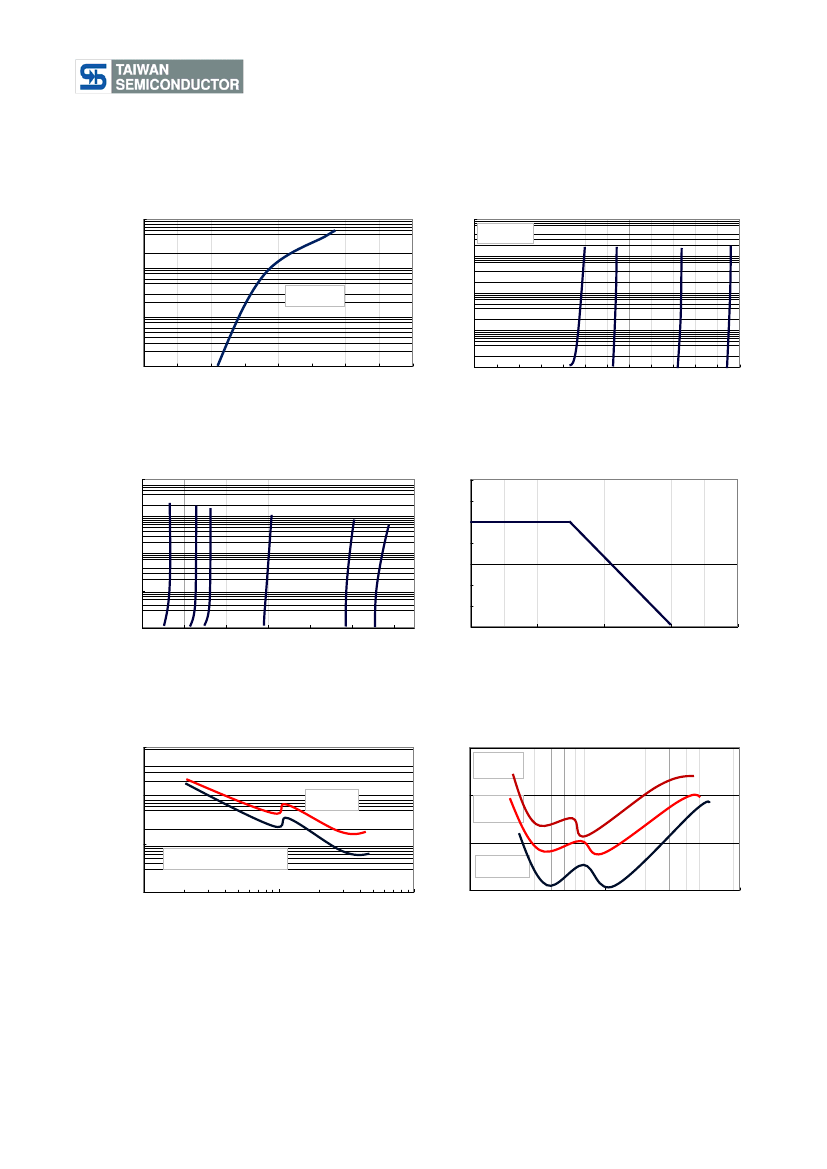

Rating and Characteristic Curves
FIG 2 Zener Breakdown Characteristics
100
FIG 1 Typical Forward Characteristics
1000
Forward Current (mA)
Zener Current (mA)
Ta=25°C
10
100
Ta=25°C
10
1
0
0.1
1
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
0.01
0
0
1
2
3
4
5
6
7
8
9
10
11
12
Forward Voltage (V)
Zener Voltage (V)
FIG 3 Zener Breakdown Characteristics
100
700
FIG 4 Power Disspation Curve
Power Dissipation (mW)
600
500
400
300
200
100
0
Zener Current (mA)
10
1
0
0
15
25
35
45
55
65
75
0
50
100
150
200
Zener Voltage (V)
Terminal Tempeture (°C)
FIG 5 Typical Capacitance
Dynamic Impedence (Ώ)
1000
1000
FIG 6 Effect of Zener Voltage on Impedence
Iz=1mA
Capacitance(pF)
100
1V Bias
100
Iz=5mA
Ta=150°C
10
Bias at 50% of VZ(Nom)
10
Iz=20mA
1
Ta=25°C
1
1
10
100
1
10
100
Zener Voltage (V)
Zener Voltage (V)
Version :E12
